TQ8-AT240B1ANDigital Car AVNT System

Quick Manual Contents Before using ............................................................................................................4 1 Precaution for safe usage .................................................................................4 2 Component Names and Functions .....................................................................4 2.1 Head Unit ................................................................................................4 2.2 Steering Wheel Remote Controller............................................................5 First starting............................................................................................................6 1 Turning the System On/Off ...............................................................................6 1.1 Turning the System On ............................................................................6 1.2 Turning the System Off ............................................................................6 2 Resetting the System .......................................................................................6 3 Battery Warning Message .................................................................................7 4 Auto Video Lock(Driving Regulations) ..............................................................8 PART 1. About HOME screen.....................................................................................9 Chapter 1. Menu structure in HOME screen ..........................................................9 1.1 All Menus .............................................................................................. 10 1.2 My Menu ................................................................................................ 10 1.3 My Menu Settings .................................................................................. 11 PART 2. AV ............................................................................................................ 12 Chapter 1. Radio Mode ...................................................................................... 12 Chapter 2. Media............................................................................................... 14 2.1 CD Mode................................................................................................ 15 2.2 MP3 CD Mode......................................................................................... 16 2.3. USB Mode............................................................................................. 18 2.4 iPod Mode ............................................................................................. 22 2.5 AUX Mode............................................................................................ 24 2.6 Bluetooth Audio Mode............................................................................ 25 2.7 My Music Mode ...................................................................................... 26 PART 3. Phone ....................................................................................................... 28 Chapter 1. Before using Bluetooth..................................................................... 28 1.1 Guidance for how to use Bluetooth Handsfree ......................................... 28 1.2 Caution for Safety.................................................................................. 28 1.3 Caution for connecting Bluetooth Phone................................................. 28 Chapter 2. Bluetooth Connection....................................................................... 29 2.1 Add a new device................................................................................... 29 ▶2.1.1 Add a new device through selecting PHONE Key/CALL Key .......... 29 ▶2.1.2 Add a new device through Phone Settings ................................... 29 2.2 Connect a Bluetooth Device ................................................................... 29 2.2.1 Connect a device through selecting [PHONE]/[CALL] Key............... 29 2.2.2 Connect a device through Phone Settings....................................... 29 2.3 Disconnect Bluetooth device.................................................................. 30 2.4 Delete Bluetooth device ......................................................................... 30 Chapter 3. Bluetooth Phone............................................................................... 30 3.1 Bluetooth Status Icon ............................................................................ 30 3.2 Make a call ............................................................................................ 31 3.3 Accept/Reject a call............................................................................... 32 3.4 Controlling menu while calling ............................................................... 32 3.5 Call History ........................................................................................... 32 3.6 Contacts................................................................................................ 33 3.7 Favorites ............................................................................................... 33 Chapter 4. Phone Settings................................................................................. 34 4.1 Bluetooth Connection Settings............................................................... 34 4.2 Auto Connection Priority........................................................................ 34 4.3 Ringtone ............................................................................................... 34 4.4 Audio Streaming.................................................................................... 35 4.5 System Bluetooth Info............................................................................ 35 PART 4. Blue Link .................................................................................................. 36 Chapter 1…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 16 January 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel Jeong of SGS Korea Co., Ltd.(hereafter referred to as SGS Korea) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel Jeong of SGS Korea Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)usecertification only to indicate the products are certified as being in conformity specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a manner; h)ensure that any reference to our product certif documents, brochures or advertising, complies with the requirements of Division; i)keep a record of all complaints made known to the us relating to the product’s with requirements of the rel Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements for k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd. Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135 Tel. 82-31-288-5232/ Fax. 82 certification only to indicate the products are certified as being in conformity endeavor to ensure that no certificate or report nor any part thereof is used in a ensure that any reference to our product certification in communication media documents, brochures or advertising, complies with the requirements of keep a record of all complaints made known to the us relating to the product’s with requirements of the relevant standard and to make these records Certification Division when requested; take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements forcertification; document the actions taken. This authorization is valid until further written notice from the applicant. Hyundai MOBIS Co., Ltd. gu, Seoul, 135-977, Korea / Fax. 82-31-280-2764 certification only to indicate the products are certified as being in conformitywith endeavor to ensure that no certificate or report nor any part thereof is used in amisleading ication in communication mediasuch as documents, brochures or advertising, complies with the requirements ofthe Certification keep a record of all complaints made known to the us relating to the product’scompliance evant standard and to make these recordsavailable to take appropriate action with respect to such complaints and any deficienciesfound in certification;

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 21 February 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID:TQ8-AT240B1AN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,Hyundai MOBIS Co., Ltd.hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for180days after the grant as outlined in Public Notice DA 04-1705. This provision will giveHyundai MOBIS Co., Ltd.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1Block Diagram 2Operational Descriptions 3Schematics 4Tune Up Procedure 5Part List Short-Term 4External Photos 5Internal Photos 6Test-Setup Photos 7User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd.

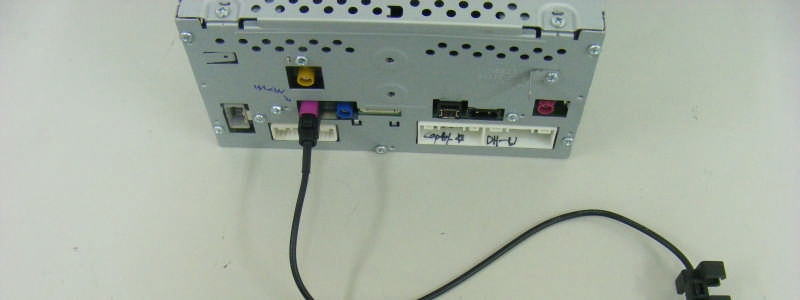

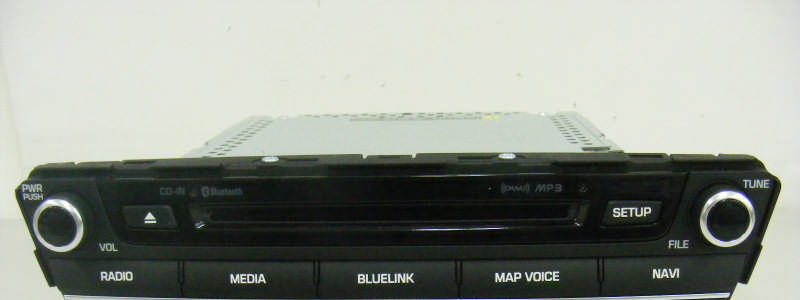

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT WLAN Antenna of EUT WLAN Antenna

Hyundai MOBIS Co., Ltd. FCC MODEL:AT240B1AN FCC ID:TQ8-AT240B1AN This device complies with part 15 of the FCC Rules. Operation is Subject to the following to conditions: (1) This device may not cause harmful interference, and (2) The device must accept any interference received, Including interference that may cause undesired operation Made in Korea MANUFACTURED BY HYUNDAI MOBIS FRONT LABEL LOCATION PRODUCT LABEL AT240B1AN LABELInformation LABEL TOP Non­removable

Internal photos of EUT Inner of EUT Top view of Main PCB1 Bottom view of Main PCB1 Top view of Main PCB2 Bottom view of Main PCB2 Top view of front PCB Bottom view of front PCB Top view of CD player PCB Bottom view of CD player PCB Top view of SD card PCB Bottom view of SD card PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of module PCB1 Bottom view of module PCB1 Top view of module PCB2 Bottom view of module PCB2 Top view of module PCB3 Bottom view of module PCB3 View of BT Antenna BT Antenna

Report Number: F690501/RF-RTL006251-2 Page: 2 of 65 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX TABLE OF CONTENTS Page 1. General Information -------------------------------------------------------------------------------------- 3 2. RF radiated output power & spurious radiated emission --------------------------------------- 8 3. Conducted Output Power ------------------------------------------------------------------------------- 17 4. Occupied Bandwidth 99 % ------------------------------------------------------------------------------ 21 5. Peak-Average Ratio -------------------------------------------------------------------------------------- 31 6. Spurious Emissions At Antenna Terminal----------------------------------------------------------- 36 7. Band Edge -------------------------------------------------------------------------------------------------- 49 8. Frequency Stability --------------------------------------------------------------------------------------- 58 9. RF Exposure Evaluation--------------------------------------------------------------------------------- 63 Report Number: F690501/RF-RTL006251-2 Page: 3 of 65 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of applicant Applicant : HYUNDAI MOBIS CO., LTD. Address : 80-9, Mabook-Dong, Giheung-Gu, Yongin-shi, Gyunggi-Do, 446-912, South Korea Contact Person : Kim, Jong-Tae Phone No. : +82 31 260 0092 1.3. Description of EUT Kind of Product DIGITAL CAR AVNT SYSTEM Model Name AT240B1AN Serial Number N/A Power Supply DC 14.4 V (Vehicle Battery) Rated Power CDMA800: 24 ㏈m CDMA1 900: 24 ㏈m Frequency Range CDMA800: 824.70 ㎒ ~ 848.31 ㎒ CDMA1900: 1 851.25 ㎒ ~ 1 908.75 ㎒ Antenna Gain CDMA800: 1.34 ㏈i CDMA1 900: 4.02 ㏈i Support Mode 1xRTT, 1xEV-DO Emission Designator CDMA800 (1xRTT): 1M27F9W CDMA1 900 (1xRTT): 1M27F9W CDMA800 (1xEV-DO): 1M27F9W CDMA1 900 (1xEV-DO): 1M27F9W 1.4. Declaration by the manufacturer - CDMA antenna is mounted on a vehicle with DH H/U in pairs, and it does not use the other kind of antennas. Report Number: F690501/RF-RTL006251-2 Page: 4 of 65 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Description of test mode The transmitter has a maximum average output power as follows: 1xRTT Cellular Band Frequency (㎒) Service Option (SO) Channel Average Output Power (㏈m) 824.70 RC5 9 (Loopback) 1 013 23.61 836.52 384 24.19 848.31 777 24.02 PCS Band Frequency (㎒) Service Option (SO) Channel Average Output Power (㏈m) 1 851.25 RC1 55 (Loopback) 25 23.39 1 880.00 600 23.64 1 908.75 1 175 23.77 1xEV-DO Release 0 Cellular Band - RTAP Frequency (㎒) RTAP Rate Channel Average Output Power (㏈m) 824.70 9.6 1 013 23.61 836.52 384 24.18 848.31 777 23.98 PCS Band - RTAP Frequency (㎒) RTAP Rate Channel Average Output Power (㏈m) 1 851.25 76.8 25 23.42 1 880.00 600 24.06 1 908.75 1 175 23.84 CDMA (800 / 1 900) We found out the test mode with the highest power level after we investigated average output power of all the modulations and (or) data rates for each mode. So we chose below test mode as a representative of worst case. - CDMA (800) 1xRTT : RC5 / 9 (Loopback), 1xEV-DO Rel0 : RTAP / 9.6 - CDMA (1 900) 1xRTT : RC1 / 55 (Loopback), 1xEV-DO Rel0 : RTAP / 76.8 Report Number: F690501/RF-RTL006251-2 Page: 5 of 65 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Sample calculation for offset Where relevant, the following sample calculation is provided: 1.6.1. Conducted test Offset value (㏈) = Directional Coupler (㏈) + Attenuator (㏈) + Cable loss (㏈) 1.6.2. Radiation test E.R.P. & E.I.R.P. = [S.G level + Amp.](㏈m) - Cable loss(㏈) + Ant. gain (㏈d/㏈i) Report Number: F690501/RF-RTL006251-2 Page: 6 of 65 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.7. Test equipment list Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due. Signal Generator R&S SMBV100A 255834 Jul. 02, 2012 Annual Jul. 02, 2013 Signal Generator R&S SMR40 100272 Aug. 23, 2012 Annual Aug. 23, 2013 Spectrum Analyzer Agilent E4440A MY43362142 Mar. 29, 2012 Annual Mar. 29, 2013 Spectrum …
