TQ8-ATB41HSANCar Audio System

CAR INFOTAINMENT SYSTEM QUICK REFERENCE GUIDE (영어ｌ미국) 표준5Wide Be sure to read this User’s Manual before using the product to ensure safety and usability. To access the online manual for Car Infotainment System, scan the QR code. 1 [ This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [ The design and specification of the system may change without prior notice for performance improvement. [ In order to improve the product performance, the functions and services in this manual are subject to change without notice. In case of software update, the screens in this manual may differ from actual ones on the product. [ For more information about the functions and services updated for performance improvement, access the online user's manual. [ Functions and services in this manual may differ from those in the actual vehicle. For more details, refer to the owner’s manual or brochure of your vehicle. [ Your system is not compatible with the system software and map data for regions outside of the country of purchase. Car Infotainment System User’s Manual 2 Available materials for operation Quick Reference Guide Provided in the format of a booklet. It provides brief information of the system, including basic controls and main functions. User's Manual on Web To see the information while using the system, touch Menu > User's Manual on Web (QR Code). By scanning the QR code with your smartphone, you can access the online user's manual. 3 Symbols in this User’s Manual Warning Indicates very important information directly related to user safety. Failure to follow instructions may cause serious injury. Caution Indicates important information directly related to user safety. Failure to follow instructions may cause minor injury or vehicle damage or breakdown. Note Indicates helpful information for operation of the product. If equipped Indicates descriptions for optional features, which may not be available on your specific vehicle depending on the model or trim level. This guide covers specifications for all vehicle models, including optional specifications. It may include descriptions for features that are not equipped in your vehicle or are unavailable for your vehicle model. HEV only Displays only the functions that can be used in a hybrid vehicle. PHEV only Displays only the functions that can be used in a plug-in hybrid vehicle. EV only Displays only the functions that can be used in an electric vehicle. 4 Be sure to keep the following instructions. Otherwise, it may cause serious injury or accident. Ý Driving Obey all traffic laws while driving.  Relying solely on the navigation system may cause violation of traffic rules and regulations, resulting in an accident. In order to check the vehicle speed, see the speedometer first, not the speed on the navigation system.  The speed on the navigation system may differ from actual vehicle speed. While driving, refrain from watching the screen.  An accident may occur by negligence in keeping your eyes forward.  To manipulate the screen or buttons requiring multiple steps, be sure to stop your vehicle. To use your mobile phone, first stop your vehicle.  When you use your mobile phone while driving, it may disperse your attention, resulting in an accident.  If necessary, use handsfree (Bluetooth) calling when driving and minimize the call time. Make sure that the volume of the phone is sufficiently low so that the external sound is audible.  When you drive with no external sound present may cause a traffic accident.  When you drive for a long time with a loud audio volume, it may affect your hearing. For emergency services (e.g. hospital, fire station), do not rely solely on the navigation system.  Some emergency services may not be included in the navigation map. Check relevant information in advance to stay prepared for an emergency. Ý System handling Do NOT arbitrarily disassemble or modify the system.  It may cause an accident, fire, or electric shock. Exercise caution to make sure that no liquid or foreign materials enter the system.  It may cause smoke generation, fire ignition, or system failure. When the screen is not displayed, the volume is muted, or other system failures occur, immediately stop using the system.  Otherwise, it may cause fire, electric shock, or fatal system failure. AA If you experience any problems with the system, contact your place of purchase or dealer. Safety Warnings 5 Ü System handling Do NOT apply excessive force to the system.  When you apply excessive pressure to the screen, the LCD panel or touch panel may get damaged. To clean the screen or button panel, first turn off the vehicle and then use a dry, soft cloth to wipe it.  Do not wipe using a rough or hard cloth, chemical fiber, organic solvent (e.g. alcohol, benzene, thinner), or air freshener. The panel surface may become scratched or damaged due to a chemical reaction. When you install an air freshener on the air conditioner vent, the surface may be deformed due to leakage. AA If you experience any problems with the system, contact your place of purchase or dealer. Be sure to keep the following instructions. Otherwise, it may cause minor injury or system damage. Ü Operation Use the system with the vehicle started.  When you use the system for a long time with the vehicle stopped, it may cause battery discharge. Do NOT arbitrarily install an unauthorized aftermarket product in your vehicle.  Using unapproved products may cause an error while using the system.  System errors caused by installing unapproved products are not covered under the warranty. Safety Precautions 6 Contents 01 System overview Component names and functions 1-2 Control panel 1-2 Steering wheel remote control 1-3 Turning the system on or off 1-4 Turning on the system 1-4 Turning off the system 1-5 Using the touch screen 1-6 “Touch” gesture 1-7 “Touch and hold” gesture 1-7 “Slide” gesture 1-…

Text truncated - open the document above for the full version.

Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Agent Authorization Letter Date : Nov. 9, 2017 Rev : 2.3 HACS-F004 FCC Agent Authorization Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 2.3 Fixed Typo “Agent” 11/09/2017 QM HYUNDAI MOBIS CO., Ltd HACS-F004 FCC Agent Authorization Letter Rev : 2.3 DATE : March 27, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject : FCC Agent Authorization Letter for FCC ID : TQ8-ATB41HSAN We, the undersigned, hereby authorize HCT CO.,LTD to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO.,LTD on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). We recognize that we are still responsible for the terms and conditions outlined in the HCT America Client Services Agreement. This authorization is valid until further written notice from the applicant. Sincerely, Signed by: Seung Hoon Choe / Representative HYUNDAI MOBIS CO., LTD 203, Teheran-ro Gangnam-gu, Seoul, South Korea

Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter Date : Nov. 09, 2017 Rev : 3.0 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 1726 Ringwood Avenue San Jose, CA 95131 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 2 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC REVISION TABLE Rev Description of Change Date Approved 1.0 Original Release(Obsolete) 06/14/2012 QM 2.0 Updated template(Obsolete) 10/01/2012 QM 2.1 Updated address(Obsolete) 01/10/2014 QM 2.2 Updated address 11/18/2016 QM 3.0 Updated LTC and STC Confidentiality table 11/09/2017 QM HYUNDAI MOBIS CO., Ltd HACS-F003 FCC Confidentiality Request Letter Rev : 3.0 DATE : March 27, 2020 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : TQ8-ATB41HSAN We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM CONFIDENTIAL (180 DAYS) 5External Photos 6Internal Photos 7Test-Setup Photos 8User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Seung Hoon Choe / Representative HYUNDAI MOBIS CO., LTD 203, Teheran-ro Gangnam-gu, Seoul, South Korea 4 Part List

Label Location Label ATB40HSAN FCC ID: TQ8-ATB41HSAN Contains FCC ID : YZP-VL3000 ATB41HSAN FCC ID: TQ8-ATB41HSAN Contains FCC ID : YZP-VL3000

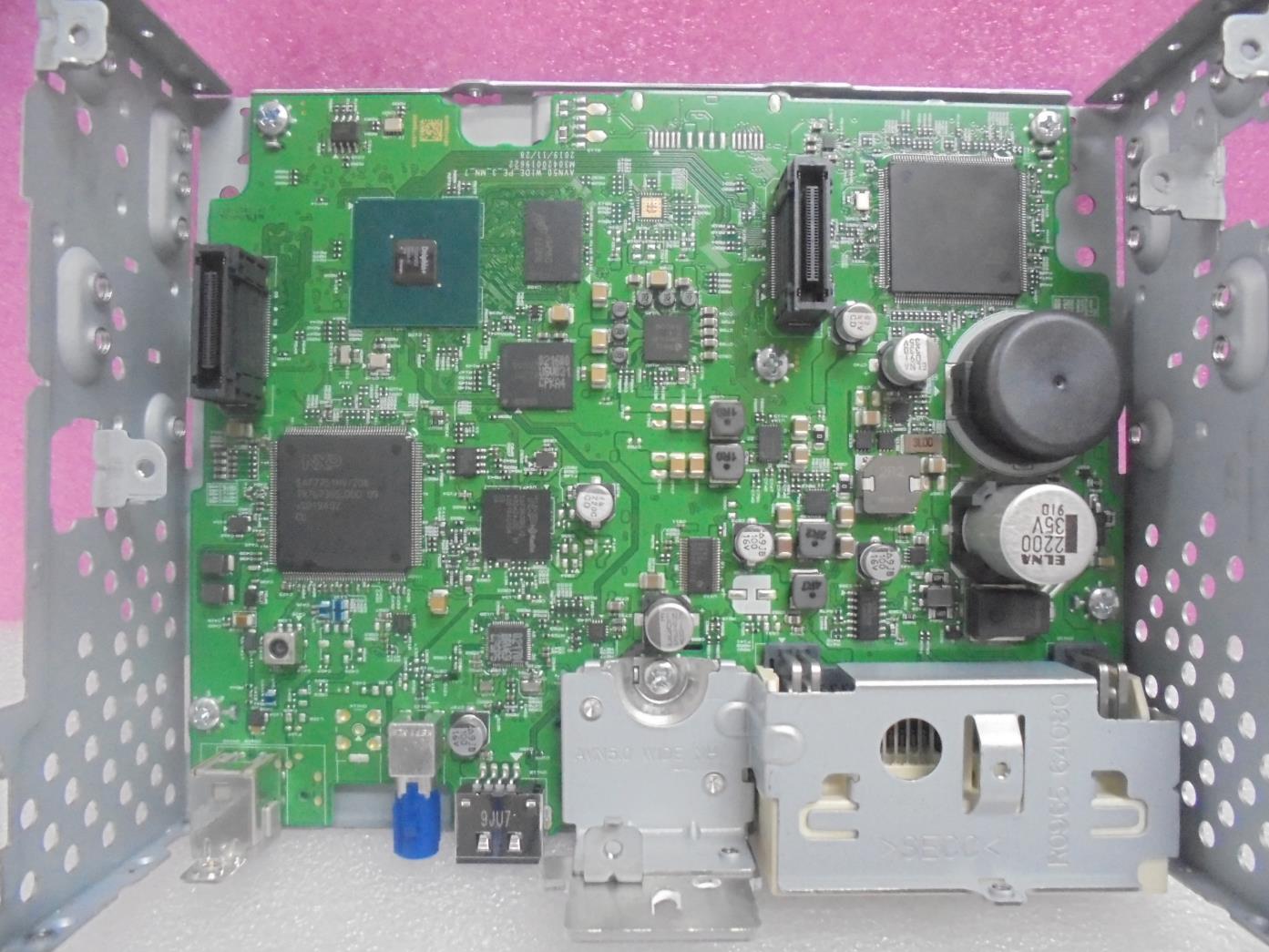

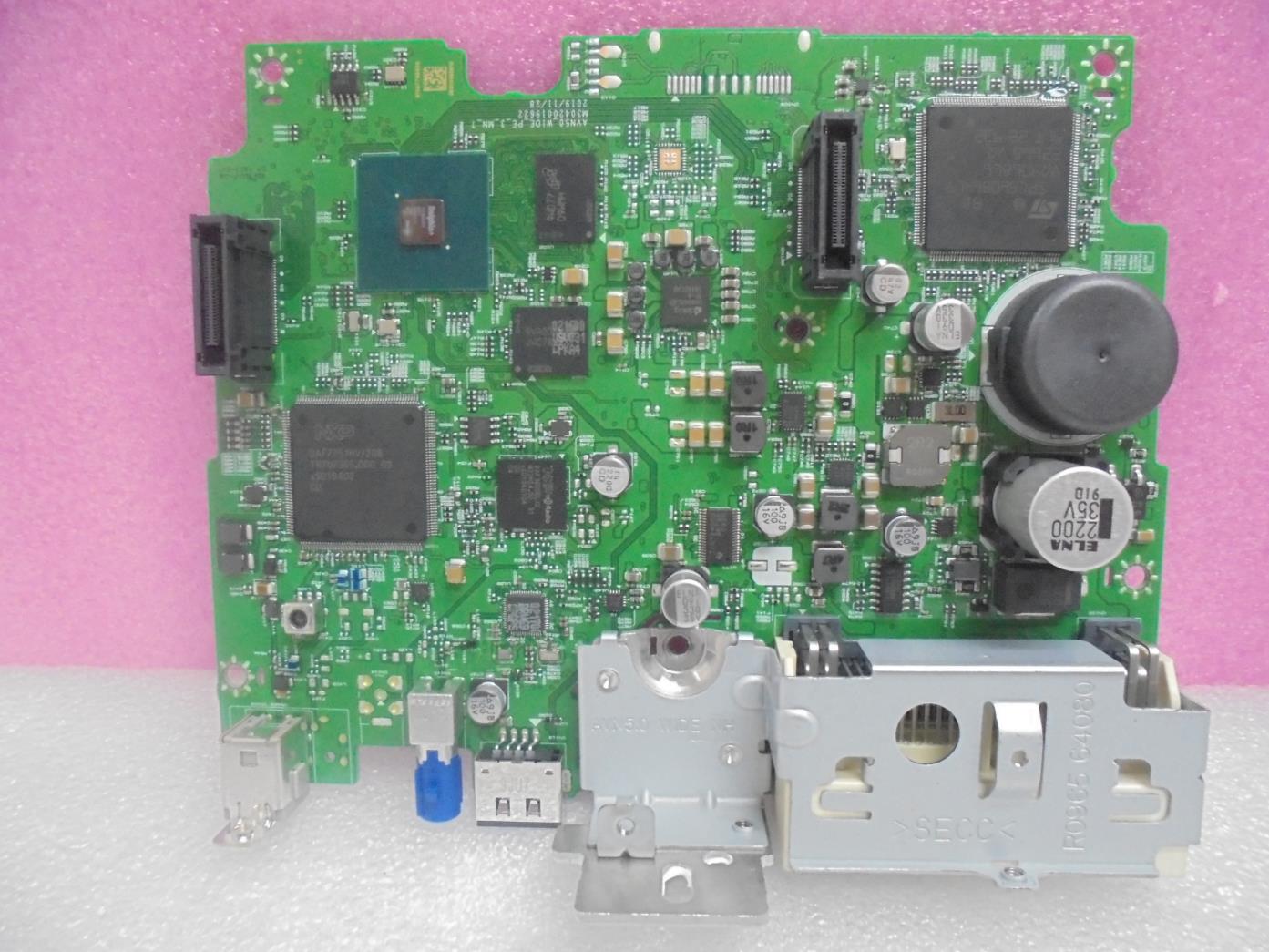

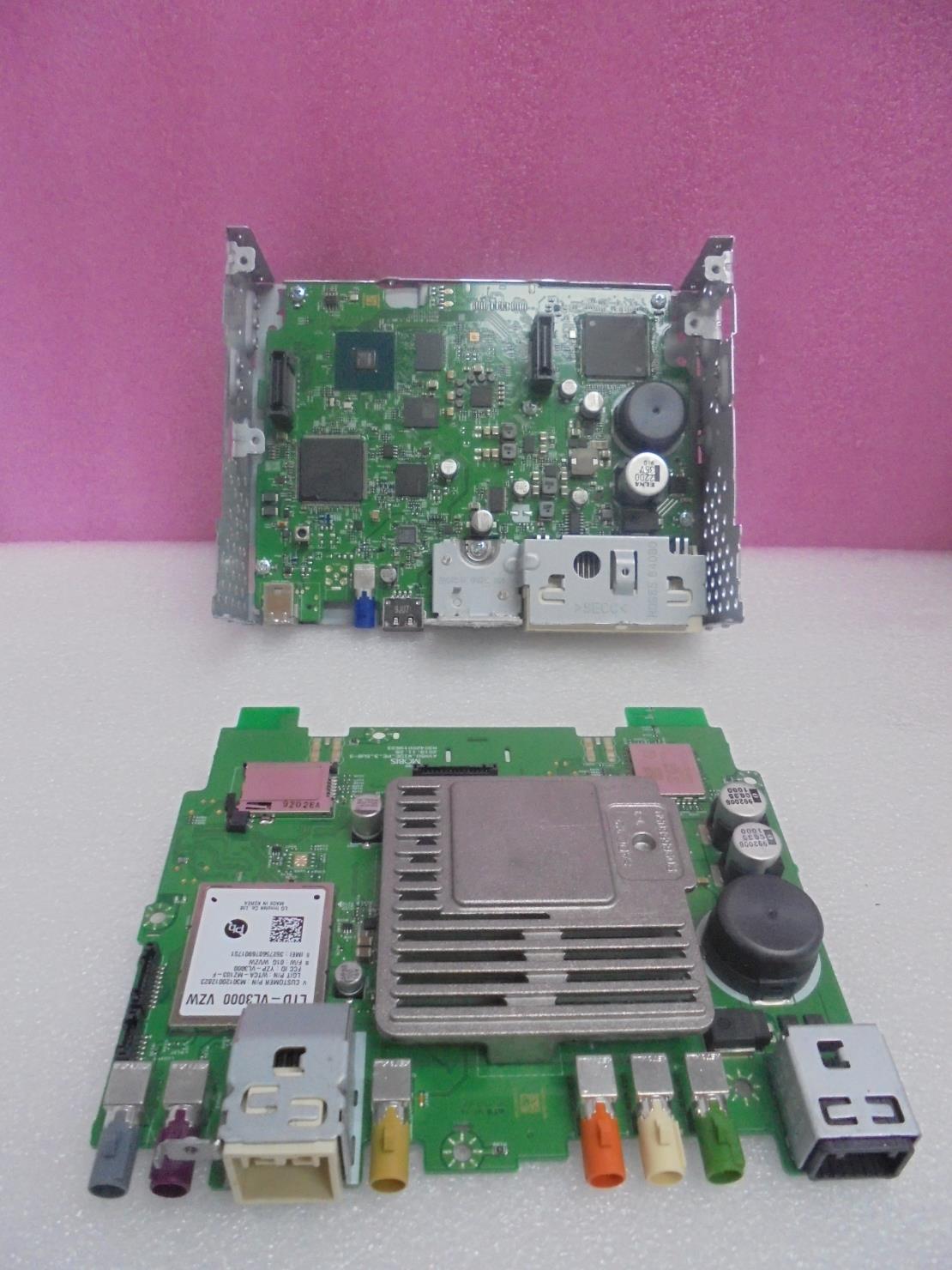

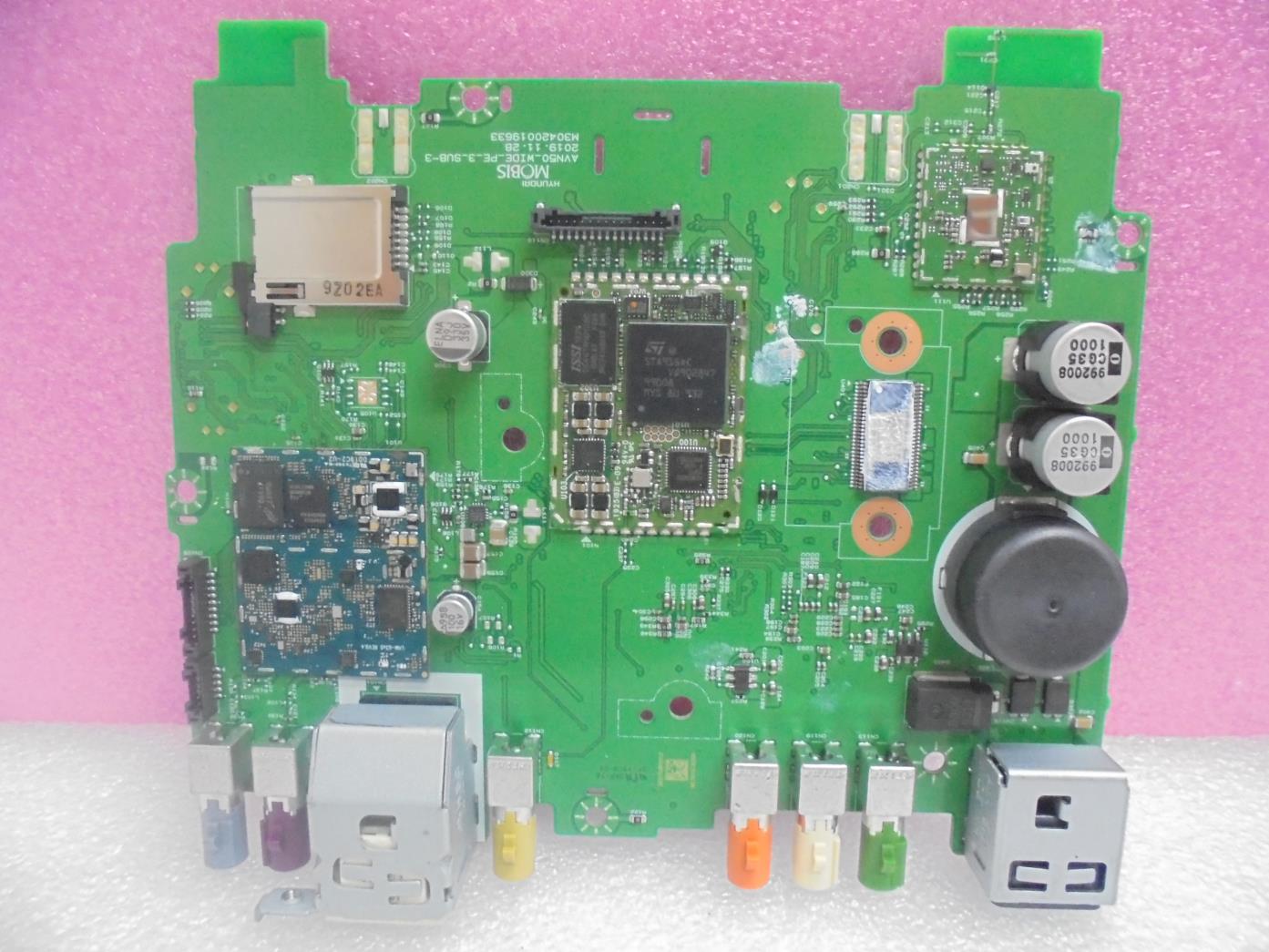

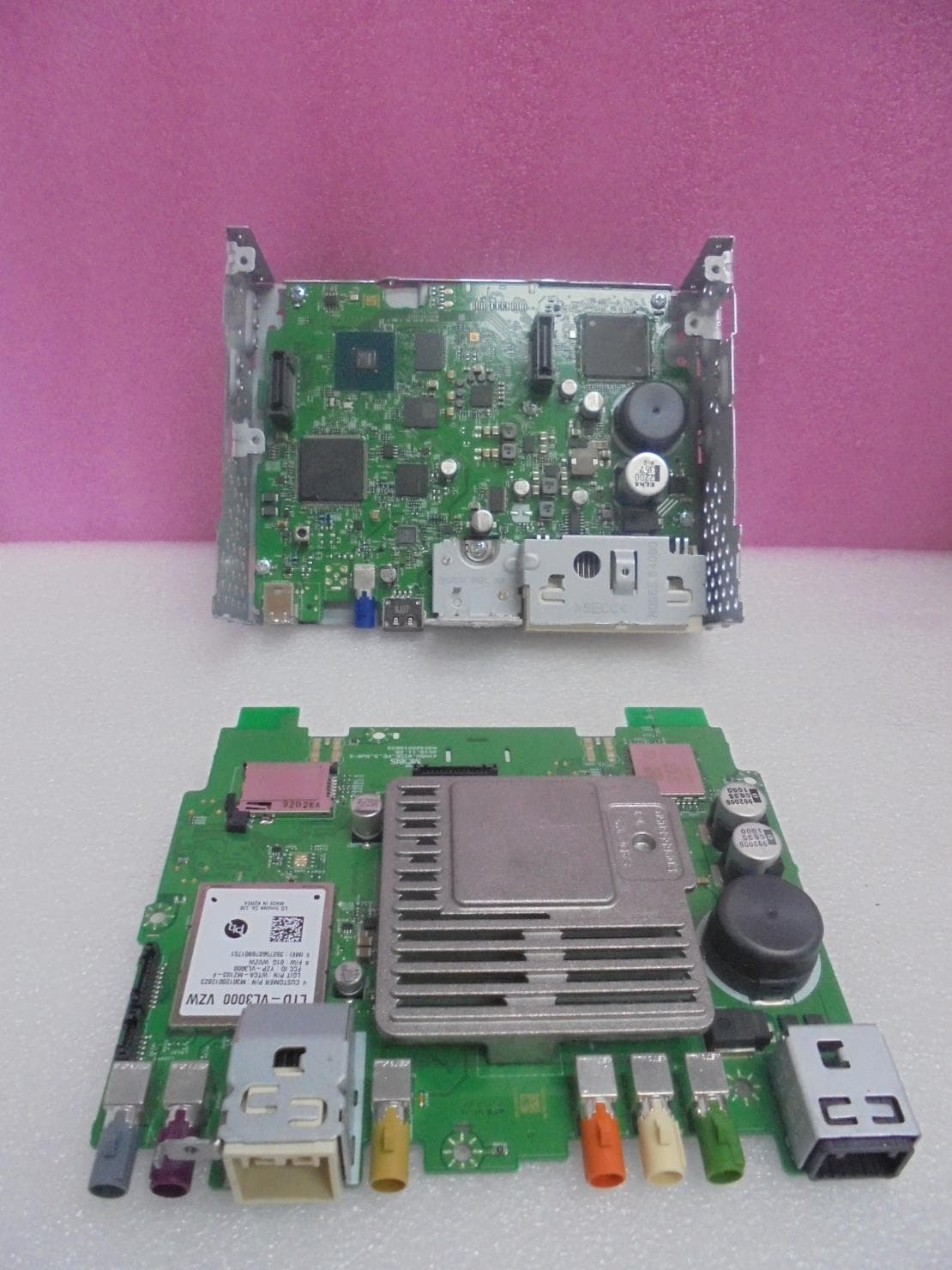

FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 18 INTERNAL PHOTOGRAPHS FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １６ of 18 ■ INTERNAL PHOTO FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １７ of 18 ■ INTERNAL PHOTO(Antenna) BT Antenna FCC ID: TQ8-ATB41HSAN HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １８ of 18 ■ INTERNAL PHOTO(Antenna) WIFI Antenna

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC MPE Test for ATB41HSAN Certification APPLICANT HYUNDAI MOBIS CO., LTD. REPORT NO. HCT-RF-2003-FI010 DATE OF ISSUE March 20, 2020 Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 3 of 13 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of IssueDescription 0 March 20, 2020Initial Release Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 4 of 13 RF Exposure Statement 1. Limit According to §1.1310, §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1.34 - 30 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 30 - 300 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 300 - 1500 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 1500 - 100.000 ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ ̆ 614 824/f 27.5 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... 1.63 2.19/f 0.073 ̆ ̆ ̆ ̆... ̆ ̆ ̆ ̆... *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance S=PG/4πR ଶ S = Power density P = Power input to antenna G = Power gain to the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 5 of 13 3. RESULTS 3-1. Bluetooth Average output Power at antenna input terminal 4.000 dBm Average output Power at antenna input terminal 2.512 mW Prediction distance 20.00 cm Prediction frequency 2402 ˊ 2480 MHz Antenna Gain(typical) -0.380 dBi Antenna Gain(numeric) 0.916 - Power density at prediction frequency( S) 0.0005 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 3.62 (dBm) ERP 1.47 (dBm) ERP 0.001 (W) ERP Limit 3.00 (W) MARGIN 33.30 (dB) Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 6 of 13 3-2. DTS Average output Power at antenna input terminal 10.00 dBm Average output Power at antenna input terminal 10.000 mW Prediction distance 20.00 cm Prediction frequency 2412 ˊ 2462 MHz Antenna Gain(typical) -1.190 dBi Antenna Gain(numeric) 0.760 - Power density at prediction frequency( S) 0.0015 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 8.81 (dBm) ERP 6.66 (dBm) ERP 0.005 (W) ERP Limit 3.00 (W) MARGIN 28.11 (dB) Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 7 of 13 3-3. UNII Average output Power at antenna input terminal 10.00 dBm Average output Power at antenna input terminal 10.000 mW Prediction distance 20.00 cm Prediction frequency 5180 - 5825 MHz Antenna Gain(typical) 4.580 dBi Antenna Gain(numeric) 2.871 - Power density at prediction frequency( S) 0.0057 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 14.58 (dBm) ERP 12.43 (dBm) ERP 0.017 (W) ERP Limit 3.00 (W) MARGIN 22.34 (dB) Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 8 of 13 3-4. CDMA BC0 Average output Power at antenna input terminal 25.00 dBm Average output Power at antenna input terminal 316.23 mW Prediction distance 20.000 cm Prediction frequency 824-849 MHz Cable Loss -1.71 dB Antenna Gain(typical) 0.930 dBi Antenna Gain(numeric) 1.239 - Power density at prediction frequency( S) 0.07793 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.549 mW/cm 2 2.1091 EIRP 25.93 (dBm) ERP 23.78 (dBm) ERP 0.24 (W) ERP Limit 1.50 (W) MARGIN 7.98 (dB) Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 9 of 13 3-5. CDMA BC1 Average output Power at antenna input terminal 25.00 dBm Average output Power at antenna input terminal 316.23 mW Prediction distance 20.000 cm Prediction frequency 1850-1910 MHz Cable Loss -3.300 dB Antenna Gain(typical) -1.160 dBi Antenna Gain(numeric) 0.766 - Power density at prediction frequency( S) 0.0482 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 23.84 (dBm) ERP 21.69 (dBm) ERP 0.148 (W) ERP Limit 3.00 (W) MARGIN 13.08 (dB) Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 10 of 13 3-6. LTE B4 Average output Power at antenna input terminal 24.00 dBm Average output Power at antenna input terminal 251.19 mW Prediction distance 20.000 cm Prediction frequency 1710-1755 MHz Cable Loss -3.300 dB Antenna Gain(typical) -1.770 dBi Antenna Gain(numeric) 0.665 - Power density at prediction frequency( S) 0.0332 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.000 mW/cm 2 2.1091 EIRP 22.23 (dBm) ERP 20.08 (dBm) ERP 0.102 (W) ERP Limit 3.00 (W) MARGIN 14.69 (dB) Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 11 of 13 3-7. LTE B13 Average output Power at antenna input terminal 24.00 dBm Average output Power at antenna input terminal 251.19 mW Prediction distance 20.000 cm Prediction frequency 777-787 MHz Cable Loss -1.710 dB Antenna Gain(typical) 0.340 dBi Antenna Gain(numeric) 1.081 - Power density at prediction frequency( S) 0.05404 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.518 mW/cm 2 2.1091 EIRP 24.34 (dBm) ERP 22.19 (dBm) ERP 0.17 (W) ERP Limit 1.50 (W) MARGIN 9.57 (dB) Report No. HCT-RF-2003-FI010 F-TP22-03 (Rev. 02) Page 12 of 13 3-8. LTE B5 Average output Power at antenna …

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side TEST REPORT FCC/IC UNII Test for ATB41HSAN&ATB41HSKN Certification APPLICANT HYUNDAI MOBIS CO., LTD. REPORT NO. HCT-RF-2003-FI009 DATE OF ISSUE March 31, 2020 Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 3 of 148 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of IssueDescription 0 March 31, 2020Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC / IC Rules under normal use and maintenance Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 4 of 148 CONTENTS 1. GENERAL INFORMATION 5 EUT DESCRIPTION 5 2. MAXIMUM OUTPUT POWER 6 3. TEST METHODOLOGY 7 EUT CONFIGURATION 7 EUT EXERCISE 7 GENERAL TEST PROCEDURES 7 DESCRIPTION OF TEST MODES 8 4. INSTRUMENT CALIBRATION 8 5. FACILITIES AND ACCREDITATIONS 8 5.1 FACILITIES 8 5.2 EQUIPMENT 8 6. ANTENNA REQUIREMENTS 9 7. MEASUREMENT UNCERTAINTY 9 8. DESCRIPTION OF TESTS 10 9. SUMMARY OF TEST RESULTS 31 10. TEST RESULT 33 10.1 DUTY CYCLE 33 10.2 26DB BANDWIDTH & 99 % BANDWIDTH 35 10.3 6DB BANDWIDTH 44 10.4 OUTPUT POWER MEASUREMENT 50 10.5 POWER SPECTRAL DENSITY 53 10.6 FREQUENCY STABILITY. 62 10.6.1 80MHz BW 62 10.7 STRADDLE CHANNEL 78 10.7.1 26dB Bandwidth 78 10.7.2 6dB Bandwidth 81 10.7.3 Output Power 84 10.7.4 Power Spectral Density 87 10.8 RADIATED SPURIOUS EMISSIONS 91 10.9 RADIATED RESTRICTED BAND EDGE 123 10.10 RECEIVER SPURIOUS EMISSIONS 145 11. LIST OF TEST EQUIPMENT 146 12. ANNEX A_ TEST SETUP PHOTO 148 Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 5 of 148 1. GENERAL INFORMATION EUT DESCRIPTION FCC Model ATB41HSAN IC Model ATB41HSKN FCC Additional Model ATB40HSAN IC Additional Model ATB40HSKN EUT Type Car Audio System Power Supply DC 14.4 V Modulation Type OFDM : 802.11a, 802.11n, 802.11ac Frequency Range (MHz) U-NII-1 20MHz BW : 5180 - 5240 40MHz BW : 5190 - 5230 80MHz BW : 5210 U-NII-2A 20MHz BW : 5260 - 5320 40MHz BW : 5270 - 5310 80MHz BW : 5290 U-NII-2C 20MHz BW : 5500 - 5720 40MHz BW : 5510 - 5710 80MHz BW : 5530 ˊ 5690 U-NII-3 20MHz BW : 5745 - 5825 40MHz BW : 5755 - 5795 80MHz BW : 5775 Antenna Specification Antenna type: Wi-Fi Dual Band Antenna Peak Gain : U-NII-1: 0.59 dBi, U-NII-2A: 2.00 dBi, U-NII-2C: 4.58 dBi, U-NII-3: 4.19 dBi Straddle channel Supported TDWR Band Not Supported Dynamic Frequency Selection Slave without radar detection Date(s) of Tests February 25, 2020 ~ March 31, 2020 PMN (Product Marketing Number) ATB41HSKN, ATB40HSKN HVIN (Hardware Version Identification Number) ATB41HSKN, ATB40HSKN FVIN (Firmware Version Identification Number) N/A HMN (Host Marketing Name) N/A Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 6 of 148 2. MAXIMUM OUTPUT POWER The transmitter has a maximum total conducted average output power as follows: Band Mode RF Output Power (dBm) RF Output Power (W) U-NII-1 802.11a 9.01 0.008 802.11n (HT20) 8.85 0.008 802.11n (HT40) 4.57 0.003 802.11ac (VHT20) 8.99 0.008 802.11ac (VHT40) 4.61 0.003 802.11ac (VHT80) 4.54 0.003 U-NII-2A 802.11a 9.02 0.008 802.11n (HT20) 8.93 0.008 802.11n (HT40) 8.78 0.008 802.11ac (VHT20) 8.99 0.008 802.11ac (VHT40) 8.86 0.008 802.11ac (VHT80) 7.99 0.006 U-NII-2C 802.11a 7.85 0.006 802.11n (HT20) 7.79 0.006 802.11n (HT40) 7.68 0.006 802.11ac (VHT20) 7.85 0.006 802.11ac (VHT40) 7.75 0.006 802.11ac (VHT80) 7.97 0.006 U-NII-3 802.11a 7.86 0.006 802.11n (HT20) 7.97 0.006 802.11n (HT40) 7.80 0.006 802.11ac (VHT20) 7.99 0.006 802.11ac (VHT40) 7.71 0.006 802.11ac (VHT80) 7.68 0.006 Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 7 of 148 3. TEST METHODOLOGY The measurement procedure described in FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 dated December 14, 2017 entitled ˑGuidelines for Compliance Testing of Unlicensed National Information Infrastructure (U-NII) Devices Part15, Subpart E˒ and ANSI C63.10(Version : 2013) ˎthe American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devicesˏ were used in the measurement. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.407 under the FCC Rules Part 15 Subpart E. / RSS-Gen issue 5, RSS-247 issue 2. GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 6.2 of ANSI C63.10. (Version :2013) Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane below 1GHz. Above 1GHz with 1.5m using absorbers between the EUT and receive antenna. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3.75 m away from the receiving antenna, which varied from 1 m to 4 m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of re…

Text truncated - open the document above for the full version.

Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 81 of 148 10.7.2 6dB Bandwidth Mode Band Frequency [MHz] Channel Measured Frequency [MHz] 6dB Bandwidth [MHz] Limit [MHz] 802.11a UNII 3 5720 144 5728.16 3.16 > 0.5 802.11n(HT20) 5728.80 3.80 > 0.5 802.11ac(VHT20) 5728.84 3.84 > 0.5 Mode Band Frequency [MHz] Channel Measured Frequency [MHz] 6dB Bandwidth [MHz] Limit [MHz] 802.11n(HT40) UNII 3 5710 142 5728.12 3.12 > 0.5 802.11ac(VHT40) 5728.12 3.12 > 0.5 Mode Band Frequency [MHz] Channel Measured Frequency [MHz] 6dB Bandwidth [MHz] Limit [MHz] 802.11ac(VHT80) UNII 3 5690 138 5727.80 2.80 > 0.5 Note: 6dB Bandwidth = Measured Frequency[MHz] ˊ 5725MHz Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 82 of 148 Ӑ Test Plots(UNII 3 Band 6dB Bandwidth) 802.11a CH.144 802.11n_HT20 CH.144 802.11ac_VHT20 CH.144 Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 83 of 148 802.11n_HT40 CH.142 802.11ac_VHT40 CH.142 802.11ac_VHT80 CH.138 Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 84 of 148 10.7.3 Output Power Mode Frequency [MHz] Channel Measured Power (dBm) Duty Cycle Factor (dB) Total Power (dBm) Limit (dBm) 802.11a 5720 (UNII 2C Band) 144 6.86 0.297 7.16 22.92 802.11n(HT20) 6.14 0.850 6.99 22.93 802.11ac(VHT20) 6.44 0.599 7.04 22.92 802.11a 5720 (UNII 3 Band) 144 -0.55 0.297 -0.25 30.00 802.11n(HT20) -0.59 0.850 0.26 30.00 802.11ac(VHT20) -0.31 0.599 0.29 30.00 Mode Frequency [MHz] Channel Measured Power (dBm) Duty Cycle Factor (dB) Total Power (dBm) Limit (dBm) 802.11n(HT40) 5710 (UNII 2C Band) 142 4.44 2.867 7.31 23.98 802.11ac(VHT40) 4.56 2.771 7.33 23.98 802.11n(HT40) 5710 (UNII 3 Band) 142 -7.20 2.867 -4.33 30.00 802.11ac(VHT40) -6.95 2.771 -4.18 30.00 Mode Frequency [MHz] Channel Measured Power (dBm) Duty Cycle Factor (dB) Total Power (dBm) Limit (dBm) 802.11ac(VHT80) 5690 (UNII 2C Band) 138 5.79 1.867 7.66 23.98 5690 (UNII 3 Band) 138 -9.68 1.867 -7.81 30.00 Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 85 of 148 Ӑ Test Plots 802.11a UNII 2C Band 802.11a UNII 3 Band 802.11n(HT20) UNII 2C Band 802.11n(HT20) UNII 3 Band 802.11ac(VHT20) UNII 2C Band 802.11ac(VHT20) UNII 3 Band Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 86 of 148 802.11n(HT40) UNII 2C Band 802.11n(HT40) UNII 3 Band 802.11ac(VHT40) UNII 2C Band 802.11ac(VHT40) UNII 3 Band 802.11ac(VHT80) UNII 2C Band 802.11ac(VHT80) UNII 3 Band Report No. HCT-RF-2003-FI009 F-TP22-03 (Rev. 02) Page 87 of 148 10.7.4 Power Spectral Density Mode Frequency [MHz] Channel Measured Density (dBm) Duty Cycle Factor (dB) Total PSD (dBm) Limit 802.11a 5720 (UNII 2C Band) 144 -2.496 0.297 -2.199 11 dBM/MHz 802.11n(HT20) -3.114 0.850 -2.264 802.11ac(VHT20) -2.800 0.599 -2.201 802.11a 5720 (UNII 3 Band) 144 -7.725 0.297 -7.428 30 dBm/500kHz 802.11n(HT20) -8.386 0.850 -7.536 8…
