TQ8-ATB42GWANDIGITAL CAR AVN SYSTEM

User Manual DIGITAL CAR AVN SYSTEM Model name: ATB42GWAN, ATB44GXAN, ATB45GXAN, VT250HPAN 2 AA Depending on how you scan the QR code, the online manual may open without pressing the URL. AA With a camera application of your iPhone or Android smartphone, the QR code can also be scanned. Depending on the Android smartphone model, the QR code scanning may not be supported for the provided application. For more details, see the smartphone’s manual. AA Without scanning the QR code, you can directly enter the URL address to see User’s Manual on Web. (http://webmanual. hyundai.com/STD_GEN5_WIDE/AVNT/USA/English/index. html) Safety Warnings Be sure to keep the following instructions. Otherwise, it may cause serious injury or accident. Ý Driving Keep traffic regulations while driving. • Relying solely on the navigation system may cause violation of traffic rules and regulations, resulting in an accident. In order to check the vehicle speed, see the speedometer first, not the speed on the navigation system. • The speed on the navigation system may differ from actual vehicle speed. While driving, refrain from watching the screen. • An accident may occur by negligence in keeping your eyes forward. • To manipulate the screen or buttons requiring multiple steps, be sure to stop your vehicle. To use your mobile phone, first stop your vehicle. • If you use your mobile phone while driving, it may disperse your attention, resulting in an accident. • When making a call while driving, use the Bluetooth Hands-free function and if possible, minimize the call time. 3 Make sure that the volume of the phone is sufficiently low so that the external sound is audible. • When you drive with no external sound present may cause a traffic accident. • When you drive for a long time with a loud audio volume, it may affect your hearing. For emergency services (e.g. hospital, fire station), do not rely solely on the navigation system. • Some emergency services may not be included in the navigation map. Obtain information in advance for emergency situations. Ý System handling Do NOT arbitrarily disassemble or modify the system. • It may cause an accident, fire, or electric shock. Exercise caution to make sure that no liquid or foreign materials enter the system. • It may cause smoke generation, fire ignition, or system failure. When the screen is not displayed, the volume is muted, or other system failures occur, immediately stop using the system. • Otherwise, it may cause fire, electric shock, or fatal system failure. AA If you experience any problems with the system, contact your place of purchase or dealer. Safety Precautions Be sure to keep the following instructions. Otherwise, it may cause minor injury or system damage. Ü Operation Use the system with the vehicle started. • When you use the system for a long time with the vehicle stopped, it may cause battery discharge. Do NOT install unapproved products. • Using unapproved products may cause an error while using the system. • System errors caused by installing unapproved products are not covered under the warranty. Ü System handling Do NOT apply excessive force to the system. • When you apply excessive pressure to the screen, the LCD panel or touch panel may get damaged. To clean the screen or button panel, first turn off the vehicle and then use a dry, soft cloth to wipe it. • Do not wipe using a rough or hard cloth, chemical fiber, organic solvent (e.g. alcohol, benzene, thinner), or air freshener. The panel surface may become scratched or damaged due to a chemical reaction. When you install an air freshener on the air conditioner vent, the surface may be deformed due to leakage. AA If you experience any problems with the system, contact your place of purchase or dealer. 4 Component names and functions Control panel AA The system shape and menu arrangement may differ depending on the vehicle model and specifications. a POWER button/VOLUME knob • Press the button to turn on or off the Radio/Media. • Press and hold the button to turn off the screen and sound. • Turn the knob left or right to adjust the system volume. • Turn the knob while hearing a guidance message to adjust the volume. b MAP button • Returns to the current location on the map. • When pressed while in guidance on the map screen, the voice guidance is repeated. c NAV button • Moves to the navigation/route screen. • When you press and hold the button, the Places screen appears. d Custom button • Runs the user-defined function. • Press and hold the button to display the Custom button settings screen. e SEEK/TRACK button • Changes the broadcast program channel, music, or file while using the Radio/Media function. • Press and hold the button to search a broadcast program while listening to the radio. • Press and hold the button to fast forward or rewind during playback (except for Bluetooth audio mode). 5 f RADIO button • Turns on the radio. • When you press the button repeatedly with the radio turned on, it toggles between FM and AM modes. g MEDIA button • Runs the connected medium. • When you press the button twice with a medium connected, the media selection window appears. h SETUP button • Displays the Settings screen. • When you press and hold the button the SW Info/Update screen appears. i TUNE knob/FILE knob/ENTER button • Turn the knob to change the frequency and channel while listening to the radio. • Turn the knob to search for music or file while playing media. • Press the button to select a channel, music, or file during a search. • Turn the knob on the map screen to zoom in or out the map (if activated). • When you press and hold the button, the TUNE Knob Function screen appears. j System Reset button • Restarts the system. 6 Steering wheel remote control AA The system shape and menu arrangement may differ depending on the vehicle model and specifications. a Voice Recognition button • Press and hold to start or end voice recognition of a connected smartphone via phone projection. (The button’…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0. 0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -ATB42GWAN Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020-05-26 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Letter of Declaration Product Equality We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that they have the following differences in supported features. _________________________ Seung Hoon Choe Representative Hyundai MOBIS Co., Ltd. Model Names Description Local BT / WiFi / LTE UI SXM HD FM/AM Code Basic Model FCC ATB42GWANU.S.A BT, WiFi, LTE GEN O O A2 IC ATB42GWKNCanada BT, WiFi, LTE GEN O O A2 Variant Models FCC ATB44GXAN U.S.ABT, WiFi, LTE HEV O O A2 ATB45GXAN U.S.ABT, WiFi, LTE PHEV O O A2 VT250HPAN U.S.ABT, WiFi, LTE GEN O O A2 IC VT250GXKN Canada BT, WiFi, LTE HEV O O A2 VT251GXKN Canada BT, WiFi, LTE PHEV O O A2 VT250HPKN Canada BT, WiFi, LTE GEN O O A2

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. Request of Confidentiality for FCC ID: TQ8-ATB42GWAN May 26, 2020

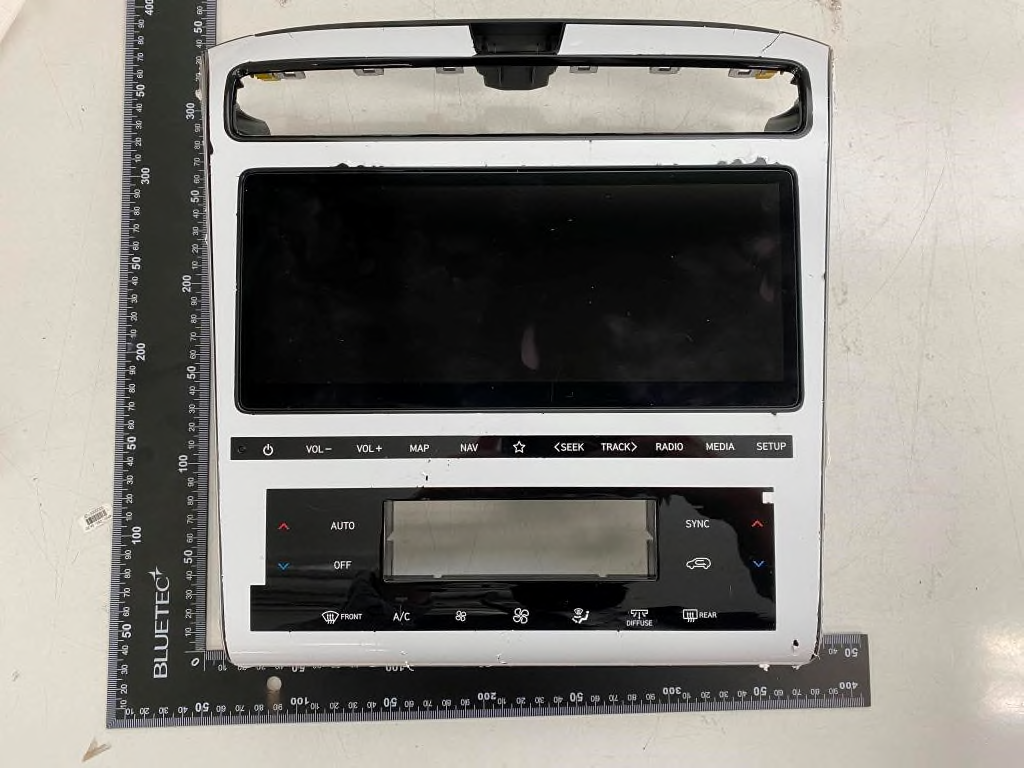

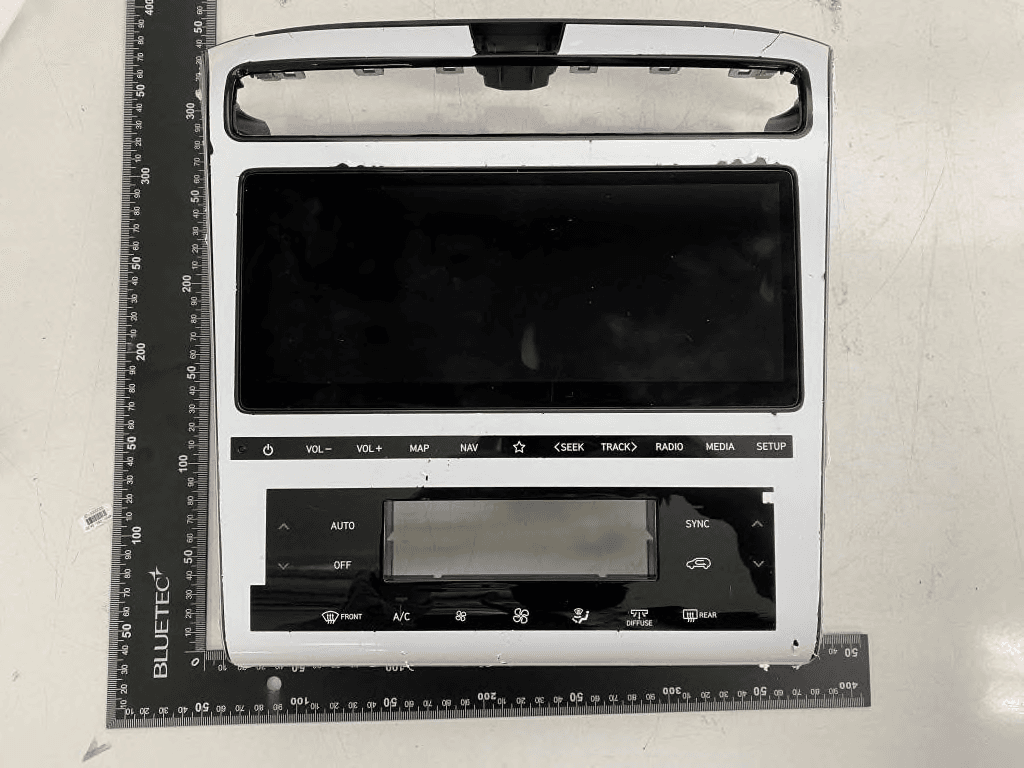

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT Top view of LCD Bottom view of LCD

BT+WIFI+LTE FCC LABEL Information Model Name (BT+WIFI+LTE): ATB42GWAN, ATB44GXAN, ATB45GXAN, VT250HPAN Hyundai MOBIS Co., Ltd. FCC ID: TQ8-ATB42GWAN Contains FCC ID: YZP-BK1100 FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000628 Page:2of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000628 Page:3of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company:Same as applicant Address:Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000628 Page:4of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DIGITAL CAR SYSTEM Model Name ATB42GWAN Variant Model Names ATB44GXAN, ATB45GXAN, VT250HPAN Power Supply DC 14.4 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) 2 412㎒~ 2 462㎒(11b/g/n_HT20) 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40) 5 210㎒(Band 1: 11ac_VHT80) 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40) 5 290㎒(Band 2A: 11ac_VHT80) 5 500㎒~ 5 720㎒(Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510㎒~ 5 710㎒(Band 2C: 11n_HT40, 11ac_VHT40) 5 530㎒~ 5 690㎒(Band 2C: 11ac_VHT80) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 11 channels (11b/g/n_HT20) 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 2 400㎒~ 2 483.5㎒: -0.38㏈i (Bluetooth) 2 400㎒~ 2 483.5㎒: -1.19㏈i (WLAN 2.4 G) 5 150㎒~ 5 250㎒: 0.59㏈i (WLAN 5 G) 5 250㎒~ 5 350㎒: 2.00㏈i (WLAN 5 G) 5 470㎒~ 5 725㎒: 4.58㏈i (WLAN 5 G) 5 725㎒~ 5 850㎒: 4.19㏈i (WLAN 5 G) 1.5. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0006282020.05.07Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000628 Page:5of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Information of Variant Models Model Names Description LocalBT / WiFi / LTEUISXMHDFM/AM Code Basic ModelATB42GWANU.S.ABT, WiFi, LTEGENOOA2 Variant Models ATB44GXANU.S.ABT, WiFi, LTEHEVOOA2 ATB45GXANU.S.ABT, WiFi, LTEPHEVOOA2 VT250HPANU.S.ABT, WiFi, LTEGENOOA2 CODEBANDFREQUENCY RANGESTEPLOCAL A2 FM 87.5-107.9㎒200㎑ NA/GEN AM 530-1 710㎑10㎑ SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000628 Page:6of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40.1631.06 300-1 500--f/3006 1 500-100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1 500--f/150030 1 500-100 000 -- 1.030 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000628 Page:7of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3. Test information of Cable Loss and Antenna Gain Test Item Frequency (㎒) Cable Loss (㏈) Antenna Gain (㏈i) Final Antenna Gain (㏈i) CDMA - BC0 824 ~ 849-1.71-0.16-1.87 CDMA - BC11 850 ~ 1 910-3.304.801.50 LTE - Band 21 850 ~ 1 910-3.304.801.50 LTE - Band 41 710 ~ 1 755-3.302.93-0.37 LTE - Band 5824 ~ 849-1.71-0.16-1.87 LTE - Band 13777 ~ 787-1.710.67-1.04 Note; - Final Antenna Gain (㏈i) = Cable Loss (㏈) + Antenna Gain (㏈i) SGS Korea Co., Ltd. 4,…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000624 Page:2of63 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission -----10 3. 20㏈Bandwidth & 99 % Bandwidth ----------------------------------------------------------- 31 4. Maximum Peak Conducted Output Power ----------------------------------------------------40 5. Carrier Frequency Separation --------------------------------------------------------------------42 6. Number of Hopping Frequencies ----------------------------------------------------------------45 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------49 8. Antenna Requirement ------------------------------------------------------------------------------63 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000624 Page:3of63 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No.: +82 31 688 0901 Fax No.: +82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product DIGITAL CAR AVN SYSTEM FCC Model Name ATB42GWAN IC Model Name ATB42GWKN Model Serial Number Conducted Sample: 001 Radiated Sample: 002 FCC Variant Model Names ATB44GXAN, ATB45GXAN, VT250HPAN IC Variant Model Names VT250HPKN, VT250GXKN, VT251GXKN Power Supply DC 14.4 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) Antenna Type Pattern antenna Antenna Gain -0.38㏈i SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000624 Page:4of63 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMR40100272Jun. 07, 2019AnnualJun. 07, 2020 Signal GeneratorR&SSMBV100A255834Jun. 10, 2019AnnualJun. 10, 2020 Spectrum AnalyzerR&SFSV30103101Jun. 05, 2019AnnualJun. 05, 2020 Spectrum AnalyzerAgilentN9030AUS51350132Nov. 15, 2019AnnualNov. 15, 2020 Bluetooth TesterTESCOMTC-3000C3000C000296Jun. 05, 2019AnnualJun. 05, 2020 Directional CouplerKRYTAR152613140972Jun. 12, 2019AnnualJun. 12, 2020 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS344May 21, 2019AnnualMay 21, 2020 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS15Jun. 07, 2019AnnualJun. 07, 2020 Low Pass FilterMini-CircuitsNLP-1200+V 9500401023-2Jun. 05, 2019AnnualJun. 05, 2020 Power SensorR&SNRP-Z81102779Dec. 04, 2019AnnualDec. 04, 2020 DC Power SupplyAgilentU8002AMY53150029Jun. 10, 2019AnnualJun. 10, 2020 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Signal Conditioning Unit R&SSCU-1810117Jun. 12, 2019AnnualJun. 12, 2020 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891May 13, 2019AnnualMay 13, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039Aug. 22, 2019BiennialAug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163396Mar. 21, 2019BiennialMar. 21, 2021 Horn AntennaR&SHF906100326Feb. 14, 2020AnnualFeb. 14, 2021 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170BBHA9170431Sep. 10, 2018BiennialSep. 10, 2020 Test ReceiverR&SESU26100109Feb. 18, 2020AnnualFeb. 18, 2021 Turn TableInnco systems GmbHDS 1200 SN/AN.C.R.N/AN.C.R. ControllerInnco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R.N/AN.C.R. Antenna MastInnco systems GmbHMA4640-XP-ET MA4640/536/383 30516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableSUCOFLEX104 (3 m)MY3258414Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableSUCOFLEX104 (10 m)MY3145814Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 01/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 05/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 Coaxial CableRosenbergerLA1-C006-1500131014 10/20Feb. 23, 2020 Semi- annual Aug. 23, 2020 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:F690501-RF-RTL000624 Page:5of63 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.6. Declaration by the Manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. 1.7. Information about the FHSS characteristics: 1.7.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.7.2. Equal Hopping Frequency Use The channels of this system will be used…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the below orthogonal plane and measured. X-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photo of DFS Test
