TQ8-ATC40D3ANDigital Car AVN System

Quick Manual ATC40D3AN Hyundai MOBIS Contents Before using ....................................................................................................... 4 1 Precaution for safe usage ............................................................................. 4 2 Component Names and Functions .................................................................. 4 2.1 Head Unit ............................................................................................ 4 2.2 Steering Wheel Remote Controller ......................................................... 5 First starting ....................................................................................................... 6 1 Turning the System On/Off ............................................................................ 6 1.1 Turning the System On ......................................................................... 6 1.2 Turning the System Off ......................................................................... 6 2 Resetting the System ................................................................................... 6 3 Battery Warning Message ............................................................................. 7 4 Auto Video Lock(Driving Regulations) ........................................................... 8 PART 1. About HOME screen ................................................................................. 9 Chapter 1. Menu structure in HOME screen ........................................................ 9 1.1 All Menus .......................................................................................... 10 1.2 My Menu ........................................................................................... 10 1.3 My Menu Settings .............................................................................. 11 PART 2. AV ....................................................................................................... 12 Chapter 1. Radio Mode .................................................................................. 12 Chapter 2. Media .......................................................................................... 14 2.1 CD Mode ........................................................................................... 15 2.2 MP3 CD Mode .................................................................................... 16 2.3. USB Mode ........................................................................................ 18 2.4 iPod Mode ......................................................................................... 22 2.5 AUX Mode ....................................................................................... 24 2.6 Bluetooth Audio Mode ........................................................................ 25 2.7 My Music Mode .................................................................................. 26 PART 3. Phone .................................................................................................. 28 Chapter 1. Before using Bluetooth.................................................................. 28 1.1 Guidance for how to use Bluetooth Handsfree ....................................... 28 1.2 Caution for Safety .............................................................................. 28 1.3 Caution for connecting Bluetooth Phone .............................................. 28 Chapter 2. Bluetooth Connection ................................................................... 29 2.1 Add a new device ............................................................................... 29 ▶2.1.1 Add a new device through selecting PHONE Key/CALL Key .......... 29 ▶2.1.2 Add a new device through Phone Settings .................................. 29 2.2 Connect a Bluetooth Device ................................................................ 29 2.2.1 Connect a device through selecting [PHONE]/[CALL] Key .............. 29 2.2.2 Connect a device through Phone Settings ..................................... 29 2.3 Disconnect Bluetooth device .............................................................. 30 2.4 Delete Bluetooth device ..................................................................... 30 Chapter 3. Bluetooth Phone ........................................................................... 30 3.1 Bluetooth Status Icon ......................................................................... 30 3.2 Make a call ........................................................................................ 31 3.3 Accept/Reject a call ........................................................................... 32 3.4 Controlling menu while calling ............................................................ 32 3.5 Call History ....................................................................................... 32 3.6 Contacts ........................................................................................... 33 3.7 Favorites .......................................................................................... 33 Chapter 4. Phone Settings ............................................................................. 34 4.1 Bluetooth Connection Settings ............................................................ 34 4.2 Auto Connection Priority .................................................................... 34 4.3 Ringtone ........................................................................................... 34 4.4 Audio Streaming ................................................................................ 35 4.5 System Bluetooth Info ........................................................................ 35 PART 4. Blue Link ............................................................................................. 36 Chapter 1. Name and function of the each part ................................................. 36 1.1 Rear View Mirror Switch .............................…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 5 December 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We , Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. S incerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. #679‐4, Yeoksam‐dong, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐288‐5232 / Fax. 82‐31‐280‐2764 5 December 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-ATC40D3AN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Tune Up Procedure 5 Part List Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The A ppli c ant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

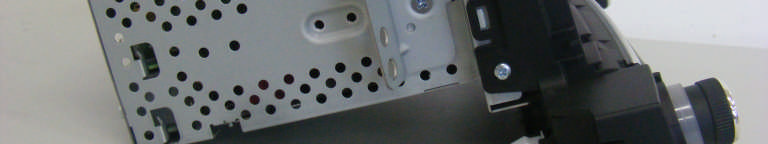

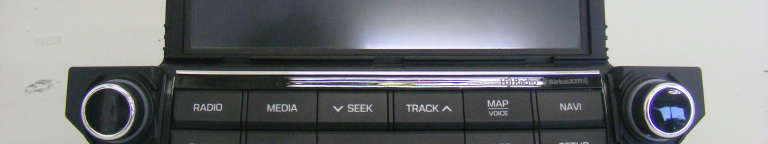

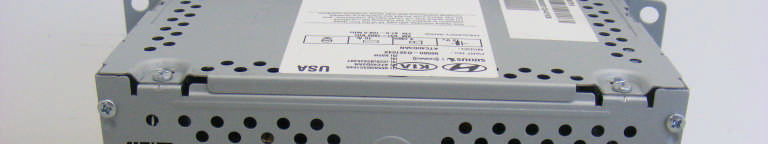

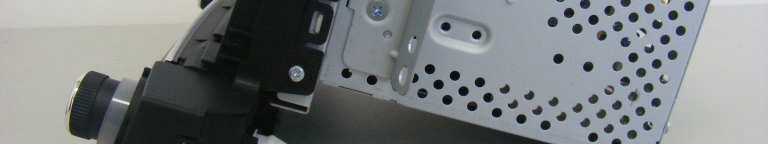

External photos of EUT Total view of EUT EUT WIFI / LTE Antenna CDMA Antenna Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

A T C 4 0 D3 A N LABEL If i LABEL LOCATION LABEL I n f ormat i on Hyundai MOBIS Co., Ltd. A T C 4 0 D3 A N MODEL: FC C: TQ8- A T C 4 0 D3 A N LABEL LOCATION This device complies with Industry Canada licence-exempt RSS standard(s).Operation is subject to the following conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. LABEL Made in Korea MANUFACTURED BY HYUNDAI MOBIS LABEL PRODUCT LABEL FRONT

Internal photos of EUT Inner of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB Bottom view of Sub PCB Top view of Module1 Bottom view of Module1 Top view of Module2 View of WLAN / LTE Antenna View of CDMA Antenna

Report Number:F690501/RF-RTL008231Page:2of7 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------4 Report Number:F690501/RF-RTL008231Page:3of7 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+ 82 31 688 0901 FAX:+ 82 31 688 0921 1.2. Details of applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AVN SYSTEM Model Name ATC40D3AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range CDMA 850: 824.70㎒~ 848.31㎒ CDMA 1 900: 1 851.25㎒~ 1 908.75㎒ LTE Band 4 (5㎒): 1 712.5㎒~ 1 752.5㎒ LTE Band 4 (10㎒): 1 715.0㎒~ 1 750.0㎒ LTE Band 4 (15㎒): 1 717.5㎒~ 1 747.5㎒ LTE Band 4 (20㎒): 1 720.0㎒~ 1 745.0㎒ LTE Band 13 (5㎒): 779.5㎒~ 784.5㎒ LTE Band 13 (10㎒): 782㎒ WLAN (11b/g/n_HT20) : 2 412㎒~ 2 462㎒ Antenna Gain 824.70㎒~ 848.31㎒: 4.50㏈i 1 851.25㎒~ 1 908.75㎒: 5.22㏈i 1 712.5㎒~ 1 752.5㎒: 2.92㏈i 779.5㎒~ 784.5㎒: 2.83㏈i 2 412㎒~ 2 462㎒: 3.94㏈i 2 402㎒~ 2 480㎒: -2.48㏈i 1.4. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0082312014.12.05Initial Report Number:F690501/RF-RTL008231Page:4of7 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500----F/3006 1 500 – 100 000----56 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 ---- F/150030 1 500 – 100 000 ---- 130 Report Number:F690501/RF-RTL008231Page:5of7 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3.Output Power into Antenna & RF Exposure Evaluation Distance Mode: CDMA850 Maximum tune up tolerance Maximum tune up power (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) 25.54.501000.198 9440.549 80 Mode: CDMA1900 Maximum tune up tolerance Maximum tune up power (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) 25.55.221000.234 8171 Note : 1. The power density Pd (5th column) at a distance of 20㎝calculated from the friis transmission formula is far below the limit . Mode: LTE Band 4 Maximum tune up tolerance Maximum tune up power (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) 25.72.921000.144 7871 Mode: LTE Band 13 Maximum tune up tolerance Maximum tune up power (㏈m) Antenna Gain (㏈i) Duty Cycle (%) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) 25.72.831000.144 8180.519 67 Note : 1. The power density Pd (5th column) at a distance of 20㎝calculated from the friis transmission formula is far below the limit . Report Number:F690501/RF-RTL008231Page:6of7 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) Mode: W…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL008230Page:2of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------7 3. 20㏈Bandwidth-------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power -------------------------------------------------------------------38 5. Hopping Channel Separation ---------------------------------------------------------------------40 6. Number of Hopping Frequency ------------------------------------------------------------------43 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------47 8. Antenna Requirement ------------------------------------------------------------------------------61 Report Number:F690501/RF-RTL008230Page:3of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AVN SYSTEM Model Name ATC40D3AN Power Supply DC 14.4 V Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Internal Type Antenna Gain -2.48㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels - WLAN & BT do not transmit simultaneously Report Number:F690501/RF-RTL008230Page:4of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.5.3. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number:F690501/RF-RTL008230Page:5of61 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&SSMR40100272Jul. 18, 2014AnnualJul. 18, 2015 Signal GeneratorR&SSMBV100A259067Jun. 25, 2014AnnualJun. 25, 2015 Spectrum AnalyzerAgilentN9030AMY53120526Jul. 17, 2014AnnualJul. 17, 2015 Spectrum AnalyzerR&SFSV30101004Jun. 25, 2014AnnualJun. 25, 2015 High Pass FilterWainwrightWH…

Text truncated - open the document above for the full version.

Test setup photos of EUT Photo of Field Strength & Spurious Emission Test(CDMA) Photo of Field Strength & Spurious Emission Test(LTE,WLAN) CDMAantenna LTE,WLANantenna Photo of Field Strength & Spurious Emission Test(BT) BTantenna
