TQ8-ATC41F2ANDIGITAL CAR AVN SYSTEM

2VENF02 (미국/영어-English) CAR MULTIMEDIA SYSTEM l USER'S MANUAL 미국/영어-English Thank you for purchasing this multimedia system. This user's manual explains how to use the HYUNDAI Motor multimedia system. Before using the product, read the con- tents of this user's manual carefully and use this product safely. • The screens shown in this manual may differ with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while driving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or service center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi- als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM ser- vice at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic informa- tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. WARNING • Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. All Map Database cannot be copied without permission. Important Notice : This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify and distribute the content without HYUNDAI MnSoft, Inc’s prior written consent. Read the following safety cautions for your safety Before using the product, read the contents of this user's manual carefully and use this product safely. The design and specifi cations of this product may change without prior notifi cation for product and service improvement. The actual features in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue. For more information on open licenses and legal notices, refer to the website below. http://www.mobiszone.co.kr/front/mall/jsp/manual/avn_download_ center_man ual.jsp Notations used within this User's Manual WARNING • Failure to observe the instructions within this category could result in death or serious injury or damage to the vehicle. CAUTION • Information on matters that could potentially lead to injury or vehicle damage/malfunction Information that could lead to higher user safety i Information • Information and tips that provide additional user convenience in using the product NOTICE • Information on specific features that facilitate proper product use and functional understanding • Information on terminology used within this manual 2 I Table of Contents 1. Basic Warnings and Cautions .........................1-2 Key Product Features ...........................1-4 Component Names and Functions ......1-5 Head Unit .................................... 1-5 Steering Wheel Control .................. 1-7 Starting the System for the First Time .................................................1-9 Turning the System On/Off ............... 1-9 System Reset .............................. 1-9 Battery Warning Message ............... 1-10 Restrictions on Features for Safety Measures .................................... 1-10 Home Screen .............................. 1-11 On-Screen Touch Controls ............... 1-12 2. AV FM/AM .....................................................2-2 Accessing FM/AM Mode ............... 2-2 HD Radio™ Technology ........................2-4 Basic Mode Screen (HD Radio™ reception ON) ............ 2-5 SiriusXM™ ...............................................2-5 SiriusXM™ Mode Hard Key Controls ... 2-5 SiriusXM™ Mode Display Controls ... 2-6 Selecting through Channel/ Category List .............................. 2-8 Direct Tune ..........................…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: Jul. 23, 2015 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: TQ8-ATC41F2AN including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Hyundai MOBIS Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seung Hoon Choe Senior Researcher

Hyundai MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: Aug. 04, 2015 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby declares that test report regarding to model LTD-VL1000 manufactured by LG Innotek Co.,Ltd. has been permitted to be used when we proceed to approval for host device by request of us. When it was requested, LG Innotek Co.,Ltd. has authorized us to use test report FCC Test Report number: DRTFCC1408-1006(1), DRTFCC1408-1021(1) Host FCC ID: TQ8-ATC41F2AN (Model No. ATC41F2AN) Modular FCC ID: YZP-VL1000 (Model No. LTD-VL1000) The test reports for the module are applicable for this FCC ID: TQ8-ATC41F2AN. Sincerely, Seung Hoon Choe Senior Researcher

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 3 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 3 Rev 5.0 Jul. 23, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Hyundai MOBIS Co., Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (DIGITAL CAR AVN SYSTEM, ATC41F2AN) FCC ID: TQ8-ATC41F2AN Sincerely, Client’s signature Client’s name / title Seung Hoon Choe / Senior Researcher Contact information / address Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 4.0 Jul. 23, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: TQ8-ATC41F2AN We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List - e.g. Tuned-up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name & title : Seung Hoon Choe / Senior Researcher Contact information / address: Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 4.0 Jul. 23, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: TQ8-ATC41F2AN To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. Ext Photo - e.g. Int Photo - e.g. Test Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name & title : Seung Hoon Choe / Senior Researcher Contact information / address: Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977

WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : TQ8-ATC41F2AN Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: Hyundai MOBIS Co., Ltd. Address : 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Name / Title : Seung Hoon Choe / Senior Researcher Signature : Phone : +82-31-260-0098 Email : [email protected] Date : Jun 18, 2015

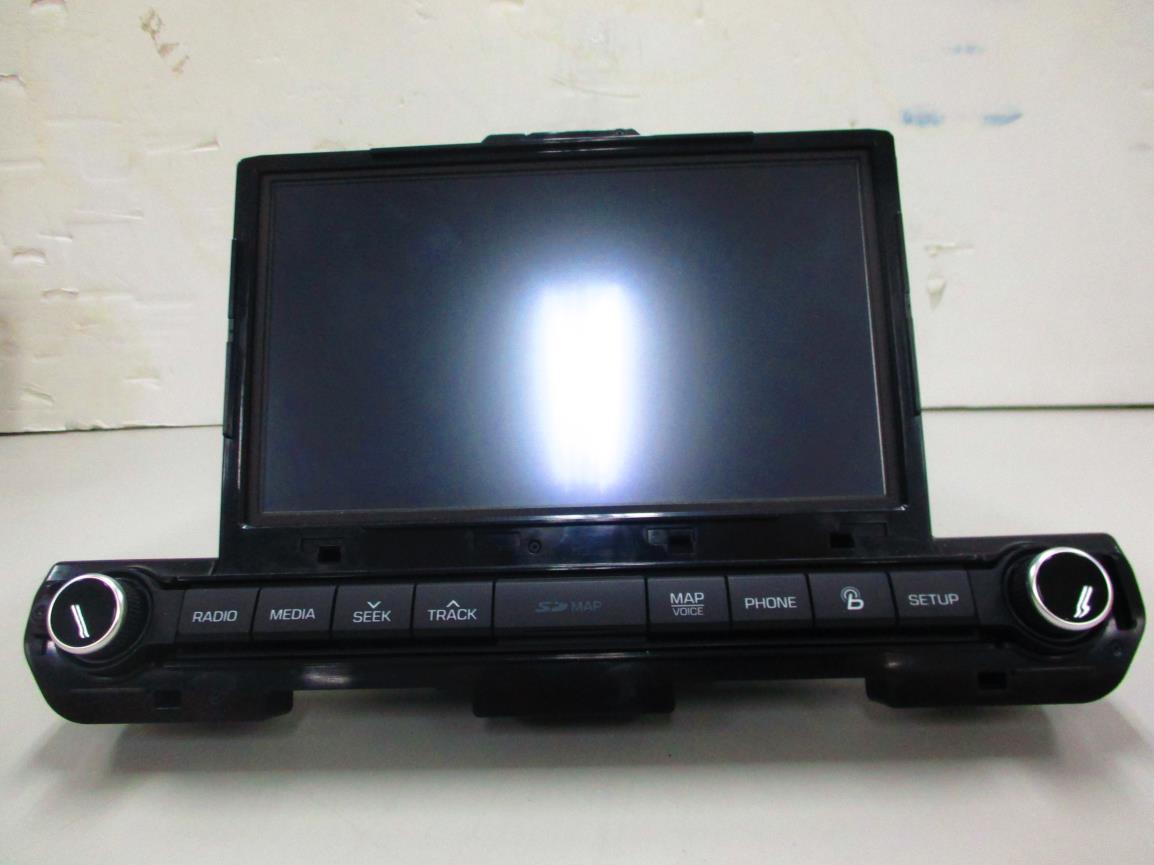

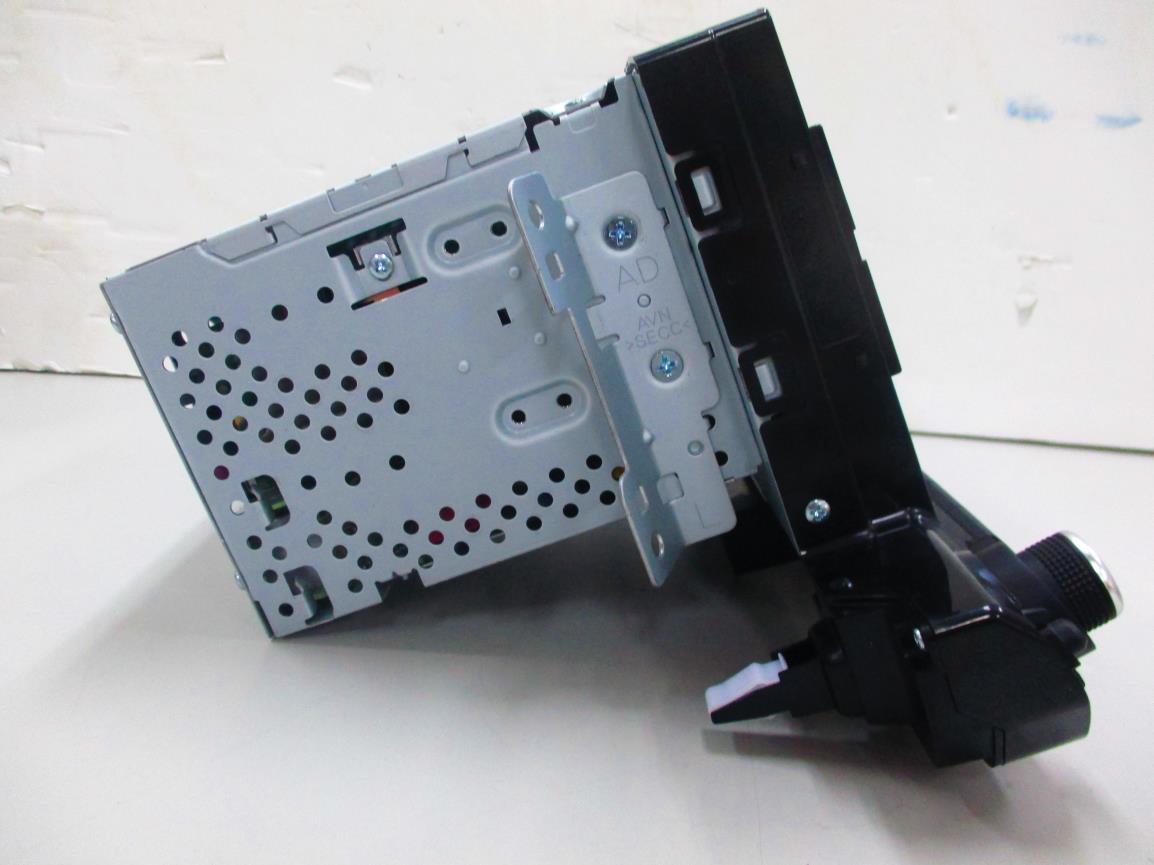

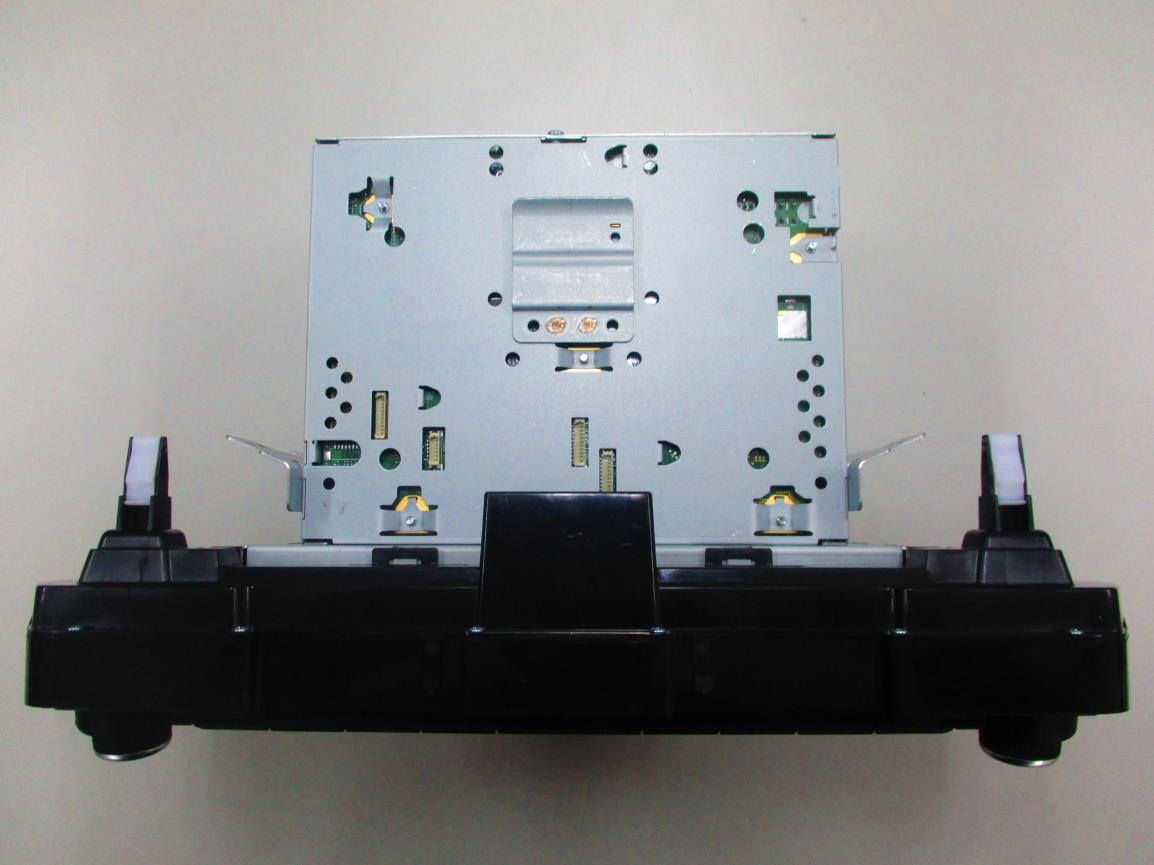

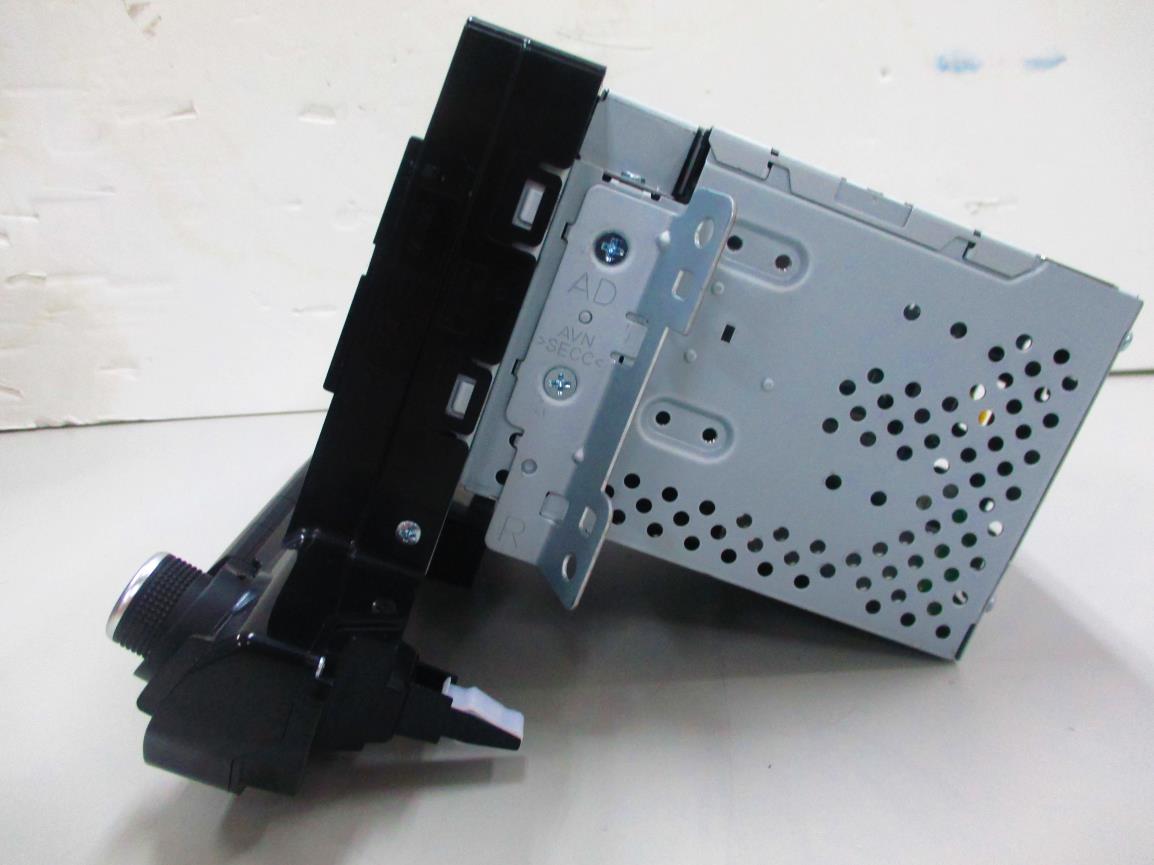

FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 3 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 4 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 6 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 7 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 8 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 9 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 10 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 11 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 12 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 13 FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 14 <Module> FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 15 <WLAN & LTE> < WLAN-Connector > FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 16 <WLAN & LTE> <WLAN & LTE TX> FCCID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 17 <BT> <CDMA>

FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) BT 2402.00 ~ 2480.00 4.00 0.77 4.77 3.000 0.001 1.000 ~~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 3 S= Maximum power density(mW/cm 2 ) 0.001 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the antenn TQ8-ATC41F2AN MPE Calculation : BT Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) 802.11b 2412.00 ~ 2462.00 18.50 2.64 21.14 130.017 0.026 1.000 802.11g 2412.00 ~ 2462.00 21.50 2.64 24.14 259.418 0.052 1.000 802.11n 2412.00 ~ 2462.00 21.50 2.64 24.14 259.418 0.052 1.000 ~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC TQ8-ATC41F2AN 130.017 S= Maximum power density(mW/cm 2 ) 0.026 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the antenn MPE Calculation : WLAN Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. EIRP / ( 4 R 2 π ) FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) LTE 779.50 ~ 784.50 24.30 0.89 25.19 330.370 0.066 0.519 LTE 1710.70 ~ 1754.30 24.30 4.85 29.15 822.243 0.164 1.000 CDMA 1x 824.70 ~ 848.31 24.80 4.24 29.04 801.679 0.160 0.549 CDMA 1x EVDO(Rev. A) 824.70 ~ 848.31 24.80 4.24 29.04 801.679 0.160 0.549 CDMA 1x 1851.25 ~ 1908.75 24.80 3.47 28.27 671.429 0.134 1.000 CDMA 1 x EVDO(Rev. A) 1851.25 ~ 1908.75 24.80 3.47 28.27 671.429 0.134 1.000 ~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 330.37 S= Maximum power density(mW/cm 2 ) 0.066 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the antenn TQ8-ATC41F2AN MPE Calculation : LTE, CDMA Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. ▪▪ - - - ▪ 0.001 BTWLAN Σ of MPE ratios 2.4GHz 0.001 1.000 0.001 0.001 0.001 0.001 0.001 0.001 0.426 0.456 0.299 0.426 0.052 0.420 0.262 Configurations for simultaneous operations LTECDMA 1x 2.4GHz 0.052 1.000 CellularPCS 0.134 0.1640.291 0.0660.1640.1600.1340.160 - Configuration 1: - Configuration 2: - Configuration 3: 0.134 CellularPCSBand 13 0.291 0.1340.164 0.1640.134 0.1340.291 0.291 0.5491.0000.549 0.134 0.291 RF function or mode Band Power Density (mW/cm2) Requirement (mW/cm2) MPE ratio (Power Density/Requirement) CDMA 1x EVDO Band 4 The exposure condition of this device is compliant with FCC rules.Conclusion : Σ of MPE ratios ≤ 1▪ Requirment = 1.000 0.127 0.5191.000 0.2910.134 0.291 Note: The maximum power density in each RF function was used for above table. - Configuration 3: 0.052 0.127 Configuration 1 (MPE ratio) Configuration 2 (MPE ratio) 0.0520.127 0.127 0.471 0.0520.1270.1340.313 0.0520.1640.2910.507 0.0520.1640.1340.350 0.2910.1340.477 0.0520.1340.2910.477 Configuration 3 (MPE ratio) 0.0010.0520.053 0.0010.0520.053 CDMA PCS(Voice) + EVDO Cellular(Data) TQ8-ATC41F2ANFCC ID: RF Exposure Compliance for simultaneous operations 0.508 0.472 0.0010.0520.1270.134 0.1640.291 0.351 Configuration 4 (MPE ratio) 0.0010.0520.127 0.314 0.0010.052 0.291 0.0010.0520.1640.134 0.291 0.0010.0520.291 Note: Above configuration was declared from applicant. 0.1340.478 0.0010.0520.1340.478 Configurations for simultaneous operations BT + LTE, CDMA Module WLAN + LTE, CDMA Module BT+ WLAN BT + WLAN + LTE, CDMA Module Configurations for simultaneous operations(LTE, CDMA Module) CDMA Cellular or PCS(Voice) + LTE B4 or B13(Data) CDMA Cellular(Voice) + EVDO PCS(Data)

FCCID: TQ8-ATC41F2AN DTNC1505-02549 Report No.: DRTFCC1506-0114 TRF-RF-213(05)150610 Page 2 / 58 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1506-0114 Jun. 17, 2015 Initial issue FCCID: TQ8-ATC41F2AN DTNC1505-02549 Report No.: DRTFCC1506-0114 TRF-RF-213(05)150610 Page 3 / 58 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. EUT DESCRIPTION ................................................................... 4 3. SUMMARY OF TESTS ............................................................... 5 4. TEST METHODOLOGY ............................................................. 6 4.1 EUT CONFIGURATION ..................................................................................................... 6 4.2 EUT EXERCISE ................................................................................................................. 6 4.3 GENERAL TEST PROCEDURES ..................................................................................... 6 4.4 DESCRIPTION OF TEST MODES..................................................................................... 6 5. INSTRUMENT CALIBRATION ................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES ........................................................................................................................ 7 6.2 EQUIPMENT ...................................................................................................................... 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ........................................................................... 8 8.1 6 dB Bandwidth ................................................................................................................ 8 8.2 Maximum Peak Conducted Output Power ................................................................... 15 8.3 Maximum Power Spectral Density ................................................................................ 17 8.4 Out of Band Emissions at the Band Edge / Conducted Spurious Emissions .......... 24 8.5 Radiated Spurious Emissions ....................................................................................... 49 8.6 Power-line conducted emissions ................................................................................. 54 9. LIST OF TEST EQUIPMENT .................................................... 55 APPENDIX I ................................................................................. 56 APPENDIX II ................................................................................ 57 FCCID: TQ8-ATC41F2AN DTNC1505-02549 Report No.: DRTFCC1506-0114 TRF-RF-213(05)150610 Page 4 / 58 Copyright ○ C 2015, DT&C Co., Ltd. 1. GENERAL INFORMATION Applicant : HYUNDAI MOBIS CO., LTD. Address : 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 FCC ID : TQ8-ATC41F2AN EUT : DIGITAL CAR AVN SYSTEM Model : ATC41F2AN Additional Model(s) : N/A Date of Test : 2015-06-02 ~ 2015-06-09 Contact person : Seung Hoon Choe 2. EUT DESCRIPTION Product DIGITAL CAR AVN SYSTEM Model Name ATC41F2AN Power Supply DC 14.4 V Hardware version GEN 4.0. Software version 1.0. Frequency Range 2.4GHz Band ▪ 802.11b/g/n(20 MHz) : 2412 MHz ~ 2462 MHz Max. RF Output Power 2.4GHz Band ▪ 802.11b : 17.98 dBm ▪ 802.11g : 20.73 dBm ▪ 802.11n (HT20) : 20.01 dBm Modulation Type 802.11b : DSSS/CCK 802.11g/n : OFDM Antenna Specification External Antenna (1TX ,1RX) ▪ 2.4GHz Band Max. peak gain : 2.64 dBi FCCID: TQ8-ATC41F2AN DTNC1505-02549 Report No.: DRTFCC1506-0114 TRF-RF-213(05)150610 Page 5 / 58 Copyright ○ C 2015, DT&C Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) Parameter Limit Test Condition Status Note 1 15.247(a) 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) Transmitter Output Power < 1 Watt C 15.247(d) Out of Band Emissions / Band Edge 20 dBc in any 100 kHz BW C 15.247(e) Transmitter Power Spectral Density < 8 dBm/3 kHz C 15.205 15.209 General Field Strength Limits (Restricted Bands and Radiated Emission Limits) FCC 15.209 limits Radiated C Note 2 15.207 AC Conducted Emissions FCC 15.207 limits AC Line Conducted NA Note 3 15.203 Antenna Requirements FCC 15.203 limits - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. Note 3: This device is installed in a car. Therefore the power source is a battery of car. FCCID: TQ8-ATC41F2AN DTNC1505-02549 Report No.: DRTFCC1506-0114 TRF-RF-213(05)150610 Page 6 / 58 Copyright ○ C 2015, DT&C Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r03. And ANSI C63.10-2013 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the test mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions The power-line conducted emission test procedure is not described on the KDB 558074. So this test was fulfilled with the requirements in Section 6.2 of ANSI C63.10. The EUT is placed on the wooden table, which is 0.8 m above ground plane and the conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30 MHz using CISPR Quasi-peak and Average detector. Radiated Emissions Basically the radiated tests w…

Text truncated - open the document above for the full version.

FCC ID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs (DTS & DSS) EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: TQ8-ATC41F2AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
