TQ8-ATC41GWANDIGITAL CAR AVN SYSTEM

User Manual DIGITAL CAR AVN SYSTEM Model name: ATC41GWAN, ATC40GWAN, ATC40GXAN, ATC41GXAN, ATC42GXAN, ATC43GXAN, ATC40HPAN, ATC41HPAN 2 AA Depending on how you scan the QR code, the online manual may open without pressing the URL. AA With a camera application of your iPhone or Android smartphone, the QR code can also be scanned. Depending on the Android smartphone model, the QR code scanning may not be supported for the provided application. For more details, see the smartphone’s manual. AA Without scanning the QR code, you can directly enter the URL address to see User’s Manual on Web. (http://webmanual. hyundai.com/STD_GEN5_WIDE/AVNT/USA/English/index. html) Safety Warnings Be sure to keep the following instructions. Otherwise, it may cause serious injury or accident. Ý Driving Keep traffic regulations while driving. • Relying solely on the navigation system may cause violation of traffic rules and regulations, resulting in an accident. In order to check the vehicle speed, see the speedometer first, not the speed on the navigation system. • The speed on the navigation system may differ from actual vehicle speed. While driving, refrain from watching the screen. • An accident may occur by negligence in keeping your eyes forward. • To manipulate the screen or buttons requiring multiple steps, be sure to stop your vehicle. To use your mobile phone, first stop your vehicle. • If you use your mobile phone while driving, it may disperse your attention, resulting in an accident. • When making a call while driving, use the Bluetooth Hands-free function and if possible, minimize the call time. 3 Make sure that the volume of the phone is sufficiently low so that the external sound is audible. • When you drive with no external sound present may cause a traffic accident. • When you drive for a long time with a loud audio volume, it may affect your hearing. For emergency services (e.g. hospital, fire station), do not rely solely on the navigation system. • Some emergency services may not be included in the navigation map. Obtain information in advance for emergency situations. Ý System handling Do NOT arbitrarily disassemble or modify the system. • It may cause an accident, fire, or electric shock. Exercise caution to make sure that no liquid or foreign materials enter the system. • It may cause smoke generation, fire ignition, or system failure. When the screen is not displayed, the volume is muted, or other system failures occur, immediately stop using the system. • Otherwise, it may cause fire, electric shock, or fatal system failure. AA If you experience any problems with the system, contact your place of purchase or dealer. Safety Precautions Be sure to keep the following instructions. Otherwise, it may cause minor injury or system damage. Ü Operation Use the system with the vehicle started. • When you use the system for a long time with the vehicle stopped, it may cause battery discharge. Do NOT install unapproved products. • Using unapproved products may cause an error while using the system. • System errors caused by installing unapproved products are not covered under the warranty. Ü System handling Do NOT apply excessive force to the system. • When you apply excessive pressure to the screen, the LCD panel or touch panel may get damaged. To clean the screen or button panel, first turn off the vehicle and then use a dry, soft cloth to wipe it. • Do not wipe using a rough or hard cloth, chemical fiber, organic solvent (e.g. alcohol, benzene, thinner), or air freshener. The panel surface may become scratched or damaged due to a chemical reaction. When you install an air freshener on the air conditioner vent, the surface may be deformed due to leakage. AA If you experience any problems with the system, contact your place of purchase or dealer. 4 Component names and functions Control panel AA The system shape and menu arrangement may differ depending on the vehicle model and specifications. a POWER button/VOLUME knob • Press the button to turn on or off the Radio/Media. • Press and hold the button to turn off the screen and sound. • Turn the knob left or right to adjust the system volume. • Turn the knob while hearing a guidance message to adjust the volume. b MAP button • Returns to the current location on the map. • When pressed while in guidance on the map screen, the voice guidance is repeated. c NAV button • Moves to the navigation/route screen. • When you press and hold the button, the Places screen appears. d Custom button • Runs the user-defined function. • Press and hold the button to display the Custom button settings screen. e SEEK/TRACK button • Changes the broadcast program channel, music, or file while using the Radio/Media function. • Press and hold the button to search a broadcast program while listening to the radio. • Press and hold the button to fast forward or rewind during playback (except for Bluetooth audio mode). 5 f RADIO button • Turns on the radio. • When you press the button repeatedly with the radio turned on, it toggles between FM and AM modes. g MEDIA button • Runs the connected medium. • When you press the button twice with a medium connected, the media selection window appears. h SETUP button • Displays the Settings screen. • When you press and hold the button the SW Info/Update screen appears. i TUNE knob/FILE knob/ENTER button • Turn the knob to change the frequency and channel while listening to the radio. • Turn the knob to search for music or file while playing media. • Press the button to select a channel, music, or file during a search. • Turn the knob on the map screen to zoom in or out the map (if activated). • When you press and hold the button, the TUNE Knob Function screen appears. j System Reset button • Restarts the system. 6 Steering wheel remote control AA The system shape and menu arrangement may differ depending on the vehicle model and specifications. a Voice Recognition button • Press and hold to start or end voice recognition of a connected s…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0. 0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -ATC41GWAN Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020-05-07 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Letter of Declaration Product Equality We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that they have the following differences in supported features. _________________________ Seung Hoon Choe Representative Hyundai MOBIS Co., Ltd. Model Names Description LocalBT / WiFi / LTEUICameraSXMHDFM/AM Code Basic Model FCCATC41GWANU.S.ABT, WiFi, LTEGENSVMOOA2 ICATC41GWKNCanadaBT, WiFi, LTEGENSVMOOA2 Variant Models FCC ATC40GWANU.S.ABT, WiFi, LTEGENRVMOOA2 ATC40GXANU.S.ABT, WiFi, LTEHEVRVMOOA2 ATC41GXANU.S.ABT, WiFi, LTEHEVSVMOOA2 ATC42GXANU.S.ABT, WiFi, LTEPHEVRVMOOA2 ATC43GXANU.S.ABT, WiFi, LTEPHEVSVMOOA2 ATC40HPANU.S.ABT, WiFi, LTEGENRVMOOA2 ATC41HPANU.S.ABT, WiFi, LTEGENSVMOOA2 IC ATC40GWKNCanadaBT, WiFi, LTEGENRVMOOA2 ATC40HPKNCanadaBT, WiFi, LTEGENRVMOOA2 ATC41HPKNCanadaBT, WiFi, LTEGENSVMOOA2 VT260GXKNCanadaBT, WiFi, LTEHEVRVMOOA2 VT261GXKNCanadaBT, WiFi, LTEHEVSVMOOA2 VT262GXKNCanadaBT, WiFi, LTEPHEVRVMOOA2 VT263GXKNCanadaBT, WiFi, LTEPHEVSVMOOA2

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135-977, Korea Tel. 82‐31‐260‐0092 May 07, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Joohee Park, Hyunchae You) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Ant i‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. Request of Confidentiality for FCC ID: TQ8-ATC41GWAN May 07, 2020

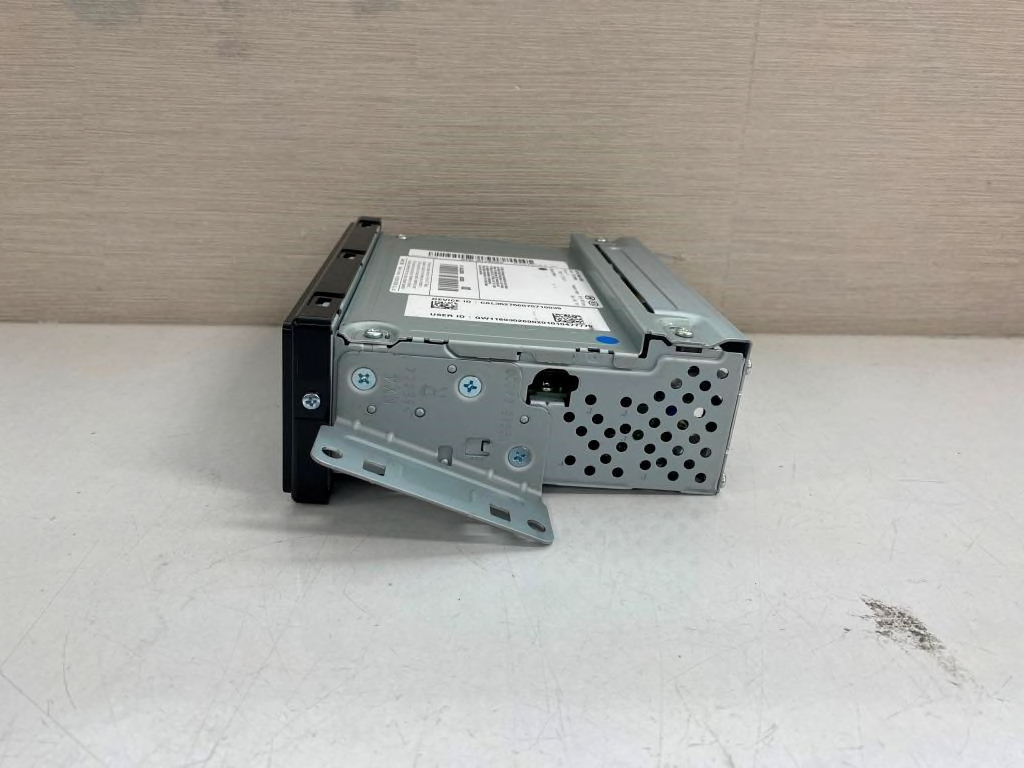

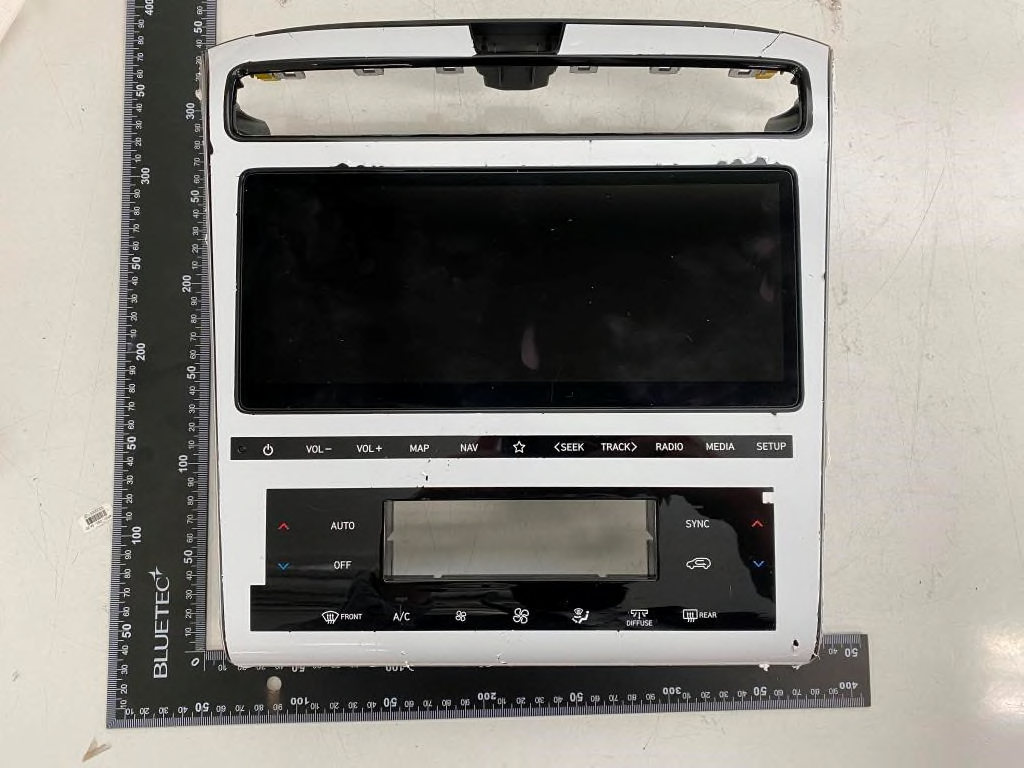

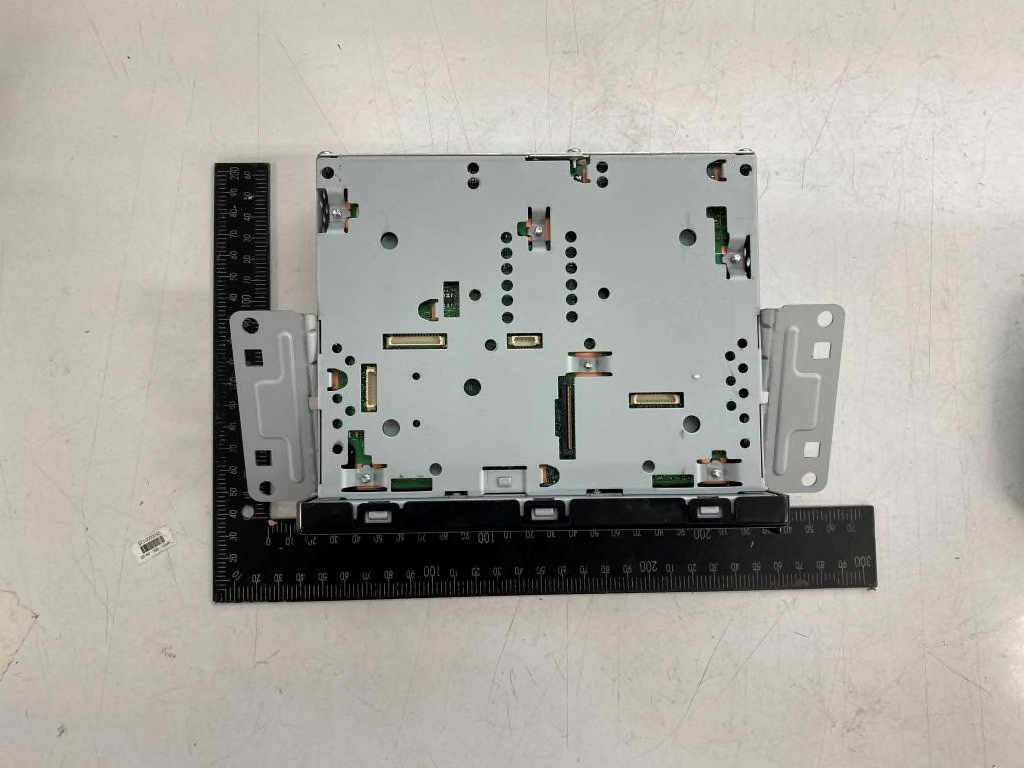

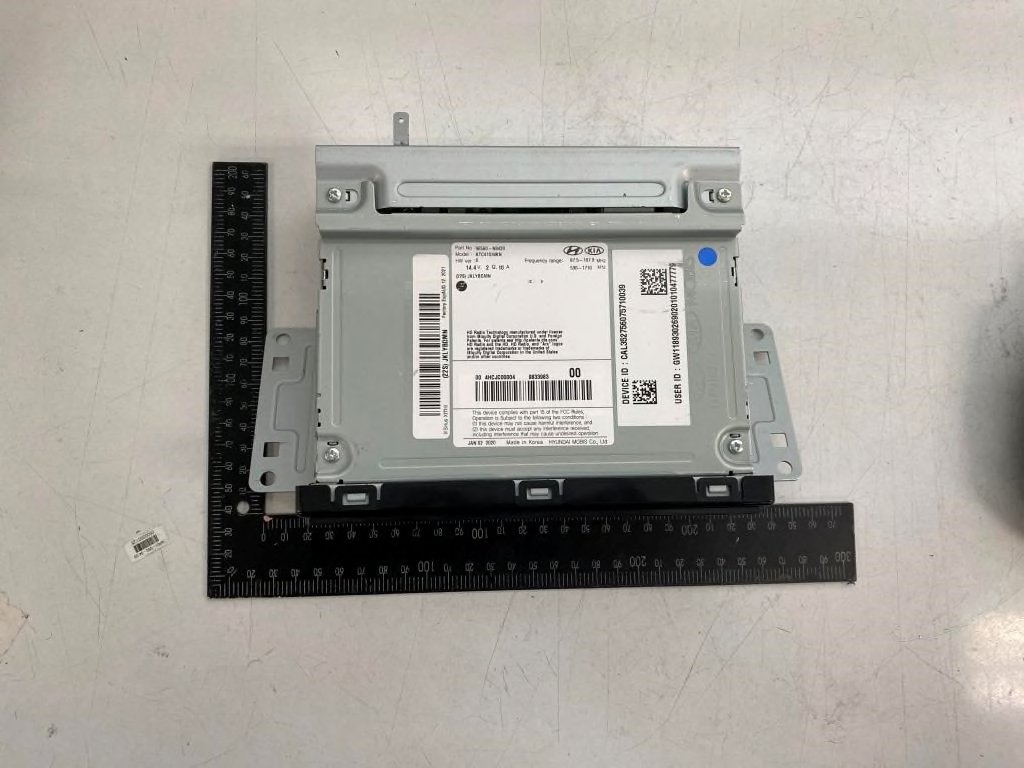

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT Top view of LCD Bottom view of LCD

BT+WIFI+LTE FCC LABEL Information Model Name (BT+WIFI+LTE): ATC41GWAN, ATC40GWAN, ATC40GXAN, ATC41GXAN, ATC42GXAN, ATC43GXAN, ATC40HPAN, ATC41HPAN Hyundai MOBIS Co., Ltd. FCC ID:TQ8-ATC41GWAN Contains FCC ID:YZP-BK1100 FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 View of Module BT/WIFI Combo Module View of Antenna Wi-Fi Antenna Bluetooth Antenna Approved the module with the shielding cover

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000595 Page:2of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000595 Page:3of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company:Same as applicant Address:Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000595 Page:4of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DIGITAL CAR AVN SYSTEM Model Name ATC41GWAN Variant Model Names ATC40GWAN, ATC40GXAN, ATC41GXAN, ATC42GXAN, ATC43GXAN, ATC40HPAN, ATC41HPAN Power Supply DC 14.4 V Frequency Range 2 402㎒~ 2 480㎒(Bluetooth) 2 412㎒~ 2 462㎒(11b/g/n_HT20) 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40) 5 210㎒(Band 1: 11ac_VHT80) 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40) 5 290㎒(Band 2A: 11ac_VHT80) 5 500㎒~ 5 720㎒(Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510㎒~ 5 710㎒(Band 2C: 11n_HT40, 11ac_VHT40) 5 530㎒~ 5 690㎒(Band 2C: 11ac_VHT80) 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20) 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40) 5 775㎒(Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 11 channels (11b/g/n_HT20) 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 2 402㎒~ 2 480㎒: -0.38㏈i (Bluetooth) 2 412㎒~ 2 462㎒: -1.19㏈i (WLAN 2.4 G) 5 180㎒~ 5 240㎒: 0.59㏈i (WLAN 5 G) 5 260㎒~ 5 320㎒: 2.00㏈i (WLAN 5 G) 5 500㎒~ 5 720㎒: 4.58㏈i (WLAN 5 G) 5 745㎒~ 5 825㎒: 4.19㏈i (WLAN 5 G) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000595 Page:5of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Information of Variant Model Model Names Description LocalBT / WiFi / LTEUICameraSXMHDFM/AM Code Basic Model FCCATC41GWANU.S.ABT, WiFi, LTEGENSVMOOA2 Variant Models FCC ATC40GWANU.S.ABT, WiFi, LTEGENRVMOOA2 ATC40GXANU.S.ABT, WiFi, LTEHEVRVMOOA2 ATC41GXANU.S.ABT, WiFi, LTEHEVSVMOOA2 ATC42GXANU.S.ABT, WiFi, LTEPHEVRVMOOA2 ATC43GXANU.S.ABT, WiFi, LTEPHEVSVMOOA2 ATC40HPANU.S.ABT, WiFi, LTEGENRVMOOA2 ATC41HPANU.S.ABT, WiFi, LTEGENSVMOOA2 BANDCODEFREQUENCY RANGESTEPLOCAL FM A2 87.5-107.9㎒200㎑ NA/GEN AM 530-1 710㎑10㎑ 1.6. Test Report Revision RevisionReport NumberDate of IssueDescription 0F690501-RF-RTL0005952020.04.27Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000595 Page:6of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40.1631.06 300-1 500--f/3006 1 500-100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1 500 -- f/150030 1 500-100 000 -- 1.030 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number:RF690501-RF-RTL000595 Page:7of9 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3. Test information of Cable Loss and Antenna Gain Test Item Frequency (㎒) Cable Loss (㏈) Antenna Gain (㏈i) Final Antenna Gain (㏈i) CDMA - BC0 824 ~ 849-1.712.270.56 CDMA - BC11 850 ~ 1 910-3.302.66-0.64 LTE - Band 21 8…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: RF690501-RF-RTL000593 Page: 2 of 130 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) INDEX Table of contents 1. General Information ---------------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions ----------------------------------------------------------- 12 3. 26 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------------- 50 4. 6 ㏈ Bandwidth -------------------------------------------------------------------------------------------- 84 5. Maximum Conducted Output Power------------------------------------------------------------------- 91 6. Peak Power Spectral Density --------------------------------------------------------------------------- 104 7. Antenna Requirement ------------------------------------------------------------------------------------- 130 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: RF690501-RF-RTL000593 Page: 3 of 130 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: RF690501-RF-RTL000593 Page: 4 of 130 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.4. Description of EUT Kind of Product DIGITAL CAR AVN SYSTEM FCC Model Name ATC41GWAN IC Model Name ATC41GWKN FCC Variant Model Names ATC40GWAN, ATC40GXAN, ATC41GXAN, ATC42GXAN, ATC43GXAN, ATC40HPAN, ATC41HPAN IC Variant Model Names ATC40GWKN, ATC40HPKN, ATC41HPKN, VT260GXKN, VT261GXKN, VT262GXKN, VT263GXKN Power Supply DC 14.4 V Frequency Range 5 180 ㎒ ~ 5 240 ㎒(Band 1: 11a/n_HT20, 11ac_VHT20) 5 190 ㎒ ~ 5 230 ㎒ (Band 1: 11n_HT40, 11ac_VHT40) 5 210 ㎒ (Band 1: 11ac_VHT80) 5 260 ㎒ ~ 5 320 ㎒ (Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270 ㎒ ~ 5 310 ㎒ (Band 2A: 11n_HT40, 11ac_VHT40) 5 290 ㎒ (Band 2A: 11ac_VHT80) 5 500 ㎒ ~ 5 720 ㎒ (Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510 ㎒ ~ 5 710 ㎒ (Band 2C: 11n_HT40, 11ac_VHT40) 5 530 ㎒ ~ 5 690 ㎒ (Band 2C: 11ac_VHT80) 5 745 ㎒ ~ 5 825 ㎒ (Band 3: 11a/n_HT20, 11ac_VHT20) 5 755 ㎒ ~ 5 795 ㎒ (Band 3: 11n_HT40, 11ac_VHT40) 5 775 ㎒ (Band 3: 11ac_VHT80) Modulation Technique OFDM Number of Channels 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a/n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 5 180 ㎒ ~ 5 240 ㎒: 0.59㏈i 5 260 ㎒ ~ 5 320 ㎒: 2.00 ㏈i 5 500 ㎒ ~ 5 720 ㎒: 4.58 ㏈i 5 745 ㎒ ~ 5 825 ㎒: 4.19 ㏈i SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: RF690501-RF-RTL000593 Page: 5 of 130 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.5. Declaration by the Manufacturer - The EUT is a slave without radar detection and TPC. - The EUT is not supported TDWR(5.6 - 5.65 ㎓) band. 1.6. Automatically Discontinue Transmission 1.6.1. Limit of Automatically Discontinue Transmission The device shall automatically discontinue transmission in case of either absence of information to transmit or operating failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization to describe how this requirement is met. 1.6.2. Test Result of Automatically Discontinue Transmission While the EUT is not transmitting any information, the EUT can automatically discontinue transmission and become standby mode for power saving. The EUT can detect the controlling signal of ACK message transmitting form remote device and verify whether it shall resend or discontinue transmission. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: RF690501-RF-RTL000593 Page: 6 of 130 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 1.7. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Jun. 07, 2019 Annual Jun. 07, 2020 Signal Generator R&S SMBV100A 255834 Jun. 10, 2019 Annual Jun. 10, 2020 Spectrum Analyzer R&S FSV30 103101 Jun. 05, 2019 Annual Jun. 05, 2020 Spectrum Analyzer Agilent N9030A US51350132 Nov. 15, 2019 Annual Nov. 15, 2020 Power Meter Anritsu ML2495A 1223004 Jun. 05, 2019 Annual Jun. 05, 2020 Power Sensor Anritsu MA2411B 1207272 Jun. 05, 2019 Annual Jun. 05, 2020 Attenuator AEROFLEX / INMET 40AH2W-10 40G-3 Jun. 20, 2019 Annual Jun. 20, 2020 Low Pass Filter Mini-Circuits NLP-1200+ V 9500401023-2 J…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: RF690501-RF-RTL000593 Page: 50 of 130 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 3. 26 ㏈ Bandwidth & 99 % Bandwidth 3.1. Test Setup EUT Attenuator Spectrum Analyzer 3.2. Limit None; for reporting purpose only. 3.3. Test Procedure All data rates and modes were investigated for this test. The full data for the worst case data rate are reported in this section. 3.3.1. 26 ㏈ Bandwidth 1. This measurement settings are specified in section II.C.1 of KDB 789033 D02 General UNII Test Procedures New Rules v02r01. 2. Set RBW = approximately 1 % of the emission bandwidth. 3. Set the VBW > RBW. 4. Detector = Peak. 5. Trace mode = max hold. 6. Measure the maximum width of the emission that is 26 ㏈ down from the peak of the emission. Compare this with the RBW setting of the analyzer. Readjust RBW and repeat measurement as needed until the RBW/EBW ratio is approximately 1 %. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: RF690501-RF-RTL000593 Page: 51 of 130 RTT5041-19(2020.03.02)(2) A4(210 mmx297 mm) 3.3.2. 99 % Bandwidth 3.3.2.1 FCC 1. This measurement settings are specified in section II.D of KDB 789033 D02 General UNII Test Procedures New Rules v02r01. 2. Set center frequency to the nominal EUT channel center frequency. 3. Set span = 1.5 times to 5.0 times the OBW. 4. Set RBW = 1 % to 5 % of the OBW. 5. Set VBW ≥ 3 x RBW. 6. Video averaging is not permitted. Where practical, a sample detection and single sweep mode shall be used. Otherwise, peak detection and max hold mode (until the trace stabilizes) shall be used. 7. Use the 99 % power bandwidth function of the instrument (if available). 8. If the instrument does not have a 99 % power bandwidth function, the trace data points are recovered and directly summed in power units. The recovered amplitude data points, beginning at the lowest frequency, are placed in a running sum until 0.5 % of the total is reached; that frequency is recorded as the lower frequency. The process is repeated until 99.5 % of the total is reached; that frequency is recorded as the upper frequency. The 99 % occupied bandwidth is the difference between these two frequencies. In the result, - DFS requirements are not applicable in the 5 150 ㎒ ~ 5 250 ㎒. Remark; In case of band crossing channels 138, 142 and 144, the measurement is complied with section III.A of KDB 789033 D02 General UNII Test Procedures New Rules v02r01. 3.3.2.2 IC ● The span of the spectrum analyzer shall be set large enough to capture all products of the modulation process, including the emission skirts, around the carrier frequency, but small enough to avoid having other emissions (e.g. on adjacent channels) within the span. ● The detector of the spectrum analyzer shall be set to “Sample”. However, a peak, or peak hold, may be used in place of the sampling detector since this usually produces a wider bandwidth than the actual bandwidth (worst-case measurement). Use of a peak hold (or “Max Hold”) may be necessary to determine the occupied / x ㏈ bandwidth if the device is not transmitting continuously. ● The resolution bandwidth (RBW) shall be in the range of 1 % to 5 % of the actual occupied / x ㏈ bandwidth and the video bandwidth (VBW) shall not be smaller than three times the RBW value. Video averaging is not permitted. Note: It may be necessary to repeat the measurement a few times until the RBW and VBW are in compliance with the above requirement. For the 99 % emission bandwidth, the trace data points are recovered and directly summed in linear power level terms. The recovered amplitude data points, beginning at the lowest frequency, are placed in a running sum until 0.5 % of the total is reached, and that frequency recorded. The process is repeated for the highest frequency data points (starting at the highest frequency, at the right side of the span, and going down in frequency). This frequency is then record…

Text truncated - open the document above for the full version.
