TQ8-AV130A7ANCAR AVN

A7ENE07 CAR MULTIMEDIA SYSTEM l USER'S MANUAL CAR MULTIMEDIA SYSTEM l USER'S MANUAL Thank you for purchasing this multimedia system. This user's manual explains how to use the Kia Motor multimedia system. Before using the product, read the con - tents of this user's manual carefully and use this product safely. • The screens shown in this manual may differ with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil - ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while driving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or service center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough mate - rials, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. All Map Database cannot be copied without permission. Important Notice: This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM ser- vice at the end of your trial subscription, t he plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic informa - tion not available in all markets. See si riusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. WARNING • Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil - ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • At launch, the Apple iPhone ® will be the only UVO eServices compatible device. iPhone ® is a registered trademark of Apple Inc. • App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App runs on your smartphone cel - lular data service. Normal data rates will apply. • HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital Corporation. • 24-hour Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth within the cellular service coverage area is required. • Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature checks powertrain, chassis, and airbag systems only. For factory-recom - mended maintenance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual. • 911 Connect activates after an airbag deployment. Feature requires a con- nected mobile phone via Bluetooth. Dependant on cellular service coverage. • The Rear Camera display is not a sub- stitute for proper and safe backing-up p rocedures. The Rear Camera display may not display every object behind the vehicle. Always drive safely and use cau - tion when backing up. Read the following safety cautions for your safety. Before using the product, read the contents of this user's manual carefully and use this product safely. ※ The design and specifications of this product may change with­ out prior notification for product and service improvement. T he actual features in the vehicle may differ from the illustra­ tions. For more accurate information about the vehicle, please refer to the catalogue. Notations used within this User's Manual Safety Warnings • Failure to observe the instructions within this category could result in damage to the vehicle. Safety Cautions • Failure to observe the safety instructions within this category could result in accident related injuries or damage to the vehicle. i Information • Information and tips that provide additional user convenience in using the product NOTICE • Information on specific features that facilitate proper product use and functional understanding • Information on terminology used …

Text truncated - open the document above for the full version.

iPod Mode Audio l 2-43 Starting Mode Press the MEDIA key ▶ Press iPod . If the iPod is not connected, then the iPod button will be disabled. i Information • Once an iPod is connected, iPod mode will operate automatically. NOTICE • Some iPods with unsupported communi- cation protocols may not properly operate with the A udio system. Playing iPod • Press the ▶ button to play the iPod. • Press the ll button to pause the iPod. Searching iPod Press the List button to display the initial iPod list screen. When searching an iPod, it is possible to search by Playlists, Artists, Albums, Songs, Genres, Composers, Audiobooks, and Podcasts. 2-44 iPod Mode i Information • Upon accessing search mode while play- ing a song, search will begin from the most recently used search step. • The search step displayed upon initial connection may differ depending on type of iPod device. Selecting iPod Files While playing ▶ Press the < , > buttons or the , key to play the previous/next file. Pressing and holding the , key (over 0.8 seconds) will rewind or fast-forward the current song. i Information • While the , key is being pressed, the track will rewind or fast-forward at high speeds. Once the key is released, the Music will begin playing at normal speed. iPod Mode Audio l 2-45 Searching iPod Files Turn the TUNE knob ▶ Search files ▶ Once the desired file name is displayed, press the TUNE knob. When searching files, the file number is displayed in orange. Pressing the TUNE knob will play the corresponding file. i Information • If there are no operations within 5 sec onds, information on the current song will be re- displayed. Using the Menu Buttons Press the Menu button to set the Repeat, Shuffle, and Info On (Info Off) menus. Repeat Press the Menu button ▶ Press Repeat . i Information • The currently playing file is repeated. • Press the Repeat button again to turn off repeat. Shuffle Press the Menu button ▶ Press Shuffle . i Information • Each time the Shuffle button is pressed, the option is changed from Shuffle Category → Shuffle Album → Off. • Shuffle Category : Plays files within the cur- rent category in random order. • Shuffle Album : Plays files within the current category in random order. Info On/Info Off Press the Menu button ▶ Press Info On . The screen display can be set differently depending on user selection. When the title, artist, and album info are displayed, the button Info Off . Press Info Off to restore the previous display setting. 2-46 Starting Mode Press the MEDIA key ▶ Press AUX . i Information • If an external device connector is con- nected with the AUX terminal, then AUX mode will automatically operate. Once the connector is disconnected, the previous mode will be restored. • AUX mode can be used only when an external audio player (camcorder, car VCR, etc.) has been connected. • The AUX volume can also be controlled separately through the connected device. NOTICE • If only cable connected to the AUX with out an external device, the mode changed to AUX, but noise may occur. When an exter- nal device is not being used, remove the connector jac k. • When the external device power is con- nected to the power jack, playing the e xternal device may output noise. In such cases, disconnect the power connection before use. Connecting an External Device External AUDIO players can be played through a dedicated cable. The position of the AUX jack is at the top of the gear shifter located between the driver and pas- senger seats. AUX Mode Bluetooth ® Audio Mode Audio l 2-47 Basic Mode Screen i Information • The title/artist info may not be supported in some mobile phones. When it is not supported, a symbol will be displayed. • The play/pause feature may operate differently depending on the mobile phone. 1 2 3 4 567 NameDescription 1 Mode Displays currently playing mode 2 Phone Name Displays name of connected phone 3 Title Name of current song 4 Artist Info Name of current artist 5 Play Plays Bluetooth ® Audio 6 PausePauses Bluetooth ® Audio 7 ConnectionsDisplays the Connections screen Bluetooth ® Audio Mode 2-48 Using Bluetooth ® Audio Mode Bluetooth ® Audio Mode can be used only when a Bluetooth ® Audio mode capable device has been connected. While Bluetooth ® Audio Mode is playing, if the Bluetooth ® phone is discon nected, then the music will also stop. Bluetooth ® streaming audio may not be supported with some mobile phones. Starting Mode Press the MEDIA key ▶ Press Bluetooth Audio . Playing Bluetooth ® Audio • Press the ▶ button to play files saved within the Bluetooth ® phone. • Press the ll button to pause the file. Bluetooth ® Audio Mode Bluetooth ® Audio Mode Audio l 2-49 Selecting Bluetooth ® Audio Files While playing ▶ Press the , key ▶ Selects the previous/ next file. i Information • The title/artist info may not be supported in some mobile phones. When it is not supported, only the symbol will be dis- played. • The play/pause feature may operate dif- ferently depending on the mobile phone. Setting Connection Press the Connections button to add a new Bluetooth ® phone, connect/disconnect, delete, delete all, or view the Help section. NameDescription 1 Help Displays Bluetooth ® Help screen 2 Add New Pair a new Bluetooth ® device 3 Connect/ Disconnect Connect or disconnect a Bluetooth ® device 4 Delete Delete a paired Bluetooth ® device 5 Delete All Delete all paired Bluetooth ® de- vices 6 Auto Connection Set Bluetooth ® phone Auto Con- nection upon starting car ignition i Information • If music is not yet playing from your mobile device after converting to streaming audio (Bluetooth ® Audio) mode or after pressing Play on the mobile device itself, pressing the ▶ button once may begin playing the music. Check to see whether music is playing from the Bluetooth ® device after converting to streaming audio mode. The Streaming audio feature may not be supported in some mobile phones. • For more information on mobile phone com- patibility, visit the KIA Motor Company website (http://www .k…

Text truncated - open the document above for the full version.

Using Setup Setup l 8-5 Setting Beep Press the Sound button ▶ Press Beep ▶ Set and press Done . Each press of this button turns the BEEP tone on/off. i Information • When the light on the left side of the but- ton is turned on, this indicates that the BEEP tone is active. Press the Beep button again to turn off the BEEP tone. Display Press the INFO SETUP key ▶ Press Setup ▶ Press Display . Adjusting Brightness Press the Display button ▶ Press Brightness ▶ Set and press Done . Use the ◀ or ▶ buttons to adjust the dis- play brightness. Setting Display Mode Press the Display button ▶ Press Display Mode ▶ Set and press Done . Name Description 1 Automatic Adjusts the brightness auto- matically according to sur- rounding light conditions. 2 Daylight Brightness level always set on high. 3 Night Brightness level always set on low. 1 2 3 8-6 Using Setup i Information • When set to Automatic, the screen bright- ness and color will automatically be adjusted according to the surrounding brightness. Phone Press the INFO SETUP key ▶ Press Setup ▶ Press Phone . These menus allow you to set Bluetooth ® Wireless Technology related features. Name Description 1 Bluetooth Connections Manages the Bluetooth de- vice list, such as pairing, con- necting or deleting Bluetooth de vices 2 Change Passkey Changes the passkey used to authenticate Bluetooth ® device 3 Device Information Searches car Bluetooth ® de- vice information and change de vice name 4 Restore Factory Settings Restores Bluetooth ® factory state settings 1 4 2 3 Using Setup Setup l 8-7 Connections Manages the Bluetooth device list, such as pairing, connecting or deleting Bluetooth devices. Change Passkey Press Phone button ▶ Press Change Passkey ▶ Set and press Done . This feature is used to change the passkey required to connect a Bluetooth ® device to the car. i Information • The default passkey is 0000. Device Information Press Phone button ▶ Press Device Information . This feature allows you to check device information. i Information • Press the Change Name button to change the name of the device. • The default car name is set to KIA MOTORS. • The device name and address shown in the above is only an example. Check your device for the actual device information. 8-8 Using Setup Restore Factory Settings Press Phone button ▶ Press Restore Factory Settings . Turning on this feature will erase all paired phones and allows you to restore the fac- tory default Bluetooth ® settings. i Information • The Restore Factory Settings feature cannot be used when a Bluetooth ® device is connected. To use this feature, first disconnect the Bluetooth ® device. Navigation Press the INFO SETUP key ▶ Press Setup ▶ Press Navigation . Main Press the Navigation button ▶ Press Main ▶ Set and press Done . This menu is used to set general naviga- tion options. Name Description 1 Unit Sets whether to display dis- tance as kilometers or miles 2 Estimated Time of Sets whether to display esti- mated time of arrival or travel on the route info display screen 3 Distance and Time to Sets whether to display dis- tance and time to destination or to waypoint on the route info display screen 4 Display Previous Destinations upon Star t-up Sets whether to display the previous destinations popup upon starting system 5 Driving Speed Setting Sets basic info to calculate estimated arrival time to des- tination or waypoint 6 Auto search when fuel gauge reads low Automatically search for gas stations when fuel gauge reads low 1 2 3 4 5 6 Using Setup Setup l 8-9 i Information • When you have finished with the set- tings, press the Done button to save changes. Driving Speed Setting Press the Edit button within the "Driving Speed Setting" menu to set the estimated driving speed for residential roads, main streets, and expressways. The set driving speed is applied to calculate the estimated time to reach the destination or waypoint. The set driving speed is used to calculate the estimate time to arrive at destinations or waypoints. Press the Default button to reset the driv- ing speed settings. i Information • Default Driving Speed Settings for Residential, Main Streets, and Expressways are 20mph, 35mph, and 65mph, respec- tively. Display Press the Navigation button ▶ Press Display ▶ Set and press Done . This menu is used to set the colors dis- played within Navigation mode. 8-10 Using Setup Route Indicator Line Press the Edit button within the Route Indicator Line menu to change the color of the route indicator line. i Information • When you have finished with the set- tings, press the Done button to save changes. Route Search Press the Navigation button ▶ Press Route Search ▶ Set and press Done . This menu is used to set route search related options. Name Description 1 Use Alternative Route Search Set whether to first display alternative routes upon con- ducting route search 2 Display Route Options after Re-Calculation Set whether to display the pop-up screen that allows changes to route options upon route recalculation Guidance Press the Navigation button ▶ Press Guidance ▶ Set and press Done . This menu is used to set options on speed alerts and driver alerts. Name Description 1 Speed Alert Guidance Set options related to various camera alerts 2 Driver Alert Guidance Set options related to curves, and merges 3 Voice Guidance Type When Beep is selected, all navigation voice guidances are replaced with a beep sound 1 2 1 2 3 Using Setup Setup l 8-11 Speed Alert Guidance To change the Speed Alert Guidance option, press the Edit button within the "Speed Alert Guidance" menu. Driver Alert Guidance To set the Driver Alert Guidance, option, press the Edit button within the "Driver Alert Guidance" menu. i Information • Alerts provided within Driver Alert Guidance may differ depending on actual road cond i- tions. Default Press the Navigation button ▶ Press Default ▶ Set and press Done . This menu is used to reset saved changes and user preferences. Name Description 1 Initialize Settings Resets all…

Text truncated - open the document above for the full version.

26 Starting Mode Press the MEDIA key ▶ Press Bluetooth Audio . Playing Bluetooth ® Audio • Press the ▶ button to play files saved within the Bluetooth ® phone. • Press the ll button to pause the file. Selecting Bluetooth ® Audio Files While playing ▶ Press the , key ▶ Selects the previous/next file. Setting Connection Press the Connections button to add a new Bluetooth ® phone, connect/disconnect, delete, delete all, or view the Help section. Bluetooth ® Audio 27 Starting Mode Press the MEDIA key ▶ Press My Music . Playing My Music • Press the ▶ button to play the file. • Press the ll button to pause the file. Selecting My Music While playing ▶ Press the < , > buttons or the , key to play the previous/ next file. • Pressing and holding the , key (over 0.8 seconds) will rewind or fast-forward the cur- rent file. • While the , key is being pressed, the track will rewind or fast-forward at high speeds. Once the key is released, the Music will begin playing at nor- mal speed. My Music Mode 28 Using the Menu Buttons Press the Menu button to set the Repeat, Shuffle, Scan, Info On (Info Off) menus. Repeat Press the Menu button ▶ Press Repeat . The currently playing file is repeated. Shuffle Press the Menu button ▶ Press Shuffle . When turned on, files are played in ran- dom order. Scan Press the Menu button ▶ Press Scan . The beginning (approx 10 seconds) of all files are scanned. Info On/Info Off Press the Menu button ▶ Press Info On . The screen display can be set differ- ently depending on user selection. When the title, artist, and album info are displayed, the button is changed to Info Off . Press Info Off to restore the previ- ous information display setting. My Music Mode 29 Using Menus within the List Screen Moving between Lists Press the List button ▶ Press ▲ , ▼ . If six (6) or more files or folders exist in the same folder, the list will be dis- played across two or more pages. Press the ▲ , ▼ cursor buttons to quickly find the desired page. Retuning to Current Location While searching files within other fold- ers, press the Now Playing button to return to the currently playing file screen. Deleting Files Press the List button ▶ Select the files to delete ▶ Press Delete Items . My Music Mode 30 Navigation Starting Navigation Current Position Press the MAP VOICE key or the button displayed at the upper right side in some map conditions to dis- play the map of the current position and the neighbor ing area. Map Display Settings Press the MAP VOICE key▶ Press the . Each press of this button changes the direction between Heading-up and North-up. Changing Map Scale Press the Scale + / - button to display a popup showing all scales. To adjust the scale, press the + / - button or push the desired scale on the scale pop-up window. Map Menu Press Menu button. The Set as Destination, Add Waypoint, Add to Address Book, Navi Vol. features can be used. Some buttons are disabled in states when they cannot be used. 31 Navigation Adjusting Navigation Volume Press Menu ▶ Navi Vol. ▶ Adjust volume. Press the button to turn the navi guidance volume on/off. Press Menu ▶ Navi Vol. button to display a popup used to adjust volume and adjust the navi guidance volume to the desired loudness. 0~45 through the + / - button. Press the Mute button to turn off the sound. POI Display Press POI . When POI menus are displayed, pressing one of the 6 POI icon buttons will display the corresponding POI icons. Editing POI Icons Press POI ▶ Press the Edit POI Icon button ▶ Press Done . Press the Edit POI Icon button to select the desired facility from the vari- ous facility types. Up to six f avorite facilities can be set. Press the Default button to reset the displayed POI icons. Initially, Gas Station, Parking, Fast Food, Hospital, Auto Service, and Bank are set as default. 32 Navigation Searching POIs Press the Search by local POI button. This feature is used to search nearby POIs. NameDescription 1 Select Area Use the Select Area feature to change the area. 2 Near Current Position Within the ‘Search by POI menu, searches facilities based on the current vehicle positio Adding a My Place Feature used to save the current position or scroll position. 12 33 Navigation Destination Search Address Press the DEST key ▶ Press Address . Feature used to search destinations through addresses, including House No., Street name, City name, etc. Previous Destinations Press the DEST key ▶ Press Previous Destination . NameDescription 1 By Date Sorts POIs and locations by added date 2 By Name Sorts POIs and locations by name 3 Delete Items From various entries, items can be selected and deleted all at once Point of Interest (POI) Search This feature is used to search facilities using POI categories. It is possible to search through previous search history. 1 2 3 34 Navigation Gas Station Press the DEST key ▶ Press Gas station . This search feature is used to search destinations by street intersections throughout the map. Enter the name of the Street, City and State corresponding to the desired destination. Once search is complete, press the Search button to select the desired location from the list. Restaurants Press the DEST key ▶ Press Restaurants . This search feature is used to search destinations by street intersections throughout the map. Enter the name of the Street, City and State corresponding to the desired destination. Once search is complete, press the Search button to select the desired location from the list. 35 Navigation Emergency Press the DEST key ▶ Press Emergency . This search feature is used to search for police stations, hospitals, and deal- erships in emergency situations. My Places Press the DEST key ▶ Press My Places ▶ Press Group . This search feature is used to search destinations by selecting previously saved My Places to set as destinations. My Places can be placed in groups, and group names can be edited within Setup. Phone Number Press the DEST key ▶ Press Phone Number . This search feature is used to sear…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. January 10, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AVN , AV130A7AN We affirm that between SIEMIC and HYUNDAI MOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Jong Tae Kim/ Assistant Manager HYUNDAI MOBIS CO.,LTD. 80-9, Mabook-Dong, Giheung-Gu Yongin-shi, Gyunggi-Do South Korea 446-912 FCC ID : TQ8-AV130A7AN

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD. January 10,2012 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TQ8-AV130A7AN We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jong Tae Kim / Assistant Manager HYUNDAI MOBIS CO., LTD. 80-9, Mabook-Dong, Giheung-Gu Yongin-shi, Gyunggi-Do South Korea 446-912

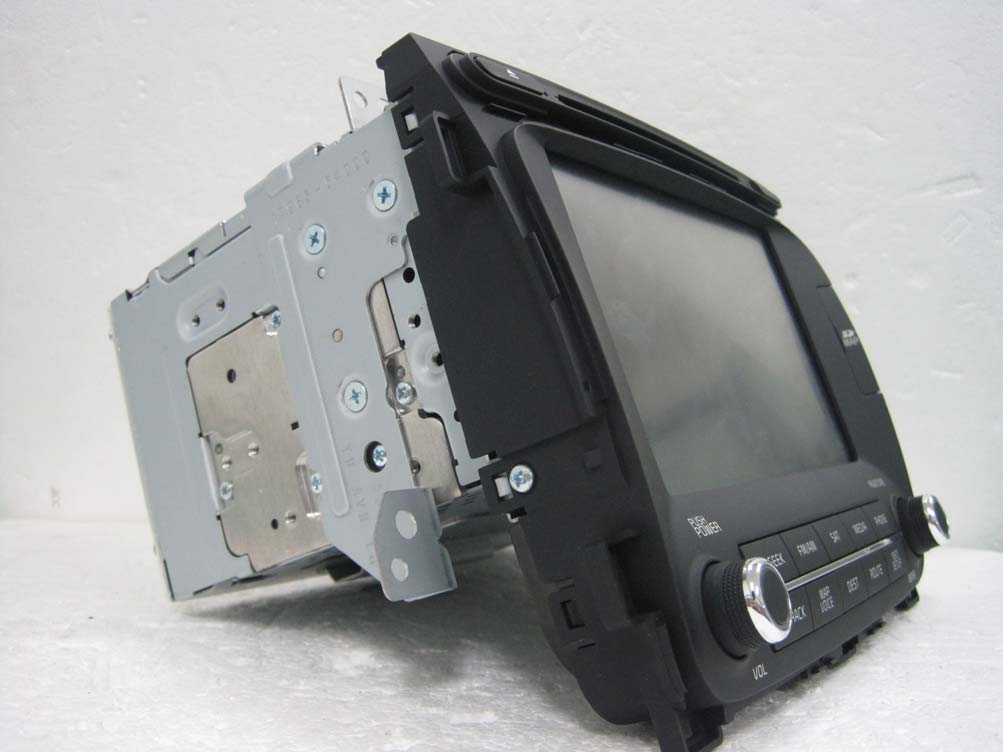

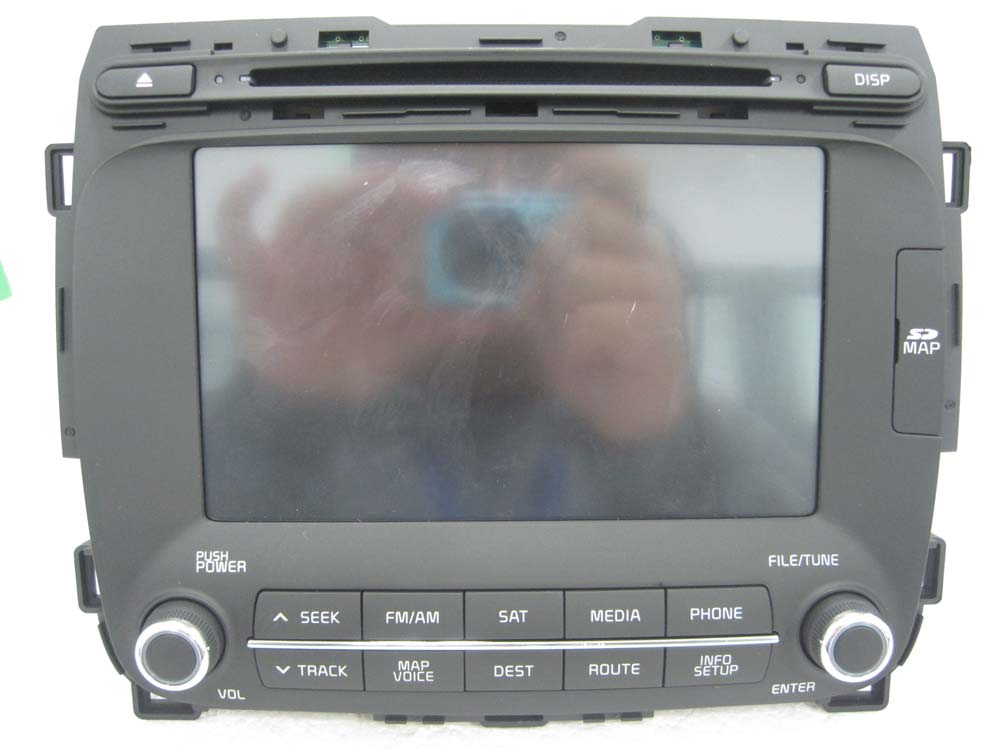

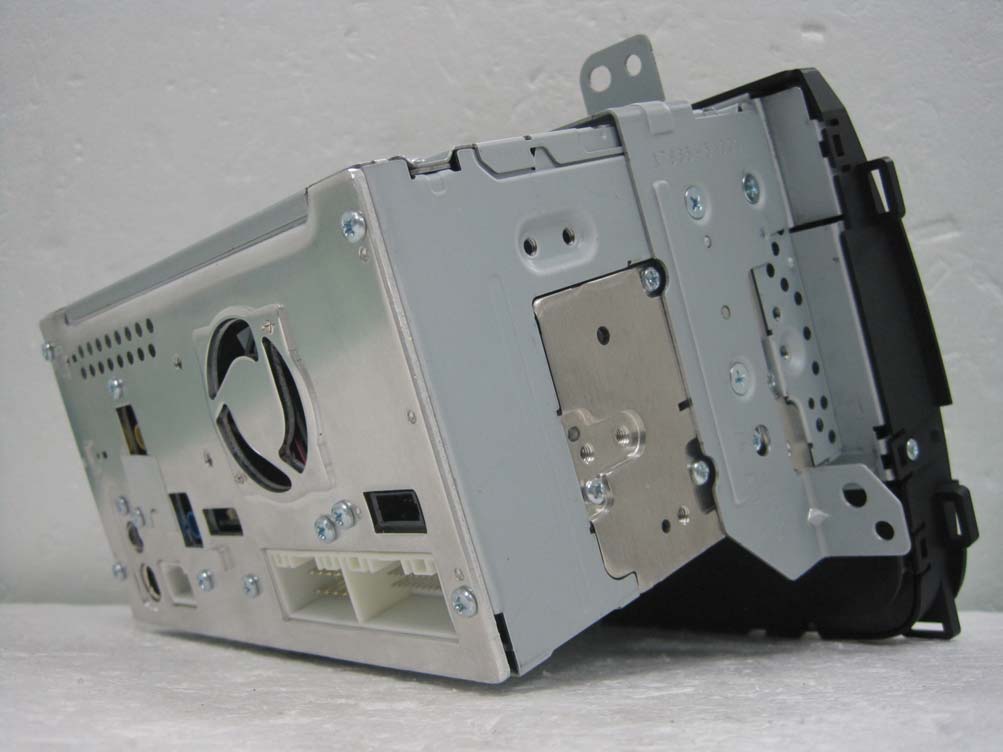

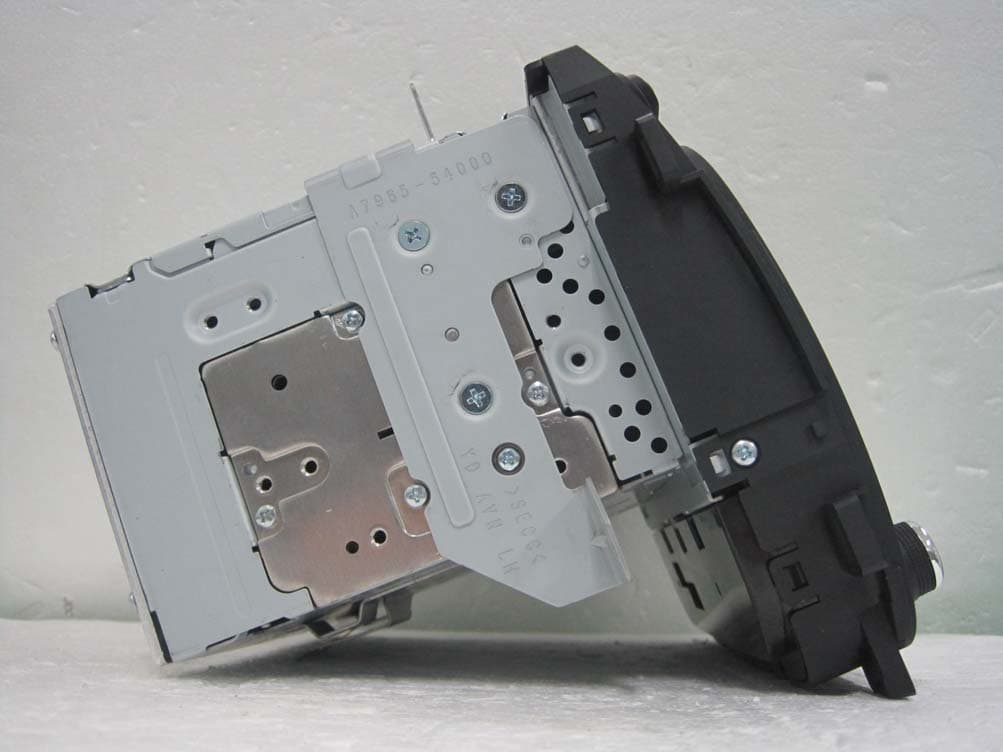

FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 7 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 8 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 9 / 10 FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 10 / 10

FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 2 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model No IC Model FCC ID IC EUT Type Serial No : AV130A7AN : AV1A0A7KN : TQ8-AV130A7AN : 5074A-AV1A0A7KN : CAR AVN : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. HYUNDAI MOBIS CO., LTD. 80-9, Mabook-Dong, Giheung-Gu, Yongin-shi, Gyunggi-Do,446-912 South Korea MADE IN KOREA FCC ID: TQ8-AV130A7AN/ IC: 5074A-AV1A0A7KN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR100…
