TQ8-AV1A1IHANDIGITAL CAR AVN SYSTEM

1WEF02 Thank you for purchasing this multimedia system. This user's manual explains how to use the Kia Motor multimedia system. Before using the product, read the con- tents of this user's manual carefully and use this product safely. • The screens shown in this manual may differ with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while driving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or service center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi- als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. All Map Database cannot be copied without permission. Important Notice: This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM service at the end of your trial sub- scription, the plan you choose will automatically renew and bill at then- current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic informa- tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. WARNING - Distracted Driving • Focus on the road while driving. The driv- er's primary responsibility is in the safe and legal operation of the vehicle. Drivers should not use any hand held devices or other equipment or vehicle systems that distract the driver during vehicle opera- tion. • Do not stare at the multimedia screen f or long periods of time while driving. Staring at the screen for prolonged peri- ods of time can lead to traffic accidents and can result in personal injuries. • At launch, the Apple iPhone ® will be the only UVO eServices compatible device. iPhone ® is a registered trademark of Apple Inc. • App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App runs on your smartphone cellular data service. Normal data rates will apply. • 24-hour Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth within the cellular service coverage area is required. • Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature checks powertrain, chassis, and airbag systems only. For factory-recom- mended maintenance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual. • 911 Connect activates after an airbag deployment. Feature requires a con- nected mobile phone via Bluetooth. Dependant on cellular service coverage. • The Rear Camera display is not a sub- stitute for proper and safe backing-up procedures. The Rear Camera display ma y not display every object behind the vehicle. Always drive safely and use cau- tion when backing up. 1RWDWLRQVXVHGZLWKLQWKLV8VHU V 0DQXDO WARNING A WARNING indicates a situation in which harm, serious bodily injury or death could result if the warning is ignored. CAUTION A CAUTION indicates a situation in which damage to your vehicle could result if the caution is ignored. i Information Information and tips that provide additional user convenience in using the product. NOTICE Information on specific features that facilitate proper product use and functional understanding. Information on terminology used within this manual. 1RWDWLRQVXVHGZLWKLQWKLV8VHU V 0DQXDO 5HDGWKHIROORZLQJVDIHW\FDXWLRQVIRU \RXUVDIHW\ Before using the product, read the contents of this user's manual carefully and use this product safely. The design and specifications of this product ma y change with- out prior notification for product and service improvement. The actual features in the vehicle may differ from the illustra- tions. For more accurate information about the vehicle, please refer to the catalogue. 2 %DVLF :DUQLQJVDQG&DXWLRQV Warnings and Cautions 1-2 .H\3URGXFW)HDWXUHV Key Product Features 1-3 &RPSRQHQW1DPHVDQG)XQFWLRQV He…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 11 February 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 17 July 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐AV1A1IHAN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

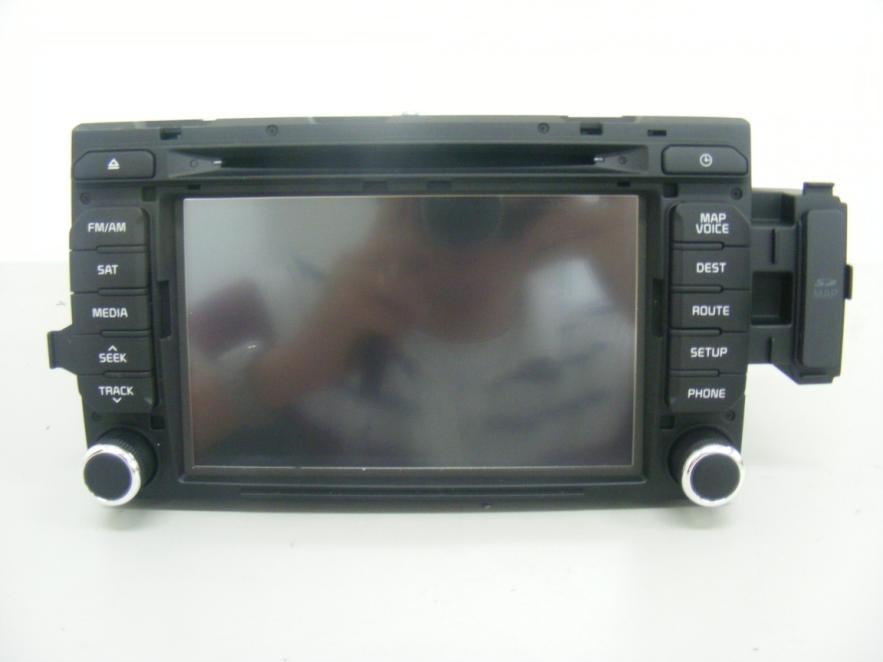

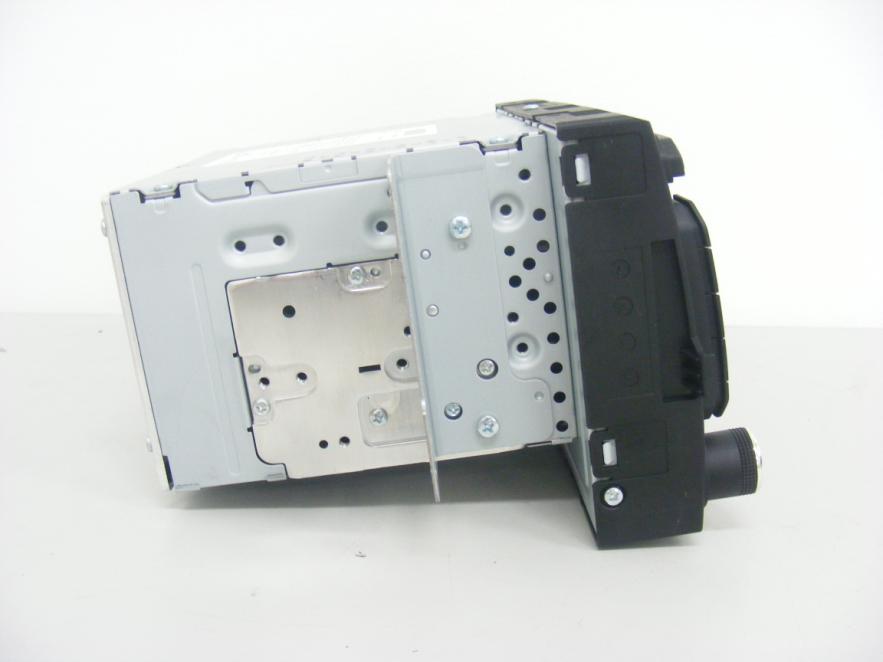

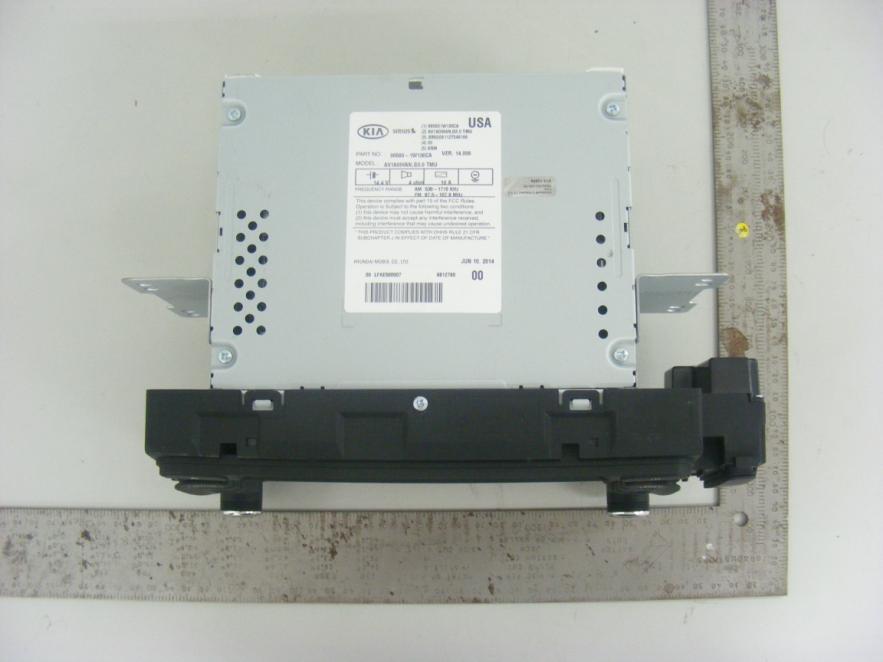

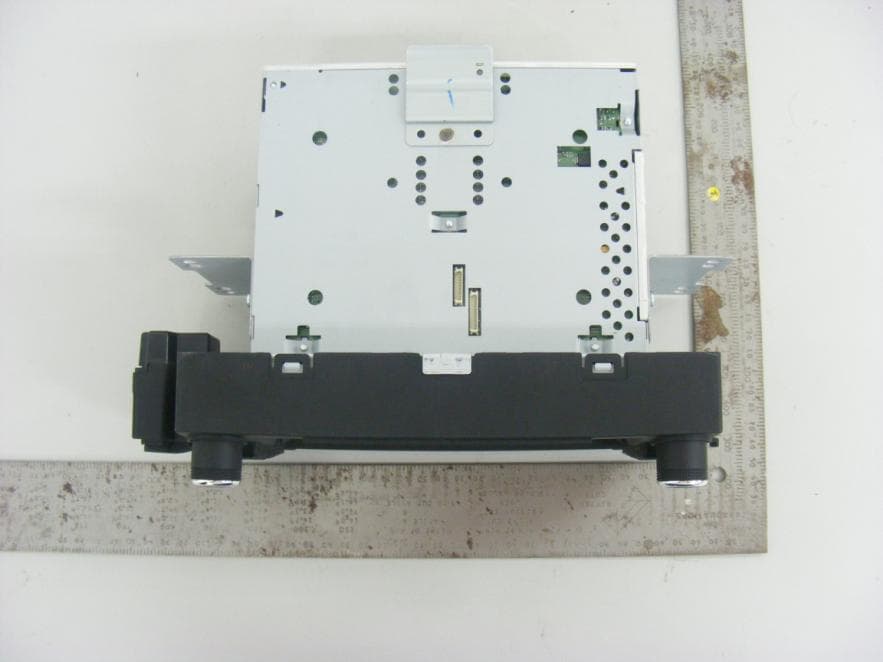

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

AV1A1IHAN/AV1A1IHKNFCC/IC LABEL If ti LABEL LOCATION FCC/IC LABEL I n f orma ti on Hyundai MOBIS Co., Ltd. FCC MODEL: AV1A1IHAN FCC ID: TQ8 ‐ AV1A1IHAN IC MODEL: AV1A1IHKN LABEL LOCATION IC: 5074A ‐ AV1A1IHKN Non-removable This device complies with part 15 of the FCC rules and industry Canada license ‐ exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, ildi it f th t did LABEL i nc l u di ng i n t er f erence th a t may cause un d es i re d operation. Made in Korea MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FRONT TOP Hyundai MOBIS Co., Ltd.

Internal photos of EUT Internal of EUT Top view of Main PCB1 Bottom view of Main PCB1 Top view of Main PCB2 Bottom view of Main PCB2 Top view of Keypad PCB1 Top view of Keypad PCB1 Top view of CD player PCB Bottom view of CD player PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of Sub PCB3 Bottom view of Sub PCB3 Top view of SD card PCB Bottom view of SD card PCB Top view of module PCB3 View of BT Antenna BT Antenna

Report Number: F690501/RF-RTL007823 Page: 2 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 4 Report Number: F690501/RF-RTL007823 Page: 3 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hun Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AVN SYSTEM Model Name AV1A1IHAN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Antenna Gain 3.5 ㏈i 1.4. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL007823 2014.07.16 Initial Report Number: F690501/RF-RTL007823 Page: 4 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in §1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational /Control Exposures 300 – 1 500 -- -- F/300 6 1 500 – 100 000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1 500 -- -- F/1500 30 1 500 – 100 000 -- -- 1 30 Report Number: F690501/RF-RTL007823 Page: 5 of 5 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item ： RF Exposure Evaluation Data Test Mode ： Normal Operation 2.1.3. Output Power into Antenna & RF Exposure Evaluation Distance GFSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Low 2 402 1.27 3.5 0.000 597 1 Middle 2 441 1.48 3.5 0.000 626 1 High 2 480 1.43 3.5 0.000 619 1 Maximum tune up tolerance - 4.00 3.5 0.001 119 1 π/4DQPSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Low 2 402 0.24 3.5 0.000 471 1 Middle 2 441 0.40 3.5 0.000 488 1 High 2 480 0.20 3.5 0.000 466 1 Maximum tune up tolerance - 4.00 3.5 0.001 119 1 8DPSK Channel Channel Frequency (㎒) Output Average Power to Antenna (㏈m) Antenna Gain (㏈i) Power Density at 20㎝ (㎽/㎠) LIMITS (㎽/㎠) Low 2 402 0.25 3.5 0.000 472 1 Middle 2 441 0.44 3.5 0.000 493 1 High 2 480 0.20 3.5 0.000 466 1 Maximum tune up tolerance - 4.00 3.5 0.001 119 1 Note : 1. The power density Pd (5th column) at a distance of 20㎝ calculated from the friis transmission formula is far below the limit of 1 ㎽/㎠.

Report Number: F690501/RF-RTL007822-1 Page: 2 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth ------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power ------------------------------------------------------------------- 38 5. Hopping Channel Separation --------------------------------------------------------------------- 40 6. Number of Hopping Frequency ------------------------------------------------------------------ 43 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 47 8. Antenna Requirement ------------------------------------------------------------------------------ 60 Report Number: F690501/RF-RTL007822-1 Page: 3 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai MOBIS Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Choi, Seung-Hun Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product DIGITAL CAR AVN SYSTEM Model Name AV1A1IHAN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel Antenna Type Internal type(chip antenna) Antenna Gain 3.5 ㏈i Report Number: F690501/RF-RTL007822-1 Page: 4 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The selection of frequencies is equal from the inventory of available frequencies. 1.5.3. Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted signals. 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL007822-1 Page: 5 of 60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Aug. 10, 2013 Annual Aug. 10, 2014 Signal Generator R&S SMBV100A 255834 Jun. 25, 2014 Annual Jun. 25, 2015 Spectrum Analyzer R&S FSV30 100768 Mar. 27. 2014 Annual Mar. 27. 2015 Spectrum Analyzer Agilent N9030A US51350132 Oct. 08, 2013 Annual Oct. 08, 20…

Text truncated - open the document above for the full version.

Test setup photos of EUT Photos of Field Strength & Spurious Emission Test(Below 1GHz) Photo of Field Strength & Spurious Emission Test(Above 1GHz)
