TQ8-AV230F6ANDIGITAL CAR AVN SYSTEM

1-4 I Basics Display Wide TFT-LCD Display • Provides high quality video through a Wide TFT- LCD Display using an LED Back Light. • Touch screen for maximum user convenience. Radio Digital Tuner Feature • Digital Tuner using PPL method that supports memory of 12 broadcast stations for each AM and FM modes. Radio broadcast station name • Displays broadcast station names for key loca- tions. HD Radio™/Satellite Radio feature • Supports HD Radio™ reception and Satellite Radio (SiriusXM™). Key Product Features This device is a Multimedia system equipped with a multifunctional disc player that supports Radio (FM, AM), HD Radio™ technology, SiriusXM™, Audio CD, MP3, USB, iPod ® , Audio AUX, Bluetooth ® Audio and My Music features. The WIDE VGA LCD provides a high quality resolution while the powerful and rich sound system adds to the driving enjoyment. Multimedia Player Support for various Media Formats • Support for various media formats, including Radio, Audio CD, MP3, USB, iPod, AUX and Bluetooth ® Audio Streaming modes My Music • Supports copying of music stored within USB devices into My Music (internal memory) mode Navigation Voice Guidance • Voice route guidance to safely and conv eniently reach set destinations • V arious map scales that enable drivers to accu- rately view map and surrounding areas Automatic Correction for Current Location • Automatically corrects current position using map matching and GPS information. Miscellaneous Bluetooth ® Wireless Technology • Convenient use of Bluetooth ® Handsfree by using buttons within the steering wheel remote controller Digital Screen Control Features • Easy control of features through touch screen options Steering Wheel Remote Controller • Control over audio features, voice recognition and Bluetooth ® through the steering wheel remote controller for maximum convenience Head Unit NameDescription Press to insert or eject disc SD Card insert slot PWR/ VOL When power is off, press to turn power on When power is on, press and hold (over 0.8 seconds) to turn power off When power is on, press shortly (under 0.8 seconds) to turn Audio off Turn left/right to control volume MAP Displays the map for the current position NAVI Moves user to the menu screen where you can find your destination and set the route. PHONE Takes user to phone screen INFO Displays the information mode SETUP Displays the Setup mode TUNE FM/AM mode : changes the frequency SiriusXM™ mode : changes the channel MEDIA (Disc/USB/iPod/My Music) mode : changes the track, file or title (except USB Image, Bluetooth Audio and AUX) RESET Resets the system settings. (Preset radio chan- nels and other data will not be deleted.) NameDescription RADIO Converts to FM/AM/SiriusXM™ mode • Each time the key is pressed, the mode is changed in order of FM AM Sir iusXM™ FM MEDIA Converts to MEDIA mode If the media is not connected or is or CD play er not available for Model, Media mode will not be activated. Press this key to move to the last mode that y ou accessed in Media. Press it once again to dis- play the screen where you can select a Media mode. UVO Displays the UVO mode When key is pressed shortly. (under 0.8 seconds) FM/AM mode : plays previous/ne xt frequency SiriusXM™ mode : plays the previous/next chan- nel MEDIA (Disc/USB/iPod/My Music) mode : changes the track, file or title (except USB Image and AUX) When key is pressed and held. (over 0.8 seconds) FM/AM mode : continuously changes the fre- quency until the key is released SiriusXM™ mode : continuously changes the chan- nel until the key is released and plays the current channel MEDIA (Disc/USB/iPod/My Music) mode : rewinds or fastforwards the track or file (except USB Image, Bluetooth Audio and AUX) 01 NameDescription MODE • Each time this key is pressed, mode is changed in order of FM AM Sir iusXM™ Disc USB Music or iPod AUX Bluetooth Audio My Music • If the media is not connected, corresponding modes will be disabled • Press and hold the key (over 0.8 seconds) to turn the Audio system on/off • When power is off, press the key to turn powe r back on + - Controls the volume When keys are pressed shortly. (under 0.8 sec- onds) • FM/AM mode : searches broadcast frequencies saved to Presets • SiriusXM™ mode : searches broadcast chan- nels saved to Presets • MEDIA(Disc/USB/iPod/My Music) mode : changes the track, file or chapter (except USB Image, AUX) When keys are pressed and held. (over 0.8 sec- onds) • FM/AM Mode : Automatically searches broad- cast frequencies • SiriusXM™ mode : automatically searches broadcast channels • MEDIA(Disc/USB/iPod/My Music) mode : Quickly looks up songs (excluding USB images, AUX, and Bluetooth audio files) NameDescription When pressed shortly. (under 0.8 seconds) • Activates voice recognition When pressed and held. (over 0.8 seconds) • Ends voice recognition • Activates Siri Eyes Free Steering Wheel Remote Controller When pressed shortly. (under 1.2 seconds) • When pressed in the dial screen, makes a call • When pressed in the incoming call screen, answers the call • When pressed during call waiting, switches to waiting call (Call Waiting) When pressed and held. (over 1.2 seconds) • When pressed in the Bluetooth ® Handsfree, redi- als the last call • When pressed during a Bluetooth ® Handsfree call, switches call back to mobile phone (Private) • When pressed while calling on the mobile phone , s witches call back to Bluetooth ® Handsfree (Operates only when Bluetooth ® Handsfree is connected) • When pressed during a call, ends the phone call • When pressed in the incoming call screen, rejects the call ※ The actual feature in the vehicle may differ from the illustration. 10-2 I Appendix Product Specification TFT-LCD Screen Size Navigation Device - 8 inch(176.4 x 99.36mm) ResolutionNavigation Device - 384,000 pixels (Resolution: 800 x 480) Operating Method TFT(Thin Film Transistor) Active Matrix Viewing Angle Left/Right, Top/Bottom : ALL 89 ° Internal LightingLED Radio Channels FM : 87.5 MHz ~ 107.9 MHz(St…

Text truncated - open the document above for the full version.

Date: Sep. 28, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hyundai Mobis Co., Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project: Product: DIGITAL CAR AVN SYSTEM Model name: AV230F6AN FCC ID: TQ8-AV230F6AN We affirm that between SIEMIC and Hyundai Mobis Co., Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

Date: Sep. 28, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TQ8-AV230F6AN We hereby request confidential treatment of information accompanying this application as outlined below:  Block diagram  Schematics  Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : TQ8-AV230F6AN Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

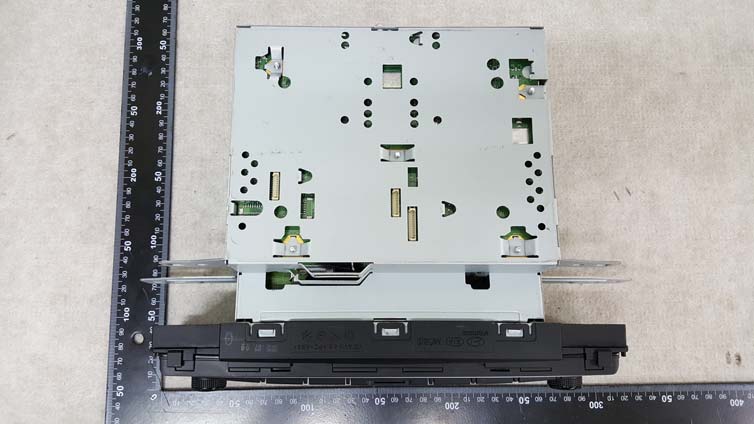

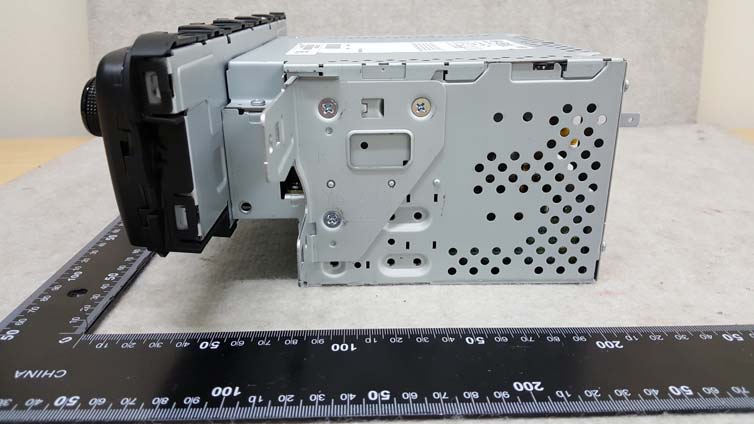

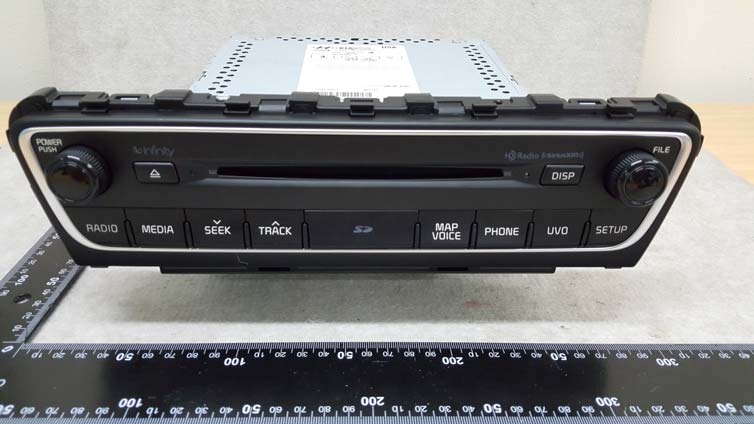

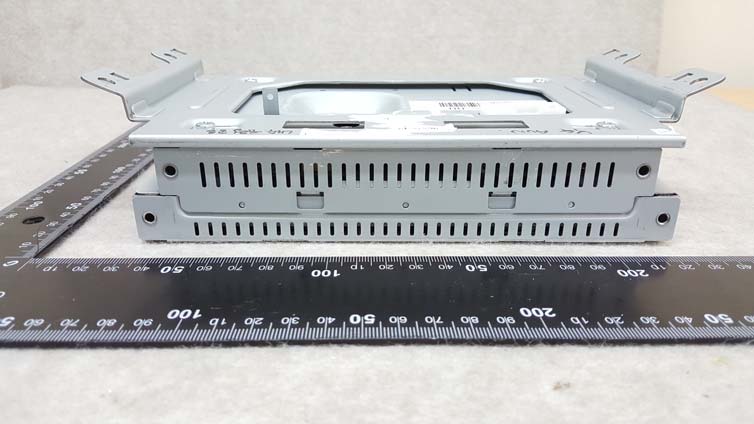

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval WiFi Antenna Bluetooth Antenna http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Module

http://www.kctl.co.kr Page: ( 1 ) / ( 3 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] http://www.kctl.co.kr Page: ( 2 ) / ( 3 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Mode Target power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈m] [㏈] [㏈m] [㎽] [㏈i] [㎽] [㎽/㎠] [㎽/㎠] Bluetooth_GFSK 1 ±1.0 2 1.58 -0.9 0.81 0.000 26 1.000 00 Bluetooth_π/4DQPSK 0 ±1.0 1 1.26 -0.9 0.81 0.000 20 1.000 00 Bluetooth_8DPSK 0 ±1.0 1 1.26 -0.9 0.81 0.000 20 1.000 00 WiFi_802.11b 15 ±2.5 17.5 56.23 -2.88 0.52 0.005 76 1.000 00 WiFi_802.11g 11 ±2.5 13.5 22.39 -2.88 0.52 0.002 29 1.000 00 WiFi_802.11n HT20 10 ±2.5 12.5 17.78 -2.88 0.52 0.001 82 1.000 00 4. Target power and tolerance, Max tuneup power Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Average Power [㏈m] Bluetooth_GFSK Lowest 1 ±1.0 2 0.60 Bluetooth_GFSK Middle 1 ±1.0 2 0.35 Bluetooth_GFSK Highest 1 ±1.0 2 1.40 Bluetooth_π/4DQPSK Lowest 0 ±1.0 1 0.02 Bluetooth_π/4DQPSK Middle 0 ±1.0 1 -0.12 Bluetooth_π/4DQPSK Highest 0 ±1.0 1 0.77 Bluetooth_8DPSK Lowest 0 ±1.0 1 -0.02 Bluetooth_8DPSK Middle 0 ±1.0 1 -0.15 Bluetooth_8DPSK Highest 0 ±1.0 1 0.82 http://www.kctl.co.kr Page: ( 3 ) / ( 3 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Average Power [㏈m] WiFi_802.11b Lowest 15 ±2.5 17.5 15.56 WiFi_802.11b Middle 15 ±2.5 17.5 15.91 WiFi_802.11b Highest 15 ±2.5 17.5 16.23 WiFi_802.11g Lowest 11 ±2.5 13.5 11.73 WiFi_802.11g Middle 11 ±2.5 13.5 11.57 WiFi_802.11g Highest 11 ±2.5 13.5 11.92 WiFi_802.11n HT20 Lowest 10 ±2.5 12.5 11.75 WiFi_802.11n HT20 Middle 10 ±2.5 12.5 11.47 WiFi_802.11n HT20 Highest 10 ±2.5 12.5 11.60

http://www.kctl.co.kr Page: ( 2 ) / ( 49 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0026 KCTL-TIR001-003/0 [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage .................................................................................................................................................. 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Peak Power Spectral Density ...................................................................................................................... 11 5.4 6 dB Bandwidth(DTS Channel Bandwidth) .............................................................................................. 18 5.5 Spurious Emission, Band Edge, and Restricted bands ................................................................................ 29 6. Test equipment used for test ........................................................................................................................... 49 http://www.kctl.co.kr Page: ( 3 ) / ( 49 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0026 KCTL-TIR001-003/0 1. Client information Applicant: Hyundai Mobis Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Telephone number: +81-31-260-2707 Facsimile number: +81-31-899-1788 Contact person: Choi Seung Hoon/ [email protected] Manufacturer: Hyundai Mobis Co., Ltd. Address: 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea http://www.kctl.co.kr Page: ( 4 ) / ( 49 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0026 KCTL-TIR001-003/0 2. Laboratory information Address KCTL Ltd. 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: +82-70-5008-1016 Facsimile Number: +82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No: KR0040 FCC Site Registration No: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP KCTL Ltd. Suwon city http://www.kctl.co.kr Page: ( 5 ) / ( 49 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0026 KCTL-TIR001-003/0 3. Description of E.U.T. 3.1 Basic description Applicant: Hyundai Mobis Co., Ltd. Address of Applicant 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Manufacturer Hyundai Mobis Co., Ltd. Address of Manufacturer 95, Sayang 2-Gil, Munbaek-Myeon, Jincheon-Gun, Chungcheongbuk-Do 365-862 Korea Type of equipment DIGITAL CAR AVN SYSTEM Basic Model AV230F6AN Serial number N/A 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth) 2 412 ㎒ ~ 2 462 ㎒ (802.11b/g/n_HT20) Type of Modulation GFSK, π/4DQPSK, 8DPSK (Bluetooth), DSSS (802.11b), OFDM (802.11g/n_HT20) Number of Channels 79 ch (Bluetooth), 11 ch (802.11b/g/n_HT20) Type of Antenna External Antenna Antenna Gain -0.9 ㏈i (Bluetooth) , -2.88 ㏈i (802.11b/g/n_HT20) Transmit Power 22.56 ㏈m Power supply DC 12 V Product SW/HW version 1.0 Radio SW/HW version 1.0 Test SW Version JFHEV.USA.0000.V060.150427 RF power setting in TEST SW Using original setting value inside EUT Note : The above EUT information was declared by the manufacturer. http://www.kctl.co.kr Page: ( 6 ) / ( 49 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0026 KCTL-TIR001-003/0 3.3 Test frequency Frequency Low frequency 2 412 ㎒ Middle frequency 2 437 ㎒ High frequency 2 462 ㎒ 3.4 Test Voltage Mode Voltage Norminal voltage DC 12 V http://www.kctl.co.kr Page: ( 7 ) / ( 49 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0026 KCTL-TIR001-003/0 4. Summary of test results 4.1 Standards & results FCC Rule Reference IC Rule Reference Parameter Report Section Test Result 15.203, 15.247(b)(4) - Antenna Requirement 5.1 C 15.247(b)(3) RSS-247, 5.4(4) Maximum Peak Output Power 5.2 C 15.247(e) RSS-247, 5.2 Peak Power Spectral Density 5.3 C 15.247(a)(2) RSS-247, 5.2 6 ㏈ Channel Bandwidth 5.4 C - RSS-247, 5.2 Occupied Bandwidth 5.4 C 15.247(d), 15.205(a), 15.209(a) RSS-247, 5.5 RSS-GEN, 8.9, 10 Sp…

Text truncated - open the document above for the full version.

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Radiated Emission * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval * 1 ㎓ Over
