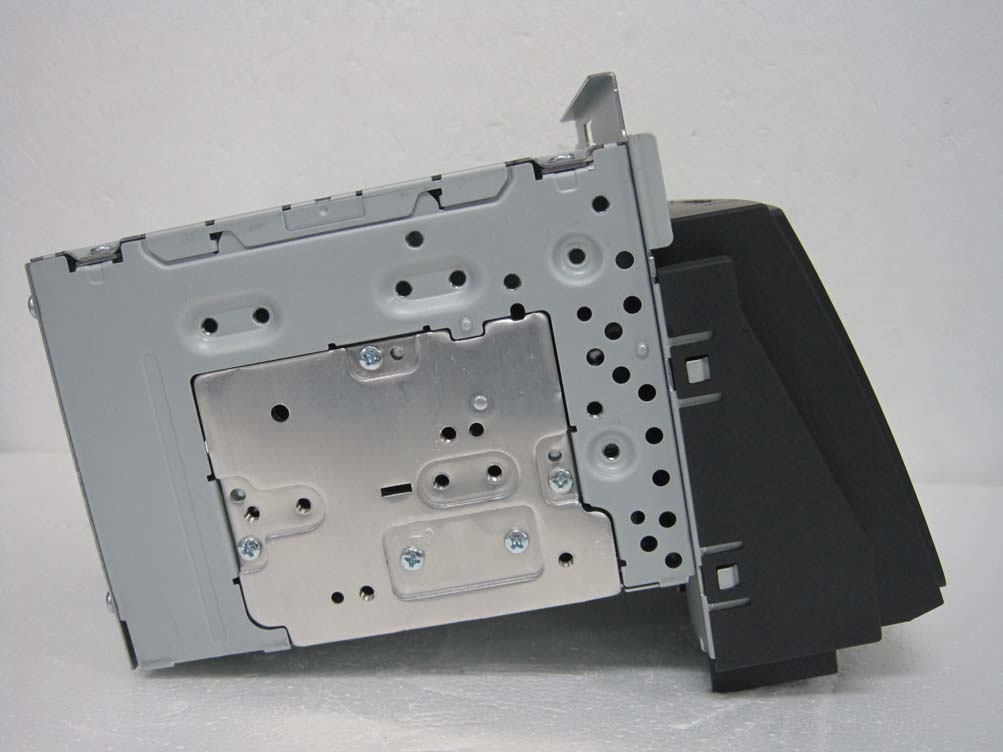

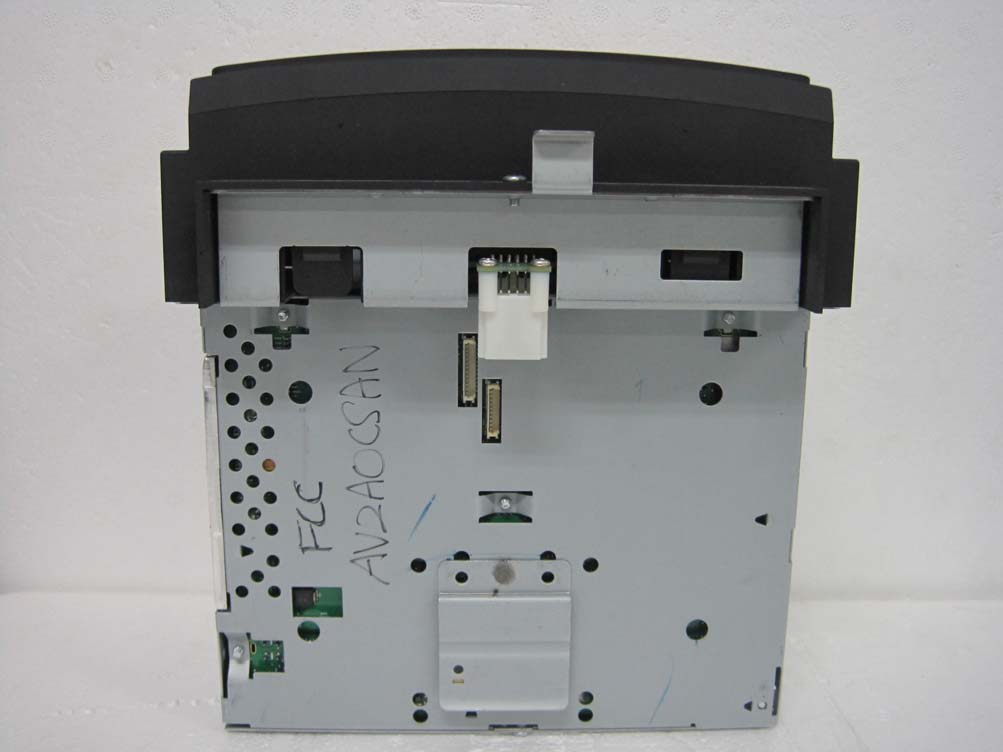

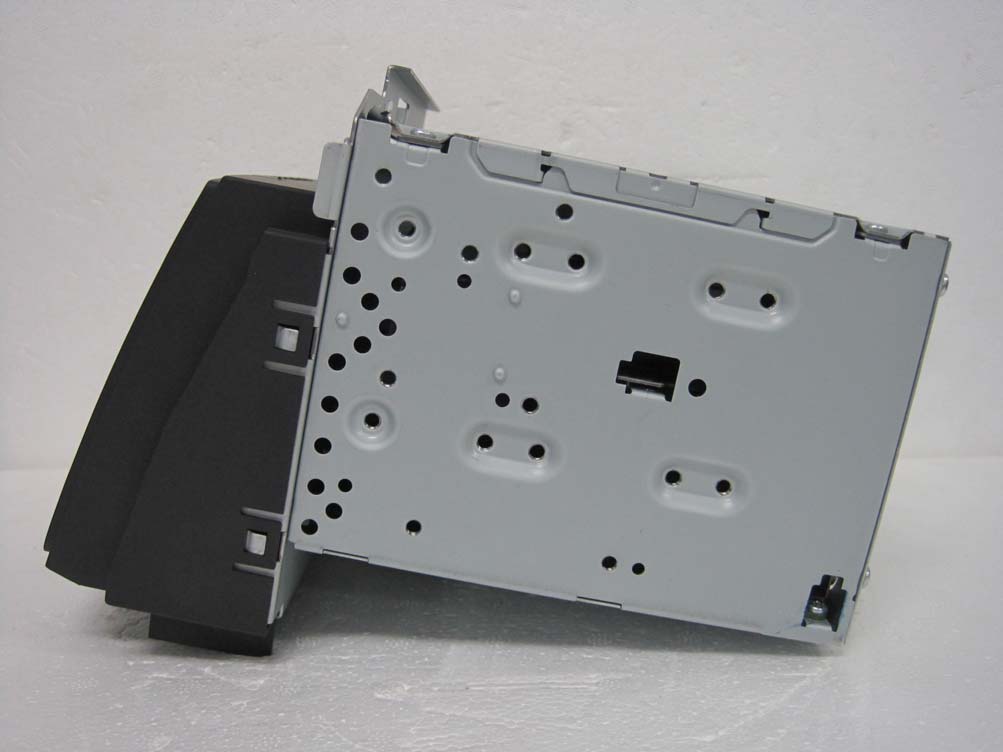

TQ8-AV2A0CSANCAR AVN (BLUETOOTH)

DIGITAL NAVIGATION SYSTEM User's Manual DIGITAL NAVIGATION SYSTEM User's Manual Thank you for purchasing this Audio Navigation System. This user's manual explains how to use the Kia Motor Audio Navigation System. Before using the product, read the contents of this user's manual carefully and use this product safely. ● The screens shown in this manual may differ with the actual screens of the product. ●  The design and specification of this product may change without prior notification for product improvement. ● When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. iPod® iPod® is a registered trademark of Apple Inc. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology. Preface All Map Database cannot be copied without permission. This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent. PART 1 PRE-OVERVIEW Introduction.................................1-2 Controller...and...functions.....................1-3 Basic...operation...and...setting..................1-7 PART 2 AUDIO SYSTEM Operating...the...radio...........................2-2 Operating...the...CD...Player..................2-10 Operating...external...devices..................2-22 PART 3 NAVIGATION SYSTEM Limitations...of...the...navigation... system.......................................3-2 Map...Functions.................................3-5 Setting...a...destination........................3-12 Operating...after...setting...... a...destination.................................3-28 ... Route...guidance..............................3-30 Setup...and...Information........................3-36 PART 4 VOICE COMMAND SYSTEM Operating...voice...command..................4-2 Setting...up...the...voice...command... system.......................................4-4 Voice...command...list...........................4-6 Table of contents PART 5 Bluetooth® HANDS FREE Before...using...the...Bluetooth®...... Handsfree....................................5-2 Converting...Bluetooth®......Handsfree... mode..........................................5-2 Pairing...and...connecting...a...Bluetooth®...... phone..........................................5-4 Bluetooth®......Handsfree...screen...... layout..........................................5-9 Making...a...call.................................5-11 Answering...a...call...........................5-13 Operating...menus...during...a...call............5-14 Phone...Book.................................5-16 Call...History...List..............................5-19 Phone...Music.................................5-21 Bluetooth®......settings........................5-24 Important...information........................5-30 PART 6 HVAC MODE Cautions...upon...operating...HVAC...... mode.............................................6-2 HVAC...mode...screen...layout..................6-2 HVAC...System...operations.....................6-3 PART 7 REAR CAMERA About...Rear...Detection...Camera...............7-2 PART 8 APPENDIX Troubleshooting...guide.....................8-2 Map...legend....................................8-5 INDEX..........................................8-8 Table of contents PRE-OVERVIEW 1-1 PRE-OVERVIEW PART 1 PRE-OVERVIEW Introduction.................................1-2 Important information about this manual .......................................1-2 Precaution for safe usage ..................1-2 Controller...and...functions.....................1-3 Control panel .................................1-3 Steering wheel remote controller .........1-5 HVAC System .................................1-6 Basic...operation...and...setting..................1-7 Turning the Power ON .....................1-7 System Power ON ...........................1-7 Turning the Power OFF .....................1-7 Turning the Audio ON/OFF ...............1-7 Adjusting audio volume .....................1-8 How to operate the screen menu .........1-8 Operating typical screen menu ............1-8
Inputting letter by using screen keyboard .......................................1-8
Displaying the list ...........................1-8
Selecting an item in a list ..................1-9
Sorting items from list .....................1-9 How to operate menu by voice command ....................................1-9
Conditions for voice recognition system ..........................................1-9 Giving voice command .....................1-10 Sound setting .................................1-10 FAD/BAL .......................................1-10 BASS/MID/TREB ..............................1-11 Auto volume control ON/OFF ............1-11 Touch screen beep ON/OFF ...............1-11 Display setting ..............................1-11 Display mode .................................1-11 Brightness ....................................1-11 Display OFF .................................1-11 Display ON ....................................1-11 Setting Picture Frame ........................1-12 Display Picture Frame .....................1-12 Viewing Current Time .....................1-12 Setting the Clock ...........................1-13 PART 1 PRE-OVERVIEW 1-2PRE-OVERVIEW PART 1 PRE-OVERVIEW Introduction Important information about this manual This user manual contains instructions related to safety. Closely observe and comply with all of the safety instructions found within this manual. WARNING ! Disobeying the warnings listed within this user's manual may cause fatal or serious inju- ries. Warnings indicate matters which may directly lead to accidents. CAUTION! Disobeying the cautions listed within this user manual may lead to accidents or cause injury. Cautions indicate…

Text truncated - open the document above for the full version.

NAVIGATION SYSTEM3-19 NAVIGATION SYSTEM (b) By city 6 . Press the City button. 7 . Input the city name and press the List button. If the number of matches with the input is less than 4 results, then the city list screen will be displayed automatically. 8 . Select the desired city name. 9 . Input the name of the 1st street and press the List button. If the number of matches with the input is less than 4 results, then the street list screen will be displayed automatically. 10 . Select the desired 1st street menu from the list. 11 . Input the name of the 2nd street and press the List button. If the number of matches with the input is less than 4 results, then the street list screen will be displayed automatically. 3-20NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM 12 . Select the desired 2nd street menu from the list. The corresponding position will be dis- played on the map. 13 . If the selected 2nd street is within more than 2 cities, then the city list screen will be displayed. Select the desired city menu from the list. The corresponding position will be displayed on the map. Searching a POI There are 3 ways to set the destination through POI search - (a) by category, (b) by name, (c) by phone number. 1 . Press the DEST key. 2 . Press the POI Search button. 3 . Press the State button. 4 . Input the state name and press the List button. If the number of matches with the input is less than 4 results, then the state list screen will be displayed automatically. If there is only one matching result, then the state will automatically be changed without having to manually select the state. 5 . Select the desired state from the list to change the state. NAVIGATION SYSTEM3-21 NAVIGATION SYSTEM (a) By category Searches for facilities nearby the current posi- tion or from the city center. 6 . Press the Category button. 7 . Press the Near current position button to search for facilities nearby the current posi- tion, or press the Near city center button to search for facilities in the near city center. (a-1) Near current position Searches for facilities within a 50 mi (80Km) radius of the current position. 8 . Press the desired main category menu. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Find nearest POI" [Find nearest POI], page 4-20. 9 . Press the desired sub category menu. 10 . Select the desired menu button. The corresponding position will be dis- played on the map. 3-22NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM (a-2) Near city center Searches for facilities from the city center. 8 . Input the city name and press the List button. If the number of matches with the input is less than 4 results, then the city list screen will be displayed automatically. 9 . Press the desired city menu. 10 . Press the desired main category. 11 . Press the desired sub category. 12 . Select the desired menu button. The corresponding position will be dis- played on the map. INFORMATION The distance on each POI item button refers to the distance from the city center. NAVIGATION SYSTEM3-23 NAVIGATION SYSTEM (b) By name 6 . Press the Name button. 7 . Input the name of the POI and press the List button. If the number of matches with the input is less than 4 results, then the facilities list screen will be displayed automatically. 8 . Select the desired POI menu. The corresponding position will be dis- played on the map. INFORMATION When necessary, the search conditions for the city and category can be changed by pressing the Advanced button. ● Changing City 1 . Press the City button. 2 . Input the city name and press the List button. 3 . Select the desired city name. ● Changing Category 1 . Press the Category button. 2 . Select the desired main category menu. 3 . Select the desired sub category menu. (c) By phone number 6 . Press the Phone # button. 3-24NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM 7 . Input the phone number and Press the Done button to complete. The corresponding position will be dis- played on the map. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Destination POI by Phone Number" [Destination POI by phone number], page 4-22. Searching from Address book 1 . Press the DEST key. 2 . Press the Address book button. 3 . Select the desired address book (user) menu. INFORMATION This system provides 5 address books. Each addresses book can hold up to 200 entries. 4 . Select the desired address name from the list. The corresponding position will be displayed on the map. [Registering new address in address book], page 3-43. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Destination by address book" [Destination by address book], page 4-24. NAVIGATION SYSTEM3-25 NAVIGATION SYSTEM Searching for Emergency facilities 1 . Press the DEST key. 2 . Press the Emergency button. 3 . Select the desired facility category. 4 . Select the desired facility. The corresponding position will be dis- played on the map. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Find emergency <Category>" [Find emergency <Category>], page 4-23. Searching your Home 1 . Press the DEST key. 2 . Press the HOME button. The Home position will be displayed on the map. INFORMATION If the Home address is not registered, then the HOME button will not be displayed. [Registering home address], page 3-48. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Go home" [Go home], page 4-25. 3-26NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM Searching favorite places 1 . Press the DEST key. 2. Select the desired button from 1 ~ 5 . The corresponding position will be dis- played on the map. INFORMATION If the address of the Favorite place is not regis- tered, then the 1 ~ 5 buttons without registered addresses will be disabled. [Registering favorite p…

Text truncated - open the document above for the full version.

BLUETOOTH® HANDSFREE5-9 BLUETOOTH® HANDSFREE Bluetooth® Handsfree screen layout Bluetooth® Handsfree screen and functions When there is no mobile phone connected 1  Settings : the user can set desired settings for the Bluetooth® handsfree, such as pair/ delete mobile phone, connect/ disconnect mobile phone, set call volume, change device name and change passkey. When a mobile phone is connected 2  Phone battery charge status : displays the battery charge status of the connected mobile phone. The battery charge status may not be displayed in some mobile pho- nes. 3  Signal strength : displays the mobile phone signal strength. The signal strength may not be displayed in some mobile pho- nes. 4  Bluetooth® connection state : becomes displayed when a Bluetooth® phone has been connected with the car system. 5  Name of connected mobile phone : dis- plays the name of the connected mobile phone. 6  Phone number input window : displays the inputted phone number. 7  Dial : input the phone number through the dial pad. 8  SEND : if a number has not been entered into the phone number input window, Pressing the send button displays the call history list screen. 9  Del : deletes the inputted number one digit at a time. 10  END : if a number has been inputted, then erases the entire number. 11  Contacts : displays the phone book screen. The user can search previously saved phone numbers. The phone contact list may not be displayed in some mobile pho- nes. 1 2 5 6 11 8910 34 7 5-10BLUETOOTH® HANDSFREE PART 5 BLUETOOTH® HANDSFREE When receiving an incoming call 12  Accept : accepts the incoming call. 13  Reject : rejects the incoming call. When already on a call 14  Busy icon : when already on a call, displays an icon shaped like a receiver. 15  Name of incoming caller : displays the name of incoming caller. The name of the incoming caller will not be displayed if the caller's phone number has not been pre- viously registered in the phone book. 16  Number of incoming caller : displays the number of the incoming caller. 17  Call state : displays the call state, such as talk time, phone connection, and end time. 18  END : ends the call. 19  Private : when talking on the car hands- free, use this function to switch the call to the mobile phone. 20  Mute : use this function to mute the out- going volume. Pressing the Mute button will display the at the top right side of the screen and the caller will not be able to hear the conversation taking place in the car. Press the Mute button again to release the Mute function. When there is a call waiting 21  Switch : use this button to switch between callers when there are calls on call waiting. 22  END : use this button to end the calls with all callers. 2122 12 15 14 16 17 18 1920 13 BLUETOOTH® HANDSFREE5-11 BLUETOOTH® HANDSFREE Making a call Making a call by dialing a phone number 1 . Use the number pad on the right side of the PHONE screen to input the number you wish to call. 2 . Press the SEND button or the key on the steering wheel to make the call. INFORMATION To modify, press the Del button to delete the inputted number one digit at a time. Press the END button or the key on the steering wheel to cancel the call. Making a call from Speed Dial 1 . Use the number pad on the right side of the PHONE screen to input a speed dial num- ber. INFORMATION Only speed dial numbers already stored on the mobile phone can be used for speed dial calls. Up to 2-digit speed dial numbers are suppor- ted. 5-12BLUETOOTH® HANDSFREE PART 5 BLUETOOTH® HANDSFREE 2 . Press the SEND button or the key on the steering wheel to make the call. INFORMATION For 2-digit speed dial numbers, press and hold the 2nd digit to make a call to the speed dial number. Making a call by redialing 1 . Press and hold (over 0.8 second) the SEND button on the PHONE screen or the key on the steering wheel. INFORMATION Redialing is not possible when there is no call history or the call history list is being down- loaded from the mobile phone. When there is no call history list, the SEND button will be inactive. 2 . The recently called number is redialed. INFORMATION It is not possible to display the Audio mode and Settings screen when on a phone call. Only the call volume and Navigation (MAP VOICE, DEST, ROUTE) screens can be operated. BLUETOOTH® HANDSFREE5-13 BLUETOOTH® HANDSFREE Answering a call Answering an incoming call 1 . The following screen will be displayed when you receive an incoming call. 2 . To answer the incoming call, press the Accept button or the key on the steering wheel. Rejecting an incoming 1 . The following screen will be displayed when you receive an incoming call. 2 . To reject the incoming call, press the Reject button or the key on the stee- ring wheel. The incoming call will be rejec- ted. INFORMATION Upon receiving a call, the [Reject] function may not be supported in some mobile pho- nes. 5-14BLUETOOTH® HANDSFREE PART 5 BLUETOOTH® HANDSFREE Operating menus during a call Switching call to the mobile phone 1 . If you wish to switch the call to the mobile phone while talking on the car handsfree, press the Private button or press and hold (over 0.8 second) the key on the stee- ring wheel. 2 . As shown, the call will be switched to the mobile phone. INFORMATION If you wish to switch the call to the car hands- free while talking on the mobile phone, press the Use handsfree button or press and hold (over 0.8 second) the key on the steering wheel. The call will be switched to the car handsfree. Activating Call waiting 1 . If another person calls while already on a call, the following screen will be displayed. 2 . Press the Accept button or the key on the steering wheel to receive the inco- ming call by switching to the new caller. BLUETOOTH® HANDSFREE5-15 BLUETOOTH® HANDSFREE 3. To switch again to the other caller, press the Switch button or the key on the stee- ring wheel. The other call will be received and the previous call will switch back to call waiting. INFOR…

Text truncated - open the document above for the full version.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. April 6, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AVN , AV2A0CSAN We affirm that between SIEMIC and HYUNDAI MOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Seung-Kun Chon/ Assistant Manager HYUNDAI MOBIS CO. ,LTD. 80-9, Mabook-Dong, Giheung-Gu Yongin-shi, Gyunggi-Do South Korea 446-912 FCC ID : TQ8-AV2A0CSAN

Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD. April 06,2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TQ8-AV2A0CSAN We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Kun Chon / Assistant Manager HYUNDAI MOBIS CO. , LTD. 80-9, Mabook-Dong, Giheung-Gu Yongin-shi, Gyunggi-Do South Korea 446-912

HYUNDAI MOBIS CO., LTD. 80-9,tˆ‰––’Tk–•ŽSGnŒœ•ŽTnœG€–•Ž•TšSGn œ•ŽŽTk–Gz–œ›Gr–™ŒˆG 44]-912 Date: April 06 , 2011 ATTESTATION STATEMENT FCC ID :TQ8-AV2A0CSAN This device contains an embedded Bluetooth device that HYUNDAI MOBIS CO.,LTD. confirms compliance with the following Part 15 regulations. 15.247(a)(1) the hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Seung-Kun Chon HYUNDAI MOBIS CO.,LTD

FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 6 FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 6 FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 6 FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 4 / 6 FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 5 / 6 FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 6 / 6

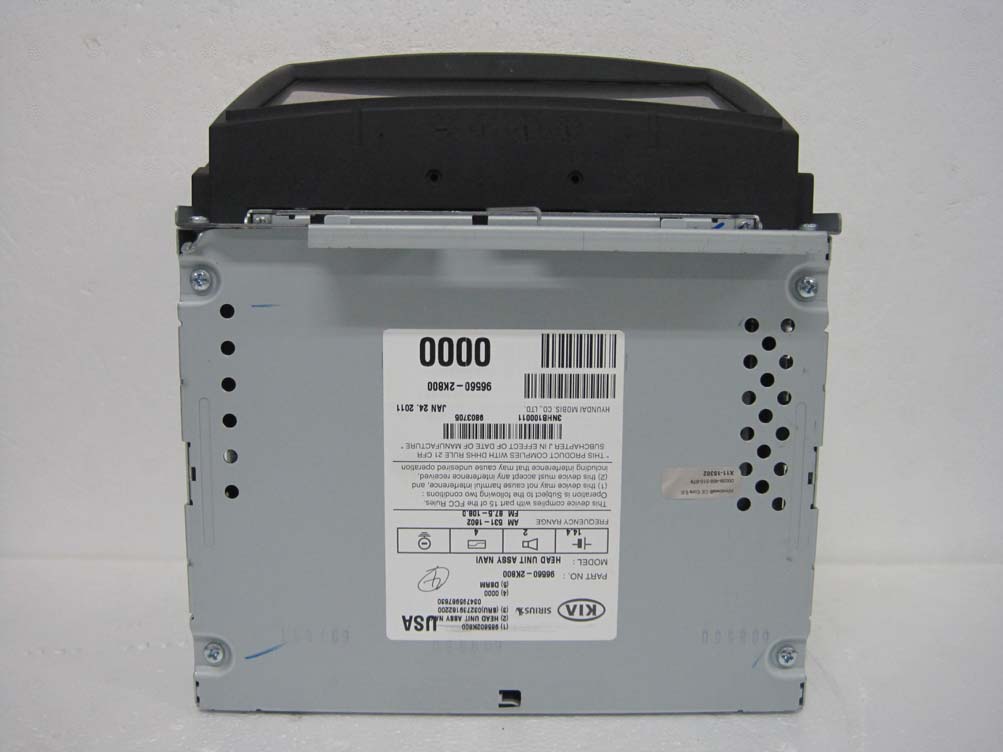

FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 1 / 3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 2 / 3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model No IC Model FCC ID IC EUT Type Serial No : AV2A0CSAN : AV2A0CSAN : TQ8-AV2A0CSAN : 5074A-AV2A0CSAN : CAR AVN : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. HYUNDAI MOBIS CO., LTD. 80-9, Mabook-Dong, Giheung-Gu, Yongin-shi, Gyunggi-Do,446-912 South Korea MADE IN KOREA FCC ID: TQ8-AV2A0CSAN/ IC: 5074A-AV2A0CSAN HCT CO., LTD. 105-1, Jangam-ri , Majang-Myeon, Icheon-si, Kyunggi-Do, 467-811, KOREA TEL:+82 31 645 6300 FAX:+82 31 645 6401 www.hct.co.kr Report No. : HCTR1005FR15 3 / 3 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL
