TQ8-AV2B0CRANCAR AVN

FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 F AX:+82 31 639 8525 www .hct.co.kr Report No. : HCTR1005FR15 1/1 ATTACHMENT E. - User Manual - DIGITAL NAVIGATION SYSTEM DIGITAL NAVIGATION SYSTEMUser's Manual PrefaceThank you for purchasing this Audio Navigation System. This user's manual explains how to use the Hyundai Motor Audio Navigation System. Before using the product, read the contents of this user's manual carefully and use this product safely. The screens shown in this manual may differ with the actual screens of the product. #The design and specification of this product may change without prior notification for product improvement. When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. iPod® iPod® is a registered trademark of Apple Inc. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hyundai is under license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology. All Map Database cannot be copied without permission.This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent. PA R T 1PRE-OVERVIEWIntroduction #䐙䐙䐙䐙䐙䐙䐙䐙 1-2 Controller and functions #䐙䐙 1-3 Basic operation and setting #䐙 1-6 PA R T 2AUDIO SYSTEM Operating the radio #䐙䐙䐙䐙䐙 2-2 Operating the CD Player #䐙䐙䐙 2-10 Operating external devices #䐙 2-22 PA R T 3NAVIGATION SYSTEM Limitations of the navigation system #䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙 3-2 Starting navigation system #䐙䐙 # 3-5 Map Functions #䐙䐙䐙䐙䐙䐙䐙 3-5 Setting a destination #䐙䐙䐙䐙 3-12 Operating after setting a destination # 㾕㾕㾕㾕㾕㾕㾕# 3-28 Route guidance #㾕㾕㾕㾕㾕㾕㾕# 3-30 Setup and Information # 㾕㾕㾕# 3-36 PA R T 4VOICE COMMAND SYSTEM Operating voice command #䐙䐙 # 4-2 Setting up the voice command system # 䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙 4-4 Voice command list #䐙䐙䐙䐙䐙 4-6 Table of contents PA R T 5Bluetooth ® HANDS FREE Before using the Bluetooth® Handsfree #䐙䐙䐙䐙䐙䐙䐙䐙䐙 # 5-2 Converting Bluetooth® Handsfree mode #䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙 # 5-2 Pairing and connecting a Bluetooth® phone # 䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙 5-4 Bluetooth® Handsfree screen layout # 䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙 5-9 Making a call # 䐙䐙䐙䐙䐙䐙䐙 5-11 Answering a call # 䐙䐙䐙䐙䐙䐙 5-13 Operating menus during a call # 5-14 Phone Book #䐙䐙䐙䐙䐙䐙䐙䐙 5-16 Call History List #䐙䐙䐙䐙䐙䐙䐙 5-19 PHONE MUSIC # 䐙䐙䐙䐙䐙䐙䐙 5-21 Bluetooth® settings #䐙䐙䐙䐙䐙 5-24 Important information # 䐙䐙䐙 5-30 PA R T 6REAR CAMERAAbout Rear Detection Camera ## 6-2 PA R T 7APPENDIXTroubleshooting guide #䐙䐙䐙 7-2 Map legend #䐙䐙䐙䐙䐙䐙䐙䐙 7-5 INDEX #䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙䐙 7-8 Table of contents PRE-OVERVIEW 1-1 PRE-OVERVIEW PA R T 1PRE-OVERVIEWIntroduction #䐙䐙䐙䐙䐙䐙䐙䐙 1-2 Important information about this manual # 㾕㾕㾕㾕㾕㾕㾕㾕㾕㾕㾕 # 1-2 Precaution for safe usage #㾕㾕㾕㾕 # 1-2 Controller and functions #䐙䐙䐙 1-3 Control panel #㾕㾕㾕㾕㾕㾕㾕㾕㾕 # 1-3 Steering wheel remote controller #㾕 # 1-5 Basic operation and setting #䐙䐙 1-6 Turning the Power ON # 㾕㾕㾕㾕㾕 # 1-6 Turning the Power OFF #㾕㾕㾕㾕㾕 # 1-6 Turning the Audio ON/OFF # 㾕㾕㾕 # 1-6 Adjusting audio volume #㾕㾕㾕㾕㾕 # 1-7 How to operate the screen menu #㾕 # 1-7 Operating typical screen menu #㾕 # 1-7 Inputting letter by using screen keyboard #㾕㾕㾕㾕㾕㾕㾕㾕㾕㾕 # 1-7 Displaying the list # 㾕㾕㾕㾕㾕㾕 # 1-7 Selecting an item in a list # 㾕㾕㾕 # 1-8 Sorting items from the list #㾕㾕㾕 # 1-8 How to operate menu by voice command #㾕㾕㾕㾕㾕㾕㾕㾕 # 1-8 Conditions for voice recognition system #㾕㾕㾕㾕㾕㾕㾕㾕㾕㾕㾕 # 1-8 Giving voice command #㾕㾕㾕㾕 # 1-9 Sound setting #㾕㾕㾕㾕㾕㾕㾕㾕㾕 # 1-9 FAD/BAL #㾕㾕㾕㾕㾕㾕㾕㾕㾕㾕 # 1-9 BASS/MID/TREB #㾕㾕㾕㾕㾕㾕㾕# 1-10 Auto volume control ON/OFF #㾕# 1-10 Touch screen beep ON/OFF #㾕㾕# 1-10 Display setting # 㾕㾕㾕㾕㾕㾕㾕㾕# 1-10 Display mode #㾕㾕㾕㾕㾕㾕㾕㾕# 1-10 Brightness # 㾕㾕㾕㾕㾕㾕㾕㾕㾕# 1-10 Display OFF #㾕㾕㾕㾕㾕㾕㾕㾕㾕# 1-10 Display ON #㾕㾕㾕㾕㾕㾕㾕㾕㾕# 1-10 1-2 PRE-OVERVIEW PART 1 PRE-OVERVIEW IntroductionThis user manual contains instructions related to safety. Closely observe and comply with all of the safety instructions found within this manual. WARNING ! Disobeying the warnings listed within this user's manual may cause fatal or serious inju-ries. Warnings indicate matters which may directly lead to accidents. CAUTION! Disobeying the cautions listed within this user manual may lead to accidents or cause injury. Cautions indicate matters which may lead to vehicle damage or malfunction. INFORMATION Information which the user must be aware or allows for more convenient use of the device. Precaution for safe usage WARNING ! Do not operate the Audio Navigation system while driving. Do not disassemble, assemble, or modify the Audio Na vigation system. Do not watch the screen for prolonged peri-ods of time while driving . S et the volume to a level which allows the driver t o be aware of external conditions. CAUTION! Do not operate the A udio Na vigation system for prolonged periods of time with the vehi-cle ignition in ACC. Such operations may lead to battery discharge. Be cautious not to spill water or introduce for eign objects into the device. Do not cause severe shock to the device. Dir ec t pressure onto the front side of the monitor may cause damage to the LCD or touch panel. In case of product malfunction, please con-tac t y our place of purchase or service cen- ter. When cleaning the touch screen, make sure to turn off the devic e and use a dr y and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia, ben-zene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. Reference Page This indicates the title and page that you should refer to. This indicates a key on the control panel. Voice Command This indicates an operation by voice command. Important information about this manual PRE-OVERVIEW 1-3 PRE-OVERVIEW Control panel Controller and functions  Power / Volume control knob Push knob (over 0.8 second…

Text truncated - open the document above for the full version.

HYUNDAI MOBIS CO., LTD. Date: Oct 15 , 2010 ATTESTATION STATEMENT FCC ID :TQ8-AV2B0CRAN This device contains an embedded Bluetooth device that Hyundai Autonet Co., Ltd. confirms compliance with the following Part 15 regulations. 15.247(a)(1) the hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Seung-Kun Chon HYUNDAI MOBIS CO.,LTD

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. Oct 15, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AVN, AV2B0CRAN We affirm that between SIEMIC and HYUNDAI MOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Seung-Kun Chon/ Assistant Manager HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA FCC ID : TQ8-AV2B0CRAN

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD. Oct 15,2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TQ8-AV2B0CRAN We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Kun Chon / Assistant Manager HYUNDAI MOBIS CO., LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA

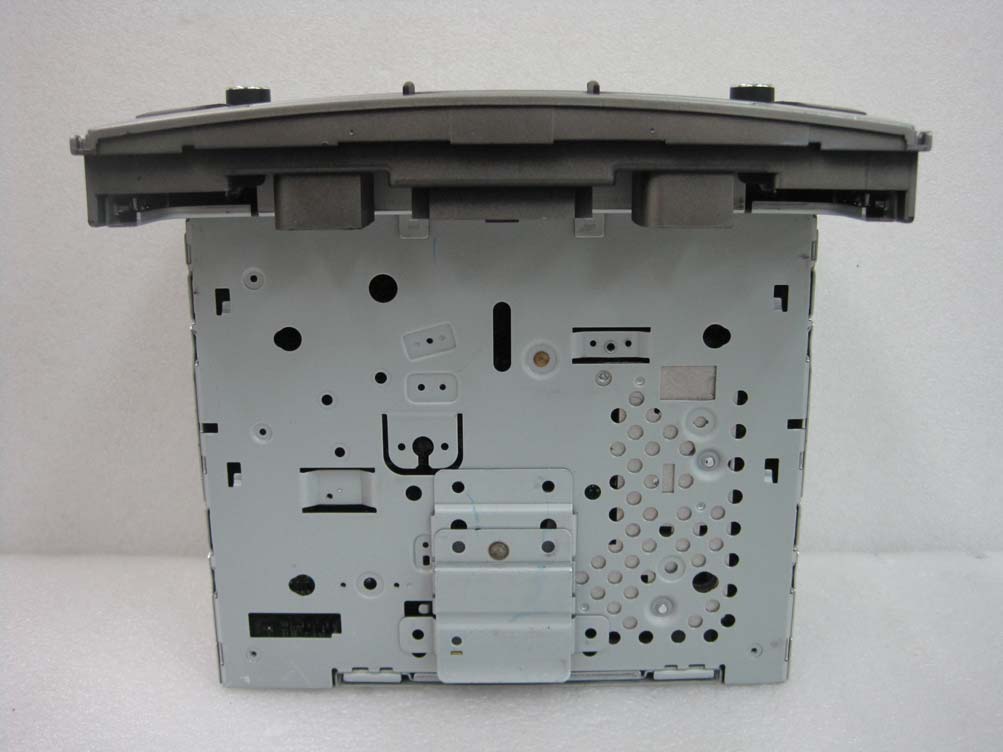

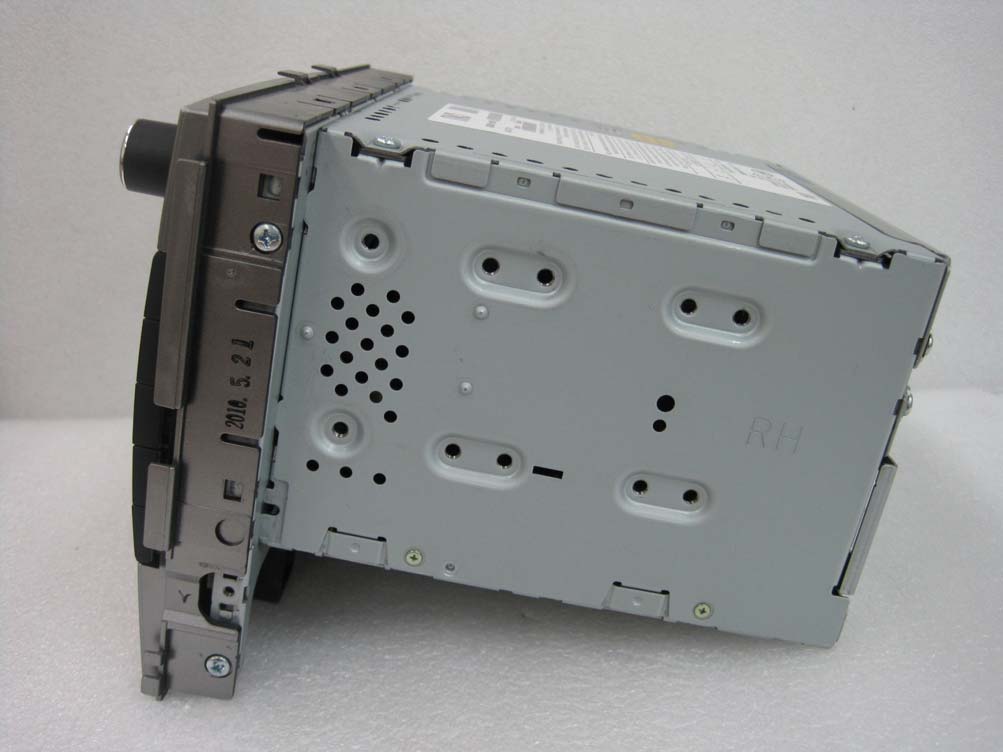

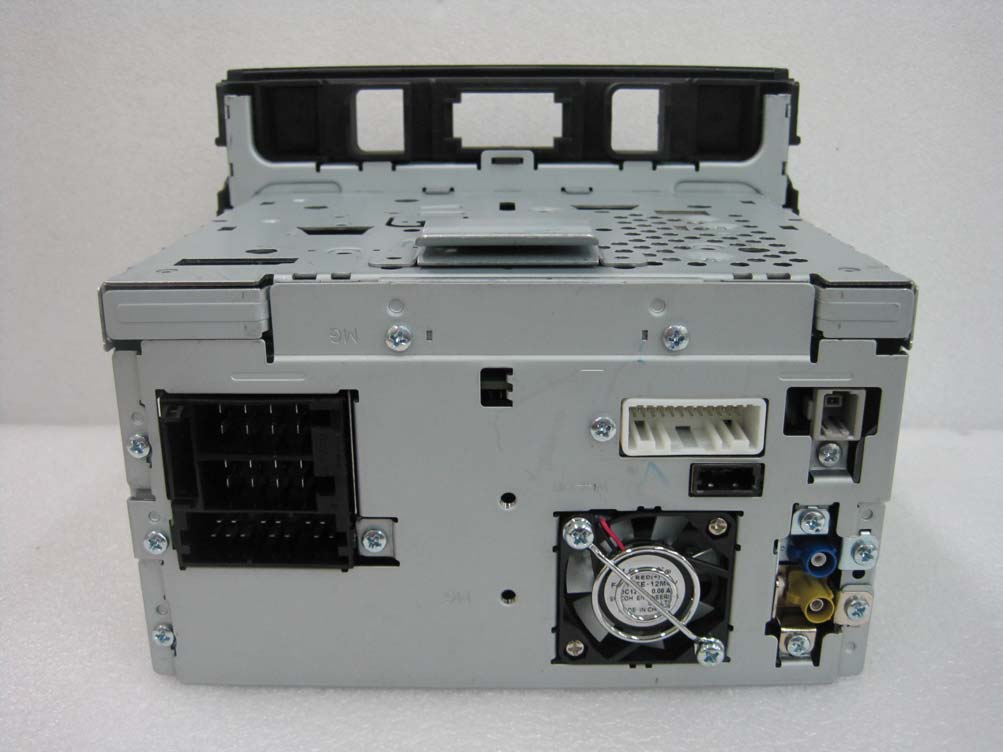

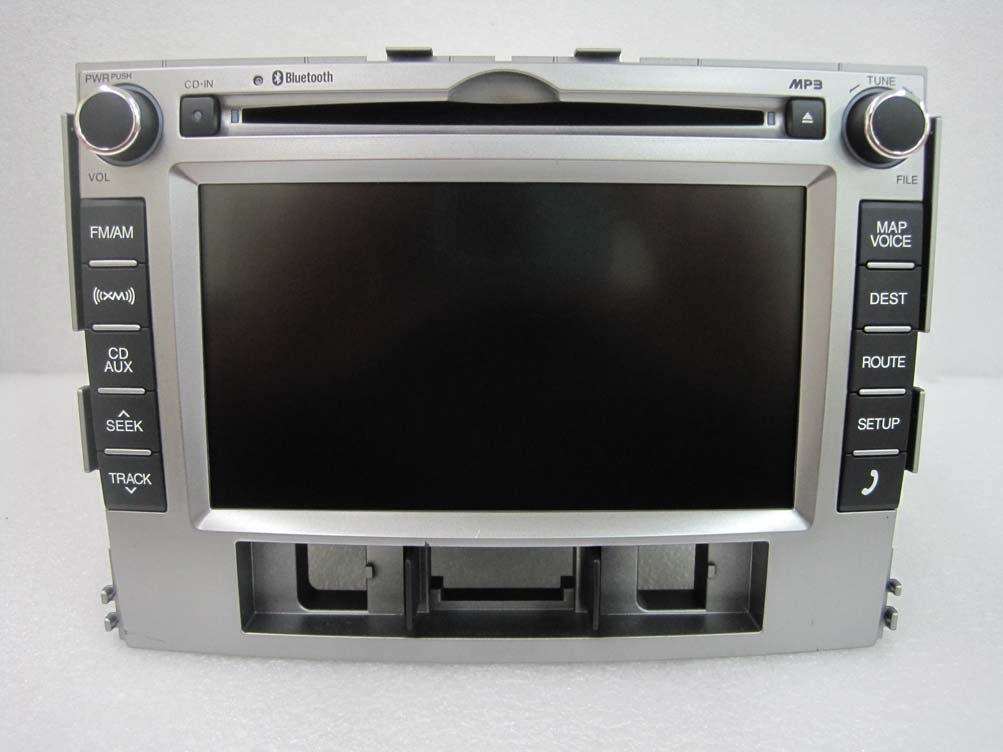

FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 7 ATTACHMENT B. - EXTERNAL PHOTOS - FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 7 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 7 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 4 / 7 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 5 / 7 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 6 / 7 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 7 / 7

FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model No : AV2B0CRAN FCC ID : TQ8-AV2B0CRAN EUT Type : CAR AVN Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. HYUNDAI MOBIS CO., LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA MADE IN KOREA FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 3 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 41 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 4 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 5 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 6 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 7 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 8 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 9 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 10 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 11 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 12 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 13 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 14 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 15 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 16 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 17 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 18 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 19 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 20 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 21 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 22 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 23 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 24 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 25 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 26 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 27 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 28 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 29 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 30 / 41 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 …

Text truncated - open the document above for the full version.

MPE CALCULATION For HYUNDAI MOBIS CO., LTD – ; Model: AV2B0CRAN FCC ID: TQ8-AV2B0CRAN RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2402 MHz): Power = 1.89 d Bm, Antenna Gain = -0.17 dBi, Prediction distance 20cm S = 0.00030 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20cm. Completed By : Jong Suk LEE Date : Oct 15, 2010

FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR10 Date of Issue: October 14, 2010 EUT Type: CAR AVN FCC ID : TQ8-AV2B0CRAN Page 2 of 44 Version TEST REPORT NO. DATE DESCRIPTION HCTR1010FR10 October 14, 2010First Approval Report FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR10 Date of Issue: October 14, 2010 EUT Type: CAR AVN FCC ID : TQ8-AV2B0CRAN Page 3 of 44 Table of Contents 1. GENERAL INFORMATION ....................................................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................................. 4 3. TEST METHODOLOGY ............................................................................................................................ 5 3.1 EUT CONFIGURATION ............................................................................................................. 5 3.2 EUT EXERCISE ......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ............................................................................................. 5 3.4 DESCRIPTION OF TEST MODES ............................................................................................ 5 4. INSTRUMENT CALIBRATION .................................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ...................................................................................................... 6 5.1 FACILITIES ................................................................................................................................ 6 5.2 EQUIPMENT .............................................................................................................................. 6 6. ANTENNA REQUIREMENTS.................................................................................................................... 6 7. SUMMARY OF TEST RESULTS............................................................................................................... 7 8. FCC PART 15.247 REQUIREMENTS ....................................................................................................... 8 8.1 PEAK POWER ........................................................................................................................... 8 8.2 BAND EDGES MEASUREMENT ............................................................................................ 12 8.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW) ................................... 15 8.4 NUMBER OF HOPPING FREQUENCY .................................................................................. 20 8.5 TIME OF OCCUPANCY (DWELL TIME) ................................................................................. 23 8.6 SPURIOUS EMISSIONS.......................................................................................................... 27 8.6.1 CONDUCTED SPURIOUS MEASUREMENT.................................................................. 27 8.6.2 RADIATED SPURIOUS EMISSIONS .............................................................................. 34 8.6.3 RADIATED RESTRICTED BAND EDGE MEASUREMENTS......................................... 42 8.7 POWERLINE CONDUCTED EMISSIONS............................................................................... 43 9. LIST OF TEST EQUIPMENT................................................................................................................... 44 FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR10 Date of Issue: October 14, 2010 EUT Type: CAR AVN FCC ID : TQ8-AV2B0CRAN Page 4 of 44 1. GENERAL INFORMATION Applicant Name: HYUNDAI MOBIS CO., LTD. Address: 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI,GYUNGGI-DO,449-912 SOUTH KOREA FCC ID: TQ8-AV2B0CRAN EUT: CAR AVN Model name(s): AV2B0CRAN Date(s) of Tests: October 05, 2010 ~ October 12, 2010 Contact Person: Name: Seung Keun, Jeon Phone #: +82-31-288-5232 Fax #: +82-31-899-1788 Place of Tests: HCT Co., Ltd. Icheon-si, Kyunggi-Do, Korea(Lab) (IC Recognition No. : 5944A-2) 2. EUT DESCRIPTION Product CAR AVN FCC Model Name AV2B0CRAN Power Supply DC 12 V Frequency Range 2402 - 2480 MHz (Bluetooth) Transmit Power 2.76 dBm(1.89 mW) Modulation Type GFSK(Normal), PSK(EDR) Modulation Technique FHSS Number of Channels 79Channels Antenna Specification Manufacturer: AUTO INDUSTRIAL Co., Ltd. Antenna type: Chip Antenna Peak Gain : -0.17 dBi 15.247 Requireme※nts for Bluetooth transmitter ▪ This Bluetooth module has been tested by a Bluetooth Qualification Lab, and we confirm the following: 1) This system is hopping pseudorandomly. 2) Each frequency is used equally on the average by each transmitter. 3) The receiver input bandwidths that match the hopping channel bandwidths of their corresponding transmitters 4) The receiver shifts frequencies in synchronization with the transmitted signals. ▪ 15.247(g): The system, consisting of both the transmitter and the receiver, must be designed to comply with all of the regulations in this Section 15.247 should the transmitter be presented with a continuous data (or information) stream. ▪ 15.247(h): The coordination of frequency hopping systems in any other manner for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters is not permitted. FCC PT.15.247 TEST REPORT FCC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1010FR10 Date of Issue: October 14, 2010 EUT Type: CAR AVN FCC ID : TQ8-AV2B0CRAN Page 5 of 44 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equi…

Text truncated - open the document above for the full version.

FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1010FR10 Page 1 of 6 ATTACHMENT D. - TEST SETUP PHOTOS - FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1010FR10 Page 2 of 6 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1010FR10 Page 3 of 6 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1010FR10 Page 4 of 6 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1010FR10 Page 5 of 6 FCC ID: TQ8-AV2B0CRAN HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1010FR10 Page 6 of 6
