TQ8-AVB30F6ANDIGITAL CAR AUDIO SYSTEM

Quick Manual DIGITAL CAR AUDIO SYSTEM (AVB30F6AN) HYUNDAI MOBIS Before using 1 Precaution for safe usage 2 Component Names and Functions 2.1 Head Unit ® 2.2 Steering Wheel Remote Controller ®  ® ® ® ® First starting 1 Turning the System On/Off 1.1 Turning the System On çñ 1.2 Turning the System Off 2 Resetting the System 3 Battery Warning Message 4 Auto Video Lock(Driving Regulations) PART 1. About HOME screen Chapter 1. Menu structure in HOME screen 1.1 All Menus 1.2 My Menu 1.3 My Menu Settings PART 2. AV Chapter 1. Radio Mode Chapter 2. Media 2.1 CD Mode 2.2 MP3 CD Mode 2.3. USB Mode 2.4 iPod Mode 2.5 AUX Mode 2.6 Bluetooth Audio Mode ® ®® ®® ® ® 2.7 My Music Mode                                   Part 5. WIFI Wi-Fi Settings Appendix Homologation FCC Compliance Statement. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interferencethat may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Do Not Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. Be sure The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. < For Bluetooth & Wi-Fi Technology > Power listed is maximum conducted RF output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. IC Compliance Statement. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Date: Sep. 10, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: TQ8-AVB30F6AN We hereby request confidential treatment of information accompanying this application as outlined below:  Block diagram  Schematics  Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Seung-Hoon Choe /Manager /Hyundai Mobis Co., Ltd.

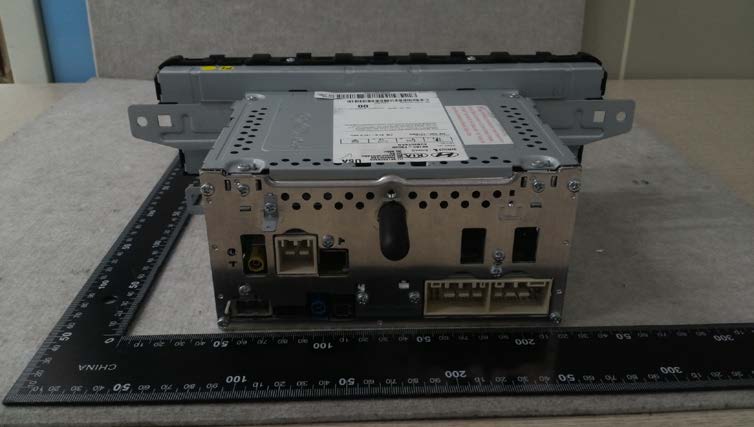

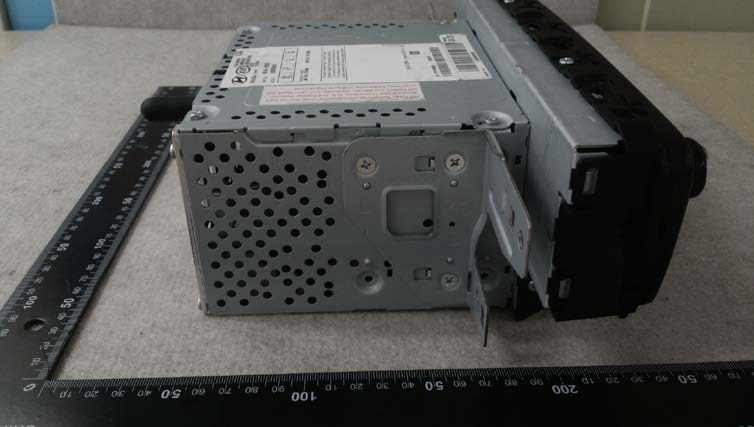

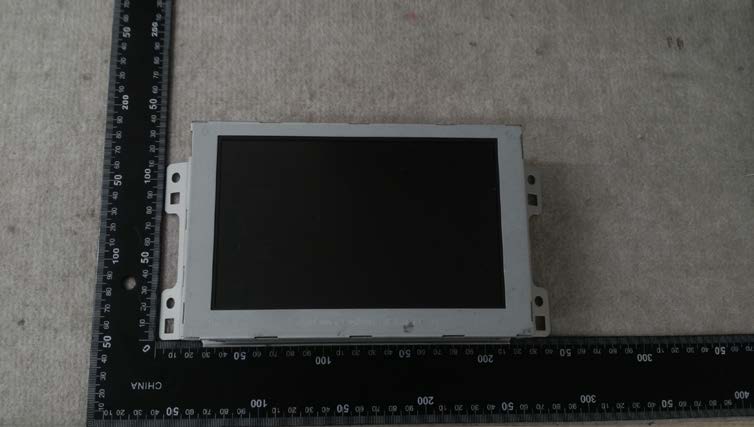

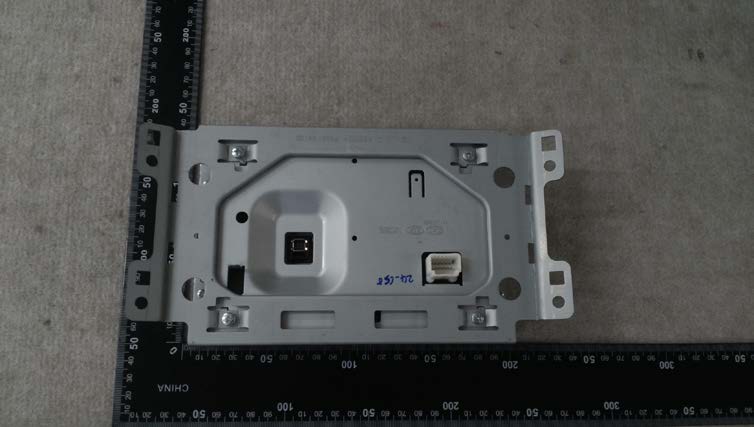

http://www.kctl.co.kr External photos of EUT This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

http://www.kctl.co.kr Internal photos of EUT http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr Bluetooth Wifi Antenna Antenna

http://www.kctl.co.kr * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Averaging Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01 () SPGRRPGS ππ4 4 2 =⇒= S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Ta rg e t power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈m] [㏈] [㏈m] [㎽] [㏈i] [㎽] [㎽/㎠] [㎽/㎠] Blutooth GFSK 2.0 ±1.00 3.0 2.0 4.11 2.58 0.000 81 1.000 00 Blutooth 8DPSK 1.0 ±1.00 2.0 1.58 4.11 2.58 0.001 02 1.000 00 WiFi 2.4G 802.11b 16.0 ±1.00 17.0 50.12 4.11 2.58 0.025 69 1.000 00 WiFi 2.4G 802.11g 12.0 ±1.00 13.0 19.95 4.11 2.58 0.008 12 1.000 00 WiFi 2.4G 802.11n_HT20 12.0 ±1.00 13.0 19.95 4.11 2.58 0.008 12 1.000 00 Wi Fi 5G 802.11a/n20/n40 /ac20/ac40/ac80 _5 150 BW 12.0 ±1.00 13.0 19.95 2.89 1.95 0.007 72 1.000 00 Wi Fi 5G 802.11a/n20/n40 /ac20/ac40/ac80 _5 250 BW 12.0 ±1.00 13.0 19.95 2.89 1.95 0.007 72 1.000 00 Wi Fi 5G 802.11a/n20/n40 /ac20/ac40/ac80 _5 470 BW 12.0 ±1.00 13.0 19.95 2.51 1.78 0.007 08 1.000 00 Wi Fi 5G 802.11a/n20/n40 /ac20/ac40/ac80 _5 750 BW 12.0 ±1.00 13.0 19.95 5.78 3.78 0.015 02 1.000 00 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr 4. Target power and tolerance, Max tuneup power Mode Target power [㏈m] Tolerance [㏈] Max tuneup power [㏈m] Average Power [㏈m] GFSK 2.50 ±1.00 3.50 2.24 8DPSK 1.00 ±1.00 2.00 0.15 WiFi 2.4G 802.11b 16.00 ±1.00 17.00 16.26 WiFi 2.4G 802.11g 12.00 ±1.00 13.00 11.17 WiFi 2.4G 802.11n_HT20 12.00 ±1.00 13.00 11.06 Wi Fi 5G 802.11a/n20/n40/ac20/ac40/ac80_5 150 BW 12.00 ±1.00 13.00 18.95 Wi Fi 5G 802.11a/n20/n40/ac20/ac40/ac80_5 250 BW 12.00 ±1.00 13.00 18.93 Wi Fi 5G 802.11a/n20/n40/ac20/ac40/ac80_5 470 BW 12.00 ±1.00 13.00 18.89 Wi Fi 5G 802.11a/n20/n40/ac20/ac40/ac80_5 725 BW 12.00 ±1.00 13.00 18.77 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval

http://www.kctl.co.kr Page: ( 2 ) / ( 64 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0030 KCTL-TIR001-003/0 [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description .......................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 6 3.3 Test frequency ............................................................................................................................................... 7 3.4 Test Voltage .................................................................................................................................................. 7 4. Summary of test results ..................................................................................................................................... 8 4.1 Standards & results ....................................................................................................................................... 8 4.2 Uncertainty ................................................................................................................................................... 8 5. Test results .......................................................................................................................................................... 9 5.1 Antenna Requirement ................................................................................................................................... 9 5.2 Maximum Peak Output Power .................................................................................................................... 10 5.3 Carrier Frequency Separation ..................................................................................................................... 17 5.4 20 dB Channel Bandwidth .......................................................................................................................... 24 5.5 Number of Hopping Channels .................................................................................................................... 35 5.6 Time of Occupancy(Dwell Time) ............................................................................................................... 40 5.7 Spurious Emission, Band edge and Restricted bands ................................................................................. 47 6. Test equipment used for test ........................................................................................................................... 64 http://www.kctl.co.kr Page: ( 3 ) / ( 64 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0030 KCTL-TIR001-003/0 1. Client information Applicant: Hyundai Mobis Co., Ltd. Address: 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Telephone number: +81-31-260-2707 Facsimile number: +81-31-899-1788 Contact person: Choi Seung Hoon/ [email protected] Manufacturer: Hyundai Mobis Co., Ltd. Address: 69-23, Hansam-Ro, Ducksan-Myeon, Jinchun-Gun, Chungcheongbuk-Do 365-843 Korea http://www.kctl.co.kr Page: ( 4 ) / ( 64 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0030 KCTL-TIR001-003/0 2. Laboratory information Address KCTL Ltd. 65 Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-70-5008-1016 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No: KR0040 FCC Site Registration No: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP KCTL Ltd. Suwon city http://www.kctl.co.kr Page: ( 5 ) / ( 64 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0030 KCTL-TIR001-003/0 3. Description of E.U.T. 3.1 Basic description Applicant: Hyundai Mobis Co., Ltd. Address of Applicant 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Manufacturer Hyundai Mobis Co., Ltd. Address of Manufacturer 69-23, Hansam-Ro, Ducksan-Myeon, Jinchun-Gun, Chungcheongbuk-Do 365-843 Korea Type of equipment Digital Car Audio System Basic Model AVB30F6AN Variant Model AVBA0F6KN * Serial number N/A * Variant model name is only for export toward Canada http://www.kctl.co.kr Page: ( 6 ) / ( 64 ) Pages This test report shall not be reproduced, except in full, without the written approval Report No.: KCTL15-FR0030 KCTL-TIR001-003/0 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth) 2 412 ㎒ ~ 2 462 ㎒ (802.11b/g/n_HT20) 5 180 ㎒ ~ 5 240 ㎒ (802.11a/n/ac_HT20/VHT20) 5 190 ㎒ ~ 5 230 ㎒ (802.11n/ac_HT40/VHT40) 5 210 ㎒ (802.11ac_VHT80) 5 260 ㎒ ~ 5 320 ㎒ (802.11a/n/ac_HT20/VHT20) 5 270 ㎒ ~ 5 310 ㎒ (802.11n/ac_HT40/VHT40) 5 290 ㎒ (802.11ac_VHT80) 5 500 ㎒ ~ 5 700 ㎒ (802.11a/n/ac_HT20/VHT20) 5 510 ㎒ ~ 5 670 ㎒ (802.11n/ac_HT40/VHT40) 5 530 ㎒ (802.11ac_VHT80) 5 745 ㎒ ~ 5 825 ㎒ (802.11a/n/ac_HT20/VHT20) 5 755 ㎒ ~ 5 795 ㎒ (802.11n/ac_HT40/VHT40) 5 775 ㎒ (802.11ac_VHT80) Type of Modulation GFSK, π/4DQPSK, 8DPSK : Bluetooth, DSSS, OFDM : WIFI 2.4 G, OFDM : WIFI 5 G Number of Channels 2.0 ㎓:79 ch (Bluetooth) 11 ch (802.11b/g/n_HT20) 5.0 ㎓: 5 150 ㎒ Band: 4 ch (802.11a/n/ac_HT20/VHT20) 2 ch (802.11n/ac_HT40/VHT40) 1 ch (802.11ac_VHT80) 5 250 ㎒ Band: 4 ch (802.11a/n/ac_HT20/VHT20) 2 …

Text truncated - open the document above for the full version.

http://www.kctl.co.kr Radiated Emission * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr * 1 ㎓ Over This test report shall not be reproduced, except in full, without the written approval
