TQ8-AVB40F2ANDISPLAY CAR SYSTEM

Thank you for purchasing this multimedia system. This user's manual explains how to use the Kia Motor multimedia system. Before using the product, read the con- tents of this user's manual carefully and use this product safely. • The screens shown in this manual may differ with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while driving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or service center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi- als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM ser- vice at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic informa- tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. WARNING • Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. Read the following safety cautions for your safety Before using the product, read the contents of this user's manual carefully and use this product safely. The design and specifi cations of this product may change without prior notifi cation for product and service improvement. The actual features in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue. For more information on open licenses and legal notices, refer to the website below. http://www.mobiszone.co.kr/front/mall/jsp/manual/avn_download_ center_manual.jsp Notations used within this User's Manual WARNING • Failure to observe the instructions within this category could result in death or serious injury or damage to the vehicle. CAUTION • Information on matters that could potentially lead to injury or vehicle damage/malfunction Information that could lead to higher user safety i Information • Information and tips that provide additional user convenience in using the product NOTICE • Information on specific features that facilitate proper product use and functional understanding • Information on terminology used within this manual 2 I Table of Contents 1. Basic Warnings and Cautions .............. 1-2 Key Product Features .................. 1-4 Component Names and Functions ...................................... 1-5 Head Unit .................................... 1-5 Steering Wheel Control .................. 1-7 Starting the System for the First Time ........................................ 1-9 Turning the System On/Off ............... 1-9 System Reset .............................. 1-9 Battery Warning Message ............... 1-10 Restrictions on Features for Safety Measures ........................... 1-10 Home Screen .............................. 1-11 On-Screen Touch Controls ............... 1-12 2. Radio/Media FM/AM ............................................ 2-2 Accessing FM/AM Mode ............... 2-2 HD Radio™ Technology ............. 2-4 Basic Mode Screen (HD Radio™ reception ON) ............ 2-5 SiriusXM™ ....................................... 2-5 SiriusXM™ Mode Hard Key Controls ... 2-5 SiriusXM™ Mode Display Controls ... 2-6 Selecting through Channel /Category List .............................. 2-8 Direct Tune ................................. 2-8 Viewing Menu .............................. 2-8 USB ................................................2-11 Before Playing a USB MP3 ............... 2-11 USB MP3 Information and Precautions. ...2-13 Supported Image Specifications......... 2-13 USB Music ................................. 2-14 USB Image ................................. 2-17 iPod .........................…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 11 February 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 27 April 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐AVB40F2AN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

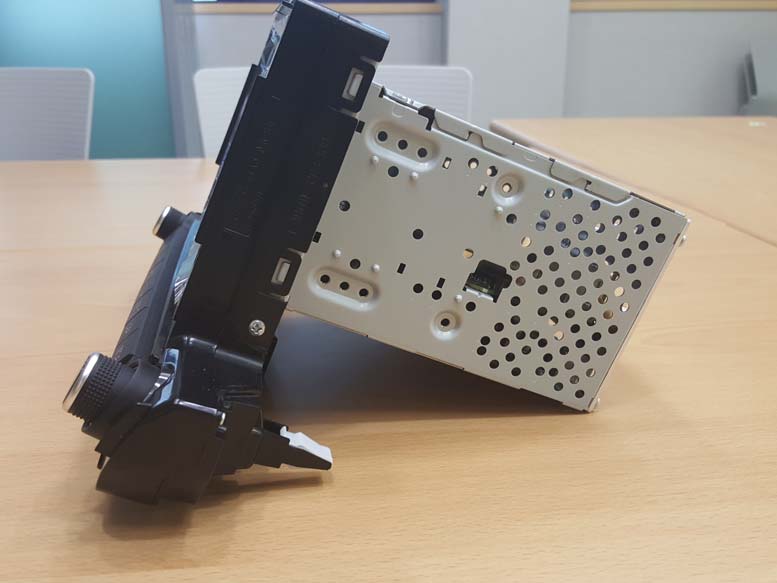

Model : AVB40F2AN External photos of EUT Model : AVB40F2AN Top view of EUT Bottom view of EUT Model : AVB40F2AN Front view of EUT Rear view of EUT Model : AVB40F2AN Side view of EUT

AVB40F2AN/AVBB0F2KNFCC/IC LABEL If ti LABEL LOCATION FCC/IC LABEL I n f orma ti on Hyundai MOBIS Co., Ltd. FCC ID: TQ8 ‐ AVB40F2AN IC MODEL: AVBB0F2KN IC: 5074A ‐ AVBB0F2KN LABEL LOCATION Non-removable This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired o p eration. LABEL p MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FRONT TOP Hyundai MOBIS Co., Ltd.

Model : AVB40F2AN Internal photos of EUT Model : AVB40F2AN Top view of EUT Model : AVB40F2AN Top view LCD Bottom view LCD Model : AVB40F2AN Top view PCB Bottom view PCB Model : AVB40F2AN Top view SUB PCB Bottom view SUB PCB Model : AVB40F2AN Top view SUB PCB Bottom view SUB PCB Model : AVB40F2AN View of BT Module View of WLAN Module Model : AVB40F2AN View of BT Antenna View of WLAN Antenna

Report Number:F690501/RF-RTL008640Page:2of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) INDEX Table of ContentsPage 1. General Information --------------------------------------------------------------------------------3 2. RF Exposure Evaluation --------------------------------------------------------------------------5 Report Number:F690501/RF-RTL008640Page:3of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+ 82 31 688 0901 FAX:+ 82 31 688 0921 1.2. Details of applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name AVB40F2AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒(BT), 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20), 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40), 5 775㎒(Band 3: 11ac_VHT80), 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20), 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40), 5 210㎒(Band 1: 11ac_VHT80), 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20), 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40), 5 290㎒(Band 2A: 11ac_VHT80), 5 500㎒~ 5 700㎒(Band 2C: 11a/n_HT20, 11ac_VHT20), 5 510㎒~ 5 670㎒(Band 2C: 11n_HT40, 11ac_VHT40), 5 530㎒(Band 2C: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT), 11 channel (11b/g/n_HT20), 5 channel (Band 3: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 3: 11n_HT40, 11ac_VHT40), 1 channel (Band 3: 11ac_VHT80), 4 channel (Band 1: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 1: 11n_HT40, 11ac_VHT40), 1 channel (Band 1: 11ac_VHT80), 4 channel (Band 2A: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 2A: 11n_HT40, 11ac_VHT40), 1 channel (Band 2A: 11ac_VHT80), 8 channel (Band 2C: 11a/n_HT20, 11ac_VHT20), 3 channel (Band 2C: 11n_HT40, 11ac_VHT40), 1 channel (Band 2C: 11ac_VHT80) Operation Temperature -20°C~ 70°C Antenna Type Internal type Antenna Gain 2 402㎒~ 2 480㎒: 2.29㏈i, 2 412㎒~ 2 462㎒: 4.67㏈i, 5 180㎒~ 5 320㎒: 2.89㏈i, 5 500㎒~ 5 700㎒: 2.51㏈i, 5 745㎒~ 5 825㎒: 5.78㏈i Report Number:F690501/RF-RTL008640Page:4of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 1.4. Test report revision RevisionReport numberDate of IssueDescription 0F690501/RF-RTL0086402015.04.23Initial 1.5. Declaration by the manufacturer - WLAN & BT do not transmit simultaneously. Report Number:F690501/RF-RTL008640Page:5of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in㎽/㎠ Pout = output power to antenna in㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in㎝ Pd the limit of MPE, 1㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3 – 3.06141.63*1006 3.0 – 301842/f4.89/f*900/f 2 6 30 - 30061.40.1631.06 300 – 1 500--f/3006 1 500 – 100 000--56 (B) Limits for General Population/Uncontrolled Exposure 0.3 – 1.346141.63*10030 1.34 – 30824/f2.19/f*180/f 2 30 30 - 30027.50.0730.230 300 – 1 500--f/150030 1 500 – 100 000 -- 1.030 Report Number:F690501/RF-RTL008640Page:6of6 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210mmx297mm) 2.1.2. Test Result of RF Exposure Evaluation Test Item：RF Exposure Evaluation Data Test Mode：Normal Operation 2.1.3.Output Power into Antenna & RF Exposure Evaluation Distance BT - Maximum tune up tolerance Operating Frequency Ran…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL008621Page:2of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------7 3. 20㏈Bandwidth-------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power -------------------------------------------------------------------38 5. Hopping Channel Separation ---------------------------------------------------------------------40 6. Number of Hopping Frequency ------------------------------------------------------------------43 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------47 8. Antenna Requirement ------------------------------------------------------------------------------60 Report Number:F690501/RF-RTL008621Page:3of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai MOBIS Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Contact Person:Choi, Seung-Hoon Phone No.:+ 82 31 260 0098 1.3. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name AVB40F2AN Power Supply DC 14.4 V (Vehicle Battery) Frequency Range 2 402㎒~ 2 480㎒(BT), 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(Band 3: 11a/n_HT20, 11ac_VHT20), 5 755㎒~ 5 795㎒(Band 3: 11n_HT40, 11ac_VHT40), 5 775㎒(Band 3: 11ac_VHT80), 5 180㎒~ 5 240㎒(Band 1: 11a/n_HT20, 11ac_VHT20), 5 190㎒~ 5 230㎒(Band 1: 11n_HT40, 11ac_VHT40), 5 210㎒(Band 1: 11ac_VHT80), 5 260㎒~ 5 320㎒(Band 2A: 11a/n_HT20, 11ac_VHT20), 5 270㎒~ 5 310㎒(Band 2A: 11n_HT40, 11ac_VHT40), 5 290㎒(Band 2A: 11ac_VHT80), 5 500㎒~ 5 700㎒(Band 2C: 11a/n_HT20, 11ac_VHT20), 5 510㎒~ 5 670㎒(Band 2C: 11n_HT40, 11ac_VHT40), 5 530㎒(Band 2C: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channel (BT), 11 channel (11b/g/n_HT20), 5 channel (Band 3: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 3: 11n_HT40, 11ac_VHT40), 1 channel (Band 3: 11ac_VHT80), 4 channel (Band 1: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 1: 11n_HT40, 11ac_VHT40), 1 channel (Band 1: 11ac_VHT80), 4 channel (Band 2A: 11a/n_HT20, 11ac_VHT20), 2 channel (Band 2A: 11n_HT40, 11ac_VHT40), 1 channel (Band 2A: 11ac_VHT80), 8 channel (Band 2C: 11a/n_HT20, 11ac_VHT20), 3 channel (Band 2C: 11n_HT40, 11ac_VHT40), 1 channel (Band 2C: 11ac_VHT80) Operation Temperature -20°C~ 70°C Antenna Type Internal type Antenna Gain 2 402㎒~ 2 480㎒: 2.29㏈i, 2 412㎒~ 2 462㎒: 4.67㏈i, 5 180㎒~ 5 320㎒: 2.89㏈i, 5 500㎒~ 5 700㎒: 2.51㏈i, 5 745㎒~ 5 825㎒: 5.78㏈i Report Number:F690501/RF-RTL008621Page:4of60 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels - WLAN & BT do not transmit simultaneously. 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use The channels of this system will be used equally over the long-term distribution of the hopsets. 1.5.3. Example of a 79 hopping sequence in data mode: 02, 05, 31, 24, 20, 10, 43, 36, 30, 23, 40, 06, 21, 50, 44, 09, 71, 78, 01, 13, 73, 07, 70, 72, 35, 62, 42, 11, 41, 08, 16, 29, 60, 15, 34, 61, 58, 04, 67, 12, 22, 53, 57, 18, 27, 76, 39, 32, 17, 77, 52, 33, 56, 46, 37, 47, 64, 49, 45, 38, 69, 14, 51, 26, 79, 19, 28, 65, 75, 54, 48, 03, 25, 66, 05, 16, 68, 74, 59, 63, 55 1.5.4. System Receiver Input Bandwidth Each channel bandwidth is 1㎒. The system receivers have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shift frequencies in synchronization with the transmitted signals. 1.5.5. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted signals. 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations i…

Text truncated - open the document above for the full version.

Model :AVB40F2AN Test setup photos of EUT Model :AVB40F2AN A. Photo of WLAN Radiated Spurious Emission Test (Below 1㎓) Model :AVB40F2AN B. Photo of WLAN Radiated Spurious Emission Test (Above 1㎓) Model :AVB40F2AN C. Photo of BT Radiated Spurious Emission Test (Below 1㎓) Model :AVB40F2AN D. Photo of BT Radiated Spurious Emission Test (Above 1㎓)
