TQ8-AVC30D5ANDIGITAL CAR AVN SYSTEM

( / ) Thank you for purchasing this multimedia system . This user's manual e xplains how to use the Kia Motor multimedia system . Before using the product, read the con- tents of this user's man ual carefully and use this product safely. • The screens shown in this manual may differ with the actual screens of the product. • The design and specification of this product may change without prior notifi-cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil-ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Do not operate the multimedia system while driving. • Do not disassemble, assemble, or modify the multimedia system . • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the driver to be aware of external conditions. • Do not operate the multimedia system for prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge. • Be cautious not to spill water or introduce foreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or service center. • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi-als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration. All Map Database cannot be copied without permission.Important Notice: This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without HYUNDAI MnSoft, Inc's prior written consent. • SiriusXM service requires a subscrip-tion, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM ser-vice at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traffic informa-tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. WARNING • Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil-ity is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle. • Infinity ® is a trademark of Harman International Industries, Inc. • At launch, the Apple iPhone ® will be the only UVO eServices compatible device. iPhone ® is a registered trademark of Apple Inc. Apple iOS6 compatibility expected early 2013. Additional compat-ible devices expected late 2013. • The App Store is a service mark of Apple Inc. No charge for the UVO eServices app. The App runs on your smartphone cellular data service. Normal data rates will apply. • HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital Corporation. • 24-hour Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth ® within the cellular service coverage area is required. • Vehicle Diagnostics do not take the place of regularly scheduled maintenance. Feature checks powertrain, chassis, and airbag systems only. For factory-recom-mended maintenance schedule, see the Maintenance Feature of UVO eServices or the Owner’s Manual. • 911 Connect activates after an airbag deployment. Feature requires a con-nected mobile phone via Bluetooth. Dependant on cellular service coverage. • The rear-camera display is not a substitute for proper and safe backing-up proce-dures. The rear-camera display may not display every object behind the vehicle. Always drive safely and use caution when backing up. 5HDGWKHIROORZLQJVDIHW\SUHFDXWLRQVIRU\RXUVDIHW\Before using the product, read the contents of this user's manual carefully and use this product safely . The design and specifi cations of this product may change without prior notification for product and service improvement. The actual features in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue. For more information on open licenses and legal notices, refer to the website below. http://www.mobiszone.co.kr/front/mall/jsp/manual/avn_ download_ center_manual.jsp 1RWDWLRQVXVHGZLWKLQWKLV8VHU V0DQXDO WARNING • Failure to observe the instructions within this category could result in damage to the vehicle. CAUTION • Information on matters that could potentially lead to injury or vehicle damage/malfunction information that could lead to higher user safety…

Text truncated - open the document above for the full version.

Basic Features I 5-7  Name Description Call to the selected location (Phone needs to be connected via Bluetooth). 6 H W DV ' HV WL QD WL RQ Set the place as a des-tination. $ GG : D\SR L Q W Set the location as a waypoint. $ GGWR $ GGUHVV%RRN Save the location. 3 2 , Search nearby POIs. ‡ Editing Change the shortcut POIs to display (ex. Gas Station)Select the desired category to change. (ex Restaurants) Select new category to display (ex. American) * DV 6W D WL RQV is changed to $ PHULFDQ . 5-8 I Navigation ‡ Searching POI categories Select the 0 HQ X button on the bottom left of the screen. ೛ Select the 3 2 , but- ton. ೛ Select the 3 2 ,&DWHJRULH V button. ೛ Select the desired item. Select the item to search.Press the +L V W RU\ button to check the pre- vious search result. Press the 6 HDUF K button to search the POI category by name. Select the desired POI to check the loca-tion and for detailed information. Name Description Search POI around the current position. Search POI around the destina-tion. Active only when a route’s planned. Search POI along route. Active only when a route’s planned. Search POI around the current cursor when the map scrolled. Active only when the cursor position is different from the vehicle position. Search POI around the city selected. Basic Features I 5-9  Traffi c List Press the 0 HQ X button. ೛ Select the 7 UDIILF button. On the traffic list, the current traffic/road event information is displayed in order of distance. Additional traffic information may be dis-played upon clicking on the button &DWH J RU \ When On Route is activated, only traffic information on your route is displayed. Name Description Direction from the current loca-tion. Distance from the current loca-tion (mi or km). Displays traffic info symbol based on the type of event. Description of traffic event. Name Description Display ‘Road Construction’ info rma- tion.Display ‘Accident’ information.Display ‘Slow Traffic’ information.Display ‘Incident’ information.Display ‘Hazardous Road Condi tions’ information. Display ‘Travel Information’. 5-10 I NavigationOn the traffic list, the current basic traf-fic/road event information is displayed in order of distance.Select the combo box to change the arrangement in order of distance/cate-gory. Traffi c detail Press the 0 HQX button on the bottom left of the screen. ೛ Select the 7 UD IIL F button. Select the traffic information on the traffic list to display the detailed screen as shown in the screen.Display the symbol of traffic event and arrow which indicates the road from start to end of the traffic event. Detailed infor-mation is available on the right screen. Name Description Select the combo box to arrange. Arrangement by category : Display traffic information arranged in order of traffic information event type. Arrangement by distance : Display the traffic information in order of distance closer to the current location. Name Description Symbol of traffic event.Event name of traffic information. Road name / road number includ-ing direction. Direction and distance from the current location. Intersection where traffic event starts.Intersection where traffic event ends. Total distance of traffic event.Estimated delay time. Check the previous traffic infor-mation.Check the next traffic information. Detour the route based on the traffic information. Basic Features I 5-11  Traffi c detour Press the 0 HQ X button on the bottom left of the screen. ೛ Select the 7 UDIILF button. If there is traffic information on the route, it is possible to detour the route with traffic information and search other routes.When the ' H W RXU button is enabled in the View Traffic Detail, press the 'HWRXU button to detour. on. Select the desired section..Check the information and press the ' H W RXU button. Press the 6W DU W  * X LG DQFH button to apply the detoured sections and search other routes. 5-12 I Navigation Traffi c Pop-up Press the 0 HQ X button on the bottom left of the screen. ೛ Select the 7 UDIILF button. If there is “red traffic flow” on the route, a traffic information pop-up is displayed.On the traffic information pop-up window, brief information is displayed and Details and Detour can be selected.If you do not want to pop up anything on the current route, select Do not show for this route. On the traffic information pop-up, select detour or details to perform action.Press ' H W RXU to change the route. Name Description Pop-up Icon Symbol of traffic event Road Name / Road Number Distance from current location.Estimated delay time. Search detour route.View the detailed information regarding traffic event.Close the pop-up message. Set not to display pop-up on the current route. (Maintained until the destination is reset) Basic Features I 5-13  Press ' H W D LO V for further information. Add to Address BookPress the button on the left bottom of the screen. ೛ Select the $ GGWR $ GGUHVV%RRN To store the location on the current map to the address book. Name Description Change the name.Press the 2 1 , 2 )) button to display on the map. Enter the phone number.Possible to register 6 \ PER O . Change the stored ) RO G HU . Designate to the ) DYRU LW H item. When the favorite is designated, press the button on the bottom of the Destination menu and request the route guide immedi-ately. Press the 21 , 2)) button to set the sound notification. Save the setting. 5-14 I Navigation 6HDUFK Places You can enter POI Name, Address or Coordinates that you wish to search by.Press the 1$9, head unit key. Select the 'HVWLQDWLRQ tab. Select the Search Bar. Enter the POI Name, Address and Coordinates of the location you want in the input window above, and press the 'RQH button. If you select a location from the search result list, it will bring you to the point.If you press the $ OO&LWLHVLQ0, button on the search result screen, it will bring you to the City search screen where you can filter the search results by city names. If you press the 3 2 ,&DWHJRU…

Text truncated - open the document above for the full version.

Hyundai Mobis Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: March 23, 2015 Attestation Letter for FCCID : TQ8-AVC30D5AN To whom it may concern: We hereby declare that - This device(FCCID : TQ8-AVC30D5AN) only operates on channel 1-11 in anywhere Sincerely, Seung Hoon Choe Manager

HYUNDAI MOBIS CO., LTD. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Tel. 82-31-260-0098 / Fax. 82-31-280-2764 Date : March 19, 2015 Subject: Letter of Declaration Dear Sirs, Each model, electrical performance and circuit performance is also the same, there is only a difference in software Basic model name Family models name AVC30D5AN AVC30A8AN Sincerely yours, __________________________________ Seung Hoon, Choe Manager

HYUNDAI MOBIS CO., LTD. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: March 19, 2015 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: TQ8-AVC30D5AN including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from HYUNDAI MOBIS CO., LTD. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seung Hoon Choe Manager

HYUNDAI MOBIS CO., LTD. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: March 19, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: TQ8-AVC30D5AN To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, HYUNDAI MOBIS CO., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give HYUNDAI MOBIS CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Seung Hoon Choe Manager

HYUNDAI MOBIS CO., LTD. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: March 19, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: TQ8-AVC30D5AN To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, HYUNDAI MOBIS CO., LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give HYUNDAI MOBIS CO., LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Seung Hoon Choe Manager

FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Label locate Top side This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

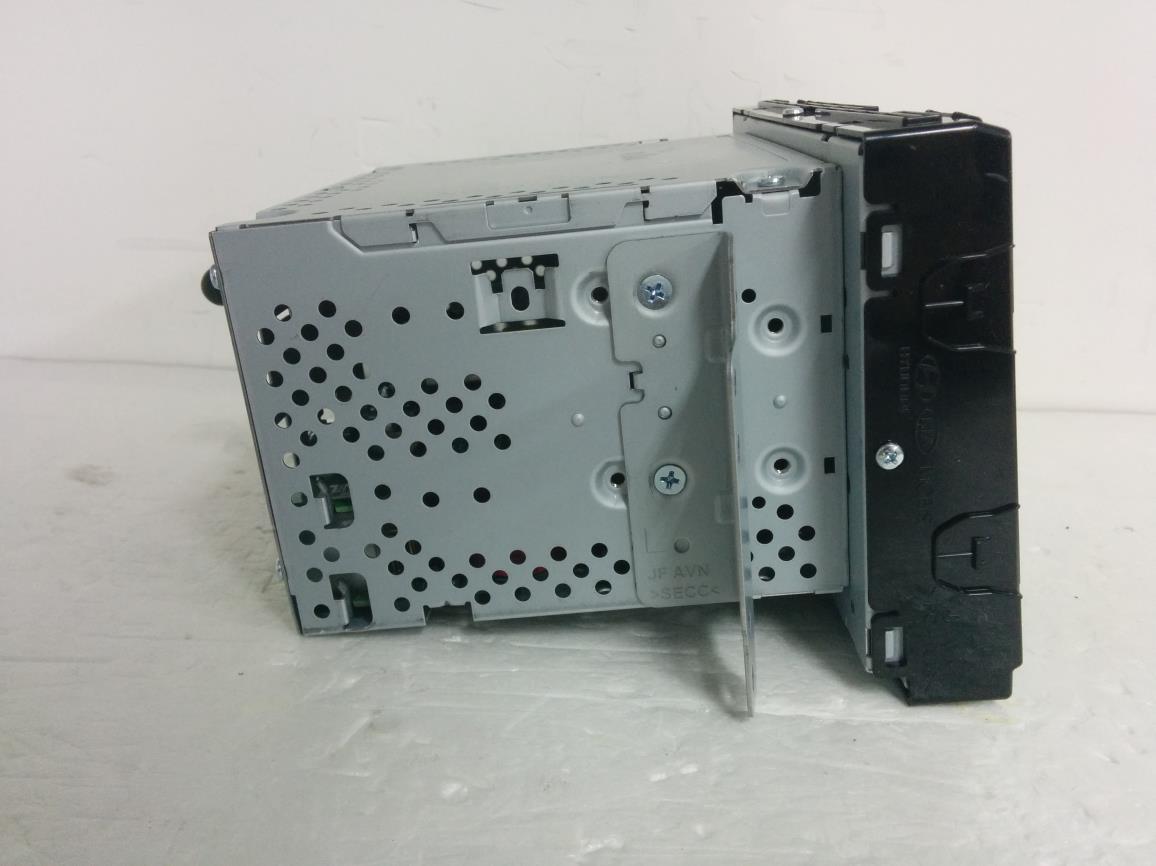

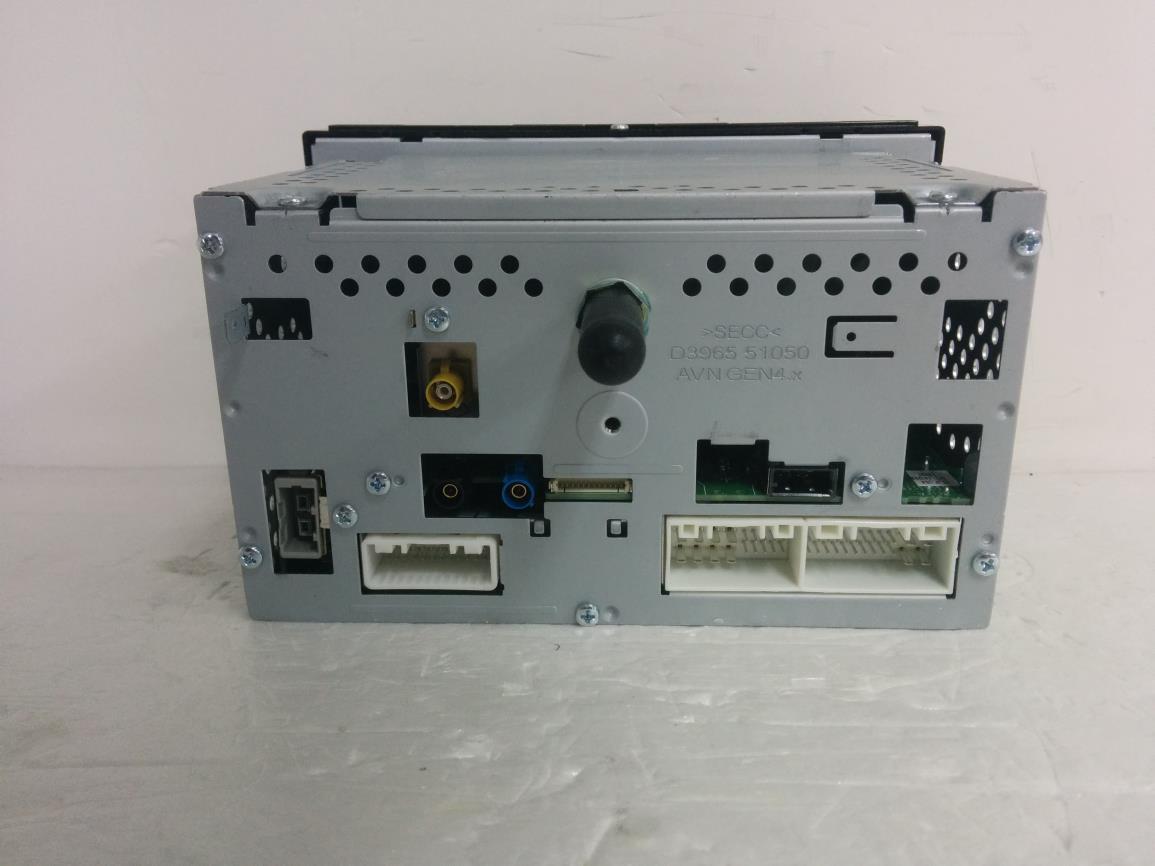

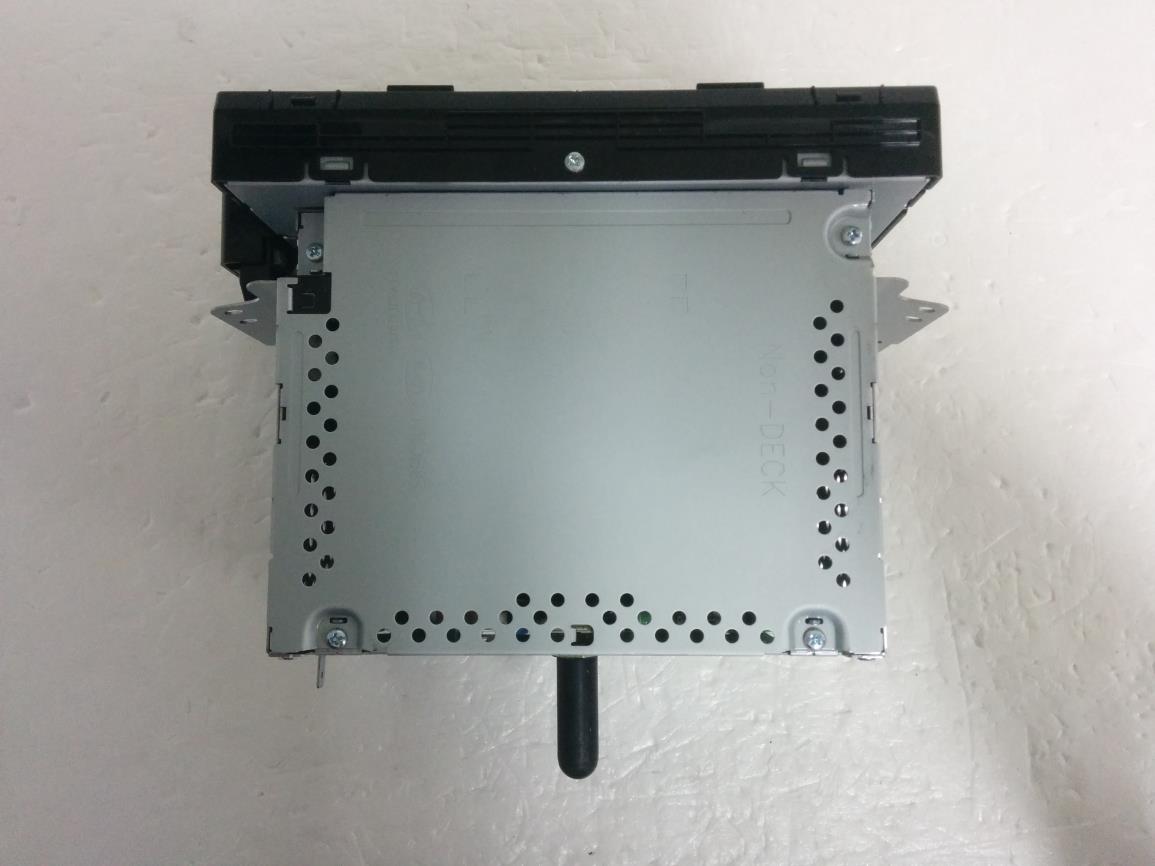

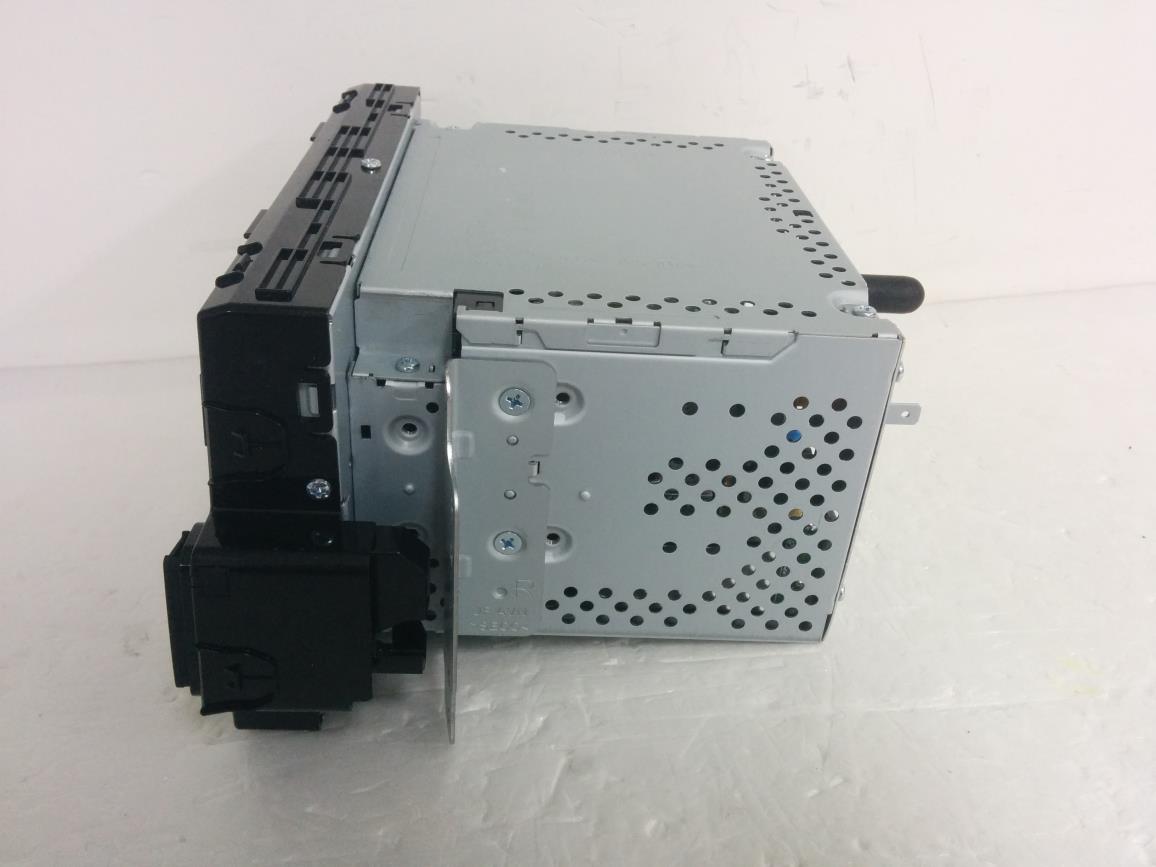

FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 3 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 4 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 6 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 7 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 8 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 9 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 10 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 11 FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 12 <Module> FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 7 <Bluetooth Antenna> <Location of Bluetooth Antenna> FCCID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 8 <WLAN Antenna> <Connection Type of WLAN Antenna>

-~ - - ± &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.022118 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. Power density at the specific separation EIRP / ( 4 R 2 π ) Note 111.174 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) P = Power input to the antenna(dBm) 20.46 dBm 111.174 mWG = Power gain of the antenna(dBi) The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 18.00 dBm2.46 dBi 16 Maximum antenna peak gain :dBi Maximum output power for the calculation : 18.00 dBm dB ( Max. 2.46 18 dBm Min. Measured RF output power :dBm Target Power & Tolerance :dBm 17.93 17.001 MHz MPE Calculations : (WLAN: 802.11b) HYUNDAI MOBIS Co., Ltd. FCCID: TQ8-AVC30D5AN Frequency range : 2412 MHz2462 TRF-RF-206(01)140415 -~ - - ± &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = FCCID: TQ8-AVC30D5ANHYUNDAI MOBIS Co., Ltd. MPE Calculations : (WLAN: 802.11g) Frequency range : 2412 MHz2462 MHz 21.5 dBm Min. Measured RF output power :21.08 dBm Target Power & Tolerance : 20.50 dBm19.5 Maximum antenna peak gain : 2.46 dBi Maximum output power for the calculation : 21.50 dBm 1 dB ( Max. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 21.50 dBm2.46 dBiP = Power input to the antenna(dBm) 23.96 dBm 248.886 mWG = Power gain of the antenna(dBi) Power density at the specific separation EIRP / ( 4 R 2 π ) Note 248.886 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.049515 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. TRF-RF-206(01)140415 -~ - - ± &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = FCCID: TQ8-AVC30D5ANHYUNDAI MOBIS Co., Ltd. MPE Calculations : (WLAN: 802.11n HT20) Frequency range : 2412 MHz2462 MHz 22 dBm Min. Measured RF output power :21.51 dBm Target Power & Tolerance : 21.00 dBm20 Maximum antenna peak gain : 2.46 dBi Maximum output power for the calculation : 22.00 dBm 1 dB ( Max. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 22.00 dBm2.46 dBiP = Power input to the antenna(dBm) 24.46 dBm 279.255 mWG = Power gain of the antenna(dBi) Power density at the specific separation EIRP / ( 4 R 2 π ) Note 279.255 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.055557 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. TRF-RF-206(01)140415 -~ - - ± &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = FCCID: TQ8-AVC30D5ANHYUNDAI MOBIS Co., Ltd. MPE Calculations : (Bluetooth) Frequency range : 2402 MHz2480 MHz 4 dBm Min. Measured RF output power :3.85 dBm Target Power & Tolerance : 3.00 dBm2 Maximum antenna peak gain : 0.77 dBi Maximum output power for the calculation : 4.00 dBm 1 dB ( Max. The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 4.00 dBm0.77 dBiP = Power input to the antenna(dBm) 4.77 dBm3 mWG = Power gain of the antenna(dBi) Power density at the specific separation EIRP / ( 4 R 2 π ) Note 3.000 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.000597 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. TRF-RF-206(01)140415 ▪ Configurations for simultaneous operations 2.4GHz WLAN + Bluetooth ▪ The maximum power density in each RF function was used for abov e table. 0.056154 0.000597 Note 1: TQ8-AVC30D5AN 0.000597 Configuration 1 O Total Power Density (mW/cm 2 ) MODE 2.4GHz 2.4GHz 2.4GHz 2.4GHz Power Density (mW/cm 2 ) 0.022118 0.049515 0.055557 Result RF function 802.11b 802.11g 802.11n (HT20) O 0.055557 BT - FCCID: HYUNDAI MOBIS Co., Ltd. RF Exposure Compliance for simultaneous operations - Configuration 1 :

FCCID: TQ8-AVC30D5AN DTNC1503-01000 Report No.: DRTFCC1503-0051 TRF-RF-213(04)140314 Page 2 / 59 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1503-0051 Mar. 20, 2015 Initial issue FCCID: TQ8-AVC30D5AN DTNC1503-01000 Report No.: DRTFCC1503-0051 TRF-RF-213(04)140314 Page 3 / 59 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. EUT DESCRIPTION ................................................................... 4 3. SUMMARY OF TESTS ............................................................... 5 4. TEST METHODOLOGY ............................................................. 6 4.1 EUT CONFIGURATION ..................................................................................................... 6 4.2 EUT EXERCISE ................................................................................................................. 6 4.3 GENERAL TEST PROCEDURES ..................................................................................... 6 4.4 DESCRIPTION OF TEST MODES..................................................................................... 6 5. INSTRUMENT CALIBRATION ................................................... 7 6. FACILITIES AND ACCREDITATIONS ........................................ 7 6.1 FACILITIES ........................................................................................................................ 7 6.2 EQUIPMENT ...................................................................................................................... 7 7. ANTENNA REQUIREMENTS ..................................................... 7 8. TEST RESULT ........................................................................... 8 8.1 6 dB Bandwidth ................................................................................................................ 8 8.2 Maximum Peak Conducted Output Power ................................................................... 15 8.3 Maximum Power Spectral Density ................................................................................ 17 8.4 Out of Band Emissions at the Band Edge / Conducted Spurious Emissions .......... 24 8.5 Radiated Spurious Emissions ....................................................................................... 49 8.6 Power-line conducted emissions ................................................................................. 54 8.7 Occupied bandwidth ...................................................................................................... 55 9. LIST OF TEST EQUIPMENT .................................................... 56 APPENDIX I ................................................................................. 57 APPENDIX II ................................................................................ 58 FCCID: TQ8-AVC30D5AN DTNC1503-01000 Report No.: DRTFCC1503-0051 TRF-RF-213(04)140314 Page 4 / 59 Copyright ○ C 2015, DT&C Co., Ltd. 1. GENERAL INFORMATION Applicant : HYUNDAI MOBIS CO., LTD. Address : 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 FCC ID : TQ8-AVC30D5AN EUT : DIGITAL CAR AVN SYSTEM Model : AVC30D5AN Additional Model(s) : AVC30A8AN Date of Test : 2015-03-09 ~ 2015-03-13 Contact person : Seung Hoon Choe 2. EUT DESCRIPTION Product DIGITAL CAR AVN SYSTEM Model Name AVC30D5AN, AVC30A8AN Power Supply DC 14.4 V Frequency Range 2.4GHz Band ▪ 802.11b/g/n(20 MHz): 2412 MHz ~ 2462 MHz Max. RF Output Power 2.4GHz Band ▪ 802.11b: 17.93 dBm ▪ 802.11g: 21.08 dBm ▪ 802.11n (HT20): 21.51 dBm Modulation Type 802.11b: DSSS/CCK 802.11g/n: OFDM Antenna Specification External Antenna (1TX ,1RX) ▪ 2.4GHz Band Max. peak gain : 2.46 dBi FCCID: TQ8-AVC30D5AN DTNC1503-01000 Report No.: DRTFCC1503-0051 TRF-RF-213(04)140314 Page 5 / 59 Copyright ○ C 2015, DT&C Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1 Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20 dBc in any 100 kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8 dBm / 3 kHz C - RSS-Gen [6.6] Occupied Bandwidth (99%) RSS-Gen(6.6) NA 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) <FCC 15.209 limits Radiated C Note 2 15.207 RSS-Gen [8.8] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted NA Note 3 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. Note 3 This device is installed in a car. Therefore the power source is a battery of car. FCCID: TQ8-AVC30D5AN DTNC1503-01000 Report No.: DRTFCC1503-0051 TRF-RF-213(04)140314 Page 6 / 59 Copyright ○ C 2015, DT&C Co., Ltd. 4. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r2. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing 4.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 4.2 EUT EXERCISE The EUT was operated in the test mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 4.3 GENERAL TEST PROCEDURES Conducted Emissions The power-line conducted emission test procedure is not described on the KDB 558074 v03r2. So this test was fulfilled with the requirements in Section 6.2 of …

Text truncated - open the document above for the full version.

FCC ID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis FCC ID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: TQ8-AVC30D5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
