TQ8-AVC40G5ANDIGITAL CAR AVN SYSTEM

CAR MULTIMEDIA SYSTEM USER'S MANUAL D9EUF12 (미국/영어-English) CAR MULTIMEDIA SYSTEM I 미국/영어-English Thank you for purchasing this multimedia system. This user's manual explains how to use the KIA Motor multimedia system. Before using the product, read the con- tents of this user's manual carefully and use this product safely. • The screens shown in this manual may diff er with the actual screens of the product. • The design and specification of this product may change without prior notifi- cation for product improvement. • When transferring the vehicle to another individual, include this user's manual so that the ne xt driver can continue its use. Precaution for safe usage • Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal operation of a vehicle, and use of any handheld devices , other equipment, or v e hicle systems which tak e the driver’s eyes, attention and f ocus a way from the safe operation of a v ehicle or which are not per missible by la w should never be used during operation of the vehicle. • Do not operate the multimedia system while dr iving. • Do not disassemble, assemble, or modify the multimedia system. • Do not watch the screen for prolonged periods of time while driving. • Set the volume to a level which allows the dr iver to be aware of external conditions. • Do not operate the multimedia system for prolonged per iods of time with the v ehicle ignition in A CC. Such operations ma y lead to batter y discharge. • Be cautious not to spill water or introduce f oreign objects into the device. • Do not cause severe shock to the device. Direct pressure onto the front side of the monitor ma y cause damage to the LCD or touch panel. • In case of product malfunction, please contact your place of purchase or ser vice center . • When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materi- als, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners , etc.) as such mater ials may damage the de vice panel or cause color and quality deter ioration. All Map Database cannot be copied without permission. Important Notice: This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without HYUNDAI MnSoft, Inc's prior written consent. • SiriusXM service requires a subscrip- tion, sold separately, after 3-month tr ial included with v ehicle purchase. If you decide to continue your SiriusXM ser- vice at the end of your trial subscr iption, the plan y ou choose will automatically renew and bill at then-current r ates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm. com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D .C., and PR (with coverage limitations). Traffic informa- tion not available in all markets. See siriusxm.com/traffic for details. Sirius, XM and all related mar ks and logos are tr ademarks of Sirius XM Radio Inc. WARNING •Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibil- ity is in the safe and legal oper ation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during opera- tion of the vehicle. • harman/kardon is a trademark of Harman Inter national Industries, Inc. • At launch, the Apple iPhone ® will be the only UV O eServices compatible device. iPhone ® is a registered trademark of Apple Inc. • App Store is a service mark of Apple Inc. No charge for the UVO eServices app. App runs on your smartphone cellular data service. Normal data rates will apply. • HD Radio™ and the HD Radio™ logo are proprietary trademarks of iBiquity Digital Corporation. • 24-hour Roadside Assistance is a service plan pro vided by KIA Motors America, Inc. Certain limitations apply. Coverage details are available in the KIA Warr anty and Consumer Inf ormation Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth ® within the cellular ser vice covera ge area is required. • Vehicle Diagnostics do not take the place of regular ly scheduled maintenance. Feature checks powertrain, chassis , and airbag systems only . For factory-recom- mended maintenance schedule , see the Maintenance F eature of UVO eSer vices or the Owner’ s Manual. • 911 Connect activates after an airbag deployment. Feature requires a connected mobile phone via Bluetooth. Dependant on cellular ser vice coverage. • The Rear-Camera display is not a substi- tute for proper and safe backing-up proce- dures. The Rear-Camera display ma y not displa y every object behind the vehicle. Always drive saf ely and use caution when bac king up. Read the following safety precautions for your safety Before using the product, read the contents of this user's manual carefully and use this product safely. The design and specifi cations of this product may change without prior notification for product and service improvement. The actual features in the vehicle may differ from the illustrations. For more accurate information about the vehicle, please refer to the catalogue. For more information on open licenses and legal notices, refer to the website below. http://www.mobiszone.co.kr/front/mall/jsp/manual/avn_ download_ center_manual.jsp Notations used within this User's Manual WARNING • Failure to observe the instructions within this category could result in damage to the vehicle. CAUTION • Information on matters that could potentially lead to injury or vehicle damage/malfuncti…

Text truncated - open the document above for the full version.

5-22 I Navigation Intersection Press the MAP VOICE head unit key. ▶ Select the Navi Menu in the bottom of right of the screen. ▶ Select the Intersection to search by intersection. Type 1st Street name, the State, 2nd Street name. Press the Set as Destination button to start guidance. Coordinates Press the MAP VOICE head unit key. ▶ Select the Navi Menu in the bottom of right of the screen. ▶ Select the Coordinates to search by coordinates. There are two ways to search by coordi- nates (D.M.S or Decimal Degrees). After typing coordinates, press the Done but- ton to search. QLH55083EU QLH55082EU QLH55084EU QLH55085EU QLH55086EU Destination Search I 5-23 05 Press the Set as Destination button to start guidance. Favorite Places Set the route using your favorite places. Press the MAP VOICE head unit key. ▶ Select the Navi Menu in the bottom of right of the screen. ▶ Select the Destination tab. ▶ Select from favorite places. On the button where locations are not reg- istered, the icon is displayed. When a location is registered, the button disap- pears and the buttons 1 to 3 are displayed as your favorite places. Press the Go Home button then press the Yes button to set the Favorite ‘Go Home’. QLH55088EUQLH55087EU QLH55089EU 5-24 I Navigation Office, Special 1, Special 2, and Special 3 can also be set as a Favorite using the same steps. Pressing any of the Favorite Place buttons will start the route guidance to the saved Favorite address. Route Setting The route can be set after searching for a destination. While the destination is set, the buttons Change Destination and Add Waypoint appear. Press the desired button to change a des- tination or add a waypoint. Destination Setting(Change) After searching the destination, press the Set as Destination button to set the location as a destination. QLH55090EU QLH55091EU QLH55092EU QLH55093EU Destination Search I 5-25 05 All Routes When the alternative routes option is enabled in navigation setting, two routing options are displayed based on faster time and shorter distance. • Faster Time : Select time-optimized route, being the fastest roads. • Shorter Distance : Select short distance , irrespective of how fast or slow progress will be calculated. NameDescription Display total distance, travel time. Select the desired route. Start Guidance Start the guidance with the route. Route Options Change the route option. Route Preview Preview turn-by-turn list. Edit Route Edit the route. Total Display total distance of the route. Freeway Display length of freeway on the route. Toll Road Display length of toll road on the route. Ferry Display length of Ferry route on the route. The route will be calculated using the option “Faster Time” by default. Alternative routes can be suggested if necessary, SETUP key ▶ Navigation Icon ▶ Route ▶ Alternative : ON QLH55094EU QLH55095EU QLH55096EU 5-26 I Navigation Adding Waypoint Press the Add Waypoint button to set the position as a waypoint and search the route. NameDescription Display the selected point on the map screen. Move the selected item up. Move the selected item down. Delete the selected item. Done Press the button to fin- ish editing. Add Waypoint Press the button to add waypoint. Registering Location Press Save at the desired location to register the location. Enter the detailed information of the loca- tion to save. QLH55099EU QLH55098EU QLH55100EU QLH55097EU Destination Search I 5-27 05 Route Guidance Show route guidance detailed information. Route Guidance Screen Remaining Time: Display the time remain- ing until destination. Arrival Time: Display the estimated time of arrival. NameDescription Displays the distance and direction to the first turn point. Displays the distance and direction to the second turn point. Displays the lane infor- mation at the current location. Display the recommended direc- tion in white, travelable direction in white, and the non-travelable direction in grey. Displays the distance to the destination and the estimated time of arrival. Press the button to check the detailed information. Cancel the route. Enter the navigation menu screen. Destination Info Displays the destina- tion information. Turn on or off the Turn List. QLH55101EUQLH55103EU QLH55104EU QLH55102EU 5-28 I Navigation Split Screen during Route Guidance Approaching the turning point, the detailed road and travel information is automatically displayed on the right side of the screen. NameDescription • Turn Point: Displays direction and shape to turn shortly. • Distance to turn: Displays distance to next turn point. Road name to maneu- ver : Info of the road. Detail Distance Bar: Displays distance to next turn point. Details additional info can be displayed on Freeway. Additional info of Freeway exit or Rest area can be displayed by pressing the but- ton . Detailed information for POIs around free- way exit is listed by pressing POI symbols. QLH55105EU QLH55107EU QLH55106EU QLH55108EU Route Search I 5-29 05 Route Search Canceling Route Cancel the route. Press the MAP VOICE head unit key. ▶ Select the Navi Menu in the bottom of right of the screen. ▶ Press the Route tab. ▶ Select Cancel Route . Click Cancel Route the icon. Press the Yes button to cancel the route. Display Route Information Press the MAP VOICE head unit key. ▶ Select the Navi Menu in the bottom of right of the screen. ▶ Press the Route tab. ▶ Select Route Info. . Press the Route Info. icon. Check the information on the map. Select the desired item to see the map informa- tion. Avoiding a road Click the Avoid Street button to avoid the street or road. Check the desired item and press the Done button to finish. QLH55110EU QLH55109EU QLH5511EU QLH55112EU QLH55113EU 5-30 I Navigation Route Overview Check the information on route including the distance, estimated time, toll fees, etc. Press the MAP VOICE head unit key. ▶ Select the Navi Menu in the bottom of right of the screen. ▶ Press the Route tab. ▶ Select Route Overview . Press the Route Overview icon. …

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 Date: Dec. 07, 2015 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: TQ8-AVC40G5AN including signing of all documents relating to these matters. Any and all acts carried out by DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Hyundai MOBIS Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Seung Hoon Choe Senior Researcher

SCS-F19: Confidentiality Request Letter Page 1 of 4 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (obsolete) 3.0 4.0 March-26-2015 Corrections to STC form. Added reference to KDB (current) 4.0 5.0 Nov 19 2015 SCS-F19: Confidentiality Request Letter Page 2 of 4 Rev 5.0 Dec. 07, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: TQ8-AVC40G5AN Pursuant to sections 0.457 and 0.459 of CFR 47, we respectfully request permanent confidential treatment of the following Exhibits accompanying this application as: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title Seung Hoon Choe / Senior Researcher Contact information / address Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977 SCS-F19: Confidentiality Request Letter Page 3 of 4 Rev 5.0 Dec. 07, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: TQ8-AVC40G5AN To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47, and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days; or for a specified date of / / not to exceed 180 days from the Grant Date. See KDB 726920.. - e.g. User Manual - e.g. Internal Photos - e.g. Test Setup photos - e.g. External Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title Seung Hoon Choe / Senior Researcher Contact information / address Hyundai MOBIS Co., Ltd. / 203 Teheran-ro, Gangnam-gu, Seoul, Korea, 135-977

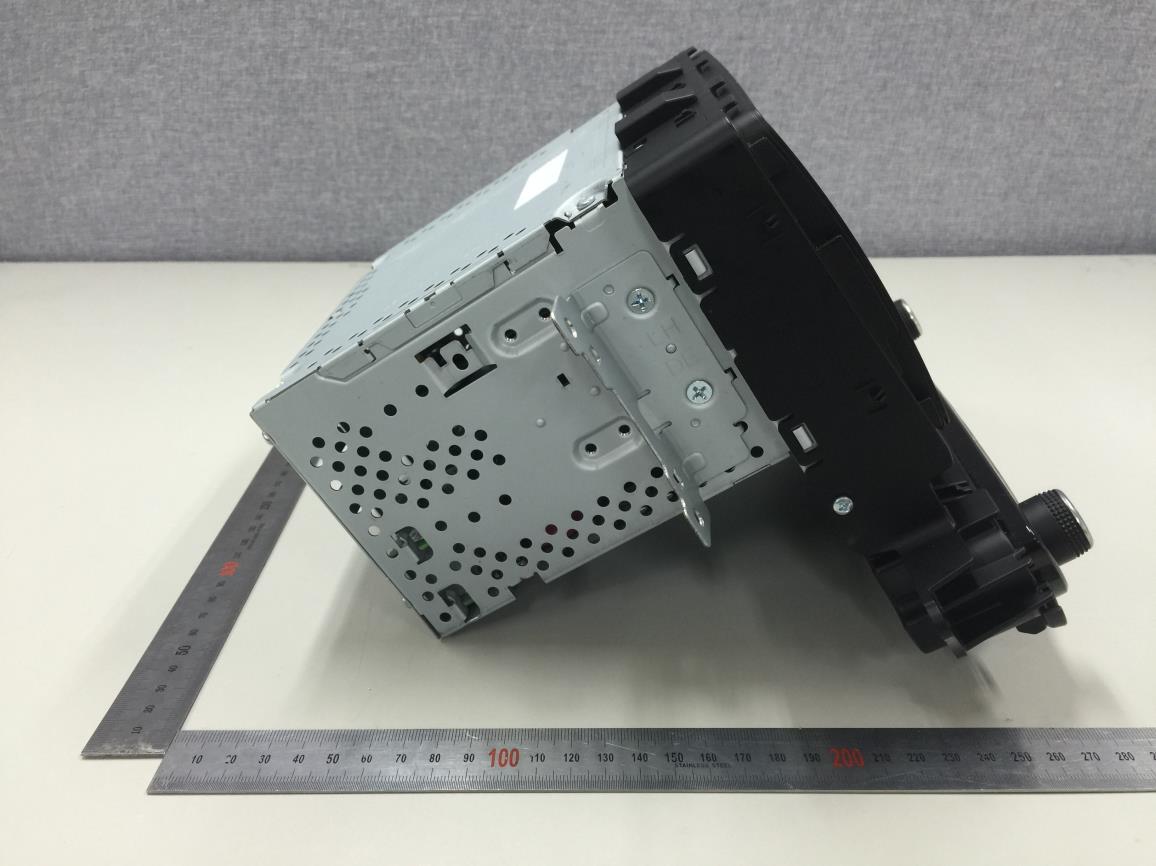

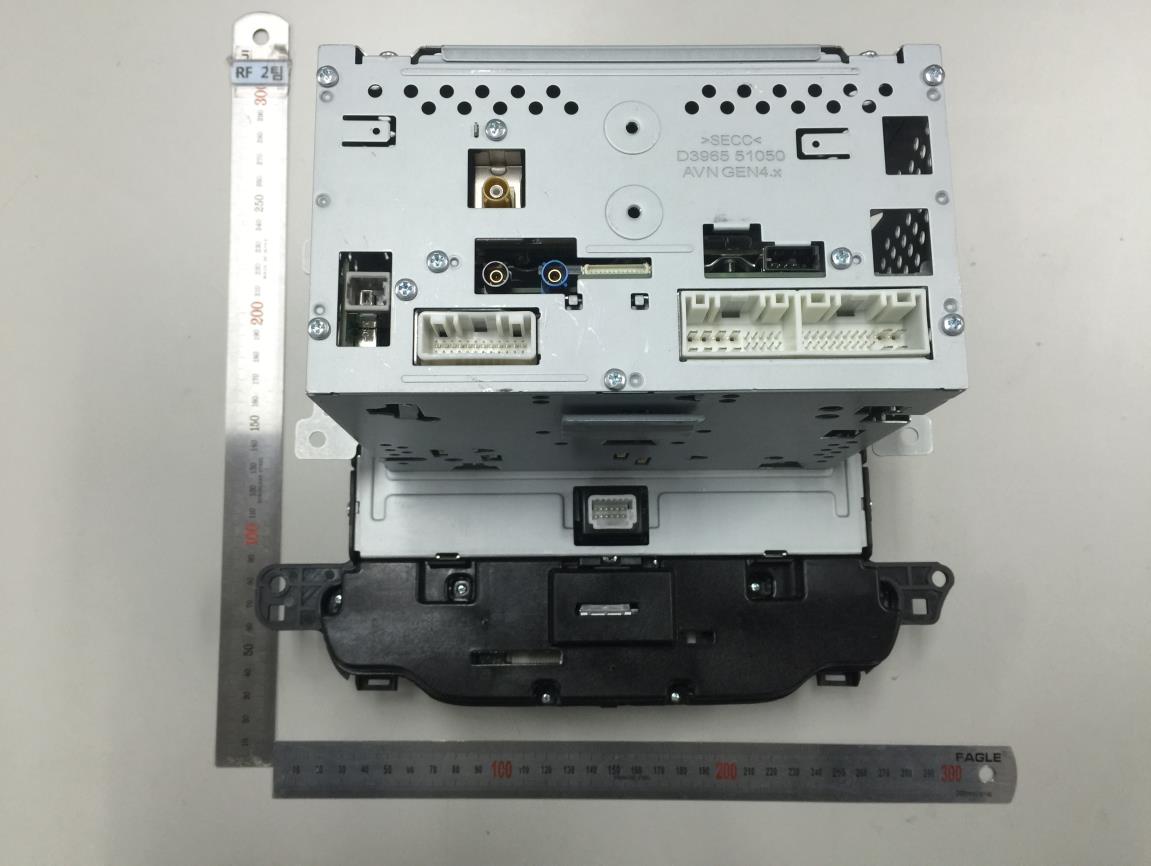

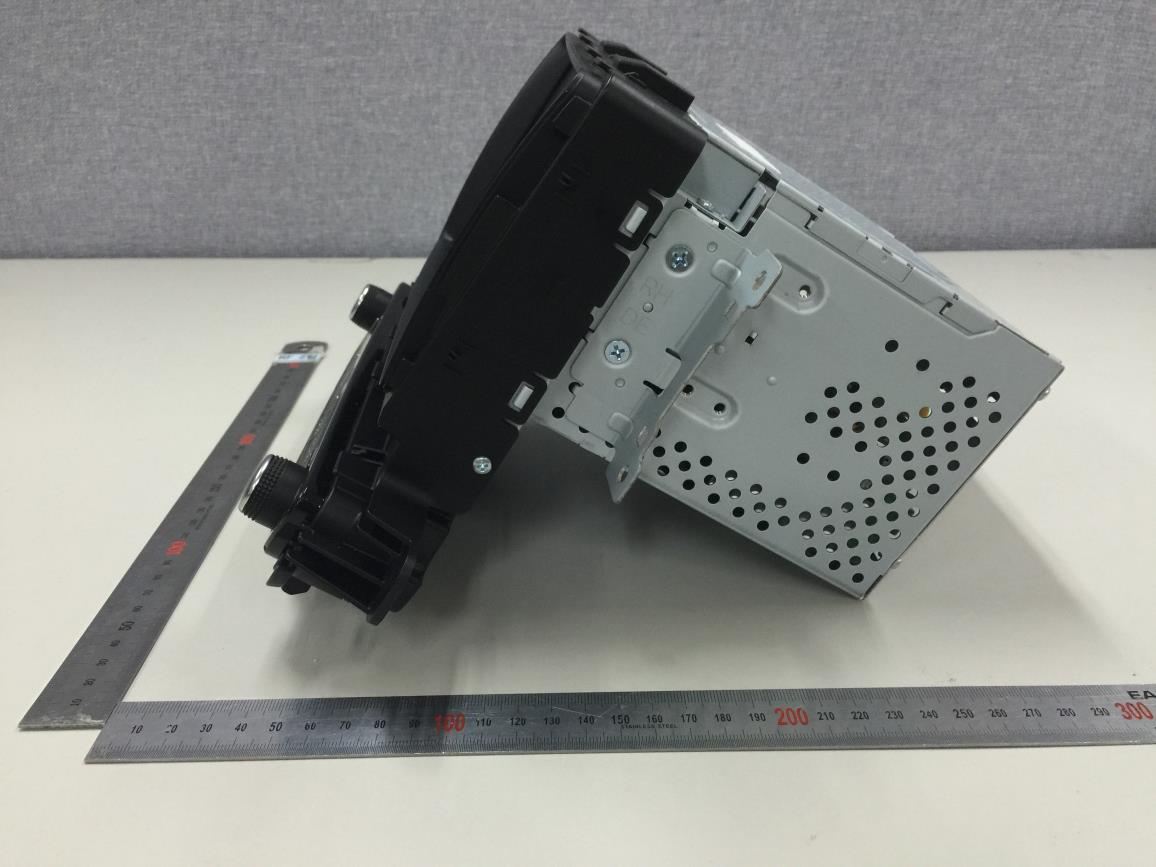

FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 1 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 2 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 3 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 4 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 6 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 7 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 8 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 9 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 10 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 11 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 12 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 13 FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 14 <Module> <Module> FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 15 <BT Module> < Module > FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 16 <BT Antenna> <BT Antenna> FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 17 <WLAN Antenna> <WLAN Antenna> FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 18 <WLAN Antenna> <WLAN Antenna> FCCID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. View 19 <WLAN Antenna> <WLAN Antenna>

FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) BT 2402.00 ~ 2480.00 0.00 0.77 0.77 1.194 0.001 1.000 ~~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : TQ8-AVC40G5AN MPE Calculation : BT Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 1.194 S= Maximum power density(mW/cm 2 ) 0.001 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the antenn FCC ID: RF function or Mode Max Target Power (dBm) ANT Gain (dBi) Maximum EIRP (dBm) Maximum EIRP (mW) Maximum power density (mW/cm 2 ) Requriment (mW/cm 2 ) 802.11b 2412.00 ~ 2462.00 17.50 2.46 19.96 99.084 0.020 1.000 802.11g 2412.00 ~ 2462.00 13.00 2.46 15.46 35.157 0.007 1.000 802.11n 2412.00 ~ 2462.00 13.00 2.46 15.46 35.157 0.007 1.000 ~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : MPE Calculation : WLAN Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below. EIRP / ( 4 R 2 π ) ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC TQ8-AVC40G5AN 99.084 S= Maximum power density(mW/cm 2 ) 0.02 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the antenn

FCC ID: TQ8-AVC40G5AN Report No.: DRTFCC1512-0266 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 82 Test Report Version Test Report No. Date Description DRTFCC1512-0266 Dec. 18, 2015 Initial issue FCC ID: TQ8-AVC40G5AN Report No.: DRTFCC1512-0266 TRF-RF-237(01)150922 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 82 Table of Contents 1. General Information ............................................................................................................... 4 1.1 Testing Laboratory .......................................................................................................................... 4 1.2 Details of Applicant ......................................................................................................................... 4 1.3 Description of EUT .......................................................................................................................... 4 1.4 Declaration by the applicant / manufacturer ................................................................................. 4 1.5 Information about the FHSS characteristics ................................................................................. 5 1.6 Test conditions ................................................................................................................................ 5 1.7 Test Equipment List ......................................................................................................................... 6 1.8 Summary of Test Results ................................................................................................................ 7 1.9 Conclusion of worst-case and operation mode ............................................................................ 8 2. Maximum Peak Output Power Measurement ...................................................................... 9 2.1 Test Setup ........................................................................................................................................ 9 2.2 Limit .................................................................................................................................................. 9 2.3 Test Procedure ................................................................................................................................. 9 2.4 Test Results ................................................................................................................................... 10 3. 20 dB BW .............................................................................................................................. 16 3.1 Test Setup ...................................................................................................................................... 16 3.2 Limit ................................................................................................................................................ 16 3.3 Test Procedure ............................................................................................................................... 16 3.4 Test Results ................................................................................................................................... 16 4. Carrier Frequency Separation ............................................................................................ 22 4.1 Test Setup ...................................................................................................................................... 22 4.2 Limit ................................................................................................................................................ 22 4.3 Procedure ....................................................................................................................................... 22 4.4 Test Results ................................................................................................................................... 22 5. Number of Hopping Frequencies ....................................................................................... 27 5.1 Test Setup ...................................................................................................................................... 27 5.2 Limit ................................................................................................................................................ 27 5.3 Procedure ....................................................................................................................................... 27 5.4 Test Results ................................................................................................................................... 27 6. Time of Occupancy (Dwell Time) ........................................................................................ 33 6.1 Test Setup ...................................................................................................................................... 33 6.2 Limit ................................................................................................................................................ 33 6.3 Test Procedure ............................................................................................................................... 33 6.4 Test Results ................................................................................................................................... 33 7. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission .......... 38 7.1 Test Setup ...................................................................................................................................... 38 7.2 Limit ................................................................................................................................................ 38 7.3. Test Procedures ..........................…

Text truncated - open the document above for the full version.

FCC ID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs (DTS & DSS) EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: TQ8-AVC40G5AN Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
