TQ8-AVN-215TDLCAr AVN

FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1/1 ATTACHMENT E. - User Manual - Thank you for purchasing this Audio Navigation System. This user manual explains how to use the KIA Motor Audio Navigation System. Before using the product, read the contents of this user's manual care- fully and use the product safely. 䤎 The screens shown in this manu- al may differ with the actual screens of the product. 䤎 The design and specification of this product may change without prior notification for product improvement. 䤎 When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use. iPod 䠶 iPod 䠶 is a registered trademark of Apple, Inc. Bluetooth 䠶 The Bluetooth 䠶 word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. A Bluetooth 䠶 enabled cell phone is required to use Bluetooth 䠶 wireless technology. All Map Database cannot be copied without permission. This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent. Preface PA R T 1 PRE-OVERVIEW Introduction jjjjjjjj 1-2 Important information about this manual jjjjjjjjjjjj 1-2 Precaution for safe usage jjjjj 1-2 Controller and functions jjj 1-3 Control panel jjjjjjjjjj 1-3 Steering wheel remote controller jj 1-6 Basic operation and setting j 1-7 Turning the power ON jjjjjj 1-7 Turning the power OFF jjjjjj 1-7 Turning the audio ON/OFF jjjj 1-7 Adjusting audio volume jjjjj 1-7 How to operate the screen menu jj 1-8 How to operate menu by voice command jjjjjjjj 1-10 Audio sound setting jjjjjj 1-11 Display setting jjjjjjjjj 1-12 PA R T 2 AUDIO SYSTEM Operating the radio jjjjj 2-2 FM/AM Radio jjjjjjjjj 2-2 SIRIUS Radio jjjjjjjjjj 2-6 Operating the CDP jjjjj 2-11 About CDP jjjjjjjjjj 2-11 Inserting/Ejecting Disc jjjjj 2-14 CD jjjjjjjjjjjjjj 2-15 MP3 jjjjjjjjjjjjj 2-18 Operating the external devices j 2-23 iPod jjjjjjjjjjjjj 2-23 USB jjjjjjjjjjjjj 2-28 AUX jjjjjjjjjjjjj 2-31 PA R T 3 NAVIGATION SYSTEM Limitations of the navigation system jjjjjjjjjj 3-2 GPS signal reception state jjjj 3-2 Vehicle position display jjjjj 3-3 Route guidance jjjjjjjjj 3-4 Route Re-calculation jjjjjjj 3-4 Starting navigation system jj 3-5 Map Functions jjjjjjj 3-5 Current position map screen (without route) jjjjjjjjj 3-5 Switching map mode (North up/Heading up) jjjjjj 3-6 Viewing GPS signal state jjjjj 3-7 Changing the map scale jjjjj 3-8 Displaying / Hiding POI icons on the map jjjjjjjjjjj 3-9 Displaying / Hiding Q.POI icons j 3-9 Displaying /Hiding icons other than Q.POI icons jjjjjjjjjj 3-9 Making a call to POI jjjjjj 3-10 Scrolling map jjjjjjjjj 3-11 Tables of contents Setting a Destination jjjj 3-12 Destination menu screen and functions j 3-12 Searching a Destination jjjjj 3-13 Searching an Address jjjjj 3-13 Searching a Previous Destination j 3-17 Searching an Intersection jjj 3-17 Searching a POI jjjjjjj 3-20 Searching from Address book jj 3-24 Searching for Emergency facilities j 3-25 Searching your Home jjjjj 3-25 Searching favorite places jjj 3-26 Searching from MAP jjjjj 3-26 Searching POI by local POI list jj 3-26 Operating after searching a destination jjjjjjjjjj 3-27 Changing destination position j 3-27 Setting as Destination/waypoint3-27 Adding to address book jjjj 3-27 Operating after setting a destination jjjjjjj 3-28 Starting Route Guidance jjjjj 3-28 Route guidance screen jjjjj 3-28 Selecting other route jjjjjj 3-29 Route guidance jjjjjj 3-30 Route menu screen and functions j 3-30 Finishing route guidance (Delete Destination) jjjjjj 3-30 Route overview(View Entire Route) j 3-31 Changing Route option jjjjj 3-32 Editing waypoints jjjjjjj 3-32 Adding waypoints jjjjjj 3-32 Deleting waypoints jjjjjj 3-34 Re-ordering waypoints jjjj 3-34 Setting detour distance jjjjj 3-35 Setting avoid streets on route jj 3-35 Setup and Information jjj 3-36 Setup menu screen and functions j 3-36 Main setting jjjjjjjjjj 3-36 Setting keyboard for inputting letter jjjjjjjjjjjj 3-36 Setting voice command feedback ON/OFF jjjjjjjjjj 3-37 Setting Language jjjjjj 3-37 Initializing system jjjjjj 3-37 Navigation setting jjjjjjj 3-38 Setting units (mile/km) jjjj 3-38 Setting arrival time and distance display jjjjjjjjjjj 3-38 Registering avoid area jjjjj 3-38 Editing avoid area jjjjjj 3-40 Deleting avoid area jjjjjj 3-41 Deleting all avoid areas jjjj 3-41 Setting Q.POI icons jjjjjj 3-42 Setting estimate travel time jj 3-42 My places setting jjjjjjjj 3-43 Registering new address in address book jjjjjjjj 3-43 Editing an address of address book jjjjjjjj 3-45 Deleting an address of address book jjjjjjjjjjjj 3-46 Deleting an address book jjj 3-47 Registering home address jjj 3-48 Deleting home address jjjj 3-48 Registering favorite place jjj 3-49 Deleting favorite place jjjjj 3-50 System information and update jj 3-51 Voice guidance volume setting jj 3-51 Voice guidance volume control j 3-51 Adaptive volume control ON/OFF j 3-52 Traffic Setup jjjjjjjjjj 3-52 Traffic Information jjjjjjj 3-52 Help jjjjjjjjjjjjj 3-54 Tables of contents PRE-OVERVIEW PA R T 4 VOICE COMMAND SYSTEM Operating voice command j 4-2 Condition for voice command system j 4-2 Basic operation for voice command control jjjjjjjj 4-2 Voice command help jjjjjj 4-3 Setting up the voice command system jjjjjjjjjj 4-4 Setting voice Prompt ON/OFF jjj 4-4 Speaker adaptation jjjjjjj 4-4 Voice command list jjjjj 4-6 Command list of Help jjjjjj 4-6 Command list of Audio system jjj 4-7 Command list of Navigation system j 4-13 Searching a destination by voice command jjjjjjjj 4-19 PA R T 5 BLUETOOTH HANDSFREE Before using the Bluetooth Handsfree jjjjjjjjj 5-2 What is Bluetooth? jjjjjjjj 5-2 Functions supported by Bluet…

Text truncated - open the document above for the full version.

NAVIGATION SYSTEM3-25 NAVIGATION SYSTEM ¥ Searching for Emergency facilities 䟣 Press the key. 䟤 Press the button. 䟥 Select the desired facility category. 䟦 Select the desired facility. The corresponding position will be displayed on the map. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Find emergency <Category>" [Find emergency <Category>], page 4- 23. ¥ Searching your Home 䟣 Press the key. 䟤 Press the button. The Home position will be displayed on the map. INFORMATION If the Home address is not registered, then the button will be displayed. [Registering home address], page 3-48. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Go home" [Go home], page 4-25. HOME HOME DEST Emergency DEST i 3-26NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM ¥ Searching favorite places 䟣 Press the key. 䟤 Select the desired button from ~ . The corresponding position will be displayed on the map. INFORMATION If the address of the Favorite place is not registered, then the ~ buttons without registered addresses will be disabled. [Registering favorite place], page 3-49. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Destination by memory point <1 to 5>" [Destination by memory point <1 to 5>], page 4-25. ¥ Searching from MAP Position the scroll mark at the destination by scrolling the map on the map screen. ¥ Searching POI by local POI list 䟣 Press the button on the map screen. 䟤 Press the button. 䟥 Press the button. 䟦 Select the desired POI menu. The corresponding position will be displayed on the map. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Find nearest <POI name>" [Find nearest <POI name>], page 4-21. Local POI lists Others POI © 51 51 DEST i NAVIGATION SYSTEM3-27 NAVIGATION SYSTEM Operating after searching a destination ¥ Changing destination position : Changes the position of the destination by scrolling the map. [Scrolling map], page 3-11. ¥ Setting as Destination / waypoint : Sets the position as the destination or waypoint. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Start guidance" (Sets the position of the scroll mark as the destination and begins route guidance.) ¥ Adding to address book : Saves the position in the address book. [Registering new address in address book], page 3-43. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Store Marked Location to <text tag>" 3-28NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM Operating after setting a destination Starting Route Guidance Press the button. Route Guidance will start. Route simulation 䤎 If the button is pressed and held for over 0.8 second, then the route simulation will start. 䤎 If the key on the control panel is pressed during route simulation, then route simulation will be terminated. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Time to destination" "Distance to destination" Route guidance screen Symbol guidance mode : If the button is pressed, then the following route guidance screen will be displayed. Turn-List mode : If the button is pressed, then the following route guidance screen will be displayed. MAP Start Guidance Start Guidance NAVIGATION SYSTEM3-29 NAVIGATION SYSTEM Highway mode : If the button is pressed, then the following route guidance screen will be displayed. Intersection zoom mode : This route guidance screen is automatically displayed during guidance at an intersection. Once guidance at the intersection is complete, the screen will automatically disappear and the previous guidance screen will be restored. Highway junction mode : This route guidance screen is automatically displayed during guidance at highway junctions. Once guidance at a highway junction is complete, this screen will automatically disappear and the previous guidance screen will be restored. Selecting other route 䟣 Press the button. 䟤 Other routes can be selected by pressing the or buttons. ÜÚ Others 3-30NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM Route guidance Route menu screen and functions Press the key on the control panel. The ROUTE menu screen will be displayed. Cancel Route: Deletes destination, waypoints and terminates route guidance. [Finishing route guidance], page 3-30 . Route Overview: Displays the entire route and route detailed. [Route overview], page 3-31 . Route Option: The route option can be changed. [Changing Route option], page 3-32 . Edit Waypoint: Waypoints can be added/deleted and the order can be changed. [Editing waypoints], page 3-32 . Detour: Searches detour routes. [Setting detour distance], page 3-35 . Avoid Streets: Searches routes which avoid the selected streets. [Setting avoid streets on route], page 3-35. Finishing route guidance (Delete Destination) 䟣 Press the key. 䟤 Press the button. 䟥 Press the button. The destination and waypoints are deleted and the route guidance is terminated. [Finishing route guidance], page 3-30 . Yes Cancel Route ROUTE ROUTE B BCD EFG C D E F G NAVIGATION SYSTEM3-31 NAVIGATION SYSTEM Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Cancel route" (Terminates route guidance and deletes the set destination and waypoints.) Route overview (View Entire Route) 䟣 Press the key. 䟤 Press the button. 䟥 Press the button. INFORMATION If the button is pressed, route guidance screen is displayed. 䟦 The detailed route information can be viewed. Return to Guidance Turn by turn Route Overview ROUTE i 3-32NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM Changing Route option 䟣 Press the key. 䟤 Press the button. 䟥 Press the button for the desired route guidance method. Guidance will be restarted after recal…

Text truncated - open the document above for the full version.

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS Co., Ltd. Date : Jun 09, 2010 It is classified according to the number of car doors (2,4 and 5), and same H/W set is being used. Sound quality tuning differs for every door specification and only SW tuning value differs. Car model differs according to the door specivation, but AVN-212TDLL, AVN- 214TDLL,AVN-215TDLL has no difference in terms of HW. Sincerely, Yong-bin, Kim / Assistant Manager HYUNDAI MOBIS Co., Ltd. IC: 5074A-AVN215TDLL

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. Date : June 05, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AVN, AVN-215TDL We affirm that between SIEMIC and HYUNDAI MOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Seung-Kun Chon/ Assistant Manager HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA FCC ID : TQ8-AVN-215TDL

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD. Date : June 05,2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TQ8-AVN- 215TDL We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Kun Chon / Assistant Manager HYUNDAI MOBIS CO., LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA

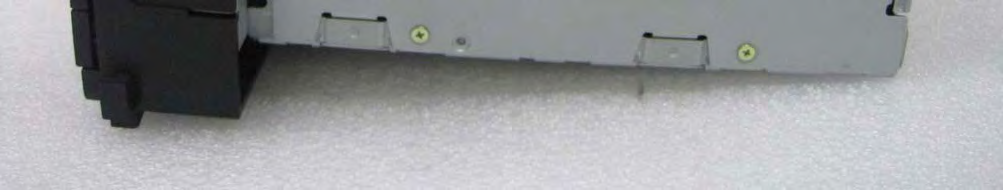

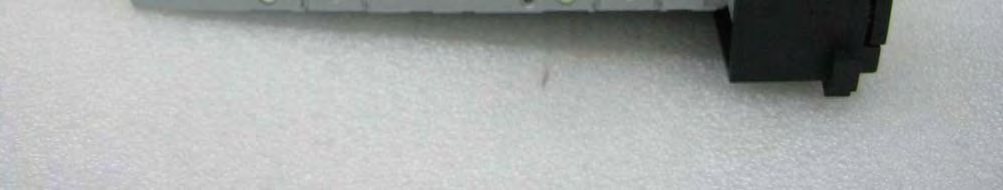

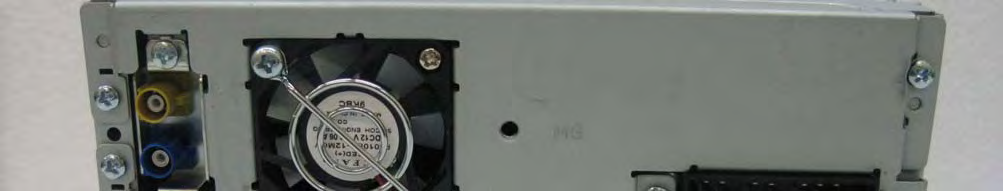

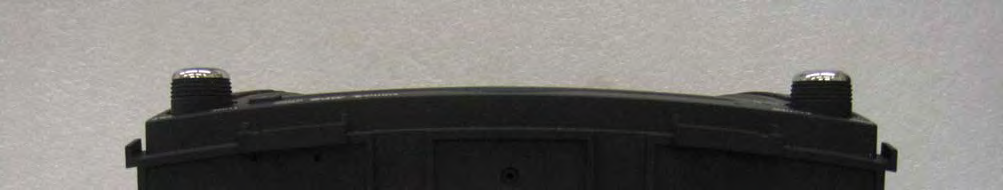

FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 7 ATTACHMENT B. - EXTERNAL PHOTOS - FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 7 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 7 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 4 / 7 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 5 / 7 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 6 / 7 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 7 / 7

FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 4 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 4 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model No : AVN-215TDL IC Model No : AVN-215TDLL FCC ID : TQ8-AVN-215TDL IC : 5074A-AVN215TDLL EUT Type : CAR AVN Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA MADE IN KOREA FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 4 FCC Model No : AVN-212TDL IC Model No : AVN-212TDLL FCC ID : TQ8-AVN-215TDL IC : 5074A-AVN215TDLL EUT Type : CAR AVN Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA MADE IN KOREA FCC Model No : AVN-214TDL IC Model No : AVN-214TDLL FCC ID : TQ8-AVN-215TDL IC : 5074A-AVN215TDLL EUT Type : CAR AVN Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA MADE IN KOREA FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 4 / 4 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 39 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 4 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 5 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 6 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 7 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 8 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 9 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 10 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 11 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 12 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 13 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 14 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 15 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 16 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 17 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 18 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 19 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 20 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 21 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 22 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 23 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 24 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 25 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 26 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 27 / 39 FCC ID: TQ8-AVN-215TDL / IC: 5074A-AVN215TDLL HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 46…

Text truncated - open the document above for the full version.

MPE CALCULATION For HYUNDAI MOBIS CO., LTD – ; Model: AVN-215TDL FCC ID: TQ8-AVN-215TDL RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2402 MHz): Power = 3.66 dBm, Antenna Gain = -5 dBi, Pr ediction distance 20cm S = 0.000146 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20cm. Completed By : Jong Seok Lee Date : JUN 05, 2010

FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1005FR15 Date of Issue: May 20, 2010 EUT Type: CAR AVN FCC ID : TQ8-AVN-215TDL IC: 5074A-AVN215TDLL Page 2 of 45 Version TEST REPORT NO. DATE DESCRIPTION HCTR1005FR15 May 20, 2010 First Approval Report HCTR1005FR15-1 JUN 10, 2010 Insert Summary of Test Results (Section 7) FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1005FR15 Date of Issue: May 20, 2010 EUT Type: CAR AVN FCC ID : TQ8-AVN-215TDL IC: 5074A-AVN215TDLL Page 3 of 45 Table of Contents 1. GENERAL INFORMATION ....................................................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................................. 4 3. TEST METHODOLOGY ............................................................................................................................ 5 3.1 EUT CONFIGURATION ............................................................................................................. 5 3.2 EUT EXERCISE ......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ............................................................................................. 5 3.4 DESCRIPTION OF TEST MODES ............................................................................................ 5 4. INSTRUMENT CALIBRATION .................................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ...................................................................................................... 6 5.1 FACILITIES ................................................................................................................................ 6 5.2 EQUIPMENT .............................................................................................................................. 6 6. ANTENNA REQUIREMENTS.................................................................................................................... 6 7. SUMMARY OF TEST RESULTS............................................................................................................... 7 8. FCC PART 15.247 REQUIREMENTS ....................................................................................................... 8 8.1 PEAK POWER ........................................................................................................................... 8 8.2 BAND EDGES MEASUREMENT ............................................................................................ 12 8.3 FREQUENCY SEPARATION / 20 dB and OCCUPIED BANDWIDTH (99% BW) ................. 15 8.4 NUMBER OF HOPPING FREQUENCY .................................................................................. 20 8.5 TIME OF OCCUPANCY (DWELL TIME) ................................................................................. 23 8.6 SPURIOUS EMISSIONS.......................................................................................................... 27 8.6.1 CONDUCTED SPURIOUS MEASUREMENT............................…

Text truncated - open the document above for the full version.
