TQ8-BA015TFACAR AUDIO

FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1/1 ATTACHMENT E. - User Manual - 1 User’s Guide [BA015TFa] Kia UVO Audio System 2 TABLE OF CONTENTS TABLE OF CONTENTS.................................................................................................................................2 RECOMMENDATION...................................................................................................................................9 WELCOME..................................................................................................................................................10 WARNING & SAFETY INFORMATION.....................................................................................................11 Safety Symbols..................................................................................................................................11 FCC Information................................................................................................................................11 Canadian Compliance........................................................................................................................11 Safety Precautions............................................................................................................................11 COPYRIGHTS & TRADEMARKS................................................................................................................13 PART I. GETTING STARTED.....................................................................................................................14 1. Main Features................................................................................................................................14 2. Controls and Features...................................................................................................................14 1. Head Unit................................................................................................................................14 2. Steering Wheel.......................................................................................................................15 3. Basic Features...............................................................................................................................17 1. System Power.........................................................................................................................17 Turning System Power On..................................................................................................17 Turning System Power Off..................................................................................................17 2. Turn Display On and Off.........................................................................................................18 3. Select Display Language........................................................................................................19 4. Resetting and Initializing UVO..............................................................................................20 Resetting the system...........................................................................................................20 Initializing the system........................................................................................................20 4. Sound and Display Settings.........................................................................................................21 1. Sound Settings.......................................................................................................................21 FADER/BALANCE.................................................................................................................22 TONE.....................................................................................................................................22 Touch Screen Beep..............................................................................................................23 Speed Dependent Volume Control.....................................................................................23 Variable EQ (Optional)........................................................................................................23 Power Bass (Optional)........................................................................................................ 24 2. Display Settings...................................................................................................................... 25 Setting Brightness...............................................................................................................26 Automatic Brightness Control......................................................................................26 Manual Brightness Control...........................................................................................26 Turning Display On and Off.......................................................................................................27 Turn Text Scroll On and Off.......................................................................................................28 3 PART II. AUDIO FEATURES.....................................................................................................................30 1. FM/AM MODE.......................................................................................................................................30 FM/AM Mode Screens and Features.........................................................................................30 Listening to the FM/AM radio....................................................................................................30 Selecting a broadcast frequency.................................................................................…

Text truncated - open the document above for the full version.

HYUNDAI MOBIS CO., LTD. Date: July 06, 2010 ATTESTATION STATEMENT FCC ID : TQ8-BA015TFa This device contains an embedded Bluetooth device that HYUNDAI MOBIS CO., LTD. confirms compliance with the following Part 15 regulations. 15.247(a)(1) 15.247(a)(1)15.247(a)(1) 15.247(a)(1) The hopping sequence must be pseudorandom. all Channels are used equally on average. the receiver input bandwidth is approximately equal to the transmit bandwidth. the receiver hops in sequence with the transmitted signal. 15.247(g) 15.247(g)15.247(g) 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h 15.247(h15.247(h 15.247(h) )) ) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Seung-Kun Chon / Assistant Manager

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. Date : July 08 , 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AUDIO, BA015TFa , FCC ID : TQ8-BA015TFa We affirm that between SIEMIC and HYUNDAI MOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Seung-Kun Chon/ Assistant Manager HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA FCC ID : TQ8-BA015TFa

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD. Date : July 08 ,2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TQ8-BA015TFa We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2 Schematics 3 Operational Description SHORT-TERM CONFIDENTIAL 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Kun Chon / Assistant Manager HYUNDAI MOBIS CO., LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA

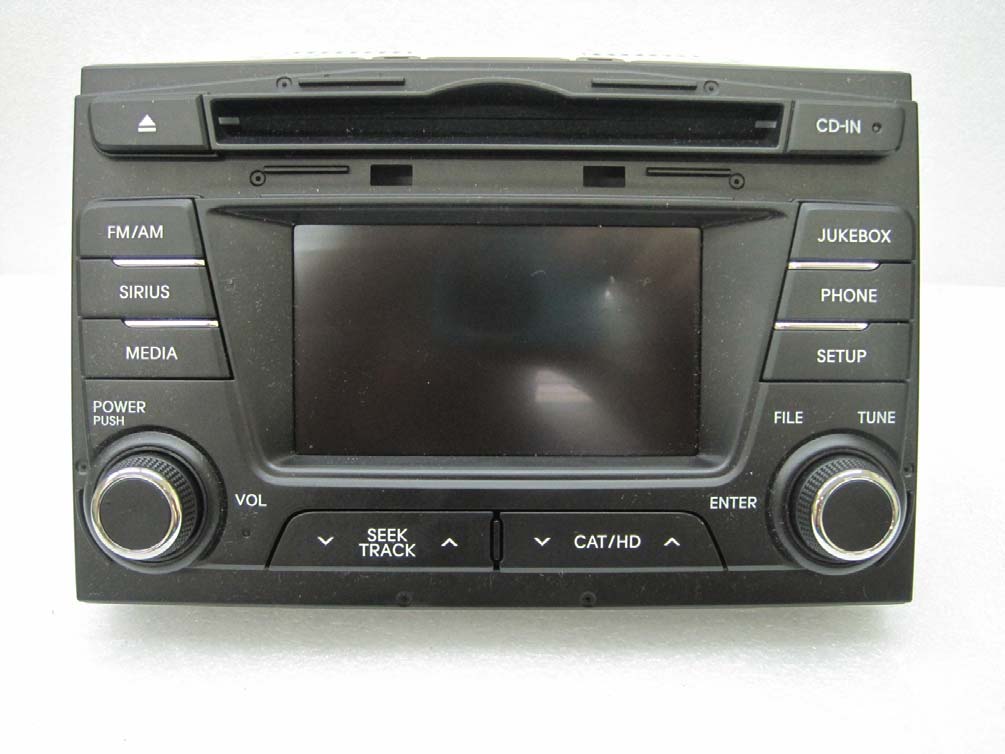

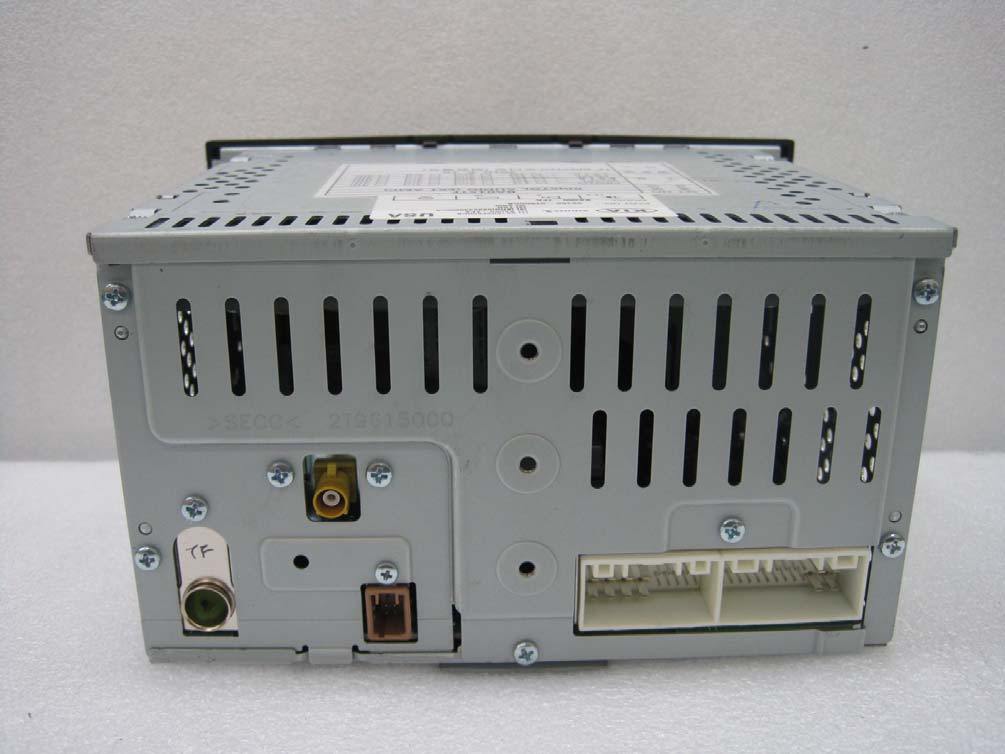

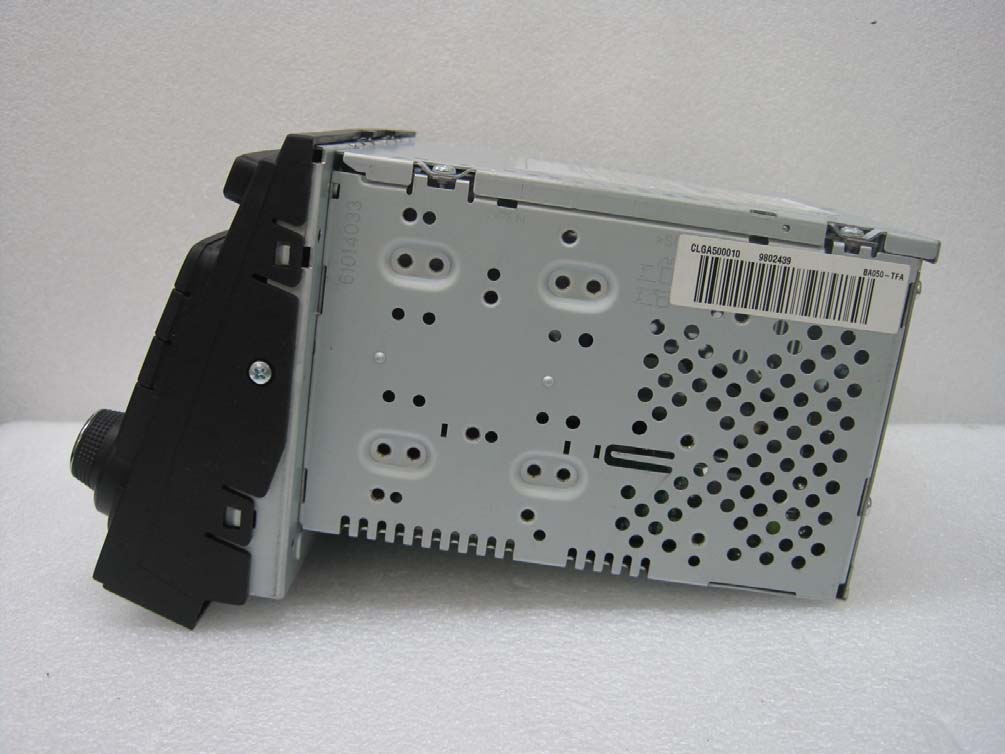

FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 8 ATTACHMENT B. - EXTERNAL PHOTOS - FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 8 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 8 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 4 / 8 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 5 / 8 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 6 / 8 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 7 / 8 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 8 / 8

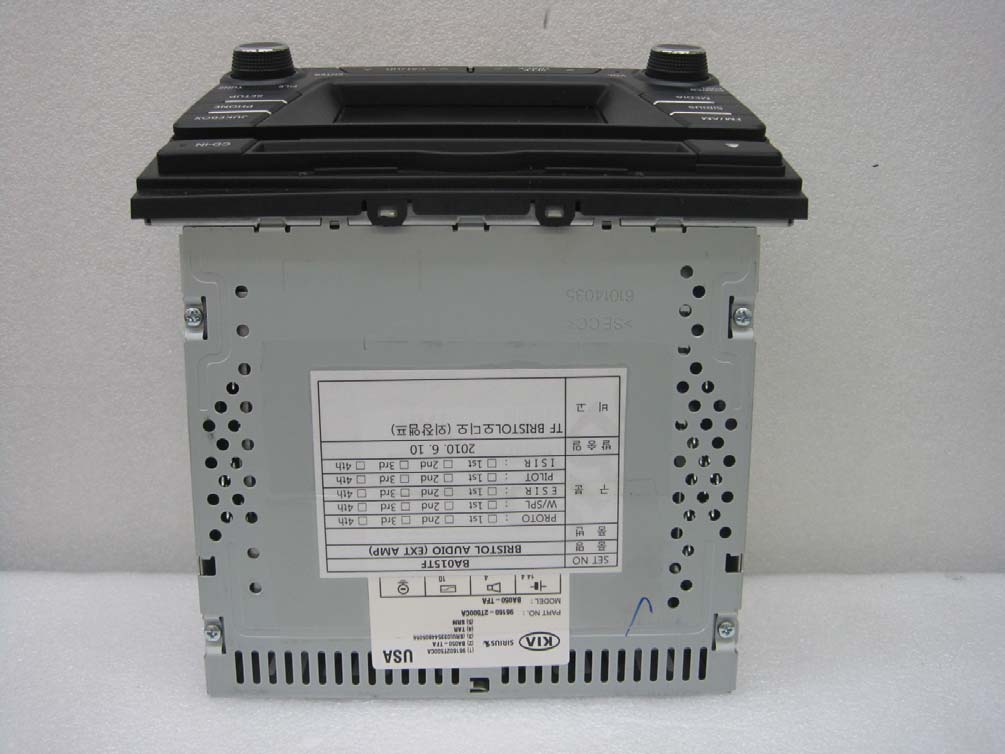

FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC Model No : BA015TFa IC Model No : BA015TFa FCC ID : TQ8-BA015TFa IC : 5074A-BA015TFa EUT Type : CAR AUDIO Serial No : This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference , and (2) this device must accept any interference received, Includin g interference that may cause undesired operation. HYUNDAI MOBIS CO., LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA MADE IN KOREA FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 3 1.2 Label Location Drawing The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION LABEL

FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 1 / 25 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 2 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 3 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 4 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 5 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 6 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 7 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 8 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 9 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 10 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 11 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 12 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 13 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 14 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 15 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 16 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 17 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 18 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 19 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 20 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 21 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 22 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 23 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 24 / 25 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1005FR15 25 / 25

MPE CALCULATION For HYUNDAI MOBIS CO., LTD – ; Model: BA015TFa FCC ID: TQ8-BA015TFa RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2402 MHz): Power = 3.54 dBm, Antenna Gain = -8.9 dBi, Prediction distance 20cm S = 0.00006 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20cm. Completed By : Jong Seok Lee Date : JULY 08, 2010

FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR04 Date of Issue: July 08, 2010 EUT Type: CAR AUDIO FCC : TQ8-BA015TFa IC : 5074A-BA015TFa Page 1 of 45 HCT CO., LTD. CERTIFICATE OF COMPLIANCE FCC PART 15.247 Certification Applicant Name: HYUNDAI MOBIS CO., LTD. Address: 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI,GYUNGGI-DO,449-912 SOUTH KOREA Date of Issue: July 08, 2010 Location: HCT CO., LTD., San 136-1 Ami-ri, Bubal-eup, Icheon-si, Kyungki-do, Korea Test Report No.: HCTR1007FR04 HCT FRN: 0005866421 IC Recognition No.: 5944A-1 FCC ID :TQ8-BA015TFa IC :5074A-BA015TFa APPLICANT :HYUNDAI MOBIS CO., LTD. FCC Model(s): BA015TFa IC Model(s): BA015TFa EUT Type: CAR AUDIO Max. RF Output Power: 3.54 dBm(2.26 mW) Frequency Range: 2402 - 2480 MHz (Bluetooth) Modulation type GFSK(Normal), PSK(EDR) FCC Classification: FCC Part 15 Frequency Hopping Spread Spectrum Transceiver FCC Rule Part(s): Part 15 subpart C 15.247 IC Rule : RSS-210 Issue 7 (June 2007) , RSS-GEN Issue 2(June 2007) IC Registration No. : 5944A-1 Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. HCT CO., LTD. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1998,21 U.S. C.862 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR04 Date of Issue: July 08, 2010 EUT Type: CAR AUDIO FCC : TQ8-BA015TFa IC : 5074A-BA015TFa Page 2 of 45 Version TEST REPORT NO. DATE DESCRIPTION HCTR1007FR04 July 08, 2010 First Approval Report FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR04 Date of Issue: July 08, 2010 EUT Type: CAR AUDIO FCC : TQ8-BA015TFa IC : 5074A-BA015TFa Page 3 of 45 Table of Contents 1. GENERAL INFORMATION ....................................................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................................. 4 3. TEST METHODOLOGY ............................................................................................................................ 5 3.1 EUT CONFIGURATION ............................................................................................................. 5 3.2 EUT EXERCISE ......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES ............................................................................................. 5 3.4 DESCRIPTION OF TEST MODES ............................................................................................ 5 4. INSTRUMENT CALIBRATION .................................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ...................................................................................................... 6 5.1 FACILITIES ................................................................................................................................ 6 5.2 EQUIPMENT .............................................................................................................................. 6 6. ANTENNA REQUIREMENTS.................................................................................................................... 6 7. SUMMARY OF TEST RESULTS............................................................................................................... 7 8. FCC PART 15.247 REQUIREMENTS ....................................................................................................... 8 8.1 PEAK POWER ........................................................................................................................... 8 8.2 BAND EDGES MEASUREMENT ............................................................................................ 12 8.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW) ................................... 15 8.4 NUMBER OF HOPPING FREQUENCY .................................................................................. 20 8.5 TIME OF OCCUP ANCY (DWELL TIME) ................................................................................. 23 8.6 SPURIOUS EMISSIONS.......................................................................................................... 27 8.6.1 CONDUCTED SPURIOUS MEASUREMENT.................................................................. 27 8.6.2 RADIATED SPURIOUS EMISSIONS .............................................................................. 34 8.6.3 RECEIVER SPURIOUS EMISSIONS............................................................................... 42 8.6.4 RADIATED RESTRICTED BAND EDGE MEASUREMENTS......................................... 43 8.7 POWERLINE CONDUCTED EMISSIONS............................................................................... 44 9. LIST OF TEST EQUIPMENT................................................................................................................... 45 FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1007FR04 Date of Issue: July 08, 2010 EUT Type: CAR AUDIO FCC : TQ8-BA015TFa IC : 5074A-BA015TFa Page 4 of 45 1. GENERAL INFORMATION Applicant Name: HYUNDAI MOBIS CO., LTD. Address: 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI,GYUNGGI-DO,449-912 SOUTH KOREA FCC ID: TQ8-BA015TFa IC: 5074A-BA015TFa EUT: CAR AUDIO FCC Model nam…

Text truncated - open the document above for the full version.

FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR04 Page 1 of 6 ATTACHMENT D. - TEST SETUP PHOTOS - FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR04 Page 2 of 6 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR04 Page 3 of 6 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR04 Page 4 of 6 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR04 Page 5 of 6 FCC ID: TQ8-BA015TFa / IC: 5074A-BA015TFa HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1007FR04 Page 6 of 6
