TQ8-DA350GYANDISPLAY CAR SYSTEM

R0MS7-DE000 DE7 (영어 | 미국) 디오디오2Value Car Infotainment System Quick Reference Guide DISPLAY CAR SYSTEM Model name: DA350GYAN, DA350GYKN [ This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [ Your system′s functions and specifications are subject to change without prior notice for performance improvement. [ The functions and services described in this guide are subject to change without prior notice for performance improvement. [ You can view the up-to-date information about changed functions and services from the web manual. [ The functions and services described in this guide may differ from those provided in your vehicle. For precise information related to your vehicle, refer to the owner′s manual, catalog of your vehicle, or the web manual. [ Your system is not compatible with the system software for regions outside of the country of purchase. Be sure to read this Quick Reference Guide and the web manual before using the product to ensure safety and usability. 3 Safety warnings For safety, follow the instructions below. Failure to do so may increase the risk of a traffic accident, which may result in death or personal injury. ÜAbout driving Do not operate the system while driving. •Driving while distracted may result in a loss of vehicle control, potentially leading to an accident, severe personal injury, or death. The driver′s primary responsibility is the safe and legal operation of a vehicle, and any handheld devices, equipment, or vehicle systems which divert the driver′s attention from this responsibility should never be used during operation of the vehicle. Avoid watching the screen while driving. •Driving while distracted may lead to a traffic accident. •Stop your vehicle in a safe location before using functions that require multiple operations. Stop your vehicle first before using your mobile phone. •Using a mobile phone while driving may lead to a traffic accident. Keep the volume low enough to hear external sounds. •Driving without the ability to hear external sounds may lead to a traffic accident. •Listening to a loud volume for a long time may cause hearing damage. 4 ÜAbout handling the system Do not disassemble or modify the system. •Doing so may result in an accident, fire, or electric shock. Do not allow liquids or foreign substances to enter the system. •Liquids or foreign substances may cause noxious fumes, a fire, or a system malfunction. Stop using the system if it malfunctions, such as no audio output or display. •If you continue using the system when it is malfunctioning, it may lead to a fire, electric shock, or system failure. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. 5 Safety cautions For safety, follow the instructions below. Failure to do so may result in personal injury or damage to the system. ÝAbout operating the system Use the system with the engine running. •Using the system for a long time when the engine is stopped may discharge the battery. Do not install unapproved products. •Using unapproved products may cause an error while using the system. •System errors caused by installing unapproved products are not covered under the warranty. ÝAbout handling the system Do not apply excessive force to the system. •Excessive pressure on the screen may damage the LCD panel or the touch panel. When cleaning the screen or button panel, make sure to stop the engine and use a soft, dry cloth. •Wiping the screen or buttons with a rough cloth or using solvents (alcohol, benzene, paint thinner, etc.) may scratch or chemically damage the surface. If you attach a liquid-type air freshener to the fan louver, the surface of the system or the louver may become deformed due to the flowing air. ÛNote If you experience any problems with the system, contact your place of purchase or dealer. 6 Component names and functions Control panel Note: Depending on the vehicle model and specifications, the illustration shown may differ in appearance and layout. a Radio button •Turn on the radio. While listening to the radio, press repeatedly to change the radio mode. b Media button •Play content from a media storage device. •Press and hold to display the media selection window. c Custom button •Use a custom function. •Press and hold to access the Custom Button (Audio) settings screen. d Power button/Volume knob •Turn the radio/media function on or off. •Press and hold to turn off the screen and the sound. •Turn to adjust the system sound volume. 7 e Search backward/forward button (SEEK/TRACK) •While listening to the radio, change the station. •While playing media, change the track/file. Press and hold to rewind or fast forward (except for the Bluetooth audio mode). f Setup button •Access the settings screen. •Press and hold to access the SW Info/Update screen. g Reset button •Restart the system. h Search knob (TUNE FILE) •While listening to the radio, adjust the frequency or change the station. •While playing media, search for a track/file (except for the Bluetooth audio mode). •During a search, press to select the current track/file. 8 Steering wheel remote control Note: Depending on the vehicle model and specifications, the illustration shown may differ in appearance and layout. a Voice recognition button •Start or end voice recognition of a connected smartphone via phone projection. (The button′s operation may vary depending on smartphone specifications.) b Mode button •Change the mode (radio, media, etc.). •Press and hold to access the MODE Button (Steering Wheel) settings screen. c Volume lever/Mute button •Adjust the sound volume. •Press to mute or unmute the system. •While playing media, press to pause or resume playback. d Search lever •While listening to the radio, switch between the stations on the preset list. Press and hold to search for a station. •While playing media, change the track/file. Press and hold to rewind or fast forw…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Letter of Declaration Product Equality We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that they have the following differences in supported features. _________________________ Seung Hoon Choe Representative Hyundai MOBIS Co., Ltd. Other specification except broadcast frequency is identical in all models.

Applicant Declaration Applicant Declaration Rev: 0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -DA350GYKN Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in thi s application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2021-04-01 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135-977, Korea Tel. 82‐31‐260‐0092 February 01, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Joohee Park, Nancy Park) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. Request of Confidentiality for FCC ID: TQ8-DA350GYAN April 01, 2021

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 LETTER OF DECLARATION We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that (1) the band from 5600-5650MHz will be disabled by the software during the manufacturing and which cannot be changed by the end-user. (2) When being operating for Slave mode, this Product will be only controlled by a master device which does not use 5600-5650MHz Band in USA and Canada. FCC model : DA350GYAN ISED model : DA350GYKN Sincerely, April 01, 2021 ________________ ______ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd

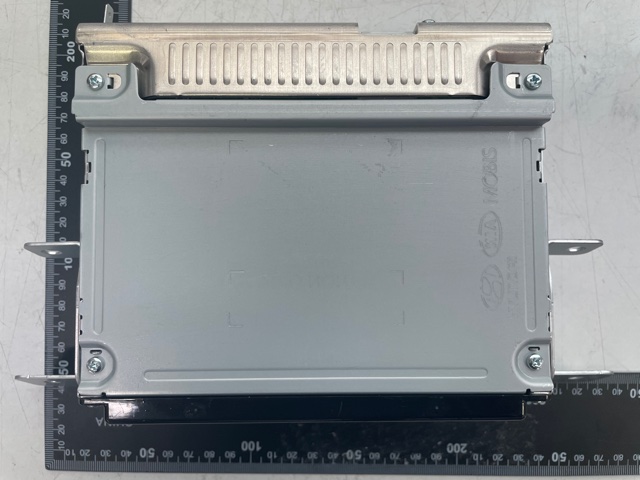

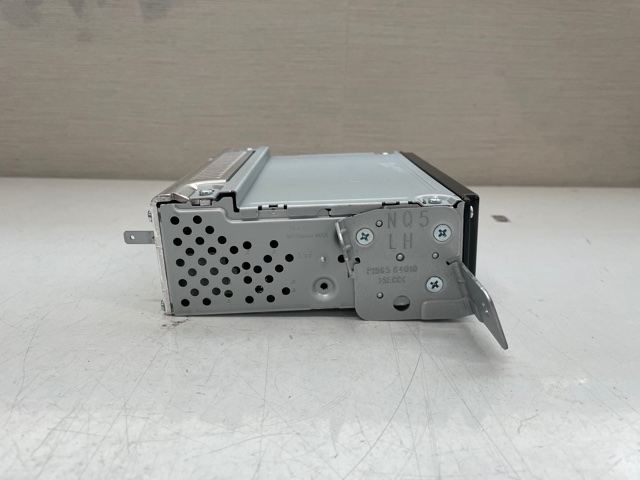

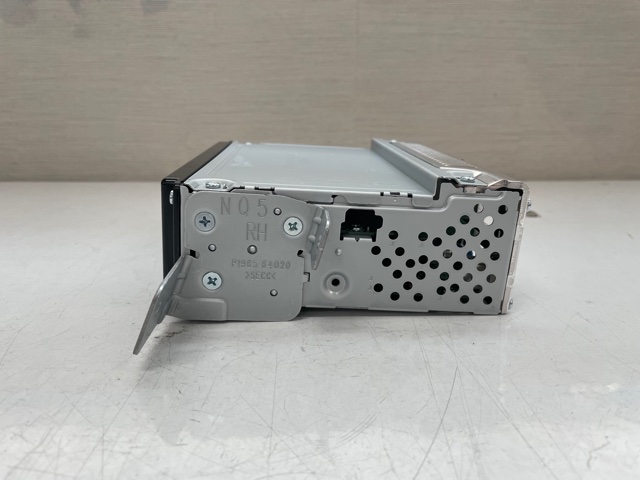

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC LABEL Information Model Name: DA350GYAN DA350GYGG DA350GYGN DA350GYGP DA350GYEG DA350GYEP DA351GYEP DA350GYUG DA352GYEP DA350GYAN DA350GYFN DA351GYGG DA350GYGL DA352GYGG DA350GYMG DA353GYEP DA350GYBB Hyundai MOBIS Co., Ltd. FCC ID: TQ8-DA350GYAN FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 View of Module BT/WIFI Combo Module View of Antenna WIFI Antenna Bluetooth Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001882 Page: 2 of 8 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001882 Page: 3 of 8 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001882 Page: 4 of 8 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM Model Name DA350GYAN Variant Model Names DA350GYGG, DA350GYEG, DA351GYGG, DA352GYGG, DA350GYMG, DA350GYGP, DA350GYEP, DA351GYEP, DA352GYEP, DA353GYEP, DA350GYGN, DA350GYFN, DA350GYGL, DA350GYBB, DA350GYUG Power Supply DC 14.4 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth) 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) 5 180 ㎒ ~ 5 240 ㎒ (Band 1: 11a/n_HT20, 11ac_VHT20) 5 190 ㎒ ~ 5 230 ㎒ (Band 1: 11n_HT40, 11ac_VHT40) 5 210 ㎒ (Band 1: 11ac_VHT80) 5 260 ㎒ ~ 5 320 ㎒ (Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270 ㎒ ~ 5 310 ㎒ (Band 2A: 11n_HT40, 11ac_VHT40) 5 290 ㎒ (Band 2A: 11ac_VHT80) 5 500 ㎒ ~ 5 720 ㎒ (Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510 ㎒ ~ 5 710 ㎒ (Band 2C: 11n_HT40, 11ac_VHT40) 5 530 ㎒ ~ 5 690 ㎒ (Band 2C: 11ac_VHT80) 5 745 ㎒ ~ 5 825 ㎒ (Band 3: 11a/n_HT20, 11ac_VHT20) 5 755 ㎒ ~ 5 795 ㎒ (Band 3: 11n_HT40, 11ac_VHT40) 5 775 ㎒ (Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 11 channels (11b/g/n_HT20) 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11 a/n_HT20, 11ac_VHT20) 2 channels (Band 2A: 11 n_HT40, 11ac_VHT40) 1 channel (Band 2A: 11ac_VHT80) 9 channels (Band 2C: 11a / n_HT20, 11ac_VHT20) 4 channels (Band 2C: 11n_HT40, 11ac_VHT40) 2 channels (Band 2C: 11ac_VHT80) 5 channels (Band 3: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 3: 11n_HT40, 11ac_VHT40) 1 channel (Band 3: 11ac_VHT80) Antenna Type Pattern antenna Antenna Gain 2 400 ㎒ ~ 2 483.5 ㎒: -0.18 ㏈i (Bluetooth) 2 400 ㎒ ~ 2 483.5 ㎒: -0.01 ㏈i (WLAN 2.4 G) 5 150 ㎒ ~ 5 250 ㎒: -0.61 ㏈i (WLAN 5 G) 5 250 ㎒ ~ 5 350 ㎒: -0.18 ㏈i (WLAN 5 G) 5 470 ㎒ ~ 5 725 ㎒: -0.77 ㏈i (WLAN 5 G) 5 725 ㎒ ~ 5 850 ㎒: -0.18 ㏈i (WLAN 5 G) H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001882 Page: 5 of 8 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL001882 2021.04.01 Initial 1.6. Information of Variant Models Model Names Description Marketing Area Code Linked to ECALL HD LHD/ RHD RDS FREQUENCY RANGE CHANNEL SPACE Basic Model DA350GYAN U.S.A A2 X O LHD O 87.5~107.9 ㎒ 530～1 710 ㎑ 200 ㎑ 10㎑ Variant Models DA350GYGG GENERAL A1 X X LHD X 87.5~108.0 ㎒ 531～1 602 ㎑ 100 ㎑ 9 ㎑ DA350GYEG EU X X X DA351GYGG GENERAL X X O DA352GYGG GENERAL O X O DA350GYMG MID EAST X X X DA350GYGP GENERAL A8 X X LHD X 87.5~108.0 ㎒ 522～1 620 ㎑ 100 ㎑ 9 ㎑ DA350GYEP EU X X X DA351GYEP EU X X O DA352GYEP EAST EU O X O DA353GYEP EU O X O DA350GYGN GENERAL A2 X X LHD X 87.5~107.9 ㎒ 530～1 710 ㎑ 200 ㎑ 10 ㎑ DA350GYFN MEXICO X O X DA350GYGL COLOMBIA A5 X X LHD X 87.5~107.9 ㎒ 530～1 710 ㎑ 100 ㎑ 10 ㎑ DA350GYBB BRAZIL A7 X X LHD X 76.1~107.9 ㎒ 530～1 710 ㎑ 100 ㎑ 10 ㎑ DA350GYUG AUSTRALIA A6 X X RHD X 87.5~108.0 ㎒ 531～1 701 ㎑ 100 ㎑ 9 ㎑ SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001882 Page: 6 of 8 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. RF Exposure Evaluation 2.1. Environmental evaluation and exposure limit according to FCC CFR 47 part 1, 1.1307(b), 1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 2.1.1. Friis transmission formula: Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in ㎝ Pd the limit of MPE, 1 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Frequency Range (㎒) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (㎽/㎠) Average Time (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *100 6 3.0-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1 500 - - f/300 6 1 500-100 000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1 500 - - f/…

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001878 Page: 2 of 54 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ----- 11 3. 20 ㏈ Bandwidth & 99 % Bandwidth ----------------------------------------------------------- 31 4. Maximum Peak Conducted Output Power ---------------------------------------------------- 40 5. Carrier Frequency Separation ------------------------------------------------ -------------------- 42 6. Number of Hopping Frequencies ---------------------------------------------------------------- 44 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 46 8. Antenna Requirement ------------------------------------------------------------------------------ 54 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001878 Page: 3 of 54 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product DISPLAY CAR SYSTEM FCC Model Name DA350GYAN IC Model Name DA350GYKN FCC Variant Model Names DA350GYGG, DA350GYEG, DA351GYGG, DA352GYGG, DA350GYMG, DA350GYGP, DA350GYEP, DA351GYEP, DA352GYEP, DA353GYEP, DA350GYGN, DA350GYFN, DA350GYGL, DA350GYBB, DA350GYUG Serial Number Conducted Sample: 001,002 Radiated Sample: 003,004 Power Supply DC 14.4 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) Antenna Type Pattern antenna Antenna Gain -0.18 ㏈i H/W Version 1.0 S/W Version 1.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001878 Page: 4 of 54 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMR40 100272 Ju n. 18, 2020 Annual Ju n. 18, 2021 Signal Generator R&S SMBV100A 255834 Ju n. 03, 2020 Annual Ju n. 03, 2021 Spectrum Analyzer R&S FSV30 103101 Jun. 01, 2020 Annual Jun. 01, 2021 Spectrum Analyzer Agilent N9020A MY53421758 Sep. 04, 2020 Annual Sep. 04, 2021 Bluetooth Tester TESCOM TC-3000C 3000C000296 Jun. 01, 2020 Annual Jun. 01, 2021 Directional Coupler KRYTAR 152613 140972 Jun. 11, 2020 Annual Jun. 11, 2021 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS 344 May 18, 2020 Annual May 18, 2021 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 15 Jun. 05, 2020 Annual Jun. 05, 2021 Low Pass Filter Mini-Circuits NLP-1200+ V 9500401023-2 Jun. 01, 2020 Annual Jun. 01, 2021 Power Sensor R&S NRP-Z81 102779 Dec. 07, 2020 Annual Dec. 07, 2021 DC Power Supply R&S HMP2020 019922876 Apr. 27, 2020 Annual Apr. 27, 2021 Preamplifier H.P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Signal Conditioning Unit R&S SCU-18 10117 Jun. 10, 2020 Annual Jun. 10, 2021 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 May 08, 2020 Annual May 08, 2021 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Horn Antenna R&S HF906 100326 Feb. 04, 2021 Annual Feb. 04, 2022 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 BBHA9170223 Sep. 16, 2020 Annual Sep. 16, 2021 Test Receiver R&S ESU26 100368 Nov. 05, 2020 Annual Nov. 05, 2021 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/383 30516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/383 30516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable RFONE SFX086-NMNM-10M (10 m) 20200324001 Dec. 01, 2020 Semi- annual Jun. 01, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 01/20 Feb. 19, 2021 Semi- annual Aug. 19, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 05/20 Feb. 19, 2021 Semi- annual Aug. 19, 2021 Coaxial Cable Rosenberger LA1-C006-1500 131014 10/20 Feb. 19, 2021 Semi- annual Aug. 19, 2021 Note; Operating software of EUT has integrated test interface. No additional software was used. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL001878 Page: 5 of 54 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.6. Declaration by the Manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. 1.7. Information about the FHSS characteristics: 1.7.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet …

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis 2. Photos of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photo of Conducted test 5. Photo of DFS test
