TQ8-FOB-4F03Remote Keyless Entry

1. How to use FOB-4F03 - FOB-4F03 is a part of Remote Keyless System. - This unit controlls door lock/unlock/panic/trunk open with wireless. - This unit is a Transmitter. 2. Introduction of Transmitter (FOB-4F03 ) - Transmitter has four buttons - Transmitter uses a battery - Radio Freqency is 433.92MHz - Modulation item is a PLL IC - Transmitter uses a Rolling code algorithm An outline of Transmitter FCC Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This transmitter must not be collocated or operating inconjunction with any other antenna or transmitter unless authorized to do so by the FCC. IC Warning This device complies with IndustryCanada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareilsradioexempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1) l'appareil ne doit pas produirede brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptibled'en compromettre lefonctionnement.

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 16 January 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel Jeong of SGS Korea Co., Ltd.(hereafter referred to as SGS Korea) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel Jeong of SGS Korea Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)usecertification only to indicate the products are certified as being in conformity specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a manner; h)ensure that any reference to our product certif documents, brochures or advertising, complies with the requirements of Division; i)keep a record of all complaints made known to the us relating to the product’s with requirements of the rel Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements for k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd. Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135 Tel. 82-31-288-5232/ Fax. 82 certification only to indicate the products are certified as being in conformity endeavor to ensure that no certificate or report nor any part thereof is used in a ensure that any reference to our product certification in communication media documents, brochures or advertising, complies with the requirements of keep a record of all complaints made known to the us relating to the product’s with requirements of the relevant standard and to make these records Certification Division when requested; take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements forcertification; document the actions taken. This authorization is valid until further written notice from the applicant. Hyundai MOBIS Co., Ltd. gu, Seoul, 135-977, Korea / Fax. 82-31-280-2764 certification only to indicate the products are certified as being in conformitywith endeavor to ensure that no certificate or report nor any part thereof is used in amisleading ication in communication mediasuch as documents, brochures or advertising, complies with the requirements ofthe Certification keep a record of all complaints made known to the us relating to the product’scompliance evant standard and to make these recordsavailable to take appropriate action with respect to such complaints and any deficienciesfound in certification;

16 January 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule the Freedomof Information Act, treatment of certaininformation accompanying this application. The materials contain trade secrets and proprietary information not matters might be harmful to the Applicant and We are also hereby request Short Public Notice DA 04-1705. This provision will give of commerciallysensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as foll CONFIDENTIAL LIST Permanent 1Block Diagram 2Operational Descriptions 3Schematics Short-Term 4External Photos 5Internal Photos 6Test 7User The Applicant understands that pursuant to Rule 0.457, disclosure of accompanyingdocumentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd. Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135 Tel. 82-31-288-5232/ Fax. 82 Federal Communications Commission Authorization and Evaluation Division Request of Confidentiality for FCC ID:TQ8-FOB‐4F03 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of of Information Act,Hyundai MOBIS Co., Ltd.hereby requests confidentiality and information accompanying this application. The materials contain trade secrets on notcustomarily released to the public. The public disclosure of these matters might be harmful to the Applicant andprovide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for180days after the grant as 1705. This provision will giveHyundai MOBIS Co., Ltd.temporary confidentiality sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: Block Diagram Operational Descriptions Schematics External Photos Internal Photos Test-Setup Photos User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure ofthis application and all documentations, where applicable, will not be made public before the date of the Hyundai MOBIS Co., Ltd. gu, Seoul, 135-977, Korea / Fax. 82-31-280-2764 s (CFR 47), and Section 552 (b) (4) of hereby requests confidentiality and information accompanying this application. The materials contain trade secrets customarily released to the public. The public disclosure of these provide unjustified benefits to its competitors. days after the grant asoutlined in temporary confidentiality ows: this application and all documentations, where applicable, will not be made public before the date of the

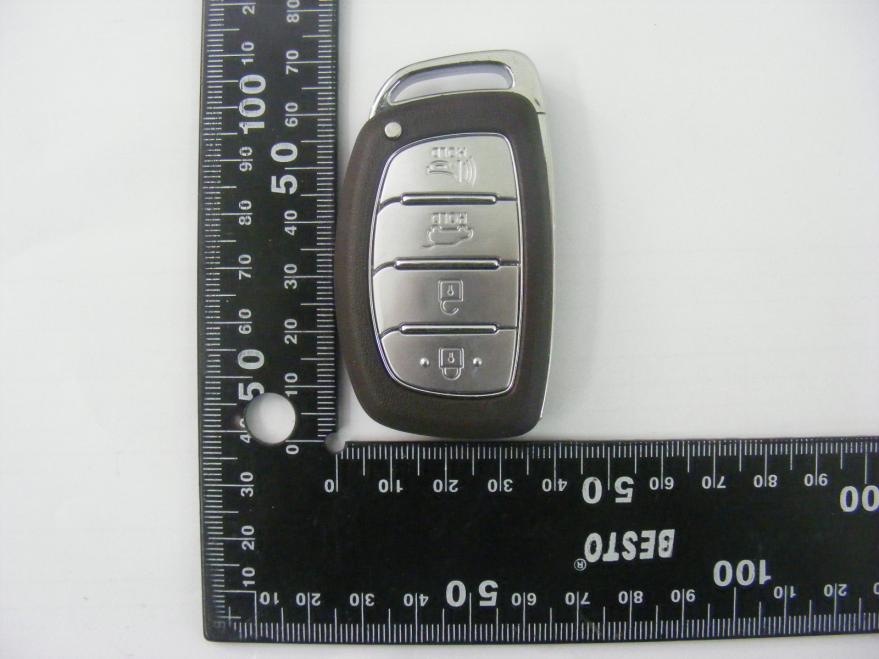

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

MODEL: FOB-4F03 FCC ID: TQ8-FOB-4F03 IC : 5074A-FOB4F03 Hyundai MOBIS Co., Ltd. MadeIn Korea LABEL POSITION MadeIn Korea

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB LF Antenna RF Antenna

Report Number: F690501/RF-RTL006162-2 Page: 2 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ---------------------------------------------------------- 6 3. Spurious Emission-------------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency---------------------------------------------------- 13 5. Transmission Time-------------------------------------------------------------------------- 15 6. Occupied Bandwidth----------------------------------------------------------------------- 17 7. Duty Cycle Correction factor------------------------------------------------------------- 19 Report Number: F690501/RF-RTL006162-2 Page: 3 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 400-2, Gomae-Dong, Giheung-Gu, Yongin-Shi, Kyungki-Do, South Korea 446-901 - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 80-9, Mabook-Dong, Giheung-Gu, Yongin-Shi, Gyunggi-Do, 446-912. Korea Contact Person : Kim, Jong-Tae Phone No. : +82 31 288 6081 Fax No. : +82 31 899 1788 1.3. Description of EUT Kind of Product Remote Keyless Entry Model Name FOB-4F03 Serial Number N/A Power Supply DC 3.0 V (Lithium type of battery) Frequency Range Tx: 433.92 ㎒, Rx : 125.00 ㎑ Modulation Type FSK Number of Channels 1 Antenna Type PCB Antenna 1.4. Details of Modification - N/A Report Number: F690501/RF-RTL006162-2 Page: 4 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan. 08, 2013 Annual Jan. 08, 2014 Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2012 Annual Jul. 05, 2013 Spectrum Analyzer R&S FSV40 100007 Apr. 16, 2012 Annual Apr. 16, 2013 Preamplifier H.P. 8447D 1726A01265 Sep. 17, 2012 Annual Sep. 17, 2013 Preamplifier R&S SCU18 10070 Aug. 06, 2012 Annual Aug. 06, 2013 High Pass Filter Mini-Circuits NHP-400 VUU21201115-1 Aug.01, 2012 Annual Aug.01, 2013 Test Receiver R&S ESCI7 100778 Aug. 01, 2012 Annual Aug. 01, 2013 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 390 Apr. 19, 2012 Biennial Apr. 19, 2014 Horn Antenna R&S HF907 100208 Aug. 13, 2012 Biennial Aug. 13, 2014 Antenna Master INNCO SYSTEMS MA4000-EP N/A N/A N/A N.C.R. Turn Table INNCO SYSTEMS DT-3000S-3T N/A N/A N/A N.C.R. 10m Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N/A N/A N.C.R. Controller INNCO SYSTEMS CONTROLLER CO2000 N/A N/A N/A N.C.R. Report Number: F690501/RF-RTL006162-2 Page: 5 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCC Part 15 Section in RSS-210, RSS-Gen Test Item Result 15.209(a) 15.231(b) RSS-210, Issue 8, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) RSS-210, Issue 8, A1.1.3 Bandwidth of Operation frequency Complied 15.231(a) RSS-210, Issue 3, A1.1.1 Transmission Time Complied - RSS-Gen, Issue 3, 4.6.1 Occupied Bandwidth Complied 1.7. Test Report Revision Revision Report number Description 0 F690501/RF-RTL006162 Initial 1 F690501/RF-RTL006162-1 Add Duty Cycle Correction factor 2 F690501/RF-RTL006162-2 Add the peak limit of Radiated emission Report Number: F690501/RF-RTL006162-2 Page: 6 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. Report Number: F690501/RF-RTL006162-2 Page: 7 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written per…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Photo of Test setup
