TQ8-FOB-4F43Fob Smart Key

Manual for vehicle manufacturer Model name: FOB ‐ 4F 4 3 OUTLINE1. How to use FOB ‐ 4F 4 3 ‐ FOB ‐ 4F 4 3 is a part of Remote Keyless System. ‐ This unit controls door Lock/door Unlock/Telecranking/Panic wirelessly. 2. Introduction of Transmitter (FOB ‐ 4F 4 3 ) ‐ This unit has 4 buttons. ‐ This unit uses the battery ‐ Frequency is 433.92MHz GENERAL DESCRIPTION PRIMARY FUNCTION ‐ Remote door Lock/door Unlock/Telecranking/Panic ‐ Operating voltage: 3V DC ‐ Center freq.: 433.92MHz MANUAL1. LOCK Button If the LOCK button is pressed, then TRANSMITTER sends the LOCK data. 2. UNLOCK Button If the UNLOCK button is pressed, then TRANSMITTER sends the UNLOCK data. 3. HOLD Button If the HOLD button is pressed, then TRANSMITTER sends the remote engine start data. 4. PANIC Button If the PANIC button is pressed, then TRANSMIT TER sends the PANIC data. FCC/ISED NOTICE [FCC]This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to this device not explicitly approved by manuf acturer could avoid your authority to operate this equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC [ISED]This device contains licence ‐ ex empt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence ‐ exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le pr ésent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipmen t complies with ISED radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the ISED Cet appareil est conforme aux limites d'exposition aux rayonnements de l’ISDE pour un environnement non con trôlé. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur, à moins d'y être autorise par I'ISDE.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 March 05, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-FOB-4F43 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 06141, Korea Tel. 82‐31‐260‐0092 March 03, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (JOOHEE PARK, Jungmin Yang) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

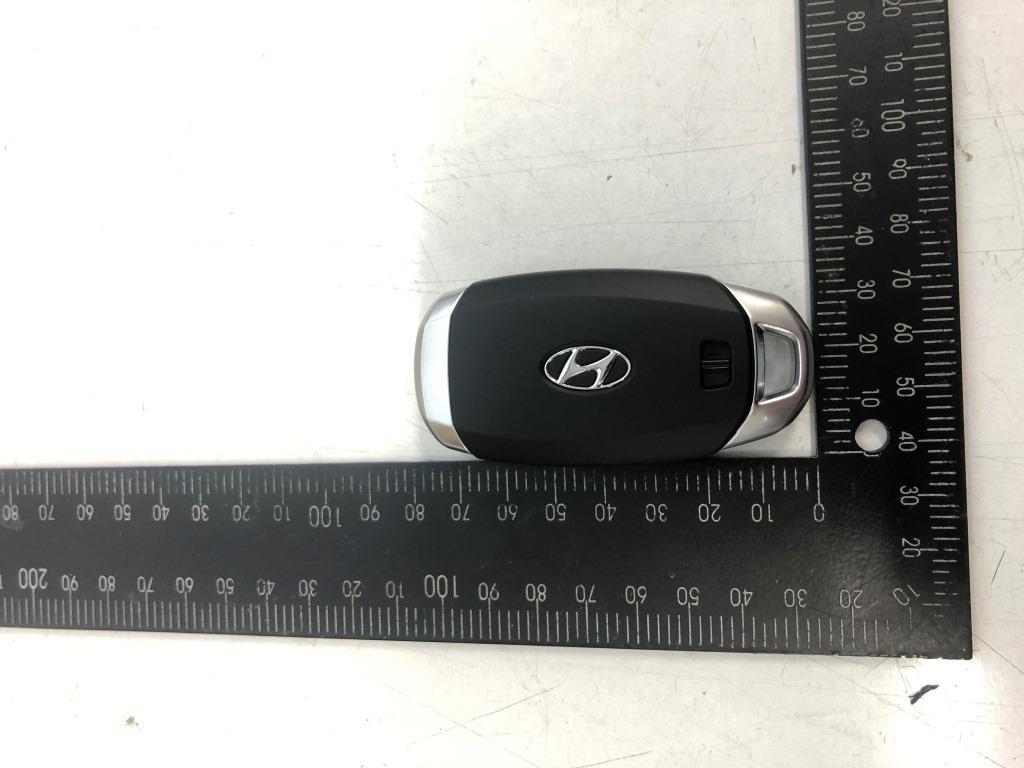

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Information FOB-4F 4 3 LABEL MODEL: FOB-4F 43 FCC ID: TQ8- FOB-4F 4 3 IC: 5074A- FOB4F 43 Inside battery compartment Label Label Position Hyundai MOBIS Co., Ltd.

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB View of Antenna PCB Pattern Antenna

FCC ID: TQ8-FOB-4F43 According to KDB 447498 D01 General RF Exposure Guidance v06. At 100㎒to 6㎓ and for test separation distances ≤ 50 ㎜, the SAR test exclusion threshold is determined according to the following. [(max. power of channel, including tune-up tolerance,㎽) / (min. test separation distance,㎜)] x [√f(㎓)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 433.92㎒(min. separation distances = 0㎜) Calculation value: 0.025 (㎽) / 5 (㎜) x √ 0.433 92 = 0.003 So, Calculation value ≤ 3.0 Remark; - Max. Radiated field strength 79.24 (㏈㎶ /m): Max. E.I.R.P. of EUT -15.99㏈m(0.025 ㎽) - When the minimum test separation distance is < 5㎜, a distance of 5㎜is applied to determine SAR test exclusion. 2. Conclusion: No SAR is required.

Report Number:F690501-RF-RTL-000316 Page:2of25 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) TABLE OF CONTENTS 1. General Information -----------------------------------------------------------------------3 2. Field Strength of Fundamental and Spurious Emission---------------------------6 3. Bandwidth of Operation Frequency----------------------------------------------------17 4. Occupied Bandwidth-----------------------------------------------------------------------19 5. Transmission Time--------------------------------------------------------------------------21 6. Duty Cycle Correction Factor------------------------------------------------------------23 7. Antenna Requirement----------------------------------------------------------------------25 Report Number:F690501-RF-RTL-000316 Page:3of25 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil. Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 688 0901 FAX:+82 31 688 0921 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person:Choe, Seung-hoon Phone No.:+82 31 260 0098 1.3. Details of Manufacturer Company:Same as above Address:Same as above 1.4. Description of EUT Kind of Product FOB SMART KEY Model Name FOB-4F43 Power Supply DC 3.0 V Frequency Range Tx: 433.92㎒, Rx: 125.00㎑ Modulation Type FSK Number of Channel 1 Antenna Type PCB Pattern Antenna Report Number:F690501-RF-RTL-000316 Page:4of25 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal. Date Cal. Interval Cal. Due Signal GeneratorR&SSMBV100A259067Jun. 10, 2019 Annual Jun. 10, 2020 Spectrum AnalyzerR&SFSV30100768 Mar. 08, 2019 Annual Mar. 08, 2020 Spectrum AnalyzerAgilentN9020AMY53421758Sep. 11, 2019AnnualSep. 11, 2020 PreamplifierH.P.8447F2944A03909Aug. 07, 2019AnnualAug. 07, 2020 Signal Conditioning Unit R&SSCU-1810117Jun. 12, 2019AnnualJun. 12, 2020 High Pass FilterMini-CircuitsNHP-800+V8207600724Mar. 08, 2019AnnualMar. 08, 2020 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000- 18000-40ss 7Mar. 12, 2019AnnualMar. 12, 2020 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 15191519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163396 Mar. 21, 2019 Biennial Mar. 21, 2021 Horn AntennaR&S HF907100019 Jun. 18, 2019BiennialJun. 18, 2021 Test ReceiverR&SESCI 7100911 Feb. 20, 2019AnnualFeb. 20, 2020 Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R.N/AN.C.R. Turn Table Innco systems GmbH DS 1200 SN/AN.C.R.N/AN.C.R. Antenna Master Innco systems GmbH MA4640-XP-ET MA4640/536/3 8330516/L N.C.R.N/AN.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN.C.R.N/AN.C.R. Coaxial CableSUCOFLEX104 (3 m)MY3258414Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial CableSUCOFLEX104 (10 m)MY3145814Jan. 28, 2020 Semi- annual Jul. 28, 2020 Coaxial Cable Rosenberger LA1-C006-1500 131014 01/20 Aug. 23, 2019 Semi- annual Feb. 23, 2020 Report Number:F690501-RF-RTL-000316 Page:5of25 The results of this test report are effective only to the items tested. The SGS Korea is not responsible for the sampling, the results of this test report apply to the sample as received. This test report cannot be reproduced, except in full, without prior written permission of the Company. This test report does not assure KOLAS accreditation. SGS Korea Co., Ltd. (Gunpo Laboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 http://www.sgsgroup.kr RTT5041-19(2019.04.24)(1)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 subpart C, IC RSS-210 Issue 9 and RSS-Gen Issue 5 Section in FCCSection in ICTest ItemResult 15.209(a) 15.231(b) RSS-210 Issue 9 A.1, Table A1 RSS-Gen Issue 5 8.9 Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c)-Bandwidth of Operation FrequencyComplied 15.231(a) RSS-210 Issue 9 A.1.1 Transmission TimeComplied - RSS-210 Issue 9 A.1.3 RSS-G…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓) 3. Photo of Radiated Spurious Emission Test (Above 1㎓)
