TQ8-IBU-4E13SMART KEY ECU

Model: IBU-4E13 The SMART KEY ECU is a part of START-STOP BUTTON SYSTEM. It is possible to output the LF(125kHz) signal by pushing the button of door handle and SSB. Manual for Vehicle Manufacturer * This device is used within 20cm distance from the end user. FCC / ISED Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could avoid your authority to operate this equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. Cet appareil est conforme aux limites d'exposition aux rayonnements de l’ISDE pour un environnement non contrôlé.

Applicant Declaration Applicant Declaration Rev: 0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -IBU-4E13 Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in thi s application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2021-06-14 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Request of Confidentiality for FCC ID: TQ8-IBU-4E13 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. June 14, 2021 Federal CommunicationsC ommission Authorization and Evaluation Division 7435 Oakland MillsR oad, Columbia, MD 21046

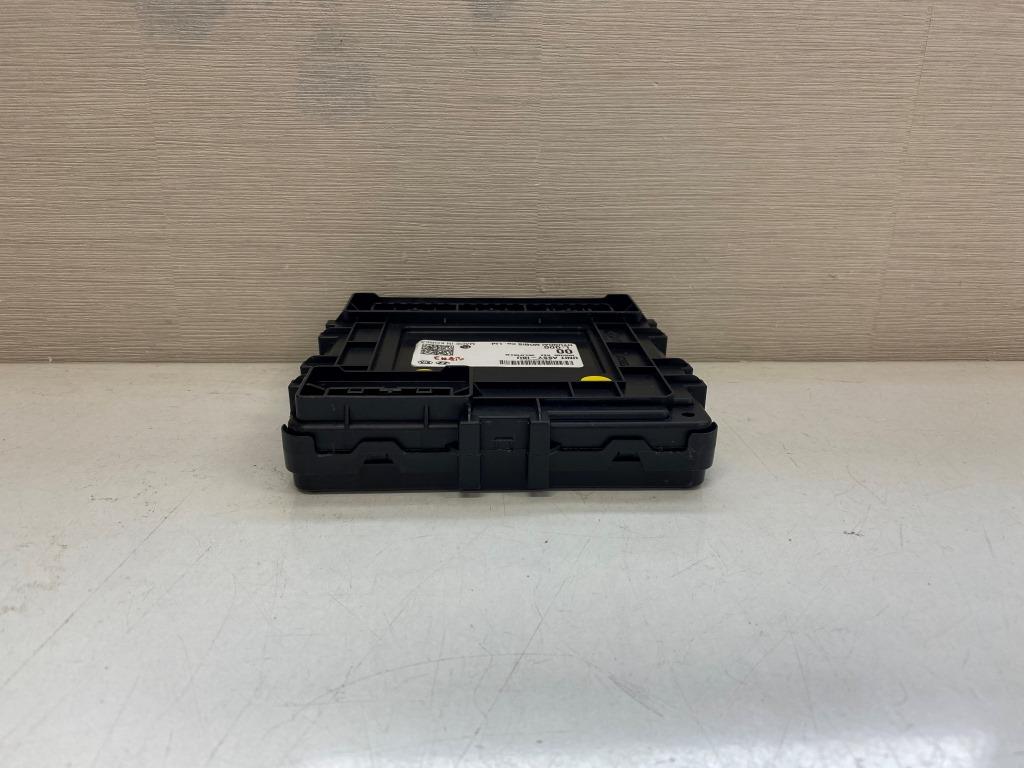

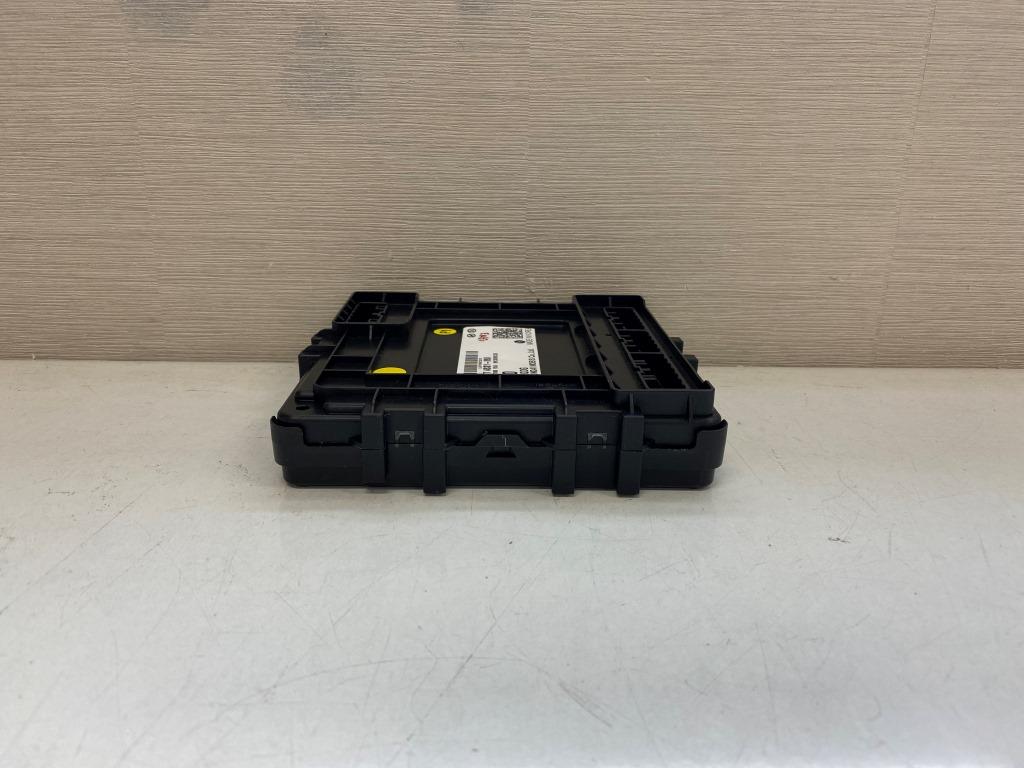

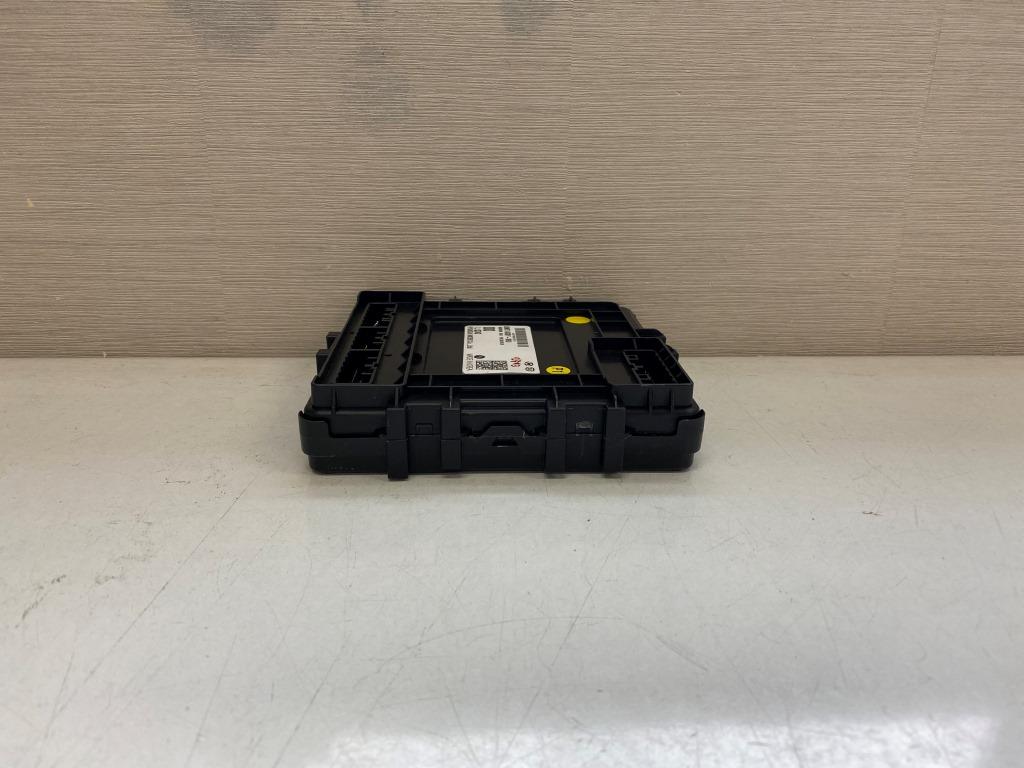

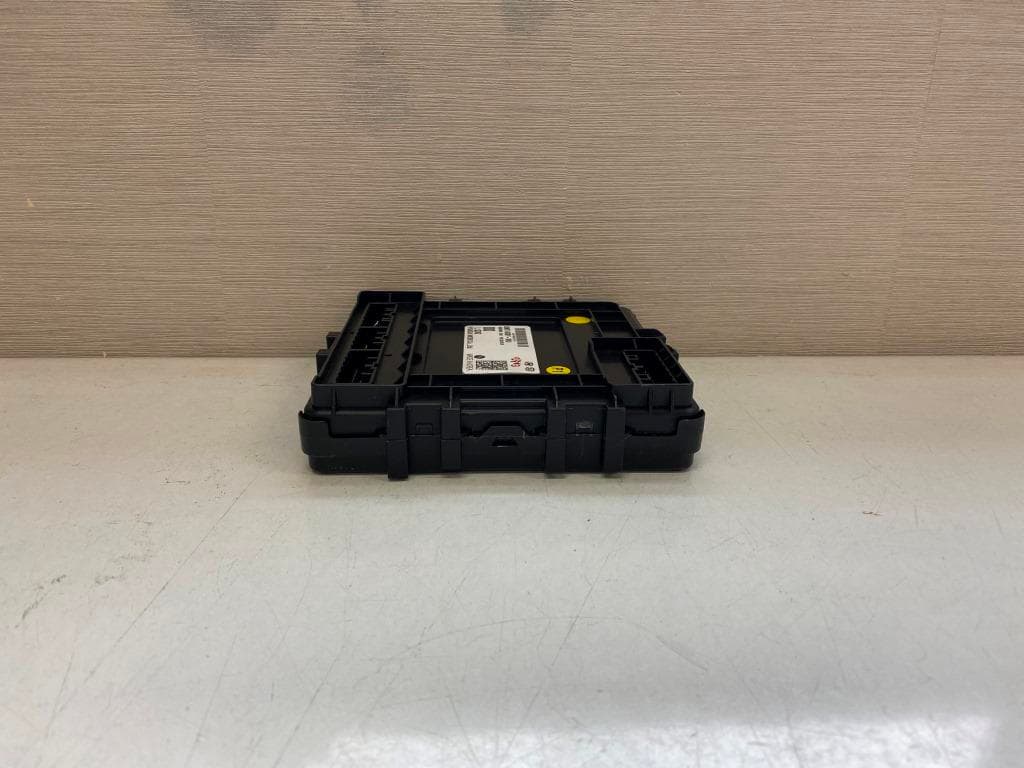

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Label Information IBU-4E1 3 LABEL Label TOP OF EUT Label Position Hyundai MOBIS Co., Ltd. MODEL: IBU-4E1 3 FCC ID: TQ8- IBU-4E1 3 IC: 5074A- IBU4E1 3

Internal photos of EUT View of Test Zig and EUT Internal view of EUT SSB Antenna Zig board EUT LF Antenna Top view of Main PCB Bottom view of Main PCB

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002262 Page: 2 of 34 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission--------------------------- 6 3. 20 ㏈ Bandwidth -------------------------------------------------------------------------- 27 4. Occupied Bandwidth----------------------------------------------------------------------- 31 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002262 Page: 3 of 34 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product SMART KEY ECU Model Name IBU-4E13 Serial Number 001 Power Supply DC 12.0 V Frequency Range Tx: 125.00 ㎑, Rx: 433.92 ㎒ Antenna Type Tx Coil Antenna Rx PCB Pattern Antenna Antenna Part Number SSB Antenna: 93500-S1000 LF Antenna: 95460-S1520, 95460-S1500, 95460-S1530, 95460-S1510 H/W Version 1.00 S/W Version 1.00 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002262 Page: 4 of 34 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.5. Declarations by the manufacturer - The EUT has 7 transmit antenna and 1 receive antenna. - The transmit antennas can not operate at the same time. 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2020 Annual Dec. 07, 2021 Signal Generator R&S SMBV100A 255834 May 31, 2021 Annual May 31, 2022 DC Power Supply Agilent U8002A MY49030063 Feb. 02, 2021 Annual Feb. 02, 2022 Preamplifier H . P. 8447F 2944A03909 Aug. 06, 2020 Annual Aug. 06, 2021 Test Receiver R&S ESU26 100109 Feb. 19, 2021 Annual Feb. 19, 2022 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 22, 2019 Biennial Aug. 22, 2021 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Dec. 22, 2020 Biennial Dec. 22, 2022 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/3 8330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MW X221-NMSNNMS (4 m) J1023142 May 27, 2021 Semi- annual Nov. 27, 2021 Coaxial Cable RFONE PL520-NMNM-10M (10 m) 20200324001 May 27, 2021 Semi- annual Nov. 27, 2021 Note; - For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibration due date. 1.7. Sample Calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002262 Page: 5 of 34 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.8. Summary of Test Results The EUT has been tested according to the following specifications: Applied standard: FCC Part 15 Subpart C, IC RSS-210 Issue 10, RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.209 RSS-210 Issue 10, 7.3, RSS-Gen Issue 5, 8.9 Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 2.1049 - 20 ㏈ Bandwidth Complied - RSS-Gen Issue 5 6.7 Occupied Bandwidth Complied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.9. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty 20 ㏈ Bandwidth ± 13.12 ㎑ Radiated Emission, 9 ㎑ to 30 ㎒ H ± 3.66 ㏈ V ± 3.66 ㏈ Radiated Emission, below 1 ㎓ H ± 4.90 ㏈ V ± 4.82 ㏈ All measurement uncertainty values are shown with a coverage factor of k=2 to indicate a 95 % level of confidence. 1.10. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL002262 2021.06.11 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL002262 Page: 6 of 34 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 2. Field Strength of Fundamental and Spurious Emission 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission below 30 ㎒. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / …

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Z-axis 2. Photo of Radiated Spurious Emission Test (Below 1㎓)
