TQ8-PA710SLUSBCAR AUDIO BLUETOOTH

FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 1/1 ATTACHMENT E. - User Manual - Thank you for purchasing thisAudio Navigation System. This user manual explains how touse the KIA Motor Audio NavigationSystem.Before using the product, read thecontents of this user's manual care-fully and use the product safely. 䤎 The screens shown in this manu-al may differ with the actualscreens of the product. 䤎 The design and specification ofthis product may change withoutprior notification for productimprovement. 䤎 When transferring the vehicle toanother individual, include thisuser's manual so that the nextdriver can continue its use. iPod 䠶 iPod 䠶 is a registered trademark of Apple, Inc. Bluetooth 䠶 Bluetooth 䠶 is a trademark owned by Bluetooth SIG, Inc. Copyright(c) 2010 by NAVTEQ. All Map Database cannot be copied without permission.This is protected by U.S. copyright laws. All rights not expressly granted are reserved. You may not otherwise reproduce, modify, and distribute the content without M&Soft, Inc's prior written consent. Preface PA R T 1PRE-OVERVIEWIntroduction jjjjjjjj 1-2 Important information about this manual jjjjjjjjjjjj 1-2 Precaution for safe usage jjjjj 1-2 Controller and functions jjj 1-3 Control panel jjjjjjjjjj 1-3 Steering wheel remote controller jj 1-6 Basic operation and setting j 1-7 Turning the power ON jjjjjj 1-7 Turning the power OFF jjjjjj 1-7 Turning the audio ON/OFF jjjj 1-7 Adjusting audio volume jjjjj 1-7 How to operate the screen menu jj 1-8 How to operate menu by voice command jjjjjjjj 1-10 Audio sound setting jjjjjj 1-11 Display setting jjjjjjjjj 1-12 PA R T 2AUDIO SYSTEM Operating the radio jjjjj 2-2 FM/AM Radio jjjjjjjjj 2-2 SIRIUS Radio jjjjjjjjjj 2-6 Operating the CDP jjjjj 2-11 About CDP jjjjjjjjjj 2-11 Inserting/Ejecting Disc jjjjj 2-14 CD jjjjjjjjjjjjjj 2-15 MP3 jjjjjjjjjjjjj 2-18 Operating the external devices j 2-23 iPod jjjjjjjjjjjjj 2-23 USB jjjjjjjjjjjjj 2-28 AUX jjjjjjjjjjjjj 2-31 PA R T 3NAVIGATION SYSTEM Limitations of the navigation system jjjjjjjjjj 3-2 GPS signal reception state jjjj 3-2 Vehicle position display jjjjj 3-3 Route guidance jjjjjjjjj 3-4 Route Re-calculation jjjjjjj 3-4 Starting navigation system jj 3-5 Map Functions jjjjjjj 3-5 Current position map screen (without route) jjjjjjjjj 3-5 Switching map mode (North up/Heading up) jjjjjj 3-6 Viewing GPS signal state jjjjj 3-7 Changing the map scale jjjjj 3-8 Displaying / Hiding POI icons on the map jjjjjjjjjjj 3-9 Displaying / Hiding Q.POI icons j 3-9 Displaying /Hiding icons other thanQ.POI icons jjjjjjjjjj 3-9 Making a call to POI jjjjjj 3-10 Scrolling map jjjjjjjjj 3-11 Tables of contents Setting a Destination jjjj 3-12 Destination menu screen and functions j 3-12 Searching a Destination jjjjj 3-13 Searching an Address jjjjj 3-13 Searching a Previous Destination j 3-17 Searching an Intersection jjj 3-17 Searching a POI jjjjjjj 3-20 Searching from Address book jj 3-24 Searching for Emergency facilities j 3-25 Searching your Home jjjjj 3-25 Searching favorite places jjj 3-26 Searching from MAP jjjjj 3-26 Searching POI by local POI list jj 3-26 Operating after searching a destination jjjjjjjjjj 3-27 Changing destination position j 3-27 Setting as Destination/waypoint 3-27 Adding to address book jjjj 3-27 Operating after setting a destination jjjjjjj 3-28 Starting Route Guidance jjjjj 3-28 Route guidance screen jjjjj 3-28 Selecting other route jjjjjj 3-29 Route guidance jjjjjj 3-30 Route menu screen and functions j 3-30 Finishing route guidance(Delete Destination) jjjjjj 3-30 Route overview(View Entire Route) j 3-31 Changing Route option jjjjj 3-32 Editing waypoints jjjjjjj 3-32 Adding waypoints jjjjjj 3-32 Deleting waypoints jjjjjj 3-34 Re-ordering waypoints jjjj 3-34 Setting detour distance jjjjj 3-35 Setting avoid streets on route jj 3-35 Setup and Information jjj 3-36 Setup menu screen and functions j 3-36 Main setting jjjjjjjjjj 3-36 Setting keyboard for inputting letter jjjjjjjjjjjj 3-36 Setting voice command feedback ON/OFF jjjjjjjjjj 3-37 Setting Language jjjjjj 3-37 Initializing system jjjjjj 3-37 Navigation setting jjjjjjj 3-38 Setting units (mile/km) jjjj 3-38 Setting arrival time and distance display jjjjjjjjjjj 3-38 Registering avoid area jjjjj 3-38 Editing avoid area jjjjjj 3-40 Deleting avoid area jjjjjj 3-41 Deleting all avoid areas jjjj 3-41 Setting Q.POI icons jjjjjj 3-42 Setting estimate travel time jj 3-42 My places setting jjjjjjjj 3-43 Registering new address inaddress book jjjjjjjj 3-43 Editing an address ofaddress book jjjjjjjj 3-45 Deleting an address of address book jjjjjjjjjjjj 3-46 Deleting an address book jjj 3-47 Registering home address jjj 3-48 Deleting home address jjjj 3-48 Registering favorite place jjj 3-49 Deleting favorite place jjjjj 3-50 System information and update jj 3-51 Voice guidance volume setting jj 3-51 Voice guidance volume control j 3-51 Adaptive volume control ON/OFF j 3-52 Traffic Setup jjjjjjjjjj 3-52 Traffic Information jjjjjjj 3-52 Help jjjjjjjjjjjjj 3-54 Tables of contents PRE-OVERVIEW PA R T 4VOICE COMMAND SYSTEM Operating voice command j 4-2 Condition for voice command system j 4-2 Basic operation for voice command control jjjjjjjj 4-2 Voice command help jjjjjj 4-3 Setting up the voice commandsystem jjjjjjjjjj 4-4 Setting voice Prompt ON/OFF jjj 4-4 Speaker adaptation jjjjjjj 4-4 Voice command list jjjjj 4-6 Command list of Help jjjjjj 4-6 Command list of Audio system jjj 4-7 Command list of Navigation system j 4-13 Searching a destination by voice command jjjjjjjj 4-19 PA R T 5BLUETOOTH HANDSFREEBefore using the Bluetooth Handsfree jjjjjjjjj 5-2 What is Bluetooth? jjjjjjjj 5-2 Functions supported by Bluetooth Handsfree jjjjjjjjjjjj 5-2 Converting Bluetooth Handsfree mode jjjjjjjjjjj 5-2 Converting from AV/Navigation mode toBluetooth Handsfree mode jjjjj 5-2 Converting fr…

Text truncated - open the document above for the full version.

NAVIGATION SYSTEM 3-47 NAVIGATION SYSTEM Press the button. Deleting an address book Press the key. Press the button. Press the button. Press the desired address book (user)button. Press the button. Press the button. Yes Delete all Address book My places SETUP Yes 3-48 NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM Registering home address Press the key. Press the button. Press the button. Press the button. INFORMATION Press the button to register the current position as Home. Search the address. The process is the same method assearching an address. [Searching an Address], page 3-13. Press the button to complete. Deleting home address Press the key. Press the button. Press the button. Press the button. Delete Home Address My places SETUP Done Store current position Search Address Home Address My places SETUP i NAVIGATION SYSTEM 3-49 NAVIGATION SYSTEM Press the button. Registering favorite place Press the key. Press the button. Press the button. Press the number of the Favorite Place toregister. Press the button. INFORMATION Press the button to register the current position as a Favorite place. Search the address. The process is the same as the methodfor searching an address. [Searching an Address], page 3-13. Store current position Search address Favorite Places My places SETUP Yes i 3-50 NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM Press the button to complete. Deleting favorite place Press the key. Press the button. Press the button. Select the desired favorite place buttonto delete. Press the button. Press the button. Yes Delete Favorite Places My places SETUP Done NAVIGATION SYSTEM 3-51 NAVIGATION SYSTEM System information and update Press the key. Press the button. Voice guidance volume setting Press the key. Press the button. Voice guidance volume control Set the desired volume level by using the or buttons and press the button to verify the volume level. Voice Command 1. Press the key on the steering wheel remote controller. 2. After the beep sound, say a command. "Voice Guidance Louder" "Voice Guidance Softer" Press the button when voice guidance is unnecessary. Voice guidance can be turned back on bypressing the or buttons or pressing the button. Voice Command 1. Press the key on the steering Wheel remote controller. 2. After the beep sound, say a command. "Voice Guidance On" "Voice Guidance Off" MUTE MUTE Listen Voice Setup SET UP System Info SETUP NAVIGATION SYSTEM 3-53 NAVIGATION SYSTEM INFORMATION Traffic information will be shown on the mapup until the scale is ~4mile.Displays the traffic information around vehi-cle for up to a radius of 50 miles. (Information exceeding 50 miles will not bedisplayed) The above list can be sorted by eitherDistance (Default) or Category. Select the desired button. The user can check points of accidentsand traffic details. (b) Changing Traffic Category Press the button at No. 2. After selecting the desired menu amongthe six menus, press the button to save. Once returning to the previousList screen, the corresponding Categorylist will be shown and maintained untilCategory information is changed. Done Category Select List i 3-54 NAVIGATION SYSTEM PART 3 NAVIGATION SYSTEM Help Press the key. Press the button. Press the button. Press the desired Help menu button. The full content of the help section canbe viewed by using the top-down scrollbuttons. Navigation Help SETUP NAVIGATION SYSTEM MEMO MEMO VOICE COMMAND SYSTEM 4-1 VOICE COMMAND SYSTEM PA R T 4VOICE COMMAND SYSTEM Operating voice command j 4-2 Condition for voice command system j 4-2 Basic operation for voice command control jjjjjjjj 4-2 Voice command help jjjjjj 4-3 Setting up the voice commandsystem jjjjjjjjjj 4-4 Setting voice Prompt ON/OFF jjj 4-4 Speaker adaptation jjjjjjj 4-4 Voice command list jjjjj 4-6 Command list of Help jjjjjj 4-6 Command list of Audio system jjj 4-7 FM/AM Radio jjjjjjjj 4-7 SIRIUS Radio jjjjjjjj 4-8 CD jjjjjjjjjjjj 4-9 MP3 jjjjjjjjjjj 4-10 USB jjjjjjjjjjjj 4-11 iPod jjjjjjjjjjj 4-12 Others jjjjjjjjjj 4-12 Command list of Phone jjjjj 4-13 Command list of Navigation system j 4-13 Map jjjjjjjjjjj 4-13 Destination jjjjjjjj 4-15 Route jjjjjjjjjjj 4-16 Others jjjjjjjjjj 4-17 POI Category list jjjjjj 4-19 Searching a destination by voice command jjjjjjjj 4-19 Find address jjjjjjjj 4-19 Find nearest <POI name> jjj 4-20 Destination POI by phone number jjjjjjjjjj 4-22 Find emergency <Category> j 4-23 Destination by address book j 4-24 Previous destination jjjjj 4-24 Previous start point jjjjj 4-25 Go home jjjjjjjjj 4-25 Destination by memory point <1 to 5> jjjjjjjjjj 4-25 4-2 VOICE COMMAND SYSTEM PA R T 4 VOICE COMMAND SYSTEM Operating voice command Condition for voice commandsystem Most of the functions within the AV andNavigation system can be operated byvoice. Please follow the followinginstructions for optimal voice recognitionperformance. Close all windows and the sunroof. Theperformance of the voice recognitioncan be improved if the environment ofthe car interior is quiet. Press the voice recognition button andsay the desired voice command afterthe sound of the beep. The microphone is positioned abovethe driver so that voice commands canbe said while maintaining a properposture. Pronounce the voice commandsnaturally and clearly as if in a normalconversation. Basic operation for voicecommand control 䟣 Press the button on the steering wheel remote controller. A voice command window will bedisplayed on the lower side of thescreen followed by a "Command please"system voice comment. INFORMATION The System voice comment "CommandPlease" will not be provided when the Voiceprompt is turned OFF. 䟤 Once the icon changes into the icon on the pop-up screen with a beep sound, say the desired voicecommand (ex : previous destination) [Voice command list], page 4-6. [Searching a destination by voice command], page 4-19.If the exact command is not known, use the"Help" command to view the commandslist in detail. INFORMATION Press the shortly to input a voice command from among the system vo…

Text truncated - open the document above for the full version.

HYUNDAI MOBIS CO., LTD. Date: Feb 20 , 2010 ATTESTATION STATEMENT FCC ID :TQ8-PA710SLUSB This device contains an embedded Bluetooth device that Hyundai Autonet Co., Ltd. confirms compliance with the following Part 15 regulations. 15.247(a)(1) the hopping sequence must be pseudorandom all Channels are used equally on average the receiver input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) the system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Seung-Kun Chon H YUNDAI MOBIS CO.,LTD

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. Feb 23, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AUDIO BLUETOOTH, PA710SLUSB We affirm that between SIEMIC and HYUNDAIMOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Yong-bin, Kim / Assistant Manager HYUNDAI MOBIS CO.LTD 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA FCC ID: TQ8-PA710YFLXMB

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD February 5, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID TQ8-PA710SLUSB We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Kun Chon / Assistant Manager HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA

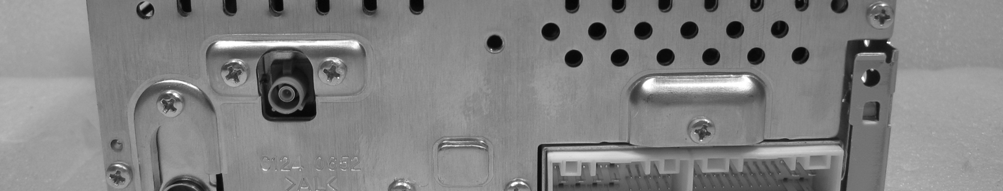

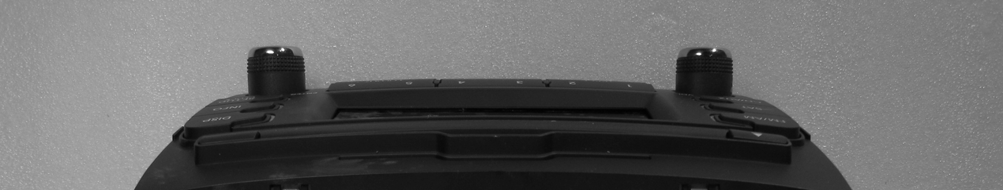

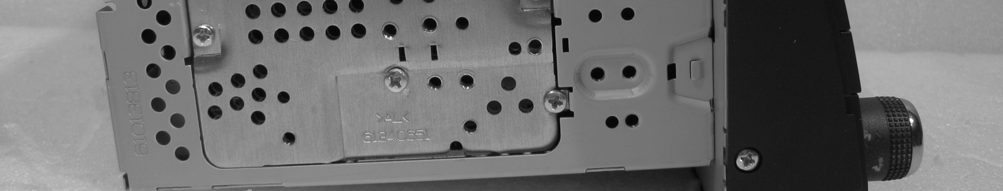

FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 1/7 ATTCHMENT B. -EXTERNAL PHOTOS - FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 2/7 (Front) FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 3/7 (Back) FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 4/7 (Left) FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 5/7 (Right) FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 6/7 (Top) FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 7/7 (Bottom)

FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 1/3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label Figure 1.1 PRODUCT LABEL FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 3/3 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION

FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 1/16 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 2/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 3/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 4/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 5/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 6/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 7/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 8/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 9/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 10/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 11/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 12/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 13/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 14/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 15/16 FCC ID: TQ8-PA710SLUSB/ IC: 5074A-PA710SLUSB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1002FR01 16/16

MPE CALCULATION For HYUNDAI MOBIS CO., LTD – ; Model: PA710SLUSB FCC ID: TQ8-PA710SLUSB RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2402 MHz): Power = 1.82 dBm, Antenna Gain = -0.32 dBi, Prediction distance 20cm S = 0.0 2810 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20cm. Completed By : Hyo Sun Kwak Date : Feb 18, 2010

FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1002FR01 Test Dates: January 02, 2010 EUT Type: CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710SLUSB IC: 5074A-PA710SLUSB Page 2 of 44 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................... 3 2. EUT DESCRIPTION ...................................................................................................................................... 3 3. TEST METHODOLOGY ................................................................................................................................ 4 3.1 EUT CONFIGURATION................................................................................................................4 3.2 EUT EXERCISE............................................................................................................................4 3.3 GENERAL TEST PROCEDURES..................................................................................................4 3.4 DESCRIPTION OF TEST MODES.................................................................................................4 3.5 STANDARD..................................................................................................................................5 4. INSTRUMENT CALIBRATION...................................................................................................................... 6 5. FACILITIES AND ACCREDITATIONS .......................................................................................................... 6 5.1 FACILITIES...................................................................................................................................6 5.2 EQUIPMENT.................................................................................................................................6 6. ANTENNA REQUIREMENTS ....................................................................................................................... 6 7. FCC PART 15.247 REQUIREMENTS........................................................................................................... 7 7.1 PEAK POWER..............................................................................................................................7 7.2 BAND EDGES MEASUREMENT................................................................................................11 7.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW)...........................................14 7.4 NUMBER OF HOPPING FREQUENCY......................................................................................19 7.5 TIME OF OCCUPANCY (DWELL TIME).....................................................................................22 7.6 SPURIOUS EMISSIONS............................................................................................................26 7.6.1 CONDDUCTED SPURIOUS MEASUREMENT..................................................................... 26 7.6.2 RADITED SPURIOUS EMISSIONS ...................................................................................... 33 7.6.3 RECEIVER SPURIOUS EMISSIONS .................................................................................... 41 7.6.4 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .............................................. 43 8. LIST OF TEST EQUIPMENT ...................................................................................................................... 44 FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1002FR01 Test Dates: January 02, 2010 EUT Type: CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710SLUSB IC: 5074A-PA710SLUSB Page 3 of 44 1. GENERAL INFORMATION Applicant: HYUNDAI MOBIS CO., LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI,GYUNGGI-DO,449-912 SOUTH KOREA FCC ID: TQ8-PA710SLUSB IC: 5074A-PA710SLUSB EUT: CAR AUDIO BLUETOOTH FCC Model(s): PA710SLUSB IC Model(s): PA710SLUSB Date of Test: November 15, 2009 Contact person: Name: Yong Bin Kim Phone #: +82-31-596-8871 Place of Tests: HCT CO.,LTD. SAN136-1,AMI-RI,BUBAL-EUP, ICHEON-SI,KYOUNGKI-DO,467-701 South Korea (IC Recognition No. : 5944A-1) 2. EUT DESCRIPTION Product CAR AUDIO BLUETOOTH FCC Model Name PA710SLUSB IC Model Name PA710SLUSB Power Supply DC 12 V Frequency Range 2402 ~ 2480 MHz Transmit Power 1.82 dBm(1.52 mW) Modulation Type GFSK(Normal), PSK(EDR) Modulation Technique FHSS Number of Channels 79 Channels Antenna Specification Manufacturer: Auto-Electronic co., Ltd Antenna type: Chip Antenna Peak Gain : -0.32 dBi FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1002FR01 Test Dates: January 02, 2010 EUT Type: CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710SLUSB IC: 5074A-PA710SLUSB Page 4 of 44 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz(ANSI C63.4-2003) and FCC Public Notice DA 00-705 dated March 30, 2000 entitled “Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems” were used in the measurement of the HYUNDAI MOBIS CO., LTD. CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710SLUSB IC : 5074A- PA710SLUSB 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable,…
