TQ8-PA710TFUBCAR AUDIO(BLUETOOTH)

FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 1/1 ATTACHMENT E. - User Manual - 489 Features of your vehicle Antenna Roof antenna Your vehicle uses a roof antenna to receive both AM and FM broadcast sig- nals. This antenna is removable. To remove the antenna, turn it counterclock- wise. To install the antenna, turn it clock- wise. Steering wheel audio control (if equipped) The steering wheel may incorporate audio control buttons. AUDIO SYSTEM OHM048154 ■Type A■Type B CAUTION • Before entering a place with a low height clearance, be sure that the antenna is removed. • Be sure to remove the antenna before washing the car in an auto- matic car wash or it may be dam- aged. • When reinstalling your antenna, it is important that it is fully tight- ened and adjusted to the upright position to ensure proper recep- tion. But it could be removed when parking the vehicle or when loading cargo on the roof rack. • When cargo is loaded on the roof rack, do not place the cargo near the antenna pole to ensure proper reception. CAUTION Do not operate audio remote con- trol buttons simultaneously. Features of your vehicle 904 MODE (1) Press the button to change audio source. - FM(1~2) ➟AM➟SAT(1~3)➟CD➟USB AUX(iPod) FM... SEEK/PRESET (/) (2) The SEEK/PRESET button has different functions based on the system mode. For the following functions the button should be pressed for 0.8 second or more. RADIO mode It will function as the AUTO SEEK select button. CD/USB/ iPod mode It will function as the FF/REW button. If the SEEK/PRESET button is pressed for less than 0.8 second, it will work as follows in each mode. RADIO mode It will function as the PRESET STATION buttons. CD/USB/ iPod mode It will function as TRACK UP/DOWN but- ton. VOLUME (VOL /) (3) • Push the lever upward () to increase the volume. • Push the lever downward () to decrease the volume. MUTE (4) • Press the button to mute the sound • Press the button to turn off the micro- phone during a telephone call. Detailed information for audio control buttons are described in the following pages in this section. Aux, USB and iPod port (if equipped) If your vehicle has an aux and/or USB(universal serial bus) port or iPod port, you can use an aux port to connect audio devices and the USB port to plug in a USB device. Both ports are used together with the accessory iPod cable to connect an iPod. ✽✽ NOTICE When using a portable audio device connected to the power outlet, noise may occur during playback. If this happens, use the power source of the portable audio device. ❈iPod is a trademark of Apple Inc. OLM049195 491 Features of your vehicle How vehicle audio works AM and FM radio signals are broadcast from transmitter towers located around your city. They are intercepted by the radio antenna on your vehicle. This signal is then received by the radio and sent to your vehicle speakers. When a strong radio signal has reached your vehicle, the precise engineering of your audio system ensures the best pos- sible quality reproduction. However, in some cases the signal coming to your vehicle may not be strong and clear. This can be due to factors such as the dis- tance from the radio station, closeness of other strong radio stations or the pres- ence of buildings, bridges or other large obstructions in the area. AM broadcasts can be received at greater distances than FM broadcasts. This is because AM radio waves are transmitted at low frequencies. These long, low frequency radio waves can fol- low the curvature of the earth rather than travelling straight out into the atmos- phere. In addition, they curve around obstructions so that they can provide bet- ter signal coverage. FM broadcasts are transmitted at high frequencies and do not bend to follow the earth's surface. Because of this, FM broadcasts generally begin to fade at short distances from the station. Also, FM signals are easily affected by buildings, mountains, or other obstruc- tions. These can result in certain listening conditions which might lead you to believe a problem exists with your radio. The following conditions are normal and do not indicate radio trouble: ¢¢¢¢¢¢ JBM002JBM003 AM receptionFM radio station ¢¢¢ JBM001 FM reception Features of your vehicle 924 • Fading - As your vehicle moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station. • Flutter/Static - Weak FM signals or large obstructions between the trans- mitter and your radio can disturb the signal causing static or fluttering nois- es to occur. Reducing the treble level may lessen this effect until the distur- bance clears. • Station Swapping - As a FM signal weakens, another more powerful sig- nal near the same frequency may begin to play. This is because your radio is designed to lock onto the clear- est signal. If this occurs, select another station with a stronger signal. • Multi-Path Cancellation - Radio signals being received from several directions can cause distortion or fluttering. This can be caused by a direct and reflect- ed signal from the same station, or by signals from two stations with close frequencies. If this occurs, select another station until the condition has passed. JBM005 ¢¢¢ JBM004 493 Features of your vehicle Satellite radio reception You may experience difficulties in receiv- ing SIRIUS satellite radio signals in the following situations. • If you are driving in a tunnel or a cov- ered parking area. • If you are driving beneath the top level of a multi-level freeway. • If you drive under a bridge. • If you are driving next to a tall vehicle (such as a truck or a bus) that blocks the signal. • If you are driving in a valley where the surrounding hills or peaks block the signal from the satellite. • If you are driving on a mountain road where is the s…

Text truncated - open the document above for the full version.

HYUNDAI MOBIS CO., LTD. Date: March 18, 2010 ATTESTATION STATEMENT FCC ID : TQ8-PA710TFUB This device contains an embedded Bluetooth device that HYUNDAI MOBIS CO., LTD. confirms compliance with the following Part 15 regulations. 15.247(a)(1) The hopping sequence must be pseudorandom. all Channels are used equally on average. the receiver input bandwidth is approximately equal to the transmit bandwidth. the receiver hops in sequence with the transmitted signal. 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information). 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Seung-Kun Chon / Assistant Manager

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 HYUNDAI MOBIS CO.,LTD. Apr 01, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, HYUNDAI MOBIS CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): CAR AUDIO BLUETOOTH, PA710TFUB (FCC ID : TQ8-PA710TFUB) We affirm that between SIEMIC and HYUNDAI MOBIS CO.,LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Seung-Kun Chon/ Assistant Manager HYUNDAI MOBIS CO.,LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI, GYUNGGI-DO, 449-912 SOUTH KOREA

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 HYUNDAI MOBIS CO.,LTD. MAR 28, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: TQ8-PA710TFUB We hereby request confidential treatment of information accompanying this application as outlined below: COMNFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Schematics CONFIDENTIAL 3 Operational Description 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 User’s Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Kun Chon / Assistant Manager

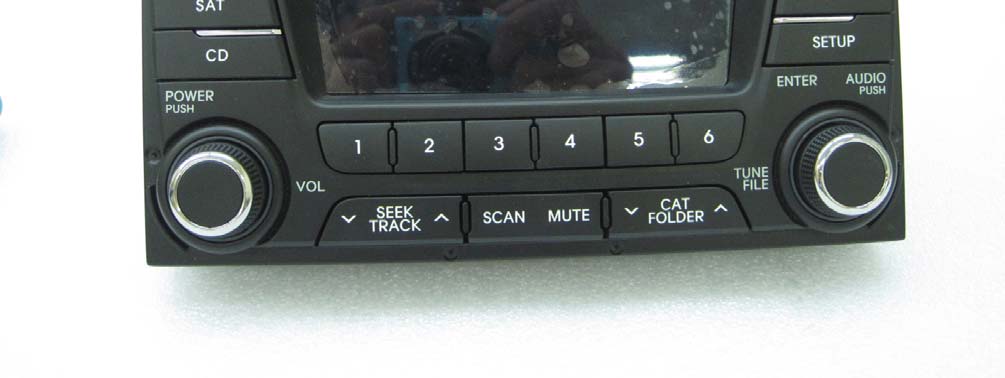

FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 1/7 ATTCHMENT B. -EXTERNAL PHOTOS - FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 2/7 (Front) FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 3/7 (Back) FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 4/7 (Left) FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 5/7 (Right) FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 6/7 (Top) FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 7/7 (Bottom)

FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 1/3 ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS - FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 2/3 1.1 ID Label Information Following is a copy of the label that will be placed on the rear side of the cabinet. Both the FCC ID and compliance statement are included in the product label FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 3/3 1.2 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Figure 1.2 LABEL LOCATION

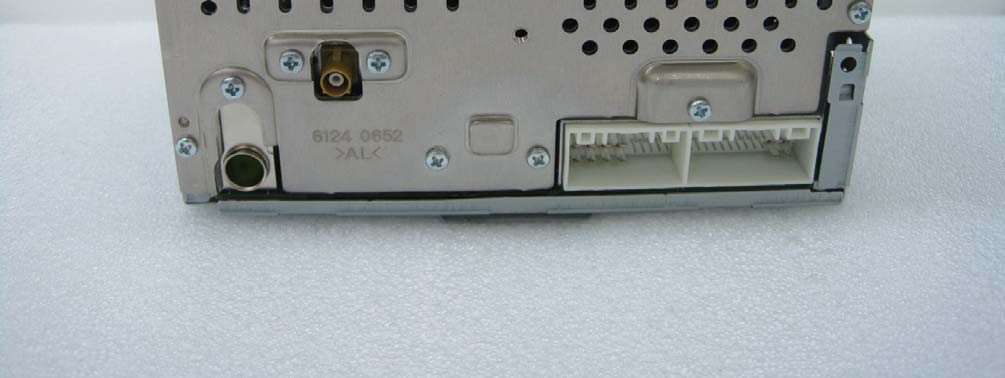

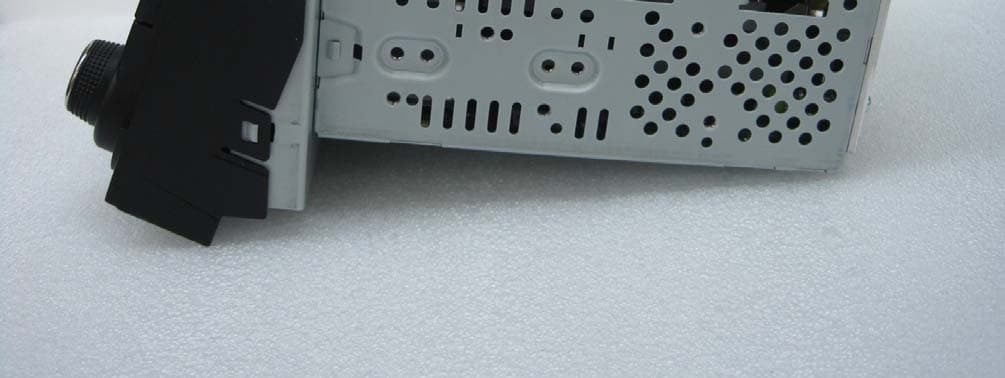

FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 1/16 ATTACHMENT F. - INTERNAL PHOTOS - FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 2/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 3/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 4/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 5/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 6/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 7/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 8/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 9/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 10/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 11/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 12/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 13/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 14/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 15/16 FCC ID: TQ8-PA710TFUB/ IC: 5074A-PA710TFCAB HCT CO., LTD. SAN 136-1, AMI-RI, BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL:+82 31 639 8517 FAX:+82 31 639 8525 www.hct.co.kr Report No. : HCTR1003FR15 16/16

MPE CALCULATION For HYUNDAI MOBIS CO., LTD – ; Model: PA710TFUB FCC ID: TQ8-PA710TFUB RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 / 47 CFR §2.1091 EUT Frequency Band: 2402 – 2480 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1500 – 100,000 MHz Power Density Limit: 1.0mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Low Channel (2402 MHz): Power = -0.75 dBm, Antenna Gain = -2.83 dBi, Prediction distance 20cm S = 0.0 0009 mW/cm 2 Result The Above Result had shown that Device complied with 1.0 mW/cm 2 Power density requirement for distance of 20cm. Completed By : Hyo Sun Kwak Date : Apr 01, 2010

FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1003FR15 Test Dates: March 18, 2010 EUT Type: CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710TFUB IC: 5074A-PA710TFCAB Page 2 of 44 TABLE OF CONTENTS 1. GENERAL INFORMATION ........................................................................................................................... 3 2. EUT DESCRIPTION ...................................................................................................................................... 3 3. TEST METHODOLOGY ................................................................................................................................ 4 3.1 EUT CONFIGURATION................................................................................................................4 3.2 EUT EXERCISE............................................................................................................................4 3.3 GENERAL TEST PROCEDURES..................................................................................................4 3.4 DESCRIPTION OF TEST MODES.................................................................................................4 3.5 STANDARD..................................................................................................................................5 4. INSTRUMENT CALIBRATION...................................................................................................................... 6 5. FACILITIES AND ACCREDITATIONS .......................................................................................................... 6 5.1 FACILITIES...................................................................................................................................6 5.2 EQUIPMENT.................................................................................................................................6 6. ANTENNA REQUIREMENTS ....................................................................................................................... 6 7. FCC PART 15.247 REQUIREMENTS........................................................................................................... 7 7.1 PEAK POWER..............................................................................................................................7 7.2 BAND EDGES MEASUREMENT................................................................................................11 7.3 FREQUENCY SEPARATION / OCCUPIED BANDWIDTH (99% BW)...........................................14 7.4 NUMBER OF HOPPING FREQUENCY......................................................................................19 7.5 TIME OF OCCUPANCY (DWELL TIME).....................................................................................22 7.6 SPURIOUS EMISSIONS............................................................................................................26 7.6.1 CONDUCTED SPURIOUS MEASURMENT..........................................................................26 7.6.2 RADIATED SPURIOUS EMISSIONS....................................................................................33 7.6.3 RECEIVER SPURIOUS EMISSIONS....................................................................................41 7.6.4 RADIATED RESTRICTED BAND EDGE MEASUREMENT...................................................43 8. LIST OF TEST EQUIPMENT ...................................................................................................................... 44 FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1003FR15 Test Dates: March 18, 2010 EUT Type: CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710TFUB IC: 5074A-PA710TFCAB Page 3 of 44 1. GENERAL INFORMATION Applicant: HYUNDAI MOBIS CO., LTD. 80-9, MABOOK-RI, GUSEONG-EUP, YONGIN-SHI,GYUNGGI-DO,449-912 SOUTH KOREA FCC ID: TQ8-PA710TFUB IC: 5074A-PA710TFCAB EUT: CAR AUDIO BLUETOOTH FCC Model(s): PA710TFUB IC Model(s): PA710TFCAB Date of Test: February 03, 2010 Contact person: Name: Seung Kun Chon Phone #: +82-31-596-8871 Place of Tests: HCT CO.,LTD. SAN136-1,AMI-RI,BUBAL-EUP, ICHEON-SI,KYOUNGKI-DO,467-701 South Korea (IC Recognition No. : 5944A-1) 2. EUT DESCRIPTION Product CAR AUDIO BLUETOOTH FCC Model Name PA710TFUB IC Model Name PA710TFCAB Power Supply DC 12 V Frequency Range 2402 ~ 2480 MHz Transmit Power -0.75 dBm(0.84 mW) Modulation Type GFSK(Normal), PSK(EDR) Modulation Technique FHSS Number of Channels 79 Channels Antenna Specification Manufacturer: AUTO INDUSTRIAL Co.,Ltd. Antenna type: PCB Antenna Peak Gain : -2.83 dBi FCC PT.15.247 TEST REPORT FCC & IC CERTIFICATION REPORT www.hct.co.kr Test Report No. HCTR1003FR15 Test Dates: March 18, 2010 EUT Type: CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710TFUB IC: 5074A-PA710TFCAB Page 4 of 44 3. TEST METHODOLOGY The measurement procedure described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40 GHz(ANSI C63.4-2003) and FCC Public Notice DA 00-705 dated March 30, 2000 entitled “Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems” were used in the measurement of the HYUNDAI MOBIS CO., LTD. CAR AUDIO BLUETOOTH FCC ID: TQ8-PA710TFUB IC ID: 5074A- PA710TFCAB 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the Tx frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is …
