TQ8-RKE-4F14REMOTE KEYLESS ENTRY

Hyundai MOBIS Co., Ltd. RKE-4F14Remote Keyless Entry User Manual OUTLINE 1. How to use RKE-4F14 - RKE-4F14is Remote Keyless System. - This unit controls door lock/unlock/panicwith wireless. 2. IntroductionofTransmitter (RKE-4F14) -Transmitterhasthreebuttons - Transmitteruse the battery - Frequency is 433.92MHz - Modulation itemis SAWResonator - Transmitteruse Rolling code algorithm GENERAL DESCRIPTION PRIMARY FUNCTION - Remote door lock/unlock/panic - Operating distance : over30m - Id input (setting mode) TECHNICAL SPECIFICATION Model NameRKE-4F14 Operating voltage3 VDC Consumption currentMax 15 mA Operating frequency 433.92 Power80 dBuV/m under Sensitivity- Operating temperature-20 ~ +60°C ETCFM modulation FCC Warning This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCCRules. These limits are designedtoprovide reasonable protectionagainstharmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur ina particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increasethe separation between the equipment and receiver. ■Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected. ■Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interference that may causeundesired operation of the device. Le présent appareil estconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doitacceptertoutbrouillageradioélectriquesubi, mêmesilebrouillageestsusceptibled'en compromettre le fonctionnement.

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 23 August2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel Jeong of SGS Korea Co., Ltd.(hereafter referred to as SGS Korea) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel Jeong of SGS Korea Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)usecertification only to indicate the products are certified as being in conformity specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a manner; h)ensure that any reference to our product certif documents, brochures or advertising, complies with the requirements of Division; i)keep a record of all complaints made known to the us relating to the product’s with requirements of the rel Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements for k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd. Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135 Tel. 82-31-288-5232/ Fax. 82 certification only to indicate the products are certified as being in conformity endeavor to ensure that no certificate or report nor any part thereof is used in a ensure that any reference to our product certification in communication media documents, brochures or advertising, complies with the requirements of keep a record of all complaints made known to the us relating to the product’s with requirements of the relevant standard and to make these records Certification Division when requested; take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements forcertification; document the actions taken. This authorization is valid until further written notice from the applicant. Hyundai MOBIS Co., Ltd. gu, Seoul, 135-977, Korea / Fax. 82-31-280-2764 certification only to indicate the products are certified as being in conformitywith endeavor to ensure that no certificate or report nor any part thereof is used in amisleading ication in communication mediasuch as documents, brochures or advertising, complies with the requirements ofthe Certification keep a record of all complaints made known to the us relating to the product’scompliance evant standard and to make these recordsavailable to take appropriate action with respect to such complaints and any deficienciesfound in certification;

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 23 August 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-RKE-4F14 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd.

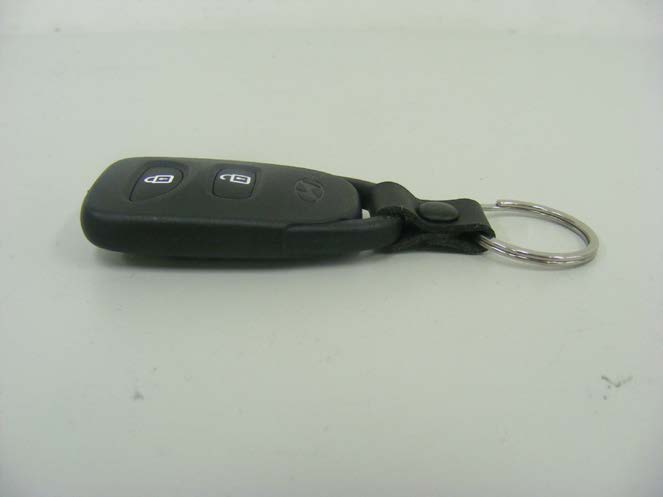

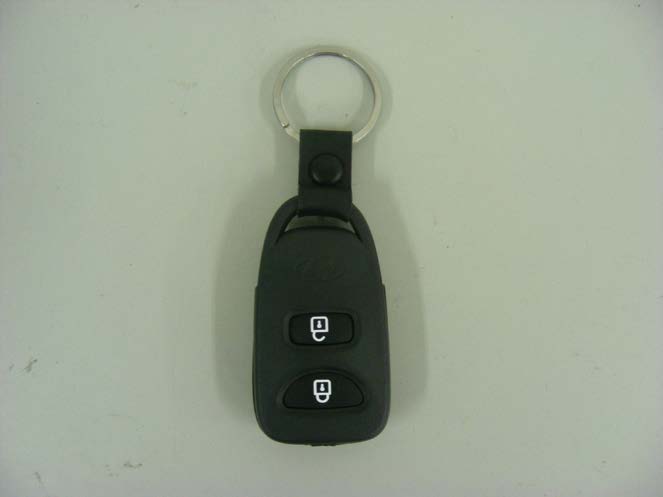

Model RKE-4F14 External photos of EUT Model RKE-4F14 Front view of EUT Rear view of EUT Model RKE-4F14 Top view of EUT Bottom view of EUT Model RKE-4F14 Side view of EUT

MODEL: RKE-4F14 FCC ID: TQ8-RKE-4F14 Hyundai MOBIS Co., Ltd. Made In Korea LABEL BACK SIDE OF EUT

Model RKE-4F14 Internal photos of EUT Model RKE-4F14 Internal view of EUT Model RKE-4F14 Top view of Main Board Bottom view of Main Board

Report Number: F690501/RF-RTL006932 Page: 2 of 20 TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ---------------------------------------------------------- 6 3. Spurious Emission-------------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency---------------------------------------------------- 13 5. Transmission Time------------------------------------------------------------ -------------- 15 6. Occupied Bandwidth----------------------------------------------------------------------- 17 7. Duty Cycle Correction Factor------------------------------------------------------------ 19 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL006932 Page: 3 of 20 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Contact Person : Kim, Jong-Ta e Phone No. : +82 31 288 6081 Fax No. : +82 31 899 1788 1.3. Description of EUT Kind of Product Remote Keyless Entry Model Name RKE-4F14 Serial Number N/A Power Supply DC 3 V (Lithium type of battery) Frequency Range Tx: 433.92 ㎒ Modulation Type FSK Number of Channels 1 Antenna Type PCB Antenna 1.4. Details of Modification - N/A The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL006932 Page: 4 of 20 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Spectrum Analyzer R&S FSV6 100639 Jun. 26, 2013 Annual Jun. 26, 2014 Preamplifier H.P. 8447F 2944A03909 Jun. 28, 2013 Annual Jun. 28, 2014 Preamplifier R&S SCU 18 10117 Jan. 14, 2013 Annual Jan. 14, 2014 High Pass Filter Mini-Circuits NHP-800+ V8207600724 Mar.30, 2013 Annual Mar.30, 2014 Test Receiver R&S ESU26 100109 Feb. 28, 2013 Annual Feb. 28, 2014 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 390 Apr. 19, 2012 Biennial Apr. 19, 2014 Horn Antenna R&S HF906 100326 Nov. 23, 2011 Biennial Nov. 23, 2013 Loop Antenna R&S HFH2-Z2 100118 Jul. 12, 2013 Biennial Jul. 12, 2015 Antenna Master INNCO MM4000 N/A N.C.R. N/A N.C.R. Turn Table INNCO DS 1200S N/A N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL006932 Page: 5 of 20 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCC 15 Section in RSS-210, RSS-Gen Test Item Result 15.209(a) 15.231(b) RSS-210, Issue 8, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) RSS-210, Issue 8, A1.1.3 Bandwidth of Operation frequency Complied 15.231(a) RSS-210, Issue 8, A1.1.1 Transmission Time Complied - RSS-Gen, Issue 3, 4.6.1 Occupied Bandwidth Complied 1.7 Test Report Revision Revision Report number Description 0 F690501/RF-RTL006932 Initial The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL006932 Page: 6 of 20 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) Report Number: F690501/RF-RTL006932 Page: 7 of 20 The diagram below shows the test setup that is utilized to make the measurements for emission .The spurious emissions were investigated form 1 ㎓ to the 10th harmonic of the highest fundamental frequency or 40 ㎓, whichever is lower. The results shown in this test report refer only to th…
