TQ8-RKE-4F16REMOTE KEYLESS ENTRY

Hyundai MOBIS Co., Ltd. RKE-4F16 Remote Keyless Entry User Manual OUTLINE 1.How to use RKE-4F16 - RKE-4F16 is Remote Keyless System. - This unit controls door lock/unlock/trunk/panic with wireless. 2.Introduction of Transmitter (RKE-4F16) - Transmitter has four buttons - Transmitter use the battery GENERAL DESCRIPTION PRIMARY FUNCTION - Remote door lock/unlock/trunk/panic TECHNICAL SPECIFICATION Model NameRKE-4F16 Operating voltage3 VDC BatteryCR2032 Operating frequency 433.92 Power80 dBuV/m under Operating temperature -20 ~ +60°C FCC Warning This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCCRules. These limits are designedtoprovide reasonable protectionagainstharmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur ina particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increasethe separation between the equipment and receiver. ■Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected. ■Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interference that may causeundesired operation of the device. Le présent appareil estconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doitacceptertoutbrouillageradioélectriquesubi, mêmesilebrouillageestsusceptibled'en compromettre le fonctionnement.

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 23 August2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel Jeong of SGS Korea Co., Ltd.(hereafter referred to as SGS Korea) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel Jeong of SGS Korea Co., Ltd.on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)usecertification only to indicate the products are certified as being in conformity specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a manner; h)ensure that any reference to our product certif documents, brochures or advertising, complies with the requirements of Division; i)keep a record of all complaints made known to the us relating to the product’s with requirements of the rel Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements for k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd. Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135 Tel. 82-31-288-5232/ Fax. 82 certification only to indicate the products are certified as being in conformity endeavor to ensure that no certificate or report nor any part thereof is used in a ensure that any reference to our product certification in communication media documents, brochures or advertising, complies with the requirements of keep a record of all complaints made known to the us relating to the product’s with requirements of the relevant standard and to make these records Certification Division when requested; take appropriate action with respect to such complaints and any deficiencies products or services that affect compliance with the requirements forcertification; document the actions taken. This authorization is valid until further written notice from the applicant. Hyundai MOBIS Co., Ltd. gu, Seoul, 135-977, Korea / Fax. 82-31-280-2764 certification only to indicate the products are certified as being in conformitywith endeavor to ensure that no certificate or report nor any part thereof is used in amisleading ication in communication mediasuch as documents, brochures or advertising, complies with the requirements ofthe Certification keep a record of all complaints made known to the us relating to the product’scompliance evant standard and to make these recordsavailable to take appropriate action with respect to such complaints and any deficienciesfound in certification;

Hyundai MOBIS Co., Ltd. #679-4, Yeoksam-dong, Gangnam-gu, Seoul, 135-977, Korea Tel. 82-31-288-5232 / Fax. 82-31-280-2764 6 December 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-RKE-4F16 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Jongtae Kim Senior Manager Hyundai MOBIS Co., Ltd.

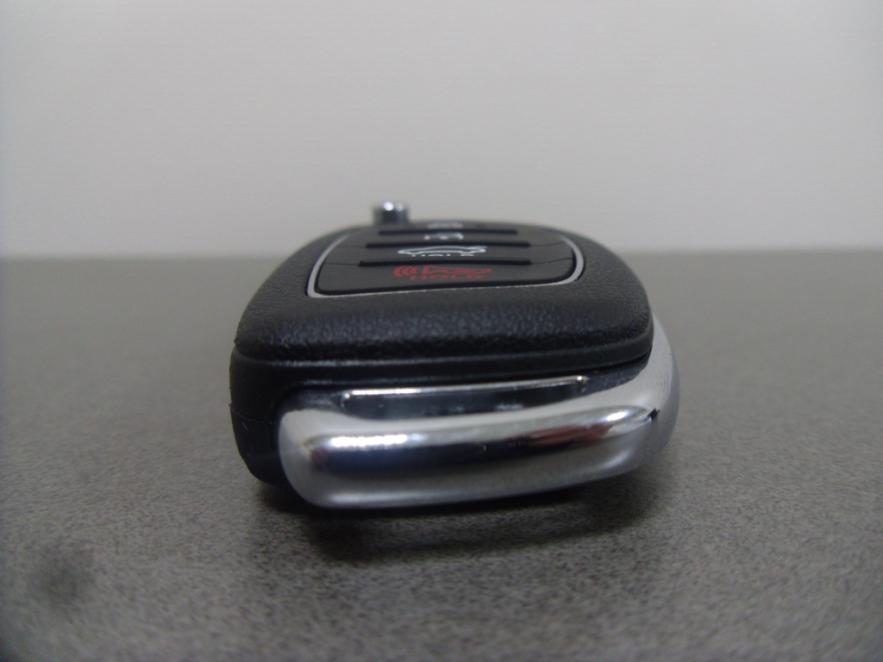

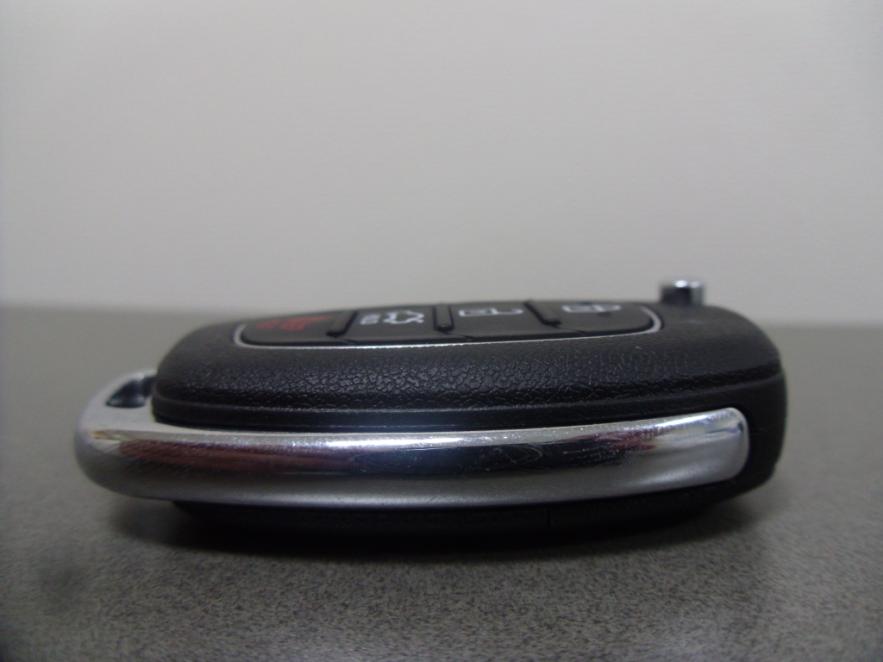

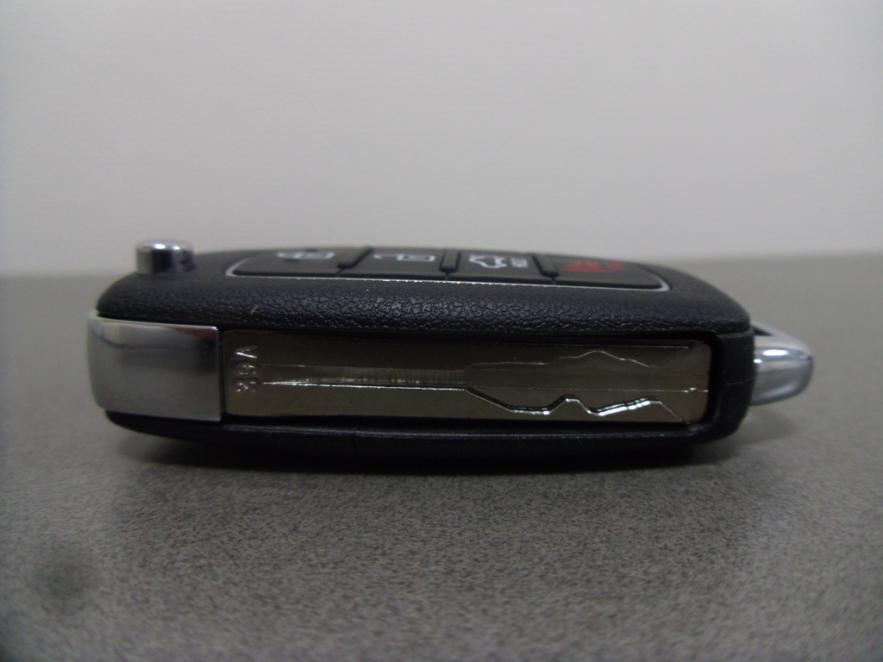

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Hyundai MOBIS Co., Ltd. RKE ‐ 4F16 Label Drawing MODEL: RKE ‐ 4F16 FCC ID: TQ8 ‐ RKE ‐ 4F16 Label Location IC: 5074A ‐ RKE4F16 Hyundai MOBIS Co., Ltd. Made in Korea LABEL

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Pattern Antenna

Report Number: F690501/RF-RTL007139 Page: 2 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ---------------------------------------------------------- 6 3. Spurious Emission-------------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency---------------------------------------------------- 14 5. Transmission Time-------------------------------------------------------------------------- 16 6. Occupied Bandwidth----------------------------------------------------------------------- 18 7. Duty Cycle Correction Factor------------------------------------------------------------ 20 Report Number: F690501/RF-RTL007139 Page: 3 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 - 400-2, Gomae-dong, Giheoung-gu, Yongin-si, Gyeonggi-do, Korea, 446-901 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 80-9, Mabook-Dong, Giheung-Gu, Yongin-shi, Gyunggi-do, 446-912 South Korea Contact Person : Kim, Jong-Tae Phone No. : +82 31 288 6081 Fax No. : +82 31 899 1788 1.3. Description of EUT Kind of Product Remote Keyless Entry Model Name RKE-4F16 Serial Number N/A Power Supply DC 3 V (Lithium type of battery) Frequency Range Tx: 433.92 ㎒ Modulation Type FSK Number of Channels 1 Antenna Type Pattern Antenna 1.4. Details of Modification - N/A Report Number: F690501/RF-RTL007139 Page: 4 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jul. 03, 2013 Annual Jul. 03, 2014 Spectrum Analyzer R&S FSV30 100768 Mar. 28, 2013 Annual Mar. 28, 2014 Preamplifier H.P. 8447D 2727A05143 Aug. 08, 2013 Annual Aug. 08, 2014 Preamplifier R&S SCU18 10070 Jun. 21, 2013 Annual Jun. 21, 2014 High Pass Filter Mini-Circuits NHP-800+ VUU16801113-2 Jul. 03, 2013 Annual Jul. 03, 2014 High Pass Filter MICROWAVE-CIRCUITS H03G12G3 0002DC0049 Mar. 26, 2013 Annual Mar. 26, 2014 Test Receiver R&S ESU40 100075 Feb. 15, 2013 Annual Feb. 15, 2014 Loop Antenna SCHWARZBECK FMZB 1519 1519-039 Jul. 09, 2013 Biennial Jul. 09, 2015 Bilog Antenna SCHWARZBECK VULB9163 9163-437 Oct. 04, 2012 Biennial Oct. 04, 2014 Horn Antenna R&S HF906 100608 Aug. 13, 2012 Biennial Aug. 13, 2014 Antenna Master INNCO SYSTEMS MA4000-EP N/A N/A N/A N.C.R. Turn Table INNCO SYSTEMS DT-3000S-3T N/A N/A N/A N.C.R. 10m Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N/A N/A N.C.R. Controller INNCO SYSTEMS CONTROLLER CO2000 N/A N/A N/A N.C.R. Report Number: F690501/RF-RTL007139 Page: 5 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCC Part 15 Section in RSS-210, RSS-Gen Test Item Result 15.209(a) 15.231(b) RSS-210, Issue 8, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) RSS-210, Issue 8, A1.1.3 Bandwidth of Operation frequency Complied 15.231(a) RSS-210, Issue 3, A1.1.1 Transmission Time Complied - RSS-Gen, Issue 3, 4.6.1 Occupied Bandwidth Complied 1.7. Test Report Revision Revision Report number Description 0 F690501/RF-RTL007139 Initial Report Number: F690501/RF-RTL007139 Page: 6 of 21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 www.ee.sgs.com/korea RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. Report Number: F690501/RF-RTL007139 Page: 7 of 21 The results shown in …

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Photo of Test setup (9 ㎑ ~ 30 ㎒) B. Photo of Test setup (30 ㎒ ~ 1 ㎓) C. Photo of Test setup (1 ㎓ ~ 4.5 ㎓)
