TQ8-RKE-4F19REMOTE KEYLESS ENTRY

Hyundai MOBIS Co., Ltd. RKE-4F19 Remote Keyless Entry User Manual OUTLINE 1.How to use RKE-4F19 - RKE-4F19 is Remote Keyless System. - This unit controls door lock/unlock/trunk/panic with wireless. 2.Introduction of Transmitter (RKE-4F19) - Transmitter has four buttons - Transmitter use the battery - Frequency is 433.92MHz - Modulation item is SAW Resonator - Transmitter use Rolling code algorithm GENERAL DESCRIPTION PRIMARY FUNCTION - Remote door lock/unlock/trunk/panic - Operating distance : over 30m - Id input (setting mode) Manual 1) LOCK Button If the LOCK button is pushed over 30ms, then TRANSMITTER sends the LOCK Data. 2) UNLOCK Button If the UNLOCK button is pushed over 30ms, then TRANSMITTER sends the UNLOCK Data. 3) TAILGATE Button If the TAILGATE button is pushed over 1000ms, then TRANSMITTER sends the TAILGATE OPEN Data. 4) PANIC Button If the PANIC button is pushed over 500ms, then TRANSMITTER sends the PANIC Data. FCC Warning This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCCRules. These limits are designedtoprovide reasonable protectionagainstharmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur ina particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increasethe separation between the equipment and receiver. ■Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected. ■Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not causeharmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation. IC Warning "This device complies with Industry Canada licence-exempt RSS standard(s)." Operation is subject to the following conditions: (1) this device may not causeinterference, and (2) this device must accept any interference, including interference that may causeundesired operation of the device. Le présent appareil estconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation estautorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doitacceptertoutbrouillageradioélectriquesubi, mêmesilebrouillageestsusceptibled'en compromettre le fonctionnement.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 11 February 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 11 March 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐RKE‐4F19 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

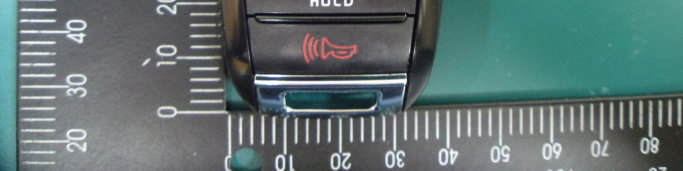

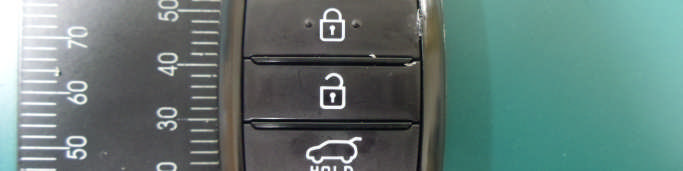

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

MODEL: RKE-4F19 FCC ID: TQ8-RKE-4F19 IC: 5074A-RKE4F19 Hyundai MOBIS Co., Ltd. Made In Korea LABEL BACK SIDE OF EUT

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Pattern Antenna

Report Number:F690501/RF-RTL007481 Page:2of21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------3 2. Field Strength of Fundamental ----------------------------------------------------------6 3. Spurious Emission--------------------------------------------------------------------------11 4. Bandwidth of Operation Frequency----------------------------------------------------14 5. Transmission Time--------------------------------------------------------------------------16 6. Occupied Bandwidth-----------------------------------------------------------------------18 7. Maximum Modulation Percentage------------------------------------------------------20 Report Number:F690501/RF-RTL007481 Page:3of21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2370 1.2. Details of Applicant Applicant:Hyundai Mobis Co., Ltd. Address:203, Teheran-ro, Gangnam-gu, Seoul, 135-977 Republic of Korea Contact Person:Choi, Seung-Hoon Phone No.:+82 31 260 0098 Fax No.:+82 31 899 1788 1.3. Description of EUT Kind of Product Remote Keyless Entry Model Name RKE-4F19 Power Supply DC 3 V (Lithium type of battery) Frequency Range Tx: 433.92㎒ Modulation Type FSK Number of Channels 1 Antenna Type Pattern Antenna 1.4. Details of Modification - N/A Report Number:F690501/RF-RTL007481 Page:4of21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&SSMR40100540Jul. 03, 2013AnnualJul. 03, 2014 Spectrum Analyzer R&S FSV30100768 Mar. 28, 2013 Annual Mar. 28, 2014 PreamplifierH.P.8447D2727A05297Jul. 09, 2013AnnualJul. 09, 2014 PreamplifierR&SAFS42-00101800-25-S900699Jul. 09, 2013 Annual Jul. 09, 2014 High Pass FilterMini-CircuitsNHP-800+VUU16801113-2Jul. 03, 2013AnnualJul. 03, 2014 High Pass Filter MICROWAVE-CIRCUITS H03G12G3 0002DC0049Mar. 26, 2013 Annual Mar. 26, 2014 Test ReceiverR&SESU8100128Feb. 11, 2014AnnualFeb. 11, 2015 Loop AntennaSCHWARZBECKFMZB 15191519-039Jul. 09, 2013BiennialJul. 09, 2015 Bilog AntennaSCHWARZBECKVULB9163390Apr. 19, 2013BiennialApr. 19, 2014 Horn AntennaR&SHF906100608Jun. 13, 2013BiennialJun. 13, 2014 Antenna MasterMATURO GMBHAntenna mast AM4.0N/AN/AN/AN.C.R. Turn TableINNCO SYSTEMSDT-3000SN/AN/AN/AN.C.R. 3m ChamberWill technology L × W × H (9 m × 6 m × 5.7 m) N/AN/AN/AN.C.R. ControllerTDKMCU/001/128308N/AN/AN/AN.C.R. Report Number:F690501/RF-RTL007481 Page:5of21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCC Part 15 Section in RSS-210, RSS-Gen Test ItemResult 15.209(a) 15.231(b) RSS-210, Issue 8, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) RSS-210, Issue 8, A1.1.3 Bandwidth of Operation frequencyComplied 15.231(a) RSS-210, Issue 3, A1.1.1 Transmission TimeComplied - RSS-Gen, Issue 3, 4.6.1 Occupied BandwidthComplied 1.7. Test Report Revision RevisionReport numberDescription 0F690501/RF-RTL007481Initial Report Number:F690501/RF-RTL007481 Page:6of21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2)Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9㎑ to 30㎒Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30㎒ to 1㎓Emissions. Report Number:F690501/RF-RTL007481 Page:7of21 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)4, LS-ro 182beon-gil, Gunpo-si,…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Test setup (9㎑~ 30㎒) B. Photo of Test setup (30㎒~ 1㎓) C. Photo of Test setup (1㎓~ 4.5㎓)

Test setup photos of EUT A. Photo of Test setup (9㎑~ 30㎒) B. Photo of Test setup (30㎒~ 1㎓) C. Photo of Test setup (1㎓~ 4.5㎓)
