TQ8-RKE-4F47Remote Keyless Entry

Manual for vehicle manufacturer Model name: RKE-4F47 OUTLINE1. How to use RKE-4F47 ‐ RKE-4F47 is a part of Remote Keyless System. ‐ This unit controls door lock/door unlock/tail gate open/panic wirelessly. 2. Introduction of Transmitter ( RKE-4F47) - Th ese unit s use the battery ‐ Frequency is 433.92MHz GENERAL DESCRIPTION PRIMARY FUNCTION ‐ Remote door lock/unlock/tail gate/panic ‐ Operating voltage: 3V DC ‐ Center freq.: 433.92MHz MANUAL1. LOCK Button If the LOCK button is pressed, then TRANSMITTER sends the LOCK data. 2. UNLOCK Button If the UNLOCK button is pressed, then TRANSMITTER sends the UNLOCK data. 3. Tail gate Button If the Tail gate button is pressed, then TRANSMITTER sends Tail gate open data. 4 . PANIC Button If the PANIC button is pressed, then TRANSMITTER sends the PANIC data. FCC/ISED NOTICE [FCC]This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to this device not explicitly approved by manuf acture r could avoid your authority to operate this equipment. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC [ISED]This device contains licence ‐ ex empt transmit t er(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence ‐ exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le pr ésent appare il es t conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with ISED rad i ation exposure limits set forth for an uncontrolled environment. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the ISED Cet appareil est conforme aux limites d'exposition aux rayonnements de l’ISDE pour un environnement non con tr ô lé. L'émetteur ne doit pas être colocalisé ni fonctionner conjointement avec à autre antenne ou autre émetteur, à moins d'y être autorise par I'ISDE.

Applicant Declaration QSF27-14-04 Rev 1.0 Rev. Feb 6, 2023 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -RKE-4F47 Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List Hyundai MOBIS Co., Ltd. ( “the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Hyundai MOBIS Co., Ltd. ( “the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2023-01-31 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 06141, Korea Tel. 82‐31‐260‐0092 January 25, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Joohee Park, Jinhyoung Cho) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 30 January 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-RKE-4F47 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Te r m Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Te r m 4 External Photos 5 Internal Photos 6 Te s t-Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Sincerely, Seung-Hoon Choe Senior Researcher Hyundai MOIBS Co., Ltd.

UNITED STATES DESIGNATED AGENT LETTER Date: 2023‐03‐08 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Applicant U.S. designated agent Company Name: Hyundai MOBIS Co., Ltd.Company Name: Americas Compliance Consulting LLC dba iCertifi Grantee Code: TQ8FRN:0033399411 Contact Name: Seung Hoon Choe Contact Name: Paul Preston Address: 203, Teheran‐ro Gangnam‐gu Address:1001 SW Disk Drive Suite 250 City/Province/Zip: Seoul, Republic of KoreaCity/Province/Zip: Bend, Oregon 97702 USA Telephone: +82‐31‐260‐0098‐ Telephone:+1 866‐885‐4575 Fax: N/AFax:N/A Email: [email protected] Email:[email protected] GRANTEE CODE: TQ8 We, Hyundai MOBIS Co., Ltd. and Americas Compliance Consulting LLC dba iCertifi understand and acknowledge the applicants consent and the designated agent’s obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and e‐mail of the designated agent listed above. We, Hyundai MOBIS Co., Ltd. and Americas Compliance Consulting LLC dba iCertifi acknowledge the applicant’s acceptance of its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission‐related administrative or judicial proceeding involving the equipment, whichever is later. Applicant U.S. designated agent Name (Printed) Seung Hoon Choe Name (Printed) Paul Preston Title Senior Research Engineer TitlePresident Signature Signature

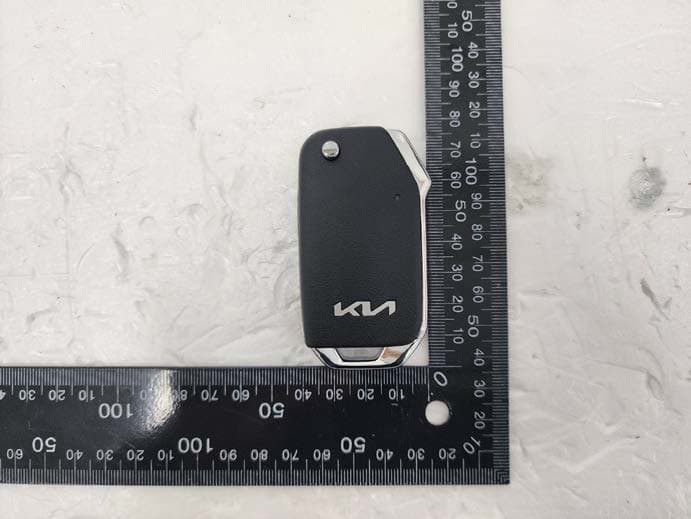

Model name: RKE-4F47 External photos of EUT Model name: RKE-4F47 Top view of EUT Bottom view of EUT Model name: RKE-4F47 Side view of EUT Model name: RKE-4F47

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Label information RKE-4F47 MODEL: RKE-4F47 FCC ID: TQ8-RKE-4F47 IC: 5074A-RKE4F47 Label dra ft Inside battery compartment Label Position Label will be put on the inside battery compartment. Enduser can see the label when replacing the battery. LABEL

Model name: RKE-4F47 Internal photos of EUT Model name: RKE-4F47 Internal view of EUT Model name: RKE-4F47 Top view of Main PCB Bottom view of Main PCB Model name: RKE-4F47 View of Antenna PCB Pattern Antenna

FCC ID: TQ8-RKE-4F47 According to KDB 447498 D04 Interim General RF Exposure Guidance v01 1. 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 ㎽, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 ㎑ to 100 ㎓, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. 2. Test Result Frequency Range (㎒) Radiated Power (㏈uV/m) Minimum Separation Distance (㎝) ERP (㏈m) ERP (㎽) Limit (㎽) Result 433.92 69.84 0 -27.54 0.002 1 Pass Note; According to ANSI C63.10 Annex G.2 ERP = pt x gt = (Exd) 2 / 49.2 Where; P t is the transmitter output power in watts G t is the numeric gain of the transmitting antenna (dimensionless) E is the electric field strength in V/m D is the measurement distance in meters (m) V/m = 10 (dBuV)-120)/20) 3. Conclusion: No SAR is required.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003740 Page: 2 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental and Spurious Emission--------------------------- 7 3. Bandwidth of Operation Frequency---------------------------------------------------- 17 4. Occupied Bandwidth----------------------------------------------------------------------- 19 5. Transmission Time-------------------------------------------------------------------------- 21 6. Duty Cycle Correction Factor------------------------------------------------------------ 23 7. Antenna Requirement---------------------------------------------------------------------- 25 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003740 Page: 3 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil. Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product Remote Keyless Entry Model Name RKE-4F47 Serial Number Conducted: 001, Radiated: 002 Power Supply DC 3.0 V Frequency Range Tx: 433.92 ㎒ Modulation Type FSK Number of Channel 1 Antenna Type PCB Pattern Antenna Antenna Gain ※ -17.98 ㏈i H/W Version 1.00 S/W Version 1.00 FVIN N/A SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003740 Page: 4 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMBV100A 255834 May 25, 2022 Annual May 25, 2023 Spectrum Analyzer R&S FSV30 103210 Dec. 07, 2022 Annual Dec. 07, 2023 Spectrum Analyzer Agilent N9020A MY53421758 Aug. 26, 2022 Annual Aug. 26, 2023 DC Power Supply Agilent U8002A MY49030063 Jan. 25, 2022 Annual Jan. 25, 2023 Preamplifier H.P. 8447F 2944A03909 Aug. 04, 2022 Annual Aug. 04, 2023 Signal Conditioning Unit R&S SCU-18 10117 Jun. 13, 2022 Annual Jun. 13, 2023 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000- 18000-40SS 7 Mar. 04, 2022 Annual Mar. 04, 2023 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 23, 2021 Biennial Aug. 23, 2023 Bilog Antenna Schwarzbeck Mess-Elektronik VULB 9163 01126 Feb. 07, 2022 Annual Feb. 07, 2023 Horn Antenna R&S HF906 100326 Feb. 18, 2022 Annual Feb. 18, 2023 EMI Test Receiver R&S ESCI 7 100911 Feb. 23, 2022 Annual Feb. 23, 2023 Turn Table Innco systems GmbH DS 1200 S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/38 330516/L N.C.R. N/A N.C.R. Antenna Mast Innco systems GmbH MA4640-XP-ET MA4640/536/38 330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Oct. 04, 2022 Semi- Annual Apr. 04, 2023 Coaxial Cable Qualwave Inc. QA500-18-NN-10 (10 m) 22200114 Oct. 04, 2022 Semi- Annual Apr. 04, 2023 Coaxial Cable RFONE PL360P-292M292M-1.5 M-A 20200324002 Aug. 18, 2022 Semi- Annual Feb. 18, 2023 Note; - Operating software of EUT has integrated test interface. No additional software was used. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003740 Page: 5 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C, IC RSS-210 Issue 10 and RSS-Gen Issue 5 Section in FCC Section in IC Test Item(s) Result 15.209(a) 15.231(b) RSS-210 Issue 10 A.1, Table A1 RSS-Gen Issue 5 8.9 Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) - Bandwidth of Operation Frequency Complied - RSS-210 Issue 10 A.1.3 RSS-Gen Issue 5 6.7 Occupied Bandwidth Complied 15.231(a) RSS-210 Issue 10 A.1.1 Transmission Time Complied 15.207 RSS-Gen Issue 5 8.8 AC Power Line Conducted Emission N/A 1) Note; 1) The AC power line test was not performed because the EUT use battery power for operation and which do not operate from the AC power lines. 1.7. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL003740 2023.01.25 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003740 Page: 6 of 25 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.8. Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Parameter Uncertainty Occupied Bandwidth 3.90 ㎑ Radiated Emission, 9 ㎑ to 30 ㎒ H 3.40 ㏈ V 3.40 ㏈ Radiated Emission, below 1 ㎓ H 4.50 ㏈ V 5.10 ㏈ Radiated Emission, above 1 ㎓ H 3.70 ㏈ V 3.90 ㏈ All measurement uncertainty values are shown with a coverage factor of k=2 to indicate a 95 % level of confidence. SGS Korea Co., Ltd. 4, LS-ro…

Text truncated - open the document above for the full version.

Model name: RKE-4F47 Test setup photos of EUT Model name: RKE-4F47 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Model name: RKE-4F47 Z-axis Model name: RKE-4F47 2. Photos of Radiated Spurious Emission Test (Below 1㎓) Model name: RKE-4F47 3. Photo of Radiated Spurious Emission Test (Above 1㎓) Model name: RKE-4F47 4. Photo of Conducted Test
