TQ8-SSB-I04SWITCH ASSY-BUTTON START FOR SMK ECU SYSTEM

The SWITCH ASSY-BUTTON START-written SSB in the following- is a part of START- STOP-BUTTON ESCL SYSTEM and the user interface to Engine start/stop. It is possible to engine start/stop and move power supply (ACC, ON, etc.) by pushing button with signals(e.g. Brake, Park, etc.). The status of SSB is possible to be checked by communication with SMK ECU. Outline of SWITCH ASSY-BUTTON START SSB FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ■Reorient or relocate the receiving antenna. ■Increase the separation between the equipment and receiver. ■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ■Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 11 February 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135‐977, Korea Tel. 82‐31‐260‐0092 2 July 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8‐SSB‐I04 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-­‐ro, Gangnam-­‐gu, Seoul, 135-­‐977, Korea Tel. 82-­‐31-­‐260-­‐0092 4 July 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize Dongmin Kim and SGS Korea Co., Ltd. to act on our behalf in all matters of certification. Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

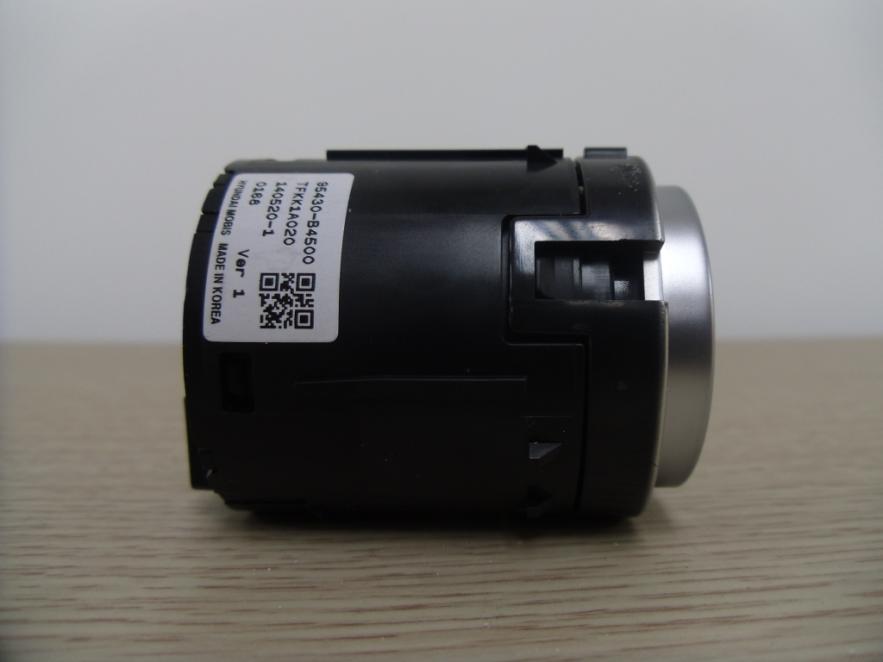

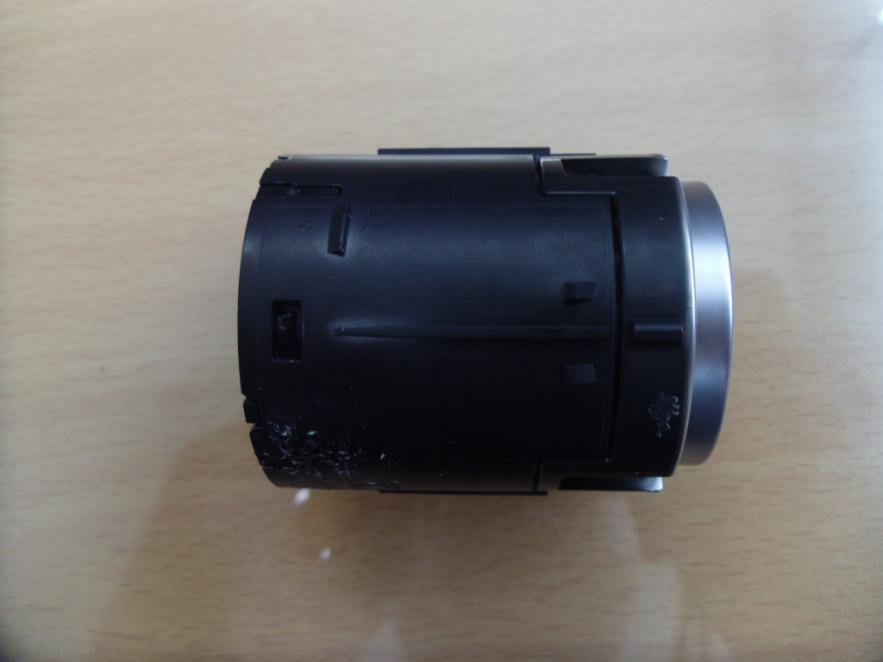

External photos of EUT Top view of EUT Bottom view of EUT Front view of EUT Rear view of EUT Side view of EUT

Label Information SSB ‐ I04 MODEL: SSB-I04 FCC ID: TQ8-SSB-I04 Made in Korea Hyundai MOBIS Co., Ltd. Label LABEL Label Position FRONT OF EUT Hyundai MOBIS Co., Ltd.

Internal photos of EUT Overview of EUT Coil Antenna Top view of PCB Bottom view of PCB

Report Number: F690501/RF-RTL007772 Page: 2 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ---------------------------------------------------------- 5 3. Spurious Emission-------------------------------------------------------------------------- 9 4. Occupied Bandwidth----------------------------------------------------------------------- 11 Report Number: F690501/RF-RTL007772 Page: 3 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : + 82 31 688 0901 Fax No. : + 82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, 135-977 Republic of Korea Contact Person : Choi, Seung-Hoon Phone No. : +82 31 260 0098 1.3. Description of EUT Kind of Product SWITCH ASSY-BUTTON START for SMK ECU System Model Name SSB-I04 Power Supply DC 12 V (used for lead-acid battery) Frequency Range Tx: 125.00 ㎑ Modulation Technique ASK Number of Channels 1 Operating Conditions -40°C ~ 85°C Antenna Type Internal Type (Coil Antenna) 1.4. Declarations by the manufacturer - N/A Report Number: F690501/RF-RTL007772 Page: 4 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due. Spectrum Analyzer R&S FSV13 101415 Mar. 27, 2014 Annual Mar. 27, 2015 Signal Generator Agilent E8257D MY51501169 Jul. 23, 2013 Annual Jul. 23, 2014 Loop Antenna R&S HFH2-Z2 100118 Jul. 12, 2013 Biennial Jul. 12, 2015 Bilog Antenna SCHWARZBECK VULB9163 396 Jun. 07, 2013 Biennial Jun. 07, 2015 DC power Supply Agilent U8002A MY49030063 Dec. 12, 2013 Annual Dec. 12, 2014 Test Receiver R&S ESU26 100109 Mar. 04, 2014 Annual Mar. 04, 2015 Preamplifier H.P. 8447F 2944A03909 Jun. 28, 2013 Annual Jun. 28, 2014 Low Pass Filter Mini-Circuits NLP-1200+ V 8979400903-1 Jun. 10, 2014 Annual Jun. 10, 2015 Antenna Master MA 2000 INN-CO N/A N.C.R. N.C.R. N.C.R. Turn Device DE-3600-RH INN-CO N/A N.C.R. N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N.C.R. N.C.R. N.C.R. 1.6. Test Report Revision Revision Report number Date of Issue Description 0 F690501/RF-RTL007772 2014.06.27 Initial 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart C 15.209 Section in FCC 15 Subpart C §15.209 Test Item Result 15.209(a) Radiated emission, Spurious Emission and Field Strength of Fundamental Complied Report Number: F690501/RF-RTL007772 Page: 5 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. Report Number: F690501/RF-RTL007772 Page: 6 of 11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2.2. Limit 2.2.1. Radiated emission limits, general requirements Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency (㎒) Field Strength (microvolts/meter) Measurement Distance (meter) 0.009 – 0.490 2400/F(㎑) 300 0.490 – 1.705 24000/F(㎑) 30 1.705 – 30.0 30 30 30 -88 100** 3 88 -216 150** 3 216 - 960 200** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 ㎒, 76-88 ㎒, 174-216 ㎒ or 470-806 ㎒. However, operation within these frequency bands is permitted under other sections of this …

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Radiated Spurious Emission (Below 30 MHz) B. Radiated Spurious Emission (30MHz – 1GHz)
