TQ8-VN470ZZZANCAR INFOTAINMENT SYSTEM

1 Car Infotainment System User's Manual Read before use User's Manual overview [ This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [ The design and specification of the system may change without prior notice for performance improvement. [ In order to improve the product performance, the functions and services in this manual are subject to change without notice. In case of software update, the screens in this manual may differ from actual ones on the product. [ Your system is not compatible with the system software and map data for regions outside of the country of purchase. VN470ZZZAN, VN470ZZZKN, VN450ZZZAN, VN450ZZZKN 2 Available materials for operation Quick Reference Guide Provided in the format of a booklet. It provides brief information of the system, including basic controls and main functions. User's Manual on Web To view related information while using the system, press Online Manual from the menus on the screen. You can access the online user's manual of the system by scanning the QR code with your smartphone. 3 Symbols in this User's Manual Warning Indicates very important information directly related to user safety. Failure to follow instructions may cause serious injury. Caution Indicates important information directly related to user safety. Failure to follow instructions may cause minor injury or vehicle damage or breakdown. Note Indicates helpful information for operation of the product. If equipped Indicates descriptions for optional features, which may not be available on your specific vehicle depending on the model or trim level. This guide covers specifications for all vehicle models, including optional specifications. It may include descriptions for features that are not equipped in your vehicle or are unavailable for your vehicle model. HEV only Displays only the functions that can be used in a hybrid vehicle. 4 Be sure to keep the following instructions. Otherwise, it may cause serious injury or accident. Ý Driving Obey all traffic laws while driving.  Relying solely on the navigation system may cause violation of traffic rules and regulations, resulting in an accident. In order to check the vehicle speed, see the speedometer first, not the speed on the navigation system.  The speed on the navigation system may differ from actual vehicle speed. While driving, refrain from watching the screen.  An accident may occur by negligence in keeping your eyes forward.  To manipulate the screen or buttons requiring multiple steps, be sure to stop your vehicle. To use your mobile phone, first stop your vehicle.  When you use your mobile phone while driving, it may disperse your attention, resulting in an accident.  When making a call while driving, use the Bluetooth Hands-free function and if possible, minimise the call time. Make sure that the volume of the phone is sufficiently low so that the external sound is audible.  When you drive with no external sound present may cause a traffic accident.  When you drive for a long time with a loud audio volume, it may affect your hearing. For emergency services (e.g. hospital, fire station), do not rely solely on the navigation system.  Some emergency services may not be included in the navigation map. Check relevant information in advance to stay prepared for an emergency. Ý System handling Do NOT arbitrarily disassemble or modify the system.  It may cause an accident, fire, or electric shock. Exercise caution to make sure that no liquid or foreign materials enter the system.  It may cause smoke generation, fire ignition, or system failure. When the screen is not displayed, the volume is muted, or other system failures occur, immediately stop using the system.  Otherwise, it may cause fire, electric shock, or fatal system failure. A When a problem is found, contact the customer service center or service agency of the company. Safety Warnings 5 Safety Precautions Be sure to keep the following instructions. Otherwise, it may cause minor injury or system damage. ÜÜ Operation Use the system with the vehicle started.  When you use the system for a long time with the vehicle stopped, it may cause battery discharge. Do NOT arbitrarily install an unauthorized aftermarket product in your vehicle.  It may cause system errors.  System errors caused by installing unapproved products are not covered under the warranty. ÜÜ System handling Do NOT apply excessive force to the system.  When you apply excessive pressure to the screen, the LCD panel or touch panel may get damaged. To clean the screen or button panel, first turn off the vehicle and then use a dry, soft cloth to wipe it.  Do not wipe using a rough or hard cloth, chemical fiber, organic solvent (e.g. alcohol, benzene, thinner), or air freshener. The panel surface may become scratched or damaged due to a chemical reaction. When you install an air freshener on the air conditioner vent, the surface may be deformed due to leakage. A When a problem is found, contact the customer service center or service agency of the company. 6 Contents 1 System overview Component names and functions 11 Using the touch screen 15 Using the Home screen 18 Using the widget 20 Viewing User's Manual on Web 21 2 System Overview User Profile 22 Voice recognition 24 Connecting a Bluetooth device 26 3 Bluelink Bluelink service 30 Subscribing to the service 33 Remote control service 38 Safety/security services 38 Vehicle care service 45 Route guidance service 46 4 Map Using the navigation functions 48 Finding a route easily 50 Searching a previous destination 54 Changing the route search criteria 55 Editing the route 55 Searching for nearby points of interest 58 Viewing accident newsflash 59 Using saved favorite places 60 7 5 Media Turning on the FM radio 64 Turning on the AM radio 67 Listening to HD Radio™ 69 Listening to SiriusXM™ radio 71 Playing music via Bluetooth 74 Using the music streaming service …

Text truncated - open the document above for the full version.

SPECIFICATIONS FOR APPROVAL PRODUCT NAME : WiFi Dual Band & BT Antenna MODEL NAME : ccNCWiFi Dual Band & BT + WiFi 5G Antenna CUSTOMER P/N : M3012001351 APPROVALREMARK DesignedCheckedApproved LG InnotekCo., Ltd. DOCUMENT No. Y. H. KIMK.Y.LEEW. K. JUNGPAGE13 APPENDIX (00)-0070 CUSTOMER : HYUNDAI MOBIS. DATE : 2022.08.29. a a TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (2/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] Revision History RevisionDateContents of Revision ChangeRemark 1.02021.12.07Wi-Fi & BT ANT Specifications 1.12022.07.04ChangeModel Name on page 1 Change P/N -> M3012001351 on page 1 a TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (3/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] Table of Contents NoDescriptionPage 1ANT Features(WiFi)4 1.1 Antenna Characteristics4 2ANT Features(BT)5 2.1Antenna Characteristics5 3TestData(WiFi& BT)6 3.1 Network Data(BT Core0 + WiFi5GHz Antenna) 3.2 Network Data(WiFiCore1 WiFiOnly 2.4GHz 5GHz Dual Antenna) 3.3 Efficiency BT 3.4 Efficiency WiFi 6 7 8 9 3.5 Radiation Pattern(WiFi& BT)10 4Mechanical Specification11 5ANT Test Condition 12 5.1 Antenna Return Loss measurement 13 TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (4/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 1.1. Antenna Characteristics 1. ANT Features(WiFi) -Dual Bands Wi-Fi ANT -Main Frequency: 2.45GHz, 5.5GHz -Frequency range : From 2.40 to 2.50GHz, 5GHz~6GHz -Operating temperature range : -35 to +95°C (typ.) -Wi-Fi ANT Material : Printed on FR-4 -Core0 ANT Size (18.3mm x 15.5 mm) -Core1 ANT Size (33.45mm x 9.7 mm) Antenna Performance ParameterMinTypMaxUnit Frequency Range 240024502500MHz 500055006000MHz Directivity-Omni-- Full Bands Average Gain(core0)---5.03 dBi Full Bands Average Gain(core1)---6.28 Full Bands Average Peak Gain(core0) -1.96 Full Bands Average Peak Gain(core1) -1.19 V.S.W.R 2GHz3:1--Under V.S.W.R 5GHz4:1--Under Impedance50Ohm Radiation MaterialPrinted WiFi Core0 5GHz, Core1 2.4GHz + 5GHz TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (5/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 2.1. Antenna Characteristics 2. ANT Features(BT) Antenna Performance ParameterMinTypMaxUnit Frequency Range240024502500MHz Directivity-Omni-- Full Bands Average Gain---7.16 dBi Full Bands Average Pick Gain--2.09 V.S.W.R3:1--Under Impedance50Ohm Radiation MaterialPrinted BT ANT(Core 0 2GHz) -Single Bands Bluetooth ANT -Main Frequency: 2.45GHz -Frequency range : From 2.40 to 2.50GHz -Operating temperature range : -35 to +95°C (typ.) -Wireless audio ANT Material : Printed on FR-4 -Core0 ANT Size (18.3mm x 15.5 mm) TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (6/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 3.1 Network Data (BT Core0 + WiFi 5GHz Antenna) 3:1 Return Loss Smith Chart SWR BT ANT WiFi ANT BT ANT WiFi ANT 3. Test Data TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (7/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 3.2 Network Data(WiFi Core1 WiFi Only 2.4GHz 5GHz Dual Antenna) 3:1 Return Loss Smith Chart SWR TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (8/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 3.3 Efficiency (BT : core 0 2.4GHz) BT Core0 2.4GHz Antenna 123456789 240024102420243024402450246024702480 -8.44-8.44-7.42-6.66-5.90-5.54-6.53-7.91-8.99 14.314.318.121.625.727.922.216.212.6 -9.80-9.74-8.72-8.08-7.43-7.09-8.25-9.88-11.06 -2.31-2.04-1.67-1.54-1.68-1.47-2.64-4.49-4.94 -31.88-32.72-33.27-25.32-24.13-27.70-28.91-32.69-32.03 -14.13-14.32-13.31-12.19-11.18-10.75-11.38-12.29-13.22 -7.43-6.91-5.34-3.90-2.81-2.51-3.97-5.99-7.02 -40.98-27.53-35.71-24.09-28.35-29.35-31.83-31.88-44.48 -11.00-11.02-10.08-9.40-8.75-8.46-9.49-10.76-11.79 55.555.354.353.251.951.050.651.852.5 -9.05-9.10-8.08-7.32-6.78-6.59-7.77-8.98-9.70 -8.30-8.17-7.63-8.33-8.31-7.65-8.74-9.87-9.82 -15.25-14.86-13.73-12.69-11.54-11.17-12.23-13.95-15.27 -2.22-1.89-1.48-1.34-1.48-1.38-2.63-3.56-2.85 6.226.555.945.324.424.163.904.356.15 -21.96-20.78-16.40-13.56-13.35-13.37-17.03-22.21-22.37 -7.16dB19.22%Average Efficiency H-Plane E1-Plane, AVG [dB] E2-Plane, AVG [dB] Peak Gain [dB] Directivity [dB] Minim um Gain [dB] Gain θ Min [dB] TRG φ [dB] Gain φ Peak [dB] Gain φ Min [dB] UHRG [dB] UHRG/TRG [%] Frequency [MHz] Efficiency [dB] Efficiency [%] TRG θ [dB] Gain θ Peak [dB] TITLE : Specifications for approval (CUSTOMER P/NO : M3012001351) REV 0.1 (9/ 13) (30) -4021 대외비2급 LG Innotek Confidential : This document is protected by security policies and laws. [Restricted] 3.4 Efficiency (WiFi : core 0 5GHz, Core 1 2.4GHz + 5GHz) WiFi core1 2GHz Antenna WiFi core1 5GHz Antenna WiFi core0 5GHz Antenna 1 2 3 4 5 2412 2420 2450 2460 2485 -5.54 -5.58 -5.85 -5.36 -4.42 28.0 27.7 26.0 29.1 36.1 -7.69 -7.62 -7.57 -7.06 -6.36 -0.43 -1.13 -2.32 -1.81 -0.65 -26.23 -29.77 -29.45 -26.12 -25.85 -9.62 -9.84 -10.70 -10.24 -8.86 -2.67 -2.05 -1.51 -1.53 -1.23 -26.96 -33.32 -30.25 -29.34 -27.13 -8.18 -8.13 -8.32 -7.84 -6.89 54.4 55.6 56.5 56.4 56.7 -7.12 -7.03 -7.49 -7.32 -6.05 -7.22 -7.41 -6.63 -5.87 -6.15 -11.29 -11.71 -12.43 -11.70 -10.35 0.19 -0.46 -0.61 -0.26 0.14 5.72 5.12 5.24 5.10 4.57 -13.55 -14.60 -26.68 -22.35 -13.45 -5.35 dB 29.37 % Average Efficiency Minim um Gain [dB] UHRG/TRG [%] H-Plane E1-Plane, AVG [dB] E2-Plane, AVG [dB] Peak Gain [dB] Directivity [dB] Gain θ Peak [dB] Gain θ Min [dB] TRG φ [dB] Gain φ Peak [dB] Gain φ Min [dB] UHRG [dB] F…

Text truncated - open the document above for the full version.

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135-977, Korea Tel. 82‐31‐260‐0092 November 16, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Joohee Park, Jinhyoung Cho) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Applicant Declaration Applicant Declaration Rev: 0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -VN470ZZZAN Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in thi s application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2022-11-16 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 16 November 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Request of Confidentiality for FCC ID: TQ8-VN470ZZZAN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Te s t-Setup Photos 7 User’s Manual Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Seung-Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 LETTER OF DECLARATION We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that (1) the band from 5600-5650MHz will be disabled by the software during the manufacturing and which cannot be changed by the end-user. (2) When being operating for Slave mode, this Product will be only controlled by a master device which does not use 5600-5650MHz Band in USA and Canada. FCC model : VN470ZZZAN, VN450ZZZAN ISED model : VN470ZZZKN, VN450ZZZKN Sincerely, November 15, 2022 __________________ ____ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 Letter of Declaration Product Equality We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that they have the following differences in supported features. _________________________ Seung Hoon Choe Representative Hyundai MOBIS Co., Ltd. * Supported Product Feature and its meaning: RVM/SVM: Rear View or Surround View module Description of Variant Models Model Names Description Marketing Area BT WLAN Speaker ch. RVM Camera Built-in Camera SVM Camera ICC Camera Basic Model FCC VN470ZZZAN U.S.A O O 10 O O O O IC VN470ZZZKN Canada O O 10 O O O O Variant Model FCC VN450ZZZAN U.S.A O O 6 O X X X IC VN450ZZZKN Canada O O 6 O X X X Note; All the test was performed with basic model.

The description of the software must address the following questions in the operational description for the device and clearly demonstrate how the device meets the security requirements. Software Security Description based on KDB 594280 D02 U-NII Device Security 1. Describe how any software/firmware update will be obtained, downloaded and installed Description: It is only one way (USB) to copy and install the Software/Firmware. 2. Describe all the radio frequency parameters that are modified by any software/firmware without any hardware changes. Are these parameters in some way limited, such that, it will not exceed the authorized parameters? Parameters. The product follows AP setting to adjust the frequency parameters. Software/Firmware are encryped with integrity check. 3. Are there any authentication protocols in place to ensure that the source of the software/firmware is legitimate? If so, describe in details; if not, explain how the software is secured from modification Software/Firmware are encrypted with integrity check (AES128) to ensure the validity of its content. 4. Are there any verification protocols in place to ensure that the software/firmware is legitimate? If so, describe in details It is not support the wireless updating. So it is not use the verification protocol. But software has encrypted by AES128, Because Software/Fimware are legitimate. 5. Describe, if any, encryption methods used Description: Firmware encrypted by AES128 6. For a device that can be configured as a master and client (with active or passive scanning), explain how the device ensures compliance for each mode? In particular if the device acts as master in some band of operation and client in another; how is compliance ensured in each band of operation The device can be operated as master and client, but the software only support a way to operated, if operate as master then client can’t to operate and if operated as client then master can’t to operate. Only 149 channel can be operated as master for this device, without radar detection. 7. How are unauthorized software/firmware changes prevented? Software/Firmware are protected by signing, encryption and its checksum for integrity check Without passing the firmware integrity check, no upgrade will be performed. FCC ID: TQ8-VN470ZZZAN IC: 5074A-VN470ZZZKN Hyundai MOBIS Co., Ltd. 8. Is it possible for third parties to load device drivers that could modify the RF parameters, country of operation or other parameters which impact device compliance? If so, describe procedures to ensure that only approved drivers are loaded. It is not possible, The device block unauthorized device driver so that only allowed drivers can be loaded. 9. Explain if any third parties have the capability to operate a US sold device on any other regulatory domain, frequencies, or in any manner that is in violation of the certification. The software/firmware are encrypted and controlled by the manufacturer through an integrity check (AES128). So, it is not possible. 10. What prevents third parties from loading non‐US versions of the software/firmware on the device? Softeawre/Firmware are protected by signing, encryption and its checksum for integrity check Without pass ing the firmware integrity check, no upgrade will be performed. 11. For modular devices, describe how authentication is achieved when used with different hosts. It is not modular device. In addit ion to the general security consideration, for devices which have “User Interfaces” (UI) to configure the device in a manner that may impact the operational parameter, the following questions shall be answered by the applicant and the information included in the operational description. USER CONFIGURATION GUIDE 1. To whom is the UI accessible? (Professional installer, end user, other.) a) What parameters are viewable to the professional installer/end‐user? In UI, there are just for end user, they can contol only user interface like navigation and AV function. Both professinal installer and end user couldn’t contect detail setting. b) What parameters are accessible or modifiable to the professional installer? They can not access any detail parameters in devices cause in UI, there are no menu for modifiable menu. i) Are the parameters in some way limited, so that the installers will not enter parameters that exceed those authorized? All above parameters have pre‐defined rang according to the certification test result. They are stored in the ROM, which not allow user to adjust beyond the pre‐set value. ii) What controls exist that the user cannot operate the device outside its authorization in the U.S.? All parameters indicating different countries are permanent setting in the ROM. If a device is a product for US, it cannot be changed for another region. c) What configuration options are available to the end‐user? End user can not contect any detail configuration options. i) Are the parameters in some way limited, so that the installers will not enter parameters that exceed those authorized? All above parameters have pre‐defined rang according to the certification test result. They are stored in the ROM, which not allow user to adjust beyond the pre‐set value. ii) What controls exist that the user cannot operate the device outside its authorization in the U.S.? All parameters indicating different countries are permanent setting in the ROM. If a device is a product for US, it cannot be changed for another region. d) Is the country code factory set? Can it be changed in the UI? It has country code but cannot be changed in the UI. i) If so, what controls exist to ensure that the device can only operate within its authorization in the U.S.? N/A e) What are the default parameters when the device is restarted? It is depend on country code, If it is US region, country co de will be loaded US. Our Wi‐Fi related paramters are permenant even if the device is restarted. 2. Can the radio be configured in bridge or mesh mode? If yes, an attest…

Text truncated - open the document above for the full version.

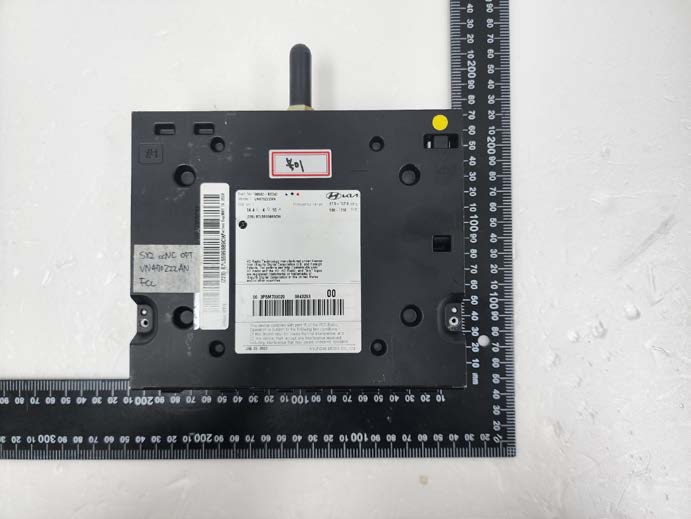

Model name: VN470ZZZAN, VN470ZZZKN External photos of EUT Model name: VN470ZZZAN, VN470ZZZKN Top view of EUT Bottom view of EUT Model name: VN470ZZZAN, VN470ZZZKN Side view of EUT Model name: VN470ZZZAN, VN470ZZZKN

FCC LABEL Information Model Name: VN470ZZZAN Hyundai MOBIS Co., Ltd. FCC ID: TQ8-VN470ZZZAN FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL FCC LABEL Information Model Name: VN450ZZZAN FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. PRODUCT LABEL Hyundai MOBIS Co., Ltd. FCC ID: TQ8-VN470ZZZAN This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS

Model name: VN470ZZZAN, VN470ZZZKN Internal photos of EUT Model name: VN470ZZZAN, VN470ZZZKN Internal view of EUT Model name: VN470ZZZAN, VN470ZZZKN Top view of Main PCB Bottom view of Main PCB Model name: VN470ZZZAN, VN470ZZZKN Top view of Sub PCB1 Bottom view of Sub PCB1 Model name: VN470ZZZAN, VN470ZZZKN Top view of Sub PCB2 Bottom view of Sub PCB2 Model name: VN470ZZZAN, VN470ZZZKN View of Module - With shiled-can - Without shiled-can BT/WIFI Module BT/WIFI Module Model name: VN470ZZZAN, VN470ZZZKN View of Antenna WiFi 2.4GHz and 5GHz Core1 Dual Antenna BT+ WiFi 5GHz Core0 Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003495-1 Page: 2 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 6 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003495-1 Page: 3 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : Hyundai Mobis Co., Ltd. Address : 203, Teheran-ro, Gangnam-gu, Seoul, South Korea, 135-977 Contact Person : Choe, Seung-hoon Phone No. : +82 31 260 0098 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL003495-1 Page: 4 of 9 RTT7081-02(2020.10.05)(0) A4(210 mm * 297 mm) 1.4. Description of EUT Kind of Product Car infotainment system Model Name VN470ZZZAN Variant Model Name VN450ZZZAN Power Supply DC 14.4 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth) 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth Low Energy) 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) 5 180 ㎒ ~ 5 240 ㎒ (Band 1: 11a/n_HT20, 11ac_VHT20) 5 190 ㎒ ~ 5 230 ㎒ (Band 1: 11n_HT40, 11ac_VHT40) 5 210 ㎒ (Band 1: 11ac_VHT80) 5 260 ㎒ ~ 5 320 ㎒ (Band 2A: 11a/n_HT20, 11ac_VHT20) 5 270 ㎒ ~ 5 310 ㎒ (Band 2A: 11n_HT40, 11ac_VHT40) 5 290 ㎒ (Band 2A: 11ac_VHT80) 5 500 ㎒ ~ 5 720 ㎒ (Band 2C: 11a/n_HT20, 11ac_VHT20) 5 510 ㎒ ~ 5 710 ㎒ (Band 2C: 11n_HT40, 11ac_VHT40) 5 530 ㎒ ~ 5 690 ㎒ (Band 2C: 11ac_VHT80) 5 745 ㎒ ~ 5 825 ㎒ (Band 3: 11a/n_HT20, 11ac_VHT20) 5 755 ㎒ ~ 5 795 ㎒ (Band 3: 11n_HT40, 11ac_VHT40) 5 775 ㎒ (Band 3: 11ac_VHT80) Modulation Technique DSSS, OFDM, GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (Bluetooth) 40 channels (Bluetooth Low Energy) 11 channels (11b/g/n_HT20) 4 channels (Band 1: 11a/n_HT20, 11ac_VHT20) 2 channels (Band 1: 11n_HT40, 11ac_VHT40) 1 channel (Band 1: 11ac_VHT80) 4 channels (Band 2A: 11a/n_HT20, 11ac_VHT20) …
