TQ8-VT230DJANDIGITAL CAR AVN SYSTEM

Car Infotainment System Quick Reference Guide FCC ID: TQ8-VT230DJAN IC: 5074A-VT230DJKN [ This guide covers specifications for all vehicle models, including optional specifications, and is based on the latest version of system software. [ The design and specification of the system may change without prior notice for performance improvement. [ In order to improve the product performance, the functions and services in this manual are subject to change without notice. In case of software update, the screens in this manual may differ from actual ones on the product. [ For more information about the functions and services updated for performance improvement, access the online user's manual. [ Functions and services in this manual may differ from those in the actual vehicle. For more details, refer to the owner's manual or brochure of your vehicle. [ Your system is not compatible with the system software and map data for regions outside of the country of purchase. To access the online manual for Car Infotainment System, scan the QR code. Be sure to read this User's Manual before using the product to ensure safety and usability. 1 Reading the manual on web with the QR code You can access the online user's manual of the system by scanning the QR code with your smartphone. Ý Warning Park the vehicle at a safe place and scan the QR code. To ensure your safety, the system does not provide QR codes while driving. 1 Scan the QR code by using any of the following methods: • On the All Menus screen, press User's Manual. • On the All Menus screen, press Setup > General > System Info > User's Manual on Web (QR Code). • Or scan the QR code in the Quick Reference Guide. 2 Scan the QR code after installing the QR code reader App from App Store ( ) or Google Play Store ( ). 3 Press the URL for User's Manual on Web from the smartphone display. The online user's manual of the system appears in the Internet browser App on the smartphone. A Depending on how you scan the QR code, the online manual may open without pressing the URL. A With a camera App of your iPhone or Android smartphone, the QR code can also be scanned. Depending on the Android smartphone model, the QR code scanning may not be supported for the provided App. For more details, see the smartphone's manual. A When you scan the QR code on each function menu, you can see the usage of the function running (except for several functions). Run the desired function on the system and then press User's Manual on Web (QR Code) from the menus on the screen. A Without scanning the QR code, you can directly enter the URL address to see User's Manual on Web. (http://webmanual.kia.com/STD_GEN5_WIDE/AVNT/USA/English/index.html) 2 Safety Warnings Be sure to keep the following instructions. Otherwise, it may cause serious injury or accident. Ý Driving Obey all traffic laws while driving. • Relying solely on the navigation system may cause violation of traffic rules and regulations, resulting in an accident. In order to check the vehicle speed, see the speedometer first, not the speed on the navigation system. • The speed on the navigation system may differ from actual vehicle speed. While driving, refrain from watching the screen. • An accident may occur by negligence in keeping your eyes forward. • To manipulate the screen or buttons requiring multiple steps, be sure to stop your vehicle. To use your mobile phone, first stop your vehicle. • When you use your mobile phone while driving, it may disperse your attention, resulting in an accident. • When making a call while driving, use the Bluetooth Hands-free function and if possible, minimise the call time. Make sure that the volume of the phone is sufficiently low so that the external sound is audible. • When you drive with no external sound present may cause a traffic accident. • When you drive for a long time with a loud audio volume, it may affect your hearing. For emergency services (e.g. hospital, fire station), do not rely solely on the navigation system. • Some emergency services may not be included in the navigation map. Check relevant information in advance to stay prepared for an emergency. Ý System handling Do NOT arbitrarily disassemble or modify the system. • It may cause an accident, fire, or electric shock. Exercise caution to make sure that no liquid or foreign materials enter the system. • It may cause smoke generation, fire ignition, or system failure. When the screen is not displayed, the volume is muted, or other system failures occur, immediately stop using the system. • Otherwise, it may cause fire, electric shock, or fatal system failure. A If you experience any problems with the system, contact your place of purchase or dealer. 3 Safety Precautions Be sure to keep the following instructions. Otherwise, it may cause minor injury or system damage. ÜÜ Operation Use the system with the vehicle started. • When you use the system for a long time with the vehicle stopped, it may cause battery discharge. Do NOT arbitrarily install an unauthorised aftermarket product in your vehicle. • Using unapproved products may cause an error while using the system. • System errors caused by installing unapproved products are not covered under the warranty. ÜÜ System handling Do NOT apply excessive force to the system. • When you apply excessive pressure to the screen, the LCD panel or touch panel may get damaged. To clean the screen or button panel, first turn off the vehicle and then use a dry, soft cloth to wipe it. • Do not wipe using a rough or hard cloth, chemical fibre, organic solvent (e.g. alcohol, benzene, thinner), or air freshener. The panel surface may become scratched or damaged due to a chemical reaction. When you install an air freshener on the air conditioner vent, the surface may be deformed due to leakage. A If you experience any problems with the system, contact your place of purchase or dealer. 4 A The system shape and menu arrangement may differ depending on the vehicle model and specificatio…

Text truncated - open the document above for the full version.

5-28 Searching for gas stations You can search nearby gas stations. 1 On the Navigation Menu screen, press POI Display > Gas Stations. A Available icons and their arrangement may differ depending on the vehicle model and specifications. 2 Select a destination from the search result. A To categorize the searched items, select a category. A To sort the search results in a different order, press on the attribute to toggle between options. A To access the online user's manual on the Gas Stations screen, press > User's Manual on Web (QR Code) and then scan the displayed QR code. 3 Check the location of the destination and then press Set as Destination. 4 Select the desired route from the searched ones and press Start Guidance. 5-29 Searching for EV (Electric Vehicle) charging stations (EV only) You can search nearby charging stations. 1 On the Navigation Menu screen, press POI Display > EV Charging Stations. A Available icons and their arrangement may differ depending on the vehicle model and specifications. 2 Select a destination from the search result. A To categorize the searched items, select a category. A To sort the search results in a different order, press on the attribute to toggle between options. A To access the online user's manual on the EV Charging Stations screen, press > User's Manual on Web (QR Code) and then scan the displayed QR code. 3 Check the location of the destination and then press Set as Destination. 4 Select the desired route from the searched ones and press Start Guidance. 5-30 END USER LICENSE AGREEMENT PLEASE READ THIS END USER LICENSE AGREEMENT ("EULA") CAREFULLY BEFORE USING THE NAVIGATION SYSTEM. This is a license agreement between you and Hyundai MnSoft, INC. including its affiliates ("COMPANY") regarding a copy of the COMPANY navigable map database together with associated software, media and explanatory printed documentation published by COMPANY (jointly the "Product"). The Product is provided for your personal, internal use only and not for resale. It is protected by copyright and is subject to the following terms which are agreed to by you, on the one hand, and COMPANY and its licensors (and their licensors and suppliers) (collectively, "Licensors") on the other hand. By using the Product, you accept and agree to all terms and conditions in this End User License Agreement ("EULA"). IF YOU DO NOT AGREE TO THE TERMS OF THIS EULA, YOU MUST PROMPTLY EXIT THE PRODUCT OPERATION PROGRAM AND DO NOT USE OR ACCESS TO THE PRODUCT. YOU AGREE THAT YOUR RIGHTS UNDER THIS EULA MAY BE TERMINATED AUTOMATICALLY WITHOUT NOTICE IF YOU FAIL TO COMPLY WITH ANY TERM(S) OF THIS EULA. Terms and Conditions Personal Use Only. You agree to use this Product together with COMPANY's authorized application for the solely personal, non-commercial purposes for which you were licensed, and not for service bureau, time-sharing or other similar purposes. Accordingly, but subject to the restrictions set forth in the following paragraphs, you agree not to otherwise reproduce, copy, modify, decompile, disassemble, create any derivative works of, or reverse engineer any portion of this Data, and may not transfer or distribute it in any form, for any purpose, except to the extent permitted by mandatory laws. You may not assign this EULA or any of the rights or licenses granted under this EULA, except when installed in the system for which it was created. Restrictions. Except where you have been specifically licensed to do so by COMPANY, and without limiting the preceding paragraph, you may not use the Product (i) with any products, systems, or applications installed or otherwise connected to or in communication with vehicles, capable of vehicle navigation, positioning, dispatch, real time route guidance, fleet management or similar applications; or (ii) with or in communication with any positioning devices or any mobile or wireless-connected electronic or computer devices, including without limitation cellular phones, palmtop and handheld computers, pagers, and personal digital assistants or PDAs. 5-31 COPYING OR USE OF THE PRODUCT EXCEPT AS PERMITTED BY THIS EULA IS UNAUTHORIZED AND IS COPYRIGHT INFRINGEMENT UNDER THE LAWS OF YOUR COUNTRY. IF YOU COPY OR USE THE PRODUCT WITHOUT COMPANY'S PERMISSION, EXCEPT AS PERMITTED BY THIS EULA, YOU ARE VIOLATING THE LAW AND LIABLE TO COMPANY AND ITS LICENSORS FOR DAMAGES, AND YOU MAY BE SUBJECT TO CRIMINAL PENALTIES. THE PRODUCT MAY INCLUDE ENFORCEMENT TECHNOLOGY DESIGNED TO PREVENT (i) UNAUTHORIZED COPYING OF THE PRODUCT ONTO PHYSICAL STORAGE MEDIA OR VIA TRANSFER OVER THE INTERNET OR OTHER ELECTRONIC COMMUNICATION MEANS AND/OR (ii) ILLEGAL USAGE OF THE PRODUCT OTHER THAN BY A SPECIFICALLY AHTORIZED DEVICE. YOU AGREE THAT COMPANY MAY USE THESE MEASURES TO PROTECT COMPANY AND THE LICENSORS AGAINST COPYRIGHT INFRINGEMENT. Uploads. The Product may provide functionality through which you are able to upload certain information about your use of the Product (collectively, "Uploads") to COMPANY's servers or receive other services from COMPANY (collectively, the "Services"). If you use such functionality, you authorize COMPANY to retain your Uploads on its servers. COMPANY will have no obligation to provide any Services, may change the form and nature of any Services at any time with or without notice to you, will have no liability whatsoever to you for any failure of the Product or Services to transmit your Uploads to or from COMPANY's servers, may cease providing any Services at any time with or without notice to you, and will have no obligation to retain your Uploads (or any other materials you may provide to COMPANY) on its servers or return your Uploads (or any other materials you may provide to COMPANY) to you before deleting them from its servers. Storage. The Product may provide functionality through which you are able to store information (such as images) on the device on which you are using the Product. COMPANY will have no liability whatsoever to you o…

Text truncated - open the document above for the full version.

9-80 Reset You can initialize all system settings. A You can also initialize all settings of the login profile. ÜÜ Caution • When initialization is performed, all user data in the system ni cluding the location data is deleted. • When phone projection is active, you cannot reset the system settings. To reset the settings, remove the USB cable from your system. Configuring the display settings (Type1) You can change the system display settings such as display brightness. 1 On the All Menus screen, press Setup > Display. The display settings screen appears. 2 Configure the settings required: A Press Menu > Search for Settings or press and enter a keyword to search for a setting item. You can also search for a setting item by voice. A If you press Display Off at the top of the screen, the screen is switched off. To switch the screen back on, press the screen or briefly press the power knob. 9-81 Illumination You can set the system to automatically adjust the display brightness depending on the ambient light intensity. You can also set the system to keep the display bright or dark all the time. You can set to automatically adjust the display brightness depending on the cluster illumination. You can also set the level of display brightness to use while using the daytime or night mode. Mode • Automatic: The display brightness is automatically adjusted based on the surrounding environment. • Daylight: It keeps the display always bright regardless of the surrounding environment. • Night: It keeps the display always dark regardless of the surrounding environment. Illumination • Link to Cluster Illumination Control: The display brightness is automatically adjusted based on the cluster illumination. • Daylight: You can set the display brightness when Daylight is selected under Mode. Uncheck Link to Cluster Illumination Control and then set to the desired brightness. • Night: You can set the display brightness when Night is selected under Mode. Uncheck Link to Cluster Illumination Control and then set to the desired brightness. A To reset all screen brightness settings to the default values, press Reset. 9-82 Blue Light Filter Enable blue light filtering to adjust the screen light to reduce the level of eye strain. Use Blue Light Filter Enable or disable blue light filtering. Blue Light Filter Settings Set to activate blue light filtering automatically based on the ambient light or pick the time range manually. • Automatic: Enable blue light filtering based on the ambient light. • Scheduled Time: Enable blue light filtering during the set time range. Screen Saver You can select the items to display on the screen saver in standby mode. None Displays nothing on the system screen saver. Digital Clock Displays the digital clock on the system screen saver. Analog Clock Displays the analog clock on the system screen saver. A Press to choose the Analog Clock to show on the screen. 9-83 Home Screen You can change the layout of the Home screen. Edit Home Widgets You can edit the types and arrangement of home widgets. A For more information: > see "Editing the widgets on the Home screen (Type1)." Edit Home Icons You can edit the arrangement of home icons. A For more information: > see "Editing the icons on the Home screen (Type1)." Split Screen You can specify the items to display on the Split Screen. A The screen may differ depending on the vehicle model and specifications. A This option is only available when the display supports Split Screen. A On the screen list, press on the right and drag the item to reposition. 9-84 Media Change Notifications You can set to briefly display media information at the top of screen while playing the next item when you move from the media player screen to another. Extend Rear Camera Use You can set to display the rear camera display even when you change the shift position other than "R" (Reverse) after reversing. A When you shift to "P" (Park) or drive at a predetermined speed or faster, the rear view display disappears to display the previous screen. Reset You can initialize all display settings such as brightness. 9-85 Configuring the display settings (Type2) You can change the system display settings such as display brightness. 1 On the All Menus screen, press Setup > Display. The display settings screen appears. 2 Configure the settings required: A Press > Search for Settings or press and enter a keyword to search for a setting item. You can also search for a setting item by voice. A If you press Display Off at the top of the screen, the screen is switched off. To switch the screen back on, press the screen or briefly press the power knob. Illumination You can set the system to automatically adjust the display brightness depending on the ambient light intensity. You can also set the system to keep the display bright or dark all the time. You can set to automatically adjust the display brightness depending on the cluster illumination. You can also set the level of display brightness to use while using the daytime or night mode. Mode • Automatic: The display brightness is automatically adjusted based on the surrounding environment. • Daylight: The display brightness is adjusted to ensure that items are easier to see when the surrounding area is bright. • Night: The brightness is adjusted to prevent glare when the surrounding area is dark. 9-86 Illumination • Link to Cluster Illumination Control: The display brightness is automatically adjusted based on the cluster illumination. • Daylight: You can set the display brightness when Daylight is selected under Mode. Uncheck Link to Cluster Illumination Control and then set to the desired brightness. • Night: You can set the display brightness when Night is selected under Mode. Uncheck Link to Cluster Illumination Control and then set to the desired brightness. A To reset all screen brightness settings to the default values, press Reset. Blue Light Filter Enable blue light filtering to adjust the screen light to reduce the leve…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev: 0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hyundai MOBIS Co., Ltd. Address 203, Teheran-ro, Gangnam-gu, Seoul, 135-977, Korea Grantee Code TQ8 FCC ID -VT230DJAN Authorized Contact Name Seung Hoon Choe Contact Email [email protected] Contact Phone +82-31-260-0098 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in thi s application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has r ead, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020-12-17 Print Name: Seung Hoon Choe Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hyundai MOBIS Co., Ltd. 203, Teheran‐ro, Gangnam‐gu, Seoul, 135-977, Korea Tel. 82‐31‐260‐0092 December 17, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Letter of Authorization We, Hyundai MOBIS Co., Ltd. hereby authorize SGS Korea Co., Ltd. (Joohee Park, Hyunchae You) to act on our behalf in all matters of certification. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). Any and all acts carried out by SGS Korea on our behalf shall have the same effect as acts of our own. This authorization is valid until further written notice. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd.

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. 82-3 1-2 60-0 092 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Hyundai MOBIS Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04- 1705. This provision will give Hyundai MOBIS Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short-Term 4 External Photos 5 Internal Photos 6 Test -Setup Photos 7 User ’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, __________________________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd. Request of Confidentiality for FCC ID: TQ8-VT230DJAN December 17, 2020

Hyundai MOBIS Co., Ltd. 203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea Tel. +82-31-260-2707, Fax. +82-31-899-1788 LETTER OF DECLARATION We, Hyundai MOBIS Co., Ltd., as a manufacturer of following models, hereby declare that (1) the band from 5600-5650MHz will be disabled by the software during the manufacturing and which cannot be changed by the end-user. (2) When being operating for Slave mode, this Product will be only controlled by a master device which does not use 5600-5650MHz Band in USA and Canada. FCC Basic model : VT230DJAN FCC Variant models : VT230DLAN, VT240DJAN, VT240DLAN ISED Basic model : VT230DJKN ISED Variant models : VT230DLKN, VT240DJKN, VT240DLKN Sincerely, December 22, 2020 _______ _______________ Seung Hoon Choe Senior Researcher Hyundai MOBIS Co., Ltd

FCC LABEL Information Model Name: VT230DJAN, VT230DLAN, VT240DJAN, VT240DLAN Hyundai MOBIS Co., Ltd. FCC ID: TQ8-VT230DJAN Contains FCC ID: YZP-VL3000 FRONT TOP Non-removable LABEL LABEL LOCATION Hyundai MOBIS Co., Ltd. This device complies with part 15 of the FCC rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. MANUFACTURED BY HYUNDAI MOBIS PRODUCT LABEL

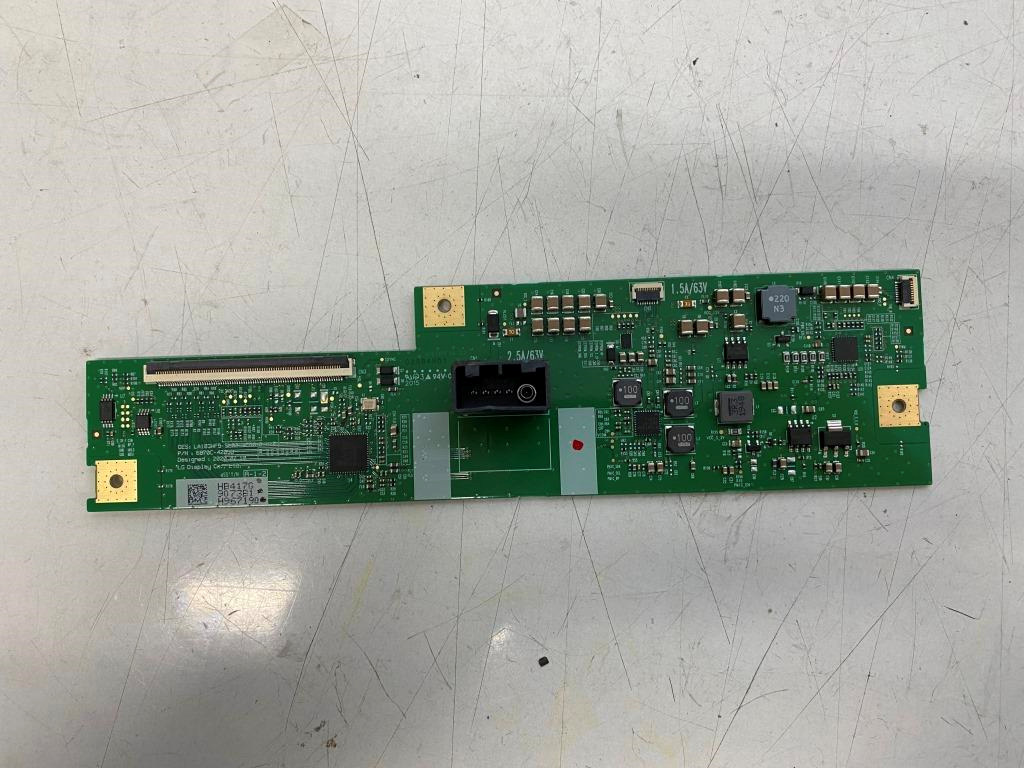

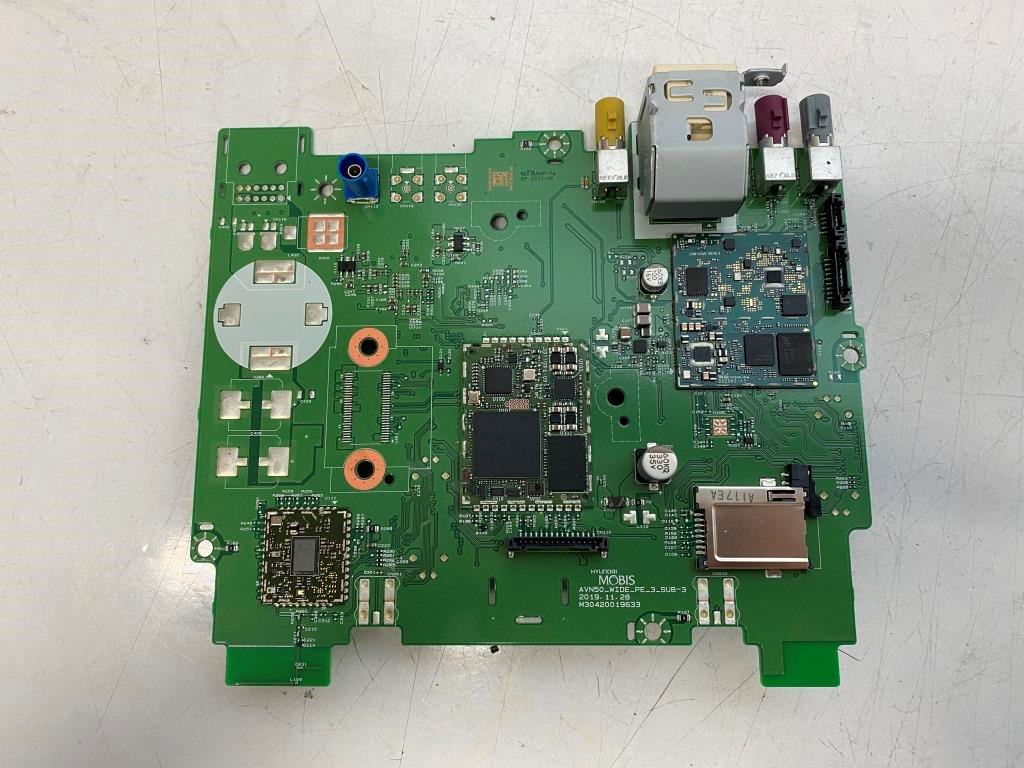

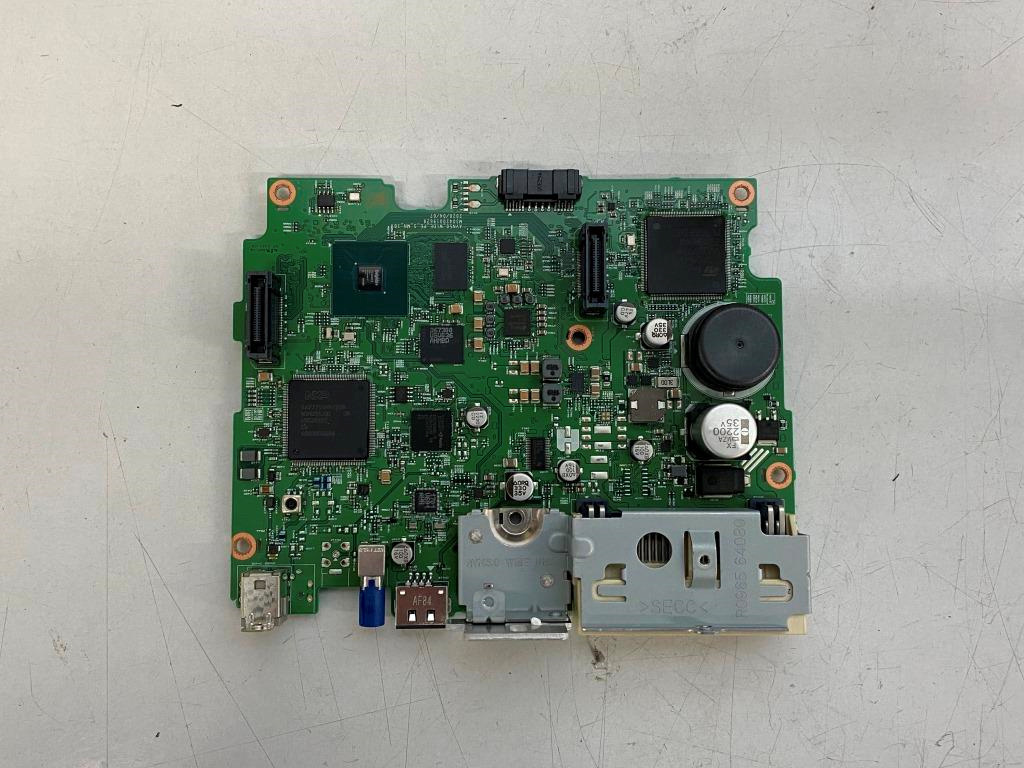

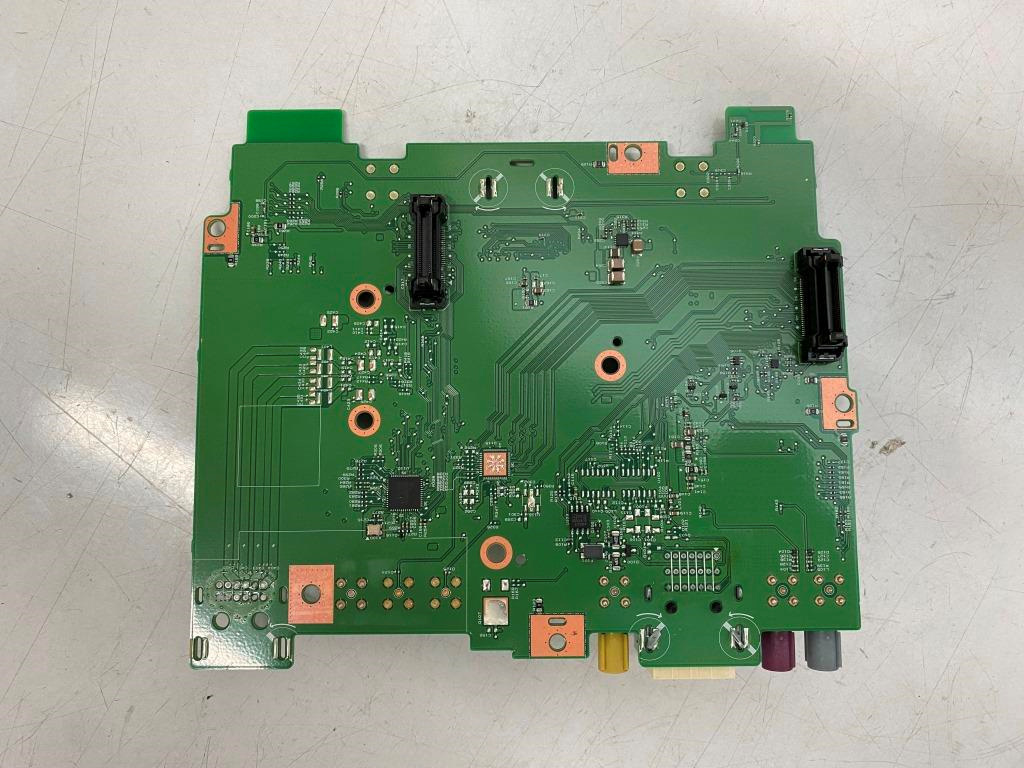

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB1 Bottom view of Sub PCB1 Top view of Sub PCB2 Bottom view of Sub PCB2 Top view of Sub PCB3 Bottom view of Sub PCB3 View of Module Approved the module with the shielding cover BT/WIFI Combo Module View of Antenna WIFI Antenna Bluetooth Antenna
