TRQTM-LINETraffic Control System

parc scientifique Einstein – avenue Albert Einstein 11i – B-1348 Louvain-la-Neuve tél. : 32-(0)10-45 41 02 – fax : 32-(0)10-45 04 61 – e-mail : [email protected] TM60 The TM60 microwave radar is designed to detect moving vehicles, for call or extension of a signal phase. Compact and light, it is easy to install and doesn’t require civil works nor disruption to traffic. Comfort >Environmental insensitivity : dust, heat, intense cold, humidity, ... have no influence on the radar’s performances >Cable connector at the rear >No maintenance >Delivered ready to install, i.e. including cable, fixing support, screws and bolts Safety >Settings adjustable without dismantling >Aluminium IP68 housing >Operating temperature from - 40°C to + 75°C TM60 Settings >Sensitivity (size of detection zone) >Minimum speed threshold for detection (from 1 to 16 km/h) >Movement direction Options >Low voltage : TM60LV (12-24 VAC/VDC, 48 VDC or 110 VAC 50/60 Hz) >Two directions detection Specifications >ISO9001/2000 >CE(electromagnetic compatibility and electrical safety) >IBPT (Belgium) : agreement N o RTT/LR/X0163 >Ministerie van Verkeer en Rijkswaterstaat, Rijksdienst voor Radiocom- municatie (Netherlands) : authorisation N o NL99100471 >Cetecom (Germany) : >Deutsche Baumusterprüfbescheinigung, Registriernummer D801368L >Konformitätszertifikat Nummer K801369L >Highways Agency (Great Britain) : Statutory type approval >BAKOM (Switzerland) : homologation N o 98.0324.YP Technical data TM60 Specifications subject to change without prior notice. TML – UK 150402 Detection range60 m for a personal car (installation height of 4.5 m, angle of 5°, sensitivity set on 3/4) Range of detected speedFrom minimum detected speed to 160 km/h Minimum detected speedAdjustable from 1 to 16 km/h FrequencyK-band : 24.1250 GHz Transmission power5 mW Weight950 g, excl. cable and mounting support Dimensions70 x 100 x 216 mm Operating temperatureFrom - 40°C to + 75°C Degree of protectionIP68, EN 50102 (IK) Power supply220 VAC +/- 10 % - 50/60 Hz Power consumption< 1 VA Hold time of relay0.5 sec User outputInverter relay contact Resistive load : 110 V AC 0.5 A – 24 V DC 1A Inductive load : 110 V AC 0.2 A – 24 V DC 0.3 A LED visible on front face Reaction time< 50 ms

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14085 Howard Rd Dayton, MD 21036 TRP Inc October 31, 2005 FCC Laboratory Equipment Authorization Branch 7435 Oakland Mills Rd Dayton, MD 21036 Gentlemen Submitted herewith is an application for certification of a traffic control radar system manufactured by ICOMS Communications SA of Belgium. Confidential treatment is requested for the following exhibits under 0.459 of the FCC Rules: 1. Schematics 2. Theory of operation 3. Parts list 4. Block diagram Disclosure of the above information to others will result in harm to the company. Sincerely, Phillip Inglis TRP/Cetracoms USA Consultant to ICOMS Communications SA

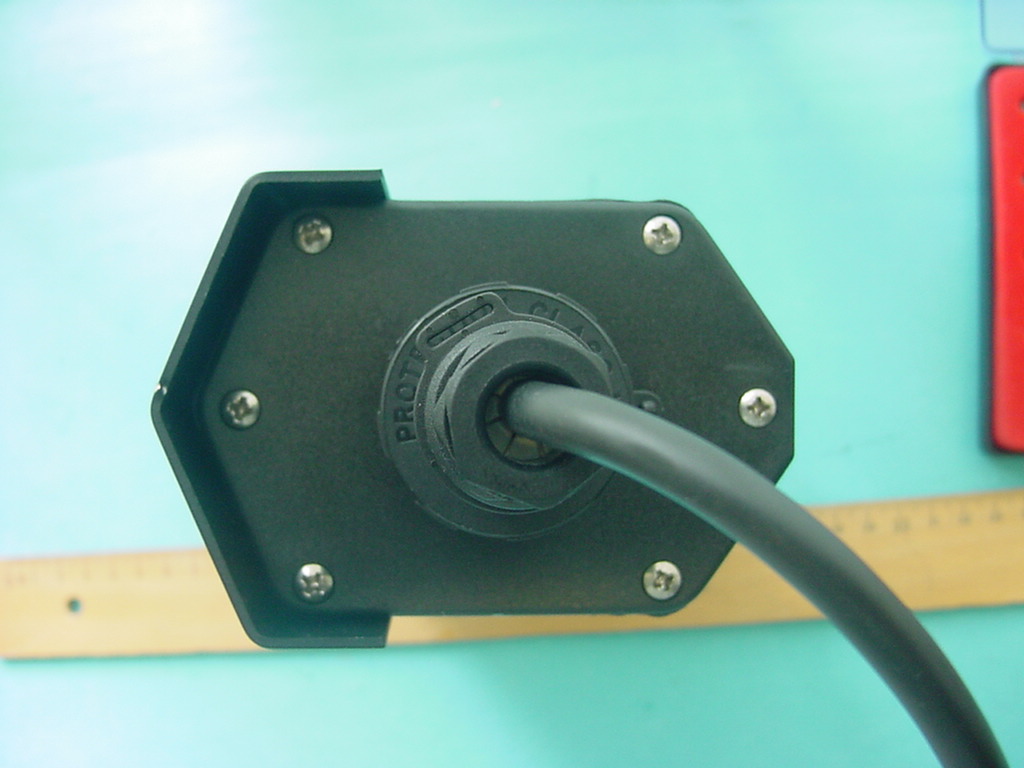

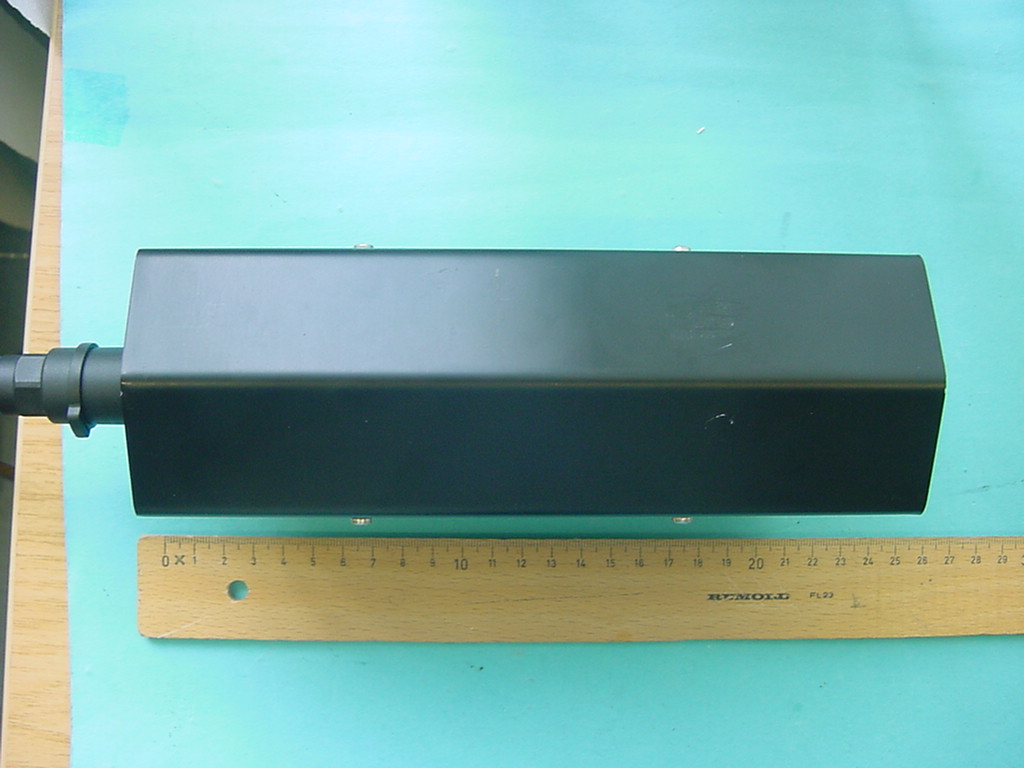

CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 31 of 38 EUT (TM60) Photo No.: 01 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 32 of 38 EUT (TM60) Photo No.: 02 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 33 of 38 EUT (TM60) Photo No.: 03 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 34 of 38 EUT (TM60) Photo No.: 04

FCC ID: TRQTM-LINE IC:6193A-TMLINE ICOMS Communications SA Label is located on bottom of unit

CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 35 of 38 EUT (TM60) Photo No.: 05 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 36 of 38 EUT (TM60) Photo No.: 01 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 37 of 38 EUT (TM60) Photo No.: 01 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 38 of 38 EUT (TM60) Photo No.: 01

Management Service • Product Service • Industry Service • Automotive • BABT TÜV America Inc. is a subsidiary of TÜV SÜD Group. Declaration of Compliance to FCC CFR Part 2, Section 2.1091 Radiofrequency radiation exposure evaluation: mobile devices The Icoms radar control equipment used for traffic control is a mobile device. It operates at a frequency of 24.125 GHz with an ERP of 0.355 watts and remains separated from humans by at least 20 cm. The device is exempt from RF evaluation because of an operating frequency greater than 1.5GHz and an ERP less than 3 watts ( sec. 2.1091 (c) ).

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax +49 (0) 681 598 – 9 075 Test report No.: 2-4040-01-02/05 This test report consists of 38 pages Page 1 of 38 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No. 90462 (FCC) Anechoic chamber registration No. 3463 (IC) TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number DAT–P–176/94-D1 Independent ETSI compliance test house ETSI Test report no. : 2-4040-01-02/05 Applicant : Icoms Communications SA Type : TM60 Test Standard : FCC Part 15 / RSS210 FCC ID : Certification No. IC : CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 2 of 38 Table of contents 1. General information..........................................................................................................3 1.1. Notes .............................................................................................................................. 3 1.2. Testing laboratory .......................................................................................................... 5 1.3. Details of applicant ........................................................................................................ 5 1.4. Application details ......................................................................................................... 5 1.5. Test Item ........................................................................................................................ 6 1.5.1. Operation conditions ...................................................................................................... 7 1.5.2. Equipment under test .....................................................................................................7 1.6. Test standards:................................................................................................................ 7 1.7. Code of Federal Regulations (CFR 47).......................................................................... 7 1.8. Industry Canada Standards............................................................................................. 7 2. Technical test ..................................................................................................................... 8 2.1. Summary of test results .................................................................................................. 8 2.2. Test environment............................................................................................................ 8 2.3. Measurement and test set-up .......................................................................................... 8 2.4. Test equipment utilized and test set-up .......................................................................... 9 2.5. Test results ................................................................................................................... 13 3. Plots, graphs and data sheets ......................................................................................... 17 4. Photographs ..................................................................................................................... 28 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 3 of 38 1. General information 1.1. Notes The test results of this test report relate exclusively to the test item specified in 1.5.. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester : 2005-09-30 Manfred Paschwitz Date Name Signature Technical responsibility for area of testing : 2005-09-30 Dirk Hausknecht Date Name Signature CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 4 of 38 Test Report Cover Sheet/Performance Test Data TEST REPORT NUMBER: 2-4040-01-02/05 EQUIPMENT MODEL NUMBER: TM60 CERTIFICATION NO: 5792A-GR14601 MANUFACTURER : Icoms Communications SA Avenue Einstein 11/i 1348 Louvain-la-Neuve Belgium Mr. Paul FONSNY Tel. +32 10 45 14 40 Fax. +32 10 45 04 61 TESTED TO RADIO STANDARDS SPECIFICATION NO. : RSS210 Issue 5 OPEN AREA TEST SITE INDUSTRY CANADA NUMBER: 3463 FREQUENCY RANGE (or fixed frequency): 24.125 GHz R.F. POWER IN WATTS: 355 mW OCCUPIED BANDWIDTH (99% BW): 10 MHz TYPE OF MODULATION: CW EMISSION DESIGNATOR (TRC-43): 10M0N0N TRANSMITTER SPURIOUS (worst case): 82,3dB μV/m @ 3m RECEIVER SPURIOUS (worst case): not applicable ANTENNA Type: Horn antenna ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: Date: 2005-09-30 Manfred Paschwitz CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 5 of 38 1.2. 7esting laboratory CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 P.O. Box 10 04 45 66117 Saarbrücken 66004 Saarbrücken Germany Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom-ict.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Industry Canada Authority Identification/Registration No. RegTP DAT-P-176/94-D1 FCC 90462 IC 3463 Testing location, if different …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 28 of 38 4. Photographs Test set-up radiated emissions (TM60) Photo No.: 01 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 29 of 38 Test set-up radiated emissions (TM60) Photo No.: 02 CETECOM ICT Services GmbH Test report No.: 2-4040-01-02/05 Date : 2005-09-30 Page 30 of 38 Test set-up conducted emissions (TM60) Photo No.: 03
