TRZACT-800CDMA 2000 1x WLL Terminal

Advanced Network & Communication ACT-800 ACT-800 User Manual ANNCOM Co., Ltd. Confidential Advanced Network & Communication ACT-800 Table of Contents 1. How to enter commands.....................................................................................................3 2. Hidden Menu.......................................................................................................................4 3. Ring / Sound Menu..............................................................................................................7 4. Tools Menu..........................................................................................................................8 5. Time Menu...........................................................................................................................9 6. Setting Menu.....................................................................................................................11 7. Data Mode Menu................................................................................................................12 8. Phone Book.......................................................................................................................16 Confidential Advanced Network & Communication ACT-800 1. How to enter commands - Pick up the handset on your pots. - Press Entry code : ‘##XX’ ( ‘XX’ is 2 digit code ) : Prefix code, “##”, makes a terminal ready to receive commands. A following two digits are command. - Actually, Each commands are a sequence digits to get to a specific function like as a following menu structure. Ex) ‘01’ – SIO : You just choosed Menu ‘0’ and Submenu Menu ‘1’ linked to SIO. ‘02’ – Emergency : You just choosed Menu ‘0’ and Submenu Menu ‘2’ linked Emergency menu. Note : Whenever you set the values of a Emergency, a hotline, a mirroring, a new code, a outgoing restrict, a reset phone, a voice privacy, A lockcode prompt sound which requests you to enter a lock code will be heard immediately. Ex) ##03 → lock code prompt sound → lock code → you can set Emergency number Note : a FWT will go to idle state automatically when a user choose wrongly a parameter or a function in a menu linked a command.. Menu Structure 1. SIO 2. Emergency 3. HOT Line 4. Mirroring ( will be used it in a factory ) 5. A Key 6. Mater Clear ( will be used it in a factory ) 0. Hidden Menu 7. Test Call ( will be used it in a Lab ) 1. Ring Type 2. Volume 3. DTMF 4. 1Min Alert 1. Ring / Sound 5. Svc Alert 1. Caller ID 2. Dial Tone 2.Tools 3. TTY Mode 1. Alarm 3. Time 2. Auto Send Time Confidential Advanced Network & Communication ACT-800 3. Flash Time 1. New Code 2. Restrict outgoing 3. Reset Phone 4. Voice Privacy 4. Setting 5. Auto gain control 1. Voice Call Mode 2. FAX Rx mode(use fax module) 3. ASYNC Data Rx mode(use data module) 4. PC FAX Rx mode 5. PC ASYNC Data Rx mode 6. FAX Tx mode(use fax module) 7. ASYNC Data Tx mode(use data module) 8. FAX Type Setting 5. Data Mode 9. FAX only 2. Hidden Menu SIO ‘##01’ + [ Functions ] - You can change SIO configuration for your needs. - As belows, SIO configuration has a DM/DS and port rate information. - You can choose one of configurations listed at below table.. - After then, press＊to make done. - Otherwise rather than pressing ＊ , the values will be back originally. That means “Cancel” for what you did. <Configuration list> 1 UART1 115,200 bps Serial DM to PC 2 UART1 9,600 bps Serial DS to PC 3 UART1 19,200 bps Serial DS to PC 4 UART1 38,400 bps Serial DS to PC 5 UART1 115,200 bps Serial DS to PC 6 UART1 19,200 bps DS to FAX 7 FAX 19,200 bps to PC 8 UART2 38,400 bps Serial DM to PC 9 USB DS <Ex> ##01 + 1 + ＊ : To use UART1 for DM with 115,200 bps rate. Confidential Advanced Network & Communication ACT-800 Emergency ‘##02’ + [Index] - You can set upto 3 Emergency numbers which has up to 16 digits. - After ##02, Following number is a [ index ] from 1 to 3 associated each emergency number. - After you enter a index, A lockcode prompt sound will be heard immediately. - At this time, You can enter lock code. ( a default lock code is “0000” which can be change for your need) - After you heard confirmation tone for a right lock code, You can set one of Emergency numbers.. - And then press ＊ to store it in a memory for preserving it from power-on/off cycle. - If you press ‘#’ instead of ＊, What you did will be released.. Ex) ##021 → lockcode prompt sound → lock code → 911 → ＊ – Sets and store a emergecny number #1 as 911 Hotline ‘##03’ - In the Hotline Menu, you can set hotline number which will be dialled automatically whenever you pick up handset. - Lockcode prompt sound follows a entering a command of “##03”. - You can enter lock code. ( a default lock code is “0000” which can be change for your need) - After you heard confirmation tone for a lock code , You can set a Hotline number.. - And then press ＊ to store it in a memory for preserving it on power-on/off cycle. - If you press ‘#’ instead of ‘＊’, it will be released. Ex) ##03 → enter lock code → 39533447 + ＊ – Sets and store a hotline as 39533447. Mirroring ( will be used in a factory ) ‘##04’ - In the Mirroring menu, you can backup/restore system configuration values of Terminal. - Lockcode prompt sound follows a entering a command of “##04”. - You can enter lock code. ( a default lock code is “0000” which can be change for your need) - After you heard confirmation tone for a lock code , You can press ‘＊’ for backing up and ‘#’ for restoring a stored values. - if it is succeeded, a confirmation tone will be heard and after then, a terminal will be reset. Ex) ##04 → enter lock code → ＊ – Performs backing up system values ##04 → enter lock code → ‘#’ – Performs restoring system values Confidential Advanced Network & Communication ACT-800 A Key ‘##05’ - In the A Key menu, you can set 26 digits A Key on FWT.. - A short go-ahead tone follows a entering a command of “##05”. - Input A Key of 26 digits . - Pressing ‘＊’ will store A Key safely on FWT’s me…

Text truncated - open the document above for the full version.

Sung Ho B/D-302, 159, Gongse-ri, Giheung-eup, Yongin-si, Gyeonggi-do, Korea Nov 01, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: TRZACT-800. including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from ANNCOM Co., Ltd Sincerely, K.S. LEE/Senior Engineer

Sung Ho B/D-302, 159, Gongse-ri, Giheung-eup, Yongin-si, Gyeonggi-do, Korea Nov 01, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : ANNCOM Co., Ltd FCC ID : TRZACT-800 Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, ANNCOM Co., Ltd. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Turn up procedure and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which ANNCOM Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, ANNCOM Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, K.S. LEE/Senior Engineer

Sung Ho B/D-302, 159, Gongse-ri, Giheung-eup, Yongin-si, Gyeonggi-do, Korea Nov 1, 2005 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: ANNCOM Co., Ltd. FCC ID: TRZACT-800 Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, ANNCOM CO., LTD requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which ANNCOM CO., LTD considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, ANNCOM CO., LTD feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, K.S. LEE/Senior Engineer

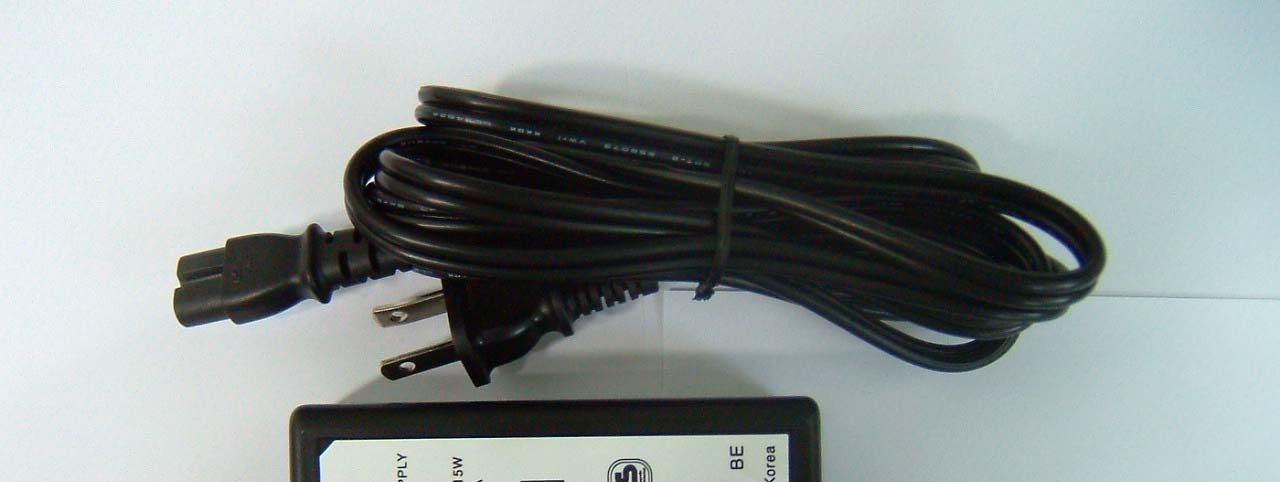

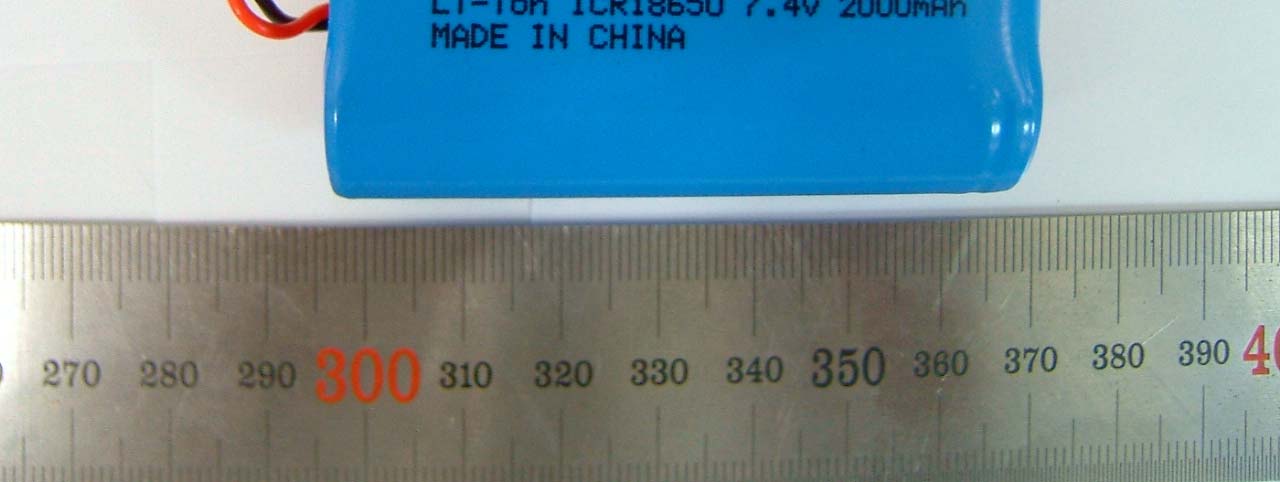

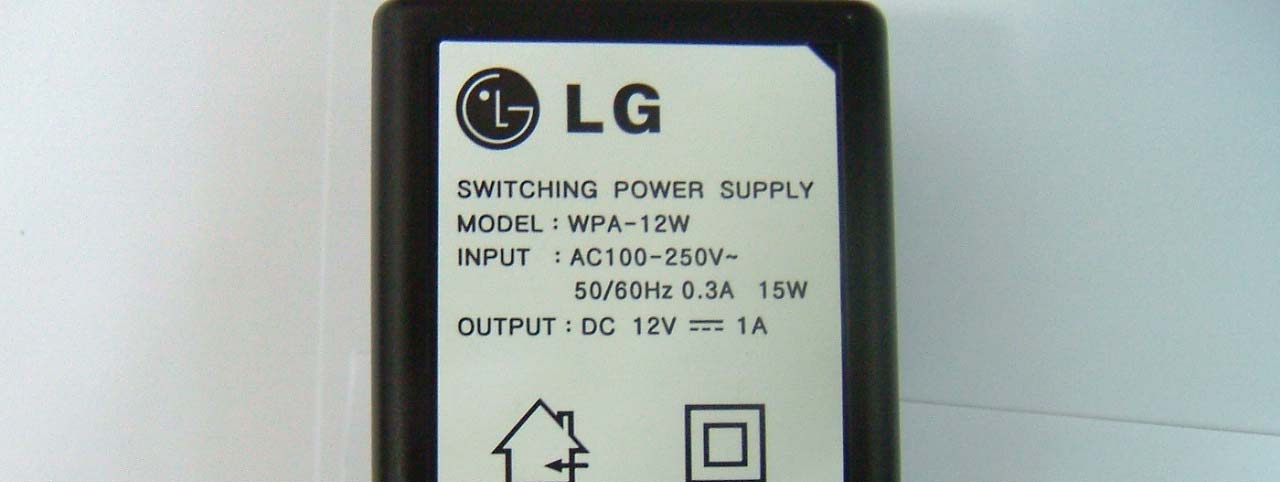

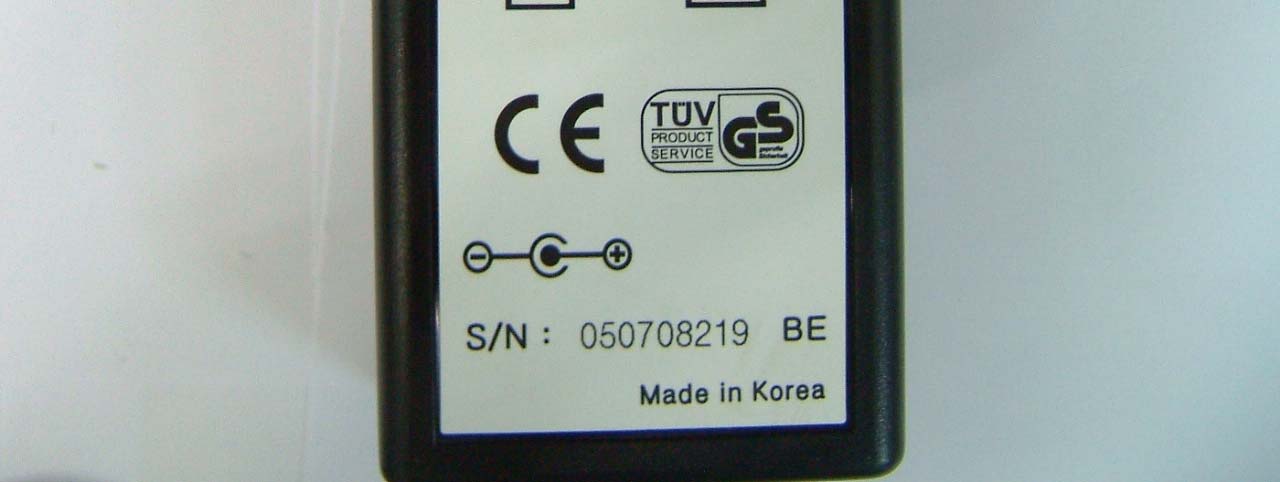

FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. EXTERNAL PHOTOGRAPHS FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. - BACK UP BATTERY

FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase (SEE NEXT PAGE) FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC IDENTIFICATION (NAME PLATE) INFORMATION - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. FCC ID: TRZACT-800 Model name: ACT-800 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. INTERNAL PHOTOGRAPHS FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 Copyright ○ c 2005, DIGITAL EMC Co., Ltd.

Approval Number Approval Issue 1.0 Product Issue 1.0 Approval Sheet PROJECT NAME Antenna MODEL No. ASW-800 ITEM No. Person in ChargeExamined by Approved by MECHANIC Person in ChargeExamined by Approved by ELECTRONIC Person in ChargeExamined by Approved by MECHANIC Person in ChargeExamined by Approved by Corea telelcom ELECTRONIC I hereby submit a proposal as follows and ask for the confirmation of approval. March 15, 2005 429-010, 303-6 Daeya-dong, Shihe-shi, Kyunggi-do Aceon Co., CEO, jong hun, Kim Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 2/16 Coreatelecom CO. Table of Contents 1. Approval Sheet Check List................................................................................................. 3 2. Outline................................................................................................................................. 4 2.1. Outline.......................................................................................................................................................4 2.2. Such outline was described for the usage of ASW-800.............................................................................4 3. Specification........................................................................................................................ 5 3.1. General Standard...................................................................................................................................5 3.2. Electrical Standard.................................................................................................................................5 3.3. Mechanical Standard............................................................................................................................5 4. Test Procedure & Measurement.......................................................................................... 6 4.1. External Test............................................................................................................................................6 4.2. Electrical Feature Inspection...............................................................................................................6 4.2.1. Materials.............................................................................................................................................................6 4.2.2. Inspection...........................................................................................................................................................6 4.3. Beam Pattern..........................................................................................................................................8 4.3.1. Materials.............................................................................................................................................................8 4.3.2. Inspection...........................................................................................................................................................9 5. Packing, Shipping, Handling............................................................................................. 10 5.1. Exterior Option......................................................................................................................................10 5.2. Packing...................................................................................................................................................10 6. Exterior.............................................................................................................................. 11 7. Test Data Sheet................................................................................................................. 12 8. Data Sheet......................................................................................................................... 13 8.1. V.S.W.R..................................................................................................................................................13 8.2. Beam pattern........................................................................................................................................14 8.2.1. Azimuth...............................................................................................................................................................14 8.2.2. Elevation.............................................................................................................................................................15 8.3. Impedance.............................................................................................................................................16 Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 3/16 Coreatelecom CO. 1. Approval Sheet Check List Change of Record Approval Issue Product Issue Date Item/Contents Foundation Ver 1.0 Ver 1.0 2005.03.15 Initial Issue Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 4/16 Coreatelecom CO. 2. Outline 2.1. Outline 2.2. Such outline was described for the usage of ASW-800 Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 5/16 Coreatelecom CO. 3. Specification 3.1. General Standard General specification Model name ASW-800 Antenna type Half Wavelength Antenna 3.2. Electrical Standard Electrical specification Frequency range 824 ~ 894㎒ V.S.W.R 1.9 : 1 Max. Gain(dBi) 2±0.5 Radiation pattern Omni-directional Polarization Vertical Max Power(W) 5W Max. Impedance 50 Ω Normalizer 3.3. Mechanical Standard Mechanical specification Connector type TNC Male Cover material Urethane Color Black not bright Temperature range -30°C ~ 70°C Weight 37 ± 2g Dimension TBD Date 2005. 03. 15 Version No. 1.0 Subject ASW-800 6/16 Coreatelecom CO. 4. Test Procedure & Measurement 4.1. External Test To check the unity Antenna’s exterior, size, connector and etc. with the exterior indicated in item #6. 4.2. Electrical Feature Inspection 4.2.1. Materials Equipment Model QuantitySt…

Text truncated - open the document above for the full version.

FCC ID: TRZACT-800 TEST PLOTS FCC ID: TRZACT-800 Conducted Spurious CDMA Ch. 1013 FCC ID: TRZACT-800 Conducted Spurious CDMA Ch. 0384 FCC ID: TRZACT-800 Conducted Spurious CDMA Ch. 0777 FCC ID: TRZACT-800 Power Out. CDMA Ch. 1013 Power Out. CDMA Ch. 0777 FCC ID: TRZACT-800 Power Out. CDMA Ch. 0384 Channel Power. CDMA Ch. 0384 FCC ID: TRZACT-800 Occupied Bandwidth. CDMA Ch. 0384 FCC ID: TRZACT-800 Band Edge. CDMA Ch. 1013 Band Edge. CDMA Ch. 0777 FCC ID: TRZACT-800 FCC ID: Manufacturer: Channel: Test Mode: TRZACT-800 ANNCOM Co., LTD 869.0 ~ 894.0 MHz CDMA Receiving Band DIGITAL EMC TOKIN 18 October,2005 23:03 ACT-800.dat <<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: ANNCOM Model: ACT-800 Operator: W.J.LEE AC Power: 120V 60Hz Temp,Humidity: 20 62 Remark1: Adaptor: WPA-12W Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 90 10 20 30 40 50 60 70 80 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACT-800> Spectrum(N) (N,PK) Final Item-QP(N) Final Item-AV(N) DIGITAL EMC TOKIN 18 October,2005 23:03 ACT-800.dat <<CONDUCTED EMISSION>> Standard: FCC PART.15Manufacturer: ANNCOM Model: ACT-800 Operator: W.J.LEE AC Power: 120V 60Hz Temp,Humidity: 20 62 Remark1: Adaptor: WPA-12W Remark2: Remark3: : 0.1530.000.501.005.0010.00 0 90 10 20 30 40 50 60 70 80 Frequency Level [MHz] [dB(μV)] <CISPR B> Limit (QP) Limit (AV) <ACT-800> Spectrum(N) (L1,PK) Final Item-QP(L1) Final Item-AV(L1) ********************************************************************** DIGITAL EMC ***************************************************************** <<CONDUCTED EMISSION>> 18 October,2005 23:03 ACT-800.dat Standard : FCC PART.15 Manufacturer : ANNCOM Model : ACT-800 Operator : W.J.LEE AC Power : 120V 60Hz Temp,Humidity : 20 62 Remark1 : Adaptor: WPA-12W Remark2 : Remark3 : : ****************************************************************************************************************************************************** Final Result --- N Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.195 48.9 35.4 1.2 50.1 36.6 63.8 53.8 13.7 17.2 2 0.652 43.1 41.9 0.3 43.4 42.2 56.0 46.0 12.6 3.8 3 18.256 47.5 42.4 0.7 48.2 43.1 60.0 50.0 11.8 6.9 4 29.848 48.2 40.2 1.1 49.3 41.3 60.0 50.0 10.7 8.7 --- L1 Phase --- No. Frequency Reading Reading c.f Result Result Limit Limit Margin Margin Remark QP AV QP AV QP AV QP AV [MHz] [dB(μV)] [dB(μV)] [dB] [dB(μV)] [dB(μV)] [dB(μV)] [dB(μV)] [dB] [dB] 1 0.196 49.6 36.8 1.1 50.7 37.9 63.8 53.8 13.1 15.9 2 0.652 44.1 43.1 0.3 44.4 43.4 56.0 46.0 11.6 2.6 3 18.367 46.6 45.7 0.7 47.3 46.4 60.0 50.0 12.7 3.6 4 29.661 49.4 41.8 1.2 50.6 43.0 60.0 50.0 9.4 7.0

FCC ID:TRZACT-800 Max Conducted Output PWR of various operation modes of ACT-800 Protocol Reversion Number: 6 Conducted Output Power(dBm) Radio Configuration Service Option Low Channel(1013) 824.70MHz Mid Channel(384) 836.52MHz High Channel(777) 848.31MHz SO2 23.57 23.16 24.64 F1R1 SO3 23.67 23.36 24.74 SO9 23.67 23.26 24.64 SO17 23.67 23.26 24.54 F2R2 SO32768 23.57 23.26 24.54 9.6 Kbps 23.57 23.36 24.54 19.2 Kbps 23.67 23.36 24.54 38.4 Kbps 23.67 23.36 24.64 76.8 Kbps 23.67 23.26 24.64 SO2 153.6 Kbps 23.57 23.26 24.74 9.6 Kbps 23.67 23.26 24.64 19.2 Kbps 23.67 23.36 24.54 38.4 Kbps 23.77 23.36 24.54 76.8 Kbps 23.67 23.26 24.54 SO3 153.6 Kbps 23.67 23.36 24.64 9.6 Kbps 23.67 23.16 24.34 19.2 Kbps 23.87 23.26 24.54 38.4 Kbps 23.57 23.36 24.54 76.8 Kbps 23.77 23.36 24.74 F3R3 SO32 153.6 Kbps 23.67 23.36 24.64 FCC ID:TRZACT-800 Protocol Reversion Number: 6 Max Conducted Output PWR of various operation modes of ( Continued..) Conducted Output Power(dBm) Radio Configuration Service Option Low Channel(1013) 824.70MHz Mid Channel(384) 836.52MHz High Channel(777) 848.31MHz 9.6 Kbps 23.67 23.26 24.74 19.2 Kbps 23.57 23.26 24.54 38.4 Kbps 23.57 23.26 24.64 76.8 Kbps 23.57 23.56 24.64 SO3 153.6 Kbps 23.67 23.46 24.64 9.6 Kbps 23.57 23.36 24.54 19.2 Kbps 23.67 23.26 24.64 38.4 Kbps 23.57 23.56 24.74 76.8 Kbps 23.57 23.36 24.64 F4R3 SO32 153.6 Kbps 23.67 23.36 24.74 14.4 Kbps 23.77 23.36 24.64 28.8 Kbps 23.67 23.36 24.54 57.6 Kbps 23.77 23.36 24.74 115.2 Kbps 23.57 23.26 24.54 SO17 230.4 Kbps 23.57 23.16 24.54 14.4 Kbps 23.67 23.36 24.74 28.8 Kbps 23.57 23.36 24.64 57.6 Kbps 23.57 23.36 24.64 115.2 Kbps 23.67 23.26 24.64 F5R4 SO32768 230.4 Kbps 23.77 23.46 24.74 Power for MPE Calculation 23.77 23.36 24.74 Note : MPE Calculation was used max conducted output power of above table.

CAM350 PRO V 6.0 : Tue Jun 21 10:44:20 2005 - (Untitled) CAM350 PRO V 6.0 : Tue Jun 21 10:44:04 2005 - (Untitled)

FCC ID: TRZACT-800 MPE Calculations The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 24.74 dBm + 3.25 dBi EIRP = 27.99 dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (297.85 * 2.11) / (4 * 20 2 * π) S = 0.125 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm) Conclusion: The Maximum permissible exposure (MPE) for the general Population/Uncontrolled is 0.55 mW/cm 2 (=f/1500=824/1500).The power density at 20cm does not exceed the 0.55 mW/cm 2 . Therefore, the exposure condition of the EUT is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(297.85 * 2.11 / 4π) R = 7.07 cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log -1 (3.25 / 10) G = 2.11

DEMC#DR50110511O Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 1 of 20 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Dates of Tests: October 13 ~ 20, 2005 Test Report S/N:DR50110511O Test Site : DIGITAL EMC CO., LTD. Model No. APPLICANT Classification : Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) : §22(H), §15, §2 EUT Type : CDMA 2000 1x WLL Terminal Model name : ACT-800 Serial number : Identical prototype TX Frequency Range : 824.70 ~848.31 MHz (CDMA) RX Frequency Range : 869.70 ~893.31 MHz (CDMA) Max. RF Output Power : 0.690W ERP CDMA (28.39 dBm) Emission Designators: : 1M26F9W Date of Issue : November 1, 2005 TRZACT-800 ANNCOM CO., LTD. DEMC#DR50110511O Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 2 of 20 TABLE OF CONTENTS ◈ AUTHORIZATION LETTER ◈ CONFIDENTIALITY LETTER(S) ◈ TEST REPORT 1.1 SCOPE 3 2.1 GENERAL INFORMATION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6 5.1 TEST DATA 9 5.2 EFFECTIVE RADIATED POWER OUTPUT 9 5.3 CDMA RADIATED MEASUREMENTS 10 5.4 FREQUENCY STABILITY(CDMA) 13 5.5 RADIATED EMISSION 15 6.1 PLOTS OF EMISSIONS 16 7.1 LIST OF TEST EQUIPMENT 17 8.1 SAMPLE CALCULATIONS 19 9.1 CONCLUSION 20 ◈ TEST PLOTS ◈ FCC ID LABEL & LOCATION ◈ TEST SETUP PHOTOGRAPHS ◈ EXTERNAL PHOTOGRAPHS ◈ INTERNAL PHOTOGRAPHS ◈ BLOCK DIAGRAM(S) ◈ SCHEMATIC DIAGRAM(S) ◈ OPERATIONAL / CIRCUIT DESCRIPTION ◈ PARTS LI S T ◈ USER’S MANUAL ◈ MPE CALCULATION - ◈ : ATTACHMENT DEMC#DR50110511O Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 3 of 20 MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Emission Designators: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: TRZACT-800 Quantity production is planned 1M26F9W (CDMA) 824.70 ~848.31 MHz (CDMA) 869.70 - 893.31 MHz (CDMA) 0.690W ERP CDMA (28.39 dBm) Licensed Non-Broadcast Station Transmitter (TNB) CDMA 2000 1x WLL Terminal CDMA ± 0.00025 % (2.5ppm) §22(H), §15, §2 October 13 ~ 20, 2005 DIGITAL EMC DR50110511O Applicant: ANNCOM CO., LTD. Address: Sung Ho B/D-302, 159, Gongse-ri, Giheung-eup, Yongin-si, Gyeonggi-do, Korea Attention: Kang-Seok Lee DEMC#DR50110511O Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 4 of 20 2.1. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer November 1, 2005 Won-Jung LEE Data Name Signature Report Reviewed By: manager November 1, 2005 Harvey Sung Data Name Signature Ordering party: Company name : ANNCOM CO., LTD. Address : Sung Ho B/D-302, 159, Gongse-ri, Giheung-eup, Zipcode : 446-902 City/town : Yongin-si, Gyeonggi-do, Korea Country : KOREA Date of order : October 13, 2005 DEMC#DR50110511O Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 5 of 20 3.1 INSERTS Function of Active Devices (Confidential) The Function of active devices are shown in Attachment. Block & Schematic Diagrams (Confidential) The block diagrams are shown in Attachment, and the schematic diagrams are shown in Attachment. Operating Instructions The instruction manual is shown in Attachment . Parts List & Tune-Up Procedure (Confidential) The parts list & tune-up procedure is shown in Attachment. Description of Freq. Stabilization Circuit (Confidential) The description of frequency stabilization circuit is shown in Attachment. Description for Suppression of Spurious Radiation, for Limiting Modulation, and Harmonic Suppresion Circuits (Confidential) The description of suppression stabilization circuits is shown in Attachment. DEMC#DR50110511O Copyright ○ c 2005, DIGITAL EMC Co., Ltd. Page 6 of 20 4.1 DESCRIPTION OF TESTS 4.2 Occupied Bandwidth Emission Limits (a) On any frequency outside a licensee’s frequency block, the power of any emission shall be attenuated below the transmitter power (P) by at least 43 + 10 log(P) dB. (b) When measuring the emission limits, the nominal carrier frequency shall be adjusted as close to the licensee’s frequency block edges, both upper and lower, as the design permits. (c) The measurement of emission power can be expressed in peak or average values, provided they are expressed in the same parameters as the transmitter power. 4.3 Occupied Bandwidth The 99% power bandwidth was measured with a calibrated spectrum analyzer. 4.4 Spurious and Harmonic Emissions at Antenna Terminal The level of the carrier and the various conducted spurious and harmonic frequencies is measured by means of a calibrated spectrum analyzer. The spectrum is scanned from the lowest frequency generated in the equipment up to 10 GHz. At the input terminals of the spectrum analyzer, an isolator(RF circulator with on port terminated with 50ohms) and an 870 MHz to 890 MHz bandpass filter is connected between the test transceiver(for conducted tests)or the receive antenna(for radiated tests) and the analyzer . The rejection of the bandpass filter to signals in the 825-845 MHz range is adequate to limit the transmit energy from the test transceiver which appears to a level which will allow the analyzer to measure signals less than-90dBm. Calibration of the test receiver is performed in the 870-890 MHz rang…

Text truncated - open the document above for the full version.

FCC ID : TRZACT-800 G Copyright ̺ c 2005, DIGITAL EMC Co., Ltd. TEST SETUP PHOTOGRAPHS FCC ID : TRZACT-800 G Copyright ̺ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 G Copyright ̺ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 G Copyright ̺ c 2005, DIGITAL EMC Co., Ltd. FCC ID : TRZACT-800 G Copyright ̺ c 2005, DIGITAL EMC Co., Ltd.
