TS3-FHEPRC-66666BRemote Control Toy Transmitter

FH-001A Instruction Manual Warning： This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." Package Contents: 1. Cessna-195 Aircraft 4. Landing Gear 2. Transmitter / Charger Unit 5. Wind Cock 3. Rechargeable Battery Pack 6. Propeller 7. Antenna Remote Controller: 1. CH-2--- Climb button 2. CH-1---Right/Left control stick 3. Charge button 4. Power NO/OFF switch 5. Charge LED (Green) 6. Power LED (Red) 7. Antenna 8. Charging jack 1. Insert Landing Gear: 2. Installing Transmitter Battery: 3. Charging The Lithium Battery: *Press charge button and hold the battery by other hand. *When yellow circle turn orange charge is OK. (about 50”C) *Never charge batteries for longer than 3 minutes. 4. Installing The Flight-Pack Battery: 5. Power Test & Tail Rudder Adjustment: *Check Rudder to keep direct with fuselage. *Try the Right/Left control stick. 6. Launch: *Press climb button and launching aircraft directly in to the Wind. Do not throw it Up or Down Specifications: Wingspan: 402mm Length: 310mm Weight: 58g Battery: 4cell 4.8V Motor: N30 micro motor Flight Duration: 5min~ Easy Repairs: Repair Wing & Tail and Press New Propeller *Apply Glue and Reinforce with clear tape (Repair Tail the same way) “FLIGHT BULLETIN” Read Before Attempting To Fly!! ALLWAYS FLY OVER SOFT GRASSY FIELDS! *Find an area as large as a football field. *Fly in open areas do not fly in parking lot or streets. *Do not fly in winds over 5mph (8kph). *Keep hands, face and clothing away from spinning propeller. *Have all spectators stand behind and away from spinning propeller. *Use 1.2V Ni-H batteries for transmitting batteries. R/C USER INFORMATION On the back of the transmitter is the radio frequency on which you control the plane. This frequency is shared with R/C cars and boats as well as other model planes. DO NOT fly your plane if other R/C vehicles or planes with this same frequency Are operating in or around your flying site. (Check your own frequency on Cessna 195 aircraft fuselage)

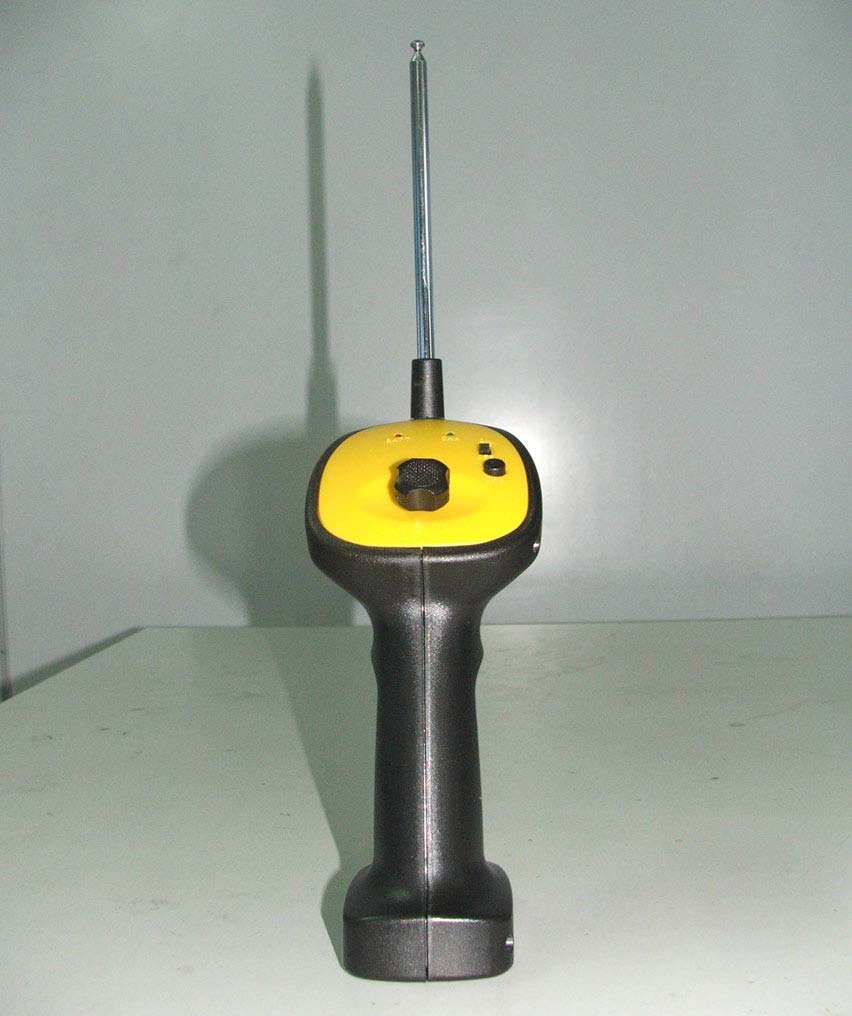

Transmitter – General View- Front Transmitter – General View – Side Receiver – Uncovered View

Operation Description 1. Install 8 Ni-H batteries into the transmitter, and make sure the power LED is on when press button. 2. If need, connect the lithium battery to the charging connector of the transmitter. Press charge button and hold the battery by other hand. When yellow circle turn orange charge is OK. 3. Put the lithium battery into the flying receiver. Find a large area to fly. Press the button and the motor of the receiver will turn on. Try the Right/Left control stick. 4. After about 20 minutes flying, the lithium battery exhausted. The charging connector can be used to charge again.

670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com FCC CERTIFICATION RADIO MEASUREMENT TECHNICAL REPORT On Model Name: Toy R/C Plane Model Number: FH-001B/FH-002B/FH-003B/FH-004B/ FH-005B/FH-006B/FH-007B/FH-008B/ FH-009B/FH-010B Trademark: Flying Hobby FCC ID: TS3-FHPRC-66666B Prepared for Flying Hobby Co., Ltd. According to FCC Part 15 (2004), Subpart C Test Report #: FLY-0511-0095SH-FCC Prepared by: Chris Huang QC Manager: Harry Zhao Test Report Released by: 2006, Jan 12 th ⎯⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Harry Zhao Date NVLAP Lab code: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 Test Location Tests performed at EMC Compliance Management Group (China) in a Certified ANSI Semi-Anechoic Chamber and Shielded Room performed testing. Tests performed at EMC Compliance Management Group (China) in a Certified ANSI Semi-Anechoic Chamber and Shielded Room performed testing. Test Site Location: Jiangsu Electronic Products Supervision & Inspection Institute No 107 Ge lane ZhongQiao WuXi JiangSu, China Tel: 86-510-5140037 Fax: 86-510-5105579 Registration Number: 399439 Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Table of Contents DISCLAIMER NOTICE _________________________________________ 1 REPRODUCTION CLAUSE_____________________________________ 1 ADMINISTRATIVE DATA _____________________________________ 2 EUT DESCRIPTION ___________________________________________ 2 TYPE OF DERIVER____________________________________________ 3 TEST SUMMARY _____________________________________________ 4 TEST MODE JUSTIFICATION _________________________________ 5 EUT EXERCISE SOFTWARE ___________________________________ 5 EQUIPMENT MODIFICATION _________________________________ 5 TEST SYSTEM DETAILS ______________________________________ 6 CONFIGURATION OF TESTED SYSTEM________________________ 7 EUT SAMPLE PHOTOS________________________________________ 8 ATTACHMENT 1 – ANTENNA REQUIREMENT_________________ 17 ATTACHMENT 2 – RESTRICTED BAND OF OPERATION_______ 20 ATTACHMENT 3 – FIELD STRENGTH WITHIN THE BAND _____ 25 ATTACHMENT 4 – FIELD STRENGTH OUTSIDE OF THE BAND 29 EMC Test Report #: FLY-0511-0085SH-FCC Prepared for Flying Hobby Co., Ltd. Prepared by EMC Compliance Management Group Page 1 of 38 Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. EMC Test Report #: FLY-0511-0095SH-FCC Prepared for Flying Hobby Co., Ltd. Prepared by EMC Compliance Management Group Page 2 of 38 Administrative Data Test Sample : Toy R/C Plane Model Number : FH-001B/FH-002B/FH-003B/FH-004B/ FH-005B/FH-006B/FH-007B/FH-008B/ FH-009B/FH-010B Models Tested : FH-001B Trade Mark : Flying Hobby Date Tested : 2006, January 5 th Applicant : Flying Hobby Co., Ltd. Da Miao Cun, Zhang Ze, Songjiang, Shanghai 201608 Telephone : 86-21-57888210 Fax : 86-21-57888163 Manufacturer : Flying Hobby. Co., Ltd. EUT Description Flying Hobby Co., Ltd. Model number FH-001B (referred to as the EUT in this test report) is a Toy R/C Plane. EMC Test Report #: FLY-0511-0095SH-FCC Prepared for Flying Hobby Co., Ltd. Prepared by EMC Compliance Management Group Page 3 of 38 Type of Deriver Model numbers of FH-001B, FH-002B, FH-003B, FH004B, FH-005B, FH-006B, FH-007B, FH008B, FH-009B, FH-010B, are the identical except the appearance of the receiver, see the difference below. FH-001B HIGH WING CESSNA 195 AIR PLANE FH-002B MICRO KITE PLANE FH-003B DORNIER 328 TWIN MOTOR PLANE FH-004B MICRO GLIDER (ALBATROSS) FH-005B DORNIER 27 FH-006B MICRO PITTS FH-007B P-51 FH-008B TYPHOON FH-009B P-38 FH-010B MICRO INDOOR EMC Test Report #: FLY-0511-0095SH-FCC Prepared for Flying Hobby Co., Ltd. Prepared by EMC Compliance Management Group Page 4 of 38 Test Summary The Electromagnetic Compatibility requirements on FH-001B for this test are stated below. All results listed in this report relate exclusively to this above-mentioned model as the Equipment Under Test. This report confers no approval or endorsement upon any other component, host or subsystem used in the test set-up. EMC Test Item Reference FCC Part 15 (2004), Subpart C Specification Description Test Results Remark FCC Part 15.203 Antenna Requirement Compliance Attachment 1 FCC Part 15.205 Restricted Band of Operation Compliance Attachment 2 FCC Part 15.207 Conducted Limits Test is not applicable, because EUT only employ battery power for operation. FCC Part 15.209 Radiated Emission Limits Compliance Refer to Attachment 4 FCC Part 15.235 Operation within the Band 49.82-49.90MHz -- -- (a) Field Strength within this band Compliance Attachment 3 (b) Field Strength outside the band Compliance Attachment 4 EMC Test Report #: FLY-0511-0095SH-FCC Prepared for Flying Hobby Co., Ltd. Prepared by EMC Compliance Man…

Text truncated - open the document above for the full version.

EUT Model: Tx of FH-001B Radiated Emission Test Set-up (Transmitter, Horizontal) Radiated Emission Test Set-up (Transmitter, Vertical) EUT Model: Rx of FH-001B Radiated Emission Test Set-up (Receiver, Horizontal) Radiated Emission Test Set-up (Receiver, Vertical)
