TTK-100-0188-001POWER AMPLIFIER

Unity Wireless Systems
POWER AMPLIFIER - FCC ID TTK-100-0188-001 - Unity Wireless Systems
Click to zoom

Application Details

Equipment Class
AMP - Amplifier
Date of Grant
Apr 10, 2006
Application Purpose
Original Equipment
Date of Application
Apr 10, 2006
Equipment Note
POWER AMPLIFIER
Frequency Range
869.00000000 - 894.00000000
Company
Unity Wireless Systems
Country
Canada

Documents & Files

Select a file to view

Users Manual

β†—

External Photos

β†—

ID Label/Location Info

β†—
β†—

Operational Description

β†—

Parts List/Tune Up Info

β†—

RF Exposure Info

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

OPERATING & INSTALLATION MANUAL 190.0002 OSPREY 35W 869-894MHz CDMA SPCA Rev 2 IM001 Ver 2.0 1 OSPREY 35W 869-894MHz CDMA SPCA OPERATING & INSTALLATION MANUAL DOCUMENT #: 190.0002 DOCUMENT REVISION #: 02 Unity Wireless Systems Corp. 7438 Fraser Park Drive Burnaby, B.C., Canada V5J 5B9 Tel: 604-267-2700 Toll Free: 1-800-337-6642 Fax: 604-267-2701 www.unitywireless.com This document is the property of Unity Wireless Systems Corp. Use by or disclosure to anyone other than its authorized employees or agents is strictly forbidden except to the extent permission is elsewhere granted. OPERATING & INSTALLATION MANUAL 190.0002 OSPREY 35W 869-894MHz CDMA SPCA Rev 2 IM001 Ver 2.0 2 Table of Contents Regulatory................................................................................................................... 3 Legal........................................................................................................................... 3 1.0 Safety Instructions......................................................................................... 4 2.0 General Information....................................................................................... 5 2.1 SCPA Overview.......................................................................................................... 5 2.2 SCPA Installation....................................................................................................... 7 2.2.1 Mounting............................................................................................................ 7 Fig.2.2-1..................................................................................................................... 7 2.2.2 Grounding........................................................................................................... 7 2.2.3 RF Connections................................................................................................... 8 2.3 SCPA Operation......................................................................................................... 8 2.3.1 Powering the SCPA.............................................................................................. 8 2.3.2 Tune Up Procedure.............................................................................................. 8 2.3.3 Monitoring SCPA.................................................................................................. 8 2.4 SCPA Specifications.................................................................................................... 8 OPERATING & INSTALLATION MANUAL 190.0002 OSPREY 35W 869-894MHz CDMA SPCA Rev 2 IM001 Ver 2.0 3 Regulatory This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Where appropriate, the use of the equipment is subject to the following conditions: CAUTION! Unauthorized modifications or changes not expressly approved by UW could void compliance with regulatory rules, and thereby your authority to use this equipment. WARNING (EMI) - United States FCC Information - This equipment has been tested and found to comply with the limits pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in an appropriate installation. This equipment, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician This device meets the minimum MPE limit at a distance of 69cm assuming it is operating at full rated output power into a 6dBi gain antenna. Legal The equipment, materials and documentation are provided β€œas is” without any express or implied warranty of any kind. In no event shall Unity Wireless Systems Corporation be held responsible for any damages or personal injury whatsoever arising out of the use of equipment or materials, regardless of equipment use, misuse, abuse, neglect or accident. Unity Wireless Systems Corporation does not warranty the accuracy or completeness of information contained in the documentation or instructions supplied for the use, installation and operation of the equipment. Except where noted otherwise, all contents are Copyright Β© 2005 Unity Wireless Systems Corporation. All rights reserved. No part of the materials in any of the supplied documentation, including but not limited to the text or graphics, may be reproduced or transmitted in any form by any means without Unity Wireless System Corporation's express written permission. OPERATING & INSTALLATION MANUAL 190.0002 OSPREY 35W 869-894MHz CDMA SPCA Rev 2 IM001 Ver 2.0 1.0 Safety Instructions INSTRUCTIONS FOR SAFE OPERATION BEFORE APPLYING POWER Review this manual and become familiar with all safety markings and instructions. Protection provided by the equipment may be impaired if used in a manner not specified by Unity Wireless Systems Corp. INTENED PURPOSES This equipment is intended for commercial use in a cellular network basestation and is designed to be used in the process of amplifying electromagnetic Radio Frequency (RF) energy. Therefore, the output of the amplifier must be connected to an appropriate load, s…

Text truncated - open the document above for the full version.

External Photos

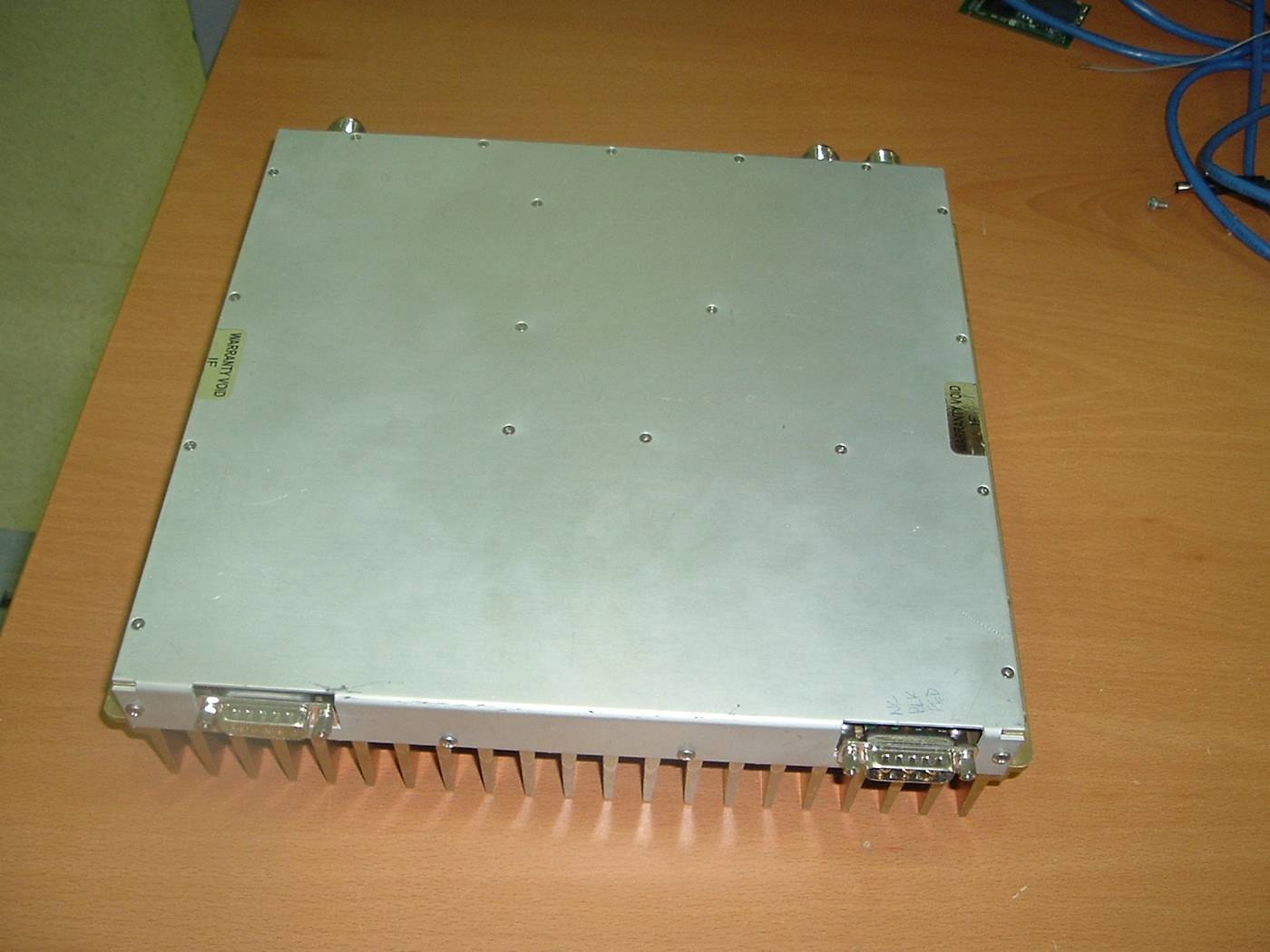

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, BC Canada V3Y 2V4 Unity Wireless Systems Corp. Osprey 35 W CDMA SCPA 100.0188.001 Power Amplifier External Photos March 23, 2006 Report Number: TRL230306.1 Bruce Balston, EMC Engineer Andrew Marles, EMC Coordinator Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 4 B.1 External Photos Figure 1 – External, sealed front cover of unit Emissions Compliance Test Tranzeo EMC Labs Inc. Page 3 of 4 Rear panel power input Emissions Compliance Test Tranzeo EMC Labs Inc. Page 4 of 4 Rear Panel RF

ID Label/Location Info

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, BC Canada V3Y 2V4 Unity Wireless Systems Corp. Osprey 35 W CDMA SCPA 100.0188.001 Power Amplifier Label Location March 23, 2006 Report Number: TRL230306.1 Bruce Balston, EMC Engineer Andrew Marles, EMC Coordinator Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix C C.1 FCC Label location Figure 1 – External back panel, FCC Label location..

ID Label/Location Info

35W CDMA SCPA FCC ID: TTK-100-0188-001

Operational Description

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, B.C. V3Y 2V4 Unity Wireless Systems Corp. Osprey 35 W CDMA SCPA 100.0188.001 Power Amplifier Operational Description March 23, 2006 Report Number: TRL230306.1 Bruce Balston, EMC Lab Manager Andrew Marles, EMC Coordinator Report Number: TRL071105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 3 Appendix E E.1 Operational Description The Osprey 35W CDMA SCPA is a compact high power amplifier (HPA) designed for CDMA 1X in the frequency range 869-894 MHz. The amplifier is composed of an RF line-up and a function board. The RF line-up provides the necessary amplification of the input signal. The function board provides power supplies to the RF board, processes alarms and provides monitoring functions for the external user. The function board also provides for RF shut down in case of a major alarm condition. The SCPA requires forced air cooling appropriate to the efficiency. An additional feature of the Osprey is the special alarming function. When an alarm occurs and extends beyond 2 seconds, the HPA will be shut down automatically. The alarm functions included are over power alarm, VSWR alarm and device failure alarm, additionally an over temperature alarm. To clear the alarm, the user must disable the HPA for 1 second, and then issue the enable command. This function is monitored by a micro-controller inside the HPA, which is unique to this HPA.

Parts List/Tune Up Info

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, B.C. V3Y 2V4 Unity Wireless Systems Corp. Osprey 35 W CDMA SCPA 100.0188.001 Power Amplifier Tune up Procedure March 23, 2006 Report Number: TRL230306.1 Bruce Balston, EMC Lab Manager Andrew Marles, EMC Coordinator Report Number: TRL071105.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 2 Appendix E E.1 Operational Description

Test Report

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, BC Canada V3Y 2V4 Unity Wireless Systems Corp. Osprey 35 W CDMA SCPA 100.0188.001 Power Amplifier EMC Test Report March 23, 2006 Report Number: TRL230306.1 Bruce Balston, EMC Engineer Andrew Marles, EMC Coordinator Report Number: TRL230306.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 20 Revision History Report Number: TRL230306.1 Emissions Compliance Test Tranzeo EMC Labs Inc. Page 3 of 20 Table of Contents 1.0 General Information ...................................................................................................................................................4 1.1 EUT Description ..................................................................................................................................................4 1.2 Operational Description .......................................................................................................................................4 1.3 EUT Testing Configuration .................................................................................................................................4 1.4 EUT Modifications ..............................................................................................................................................5 1.5 Overview of Test Results .....................................................................................................................................5 1.6 Test Facilities .......................................................................................................................................................6 1.7 Test Equipment ....................................................................................................................................................6 1.8 Test System Details..............................................................................................................................................6 1.9 Test Results..........................................................................................................................................................6 2.0 RF Output Power ........................................................................................................................................................7 2.1 Test Standard .......................................................................................................................................................7 2.2 Test Limits ...........................................................................................................................................................7 2.3 Test Setup ............................................................................................................................................................7 2.4 Test Results..........................................................................................................................................................7 3.0 Transmitter Radiated Spurious Emissions ...............................................................................................................8 3.1 Test Standard .......................................................................................................................................................8 3.2 Test Limits ...........................................................................................................................................................8 3.3 Test Setup ............................................................................................................................................................8 3.4 Test Results........................................................................................................................................................10 4.0 Transmitter Conducted Harmonic and Spurious Emissions .................................................................................11 4.1 Test Standard .....................................................................................................................................................11 4.2 Test Limits .........................................................................................................................................................11 4.3 Test Setup ..........................................................................................................................................................11 4.4 Test Results........................................................................................................................................................12 5.0 Band Edge ..................................................................................................................................................................13 5.1 Test Standard .....................................................................................................................................................13 5.2 Test Limits .........................................................................................................................................................13 5.3 Test Setup ..........................................................................................................................................................13 5.4 Test Results........................................................................................................................................................14 6.0 Occupied Bandwidth/Linearity ................................................................................................................................15 6.1 Test Standard .....................................................................................................................................................15 6.2 Test Limits .................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

EMC LABS INC Tranzeo EMC Labs Inc. 19473 Fraser Way Pitt Meadows, B.C. V3Y 2V4 Unity Wireless Systems Corp. Osprey 35 W CDMA SCPA 100.0188.001 Power Amplifier EMC Test Report March 23, 2006 Report Number: TRL230306.1 Bruce Balston, EMC Engineer Andrew Marles, EMC Coordinator Emissions Compliance Test Tranzeo EMC Labs Inc. Page 2 of 3 D.1 Test Setup Photos Radiated emissions test setup.

Contact Information

Applicant

Elia Abramzon(RF Engineer)
[email protected]6042672735Fax: 6042672701

Test Firm

Tranzeo EMC Labs Inc.Andrei Moldavanov
[email protected]604-460-6002Fax: 604-460-6005

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
122H869 MHz - 894 MHz35 WF9WAmp
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of οΏ½2.1091. The 6dBi antenna identified in this filing must be installed to provide a separation distance of at least 69 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
