TTO120-8141626ELECTRONIC BALLASAT

User Manual Input Model: Electronic Ballast 120-814/ 120-1626 Volt: 120VAC, 60Hz Circuit Description When 120VAC power on,Current through EMI filter L3.Via rectifier D1,D2,D3,D4 rectified. Implement the current transition from AC to DC. Then the half bridge circuit (Q1,Q2,T1) output high frequency AC voltage ,Via output high frequency inductance drive the lamps light. When the lamp has reached end of life, the protection circuit will be start and shut down the ballast , prevent the electronic ballast failure or cause fire. Warning Label WARNING Disconnect line voltage before installing or replacing. Ballast case must be grounded. FCC NOTE The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.150-30 MHz FCC Warning Statement for FCC ID Label/DoC Label Requirements This device complies with part 18 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interferenceand (2) This device must accept any interference receivedincluding interference that may cause undesired operation.

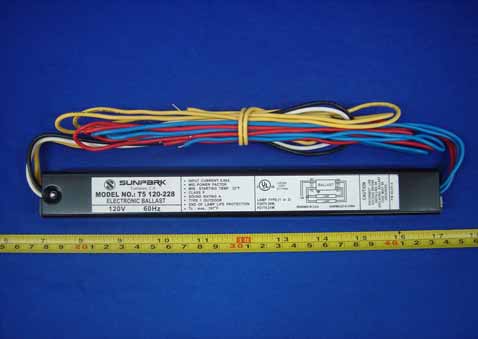

EUT-Front View for 120-814 EUT-Back View for 120-814 EUT-Front View for 120-1626 EUT-Back View for 120-1626

FCC ID Label This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/ proposed FCC Mark Location This device complies with Part 18 of the FCC Rules. FCC ID:TTO120-8141626 This device complies with Part 18 of the FCC Rules. FCC ID:TTO120-8141626

FCC ID Label Sample for Model 120-814,120-1626 FCC ID: TTO120-8141626 This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PCB-Front View for 120-814 PCB-Back View for 120-814 PCB-Front View for 120-1626 PCB-Back View for 120-1626

120-814/120-1626Block Programand Description 1.Block Program 2.Description Referring to theblock program, thesupplying voltageof 120V/60Hzfrom a conventional AC line is applied to input circuitry which includes aEMIfilter inductorL3 and filter capacitor C3, C9, diodes D1~D4which act as a voltage doubler in a conventional manner providing an output voltage of270~320volts DCandthis voltage is then applied to theinverter (Half-bridge)circuitry which includes transistors Q1 and Q2 and the associated components and to the starter circuitry.When the inverterwork it generate a voltage of600~1200volts/45~55KHz AC passing onthelamp(strike) network and ignitionthe T5 lamps, and after the lamps work steadilythe outputvoltage of inverter reduced to60~110 volts AC. When the lamp has reached end of life or leakage gas, the impedance of PTC protection component PTC1 or PTC2 increase and the lamps will shut down, prevent the electronic ballast failure or causeunexpectedfire. 120V/60Hz Rectifier/ Volt Doubler 270~320VDC Starter Inverter (Half-Bridge) 45~55KHz 600~1200VAC (Strike) 60~110VAC (Steady State) Lamp (Strike) Network/ PTC Protection T5 Lamps Note:120-1626 has another same lamp network..

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:3-Jun-2006 Sheet of File:D:\wang\UTC\UTC T5-2-8W OR 13W.DDBDrawn By: D1 D2 D3 D4 D5 D6 D7 C2A C2B R2 R1 R3 R4 C4 C7 C6 C10 C11 T1a T1c D8 Q2 Q1 T1b P5P1P6P4 Lamp L3 F1 C9 WHT C3 GND BLK C8VR2 PTC2 D9 D10 C5 120 814 L1A 123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:3-Jun-2006 Sheet of File:D:\wang\UTC\UTC T5-2-8W OR 13W.DDBDrawn By: D1 D2 D3 D4 D5 D6 C2A C2B R1 R3 R4 L1A C4 C7 C10 C11 T1a T1c D8 Q2 Q1 T1b P5P8P6P4 Lamp1 L2 F1 C9 WHT C3 GND BLK L1B C8VR1 PTC1 P3P4P2P7 Lamp2 C5 VR2 PTC2 D9 D10 D7 R2 C6 120-1626

FCC TEST REPORT Page 1 of 19 FCC ID : TTO120-8141626 Applicant : MYLAR ELECTRONICHUIZHOUCO., LTD TaLin Trading Centre 30M RD HuiTon Country HuiZhou GuangDong, China Equipment Under Test (EUT) : Product description : Electronic Ballast Model No. : 120-814,120-1626 Standards : FCC Part18 Date of Test : June 06, 2006 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 MYLAR ELECTRONICHUIZHOUCO., LTD FCC ID: TTO120-8141626 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................3 4 GENERAL INFORMATION..................................................................................................................................4 4.1 CLIENT INFORMATION............................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................4 4.3 DETAILS OF E.U.T..................................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................4 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................4 4.6 TEST METHODOLOGY.............................................................................................................................................4 4.7 TEST FACILITY........................................................................................................................................................5 4.8 TEST LOCATION......................................................................................................................................................5 5 EQUIPMENT USED DURING TEST...................................................................................................................6 6 CONDUCTED EMISSION TEST..........................................................................................................................7 6.1 TEST EQUIPMENT....................................................................................................................................................7 6.2 TEST PROCEDURE...................................................................................................................................................7 6.3 CONDUCTED TEST SETUP.......................................................................................................................................8 6.4 EUT OPERATING CONDITION.................................................................................................................................8 6.5 CONDUCTED EMISSION LIMITS...............................................................................................................................9 6.6 SPECTRUM ANALYZER............................................................................................................................................9 6.7 FREQUENCY RANGE OF MEASUREMENTS.............................................................................................................10 6.8 CONDUCTED EMISSION TEST RESULT...................................................................................................................10 6.8.1 Measurement Data.....................................................................................................................................10 6.8.2 Conducted Emissions Test Data.................................................................................................................13 7 PHOTOGRAPHS OF TESTING..........................................................................................................................14 7.1 CONDUCTED EMISSION TEST VIEW FOR 120-814.................................................................................................14 7.2 CONDUCTED EMISSION TEST VIEW FOR 120-1626...............................................................................................14 8 PHOTOGRAPHS-CONSTRUCTIONAL DETAILS.........................................................................................15 8.1 EUT-FRONT VIEW FOR 120-814...........................................................................................................................15 8.2 EUT-BACK VIEW FOR 120-814............................................................................................................................15 8.3 EUT-FRONT VIEW FOR 120-1626.........................................................................................................................16 8.4 EUT-BACK VIEW FOR 120-1626..........................................................................................................................16 8.5 PCB-FRONT VIEW FOR 120-814...........................................................................................................................17 8.6 PCB-BACK VIEW FOR 120-814............................................................................................................................17 8.7 PCB-FRONT VIEW FOR 120-1626.....................…

Text truncated - open the document above for the full version.

Conducted Emission Test View for 120-814 Conducted Emission Test View for 120-1626
