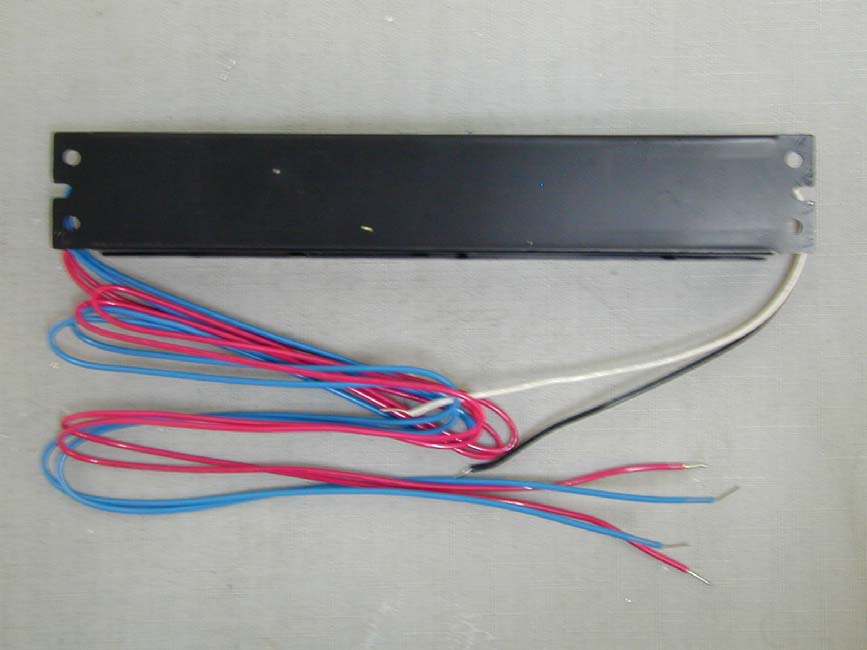

TUDDA0126-01Ballast

Model Number: DA0126-01 CAUTIONARY NOTES: Do not use this equipment for other than intended use. 1. Verify that the line voltage matches the ballast voltage. 2. Installation to be made by a qualified person in accordance with applicable codes. This device complies with part 18 of the FCC Rules FCC Warning: This equipment has been tested and found to comply with the limits for a consumer device, pursuant to Part 18 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, used and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference in to radiate communications. However, there is no guarantee that interference will not occur in a particular installation. If these equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the used is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. zIncrease the separation between the equipment and receiver. zConnect the equipment into an outlet on a circuit different from that to which the receiver in connected. zConsult the dealer or an experienced radio/TV technician for help. This product may cause interference to radio equipment and should not be installed near maritime safety communication equipment or other critical navigation or communication equipment operating between 0.45-30 MHz. Features zHigh power factor. zSound rating A. zMin. Operating TEMP. : - 18к. zEnd of Lamp Life Protection. zInput : 120V – 230V , 50/60Hz. zLine Current : 1.0A. zUL, cUL recognized. UL File # xxxxxx. Lamp Type and Power Consumption: Lamp Type GTD40VOGTD34VOGTD28VO Power Consumption (Watts) 80W 70W 60W GTD22VOGTD16VO 50W 40W Before Installation 1. Disconnect line voltage before installing or replacing lamp. 2. Ballast case must be grounded. 3. Place the ballast to a stable support and fix it. Installation 1. Please connect the lamp with ballast according to the label on the ballast. Ballast supports only the same type lamps specified on the product label. 2. Connect the AC power line. Connect the black wire to L terminal and white to N terminal of the AC source. 3. The both connection of black and white power wire must be fully insulated.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:16-Jan-2006Sheet of File:D:\\Power\\PROTEL\UV.Ddb Drawn By: FAIRWAY ELECTRONIC CO.,LTD. DA0126-01 BLOCK AC INPUTFUSE EMI FILTER RECTIFIER CIRCUIT RIPPLE FILTER BULK CAP PFC PROTECTION UVLO CONTROL DRIVER OUTPUT STAGE Feedback LAMP FREQ. 40KHz INPUT : 115 - 230VAC 47 - 63 Hz OUTPUT : 100VAC/0.8A 40KHz Ignition : 900VAC MAX. 70KHz,1sec. DA0126 Design information BLOCK

NEUTRON EMC LAB. Report No.：NEI- FCCE-1-0512009 17/23 Photo # 1 NEUTRON EMC LAB. Report No.：NEI- FCCE-1-0512009 18/23 Photo # 2

NEUTRON EMC LAB. Report No.：NEI- FCCE-1-0512009 23/23 -- FCC ID label -- The remained portion of label statement required by FCC is attached in the user’s manual. -- Location of Label on EUT -- 2.5 mm 21 mm

NEUTRON EMC LAB. Report No.：NEI- FCCE-1-0512009 19/23 Photo # 3 NEUTRON EMC LAB. Report No.：NEI- FCCE-1-0512009 20/23 Photo # 4

Product Descriptions(Application/Features/Specification) ISM Equipment Category: Ballast Nominal Operating Frequency: 39 +/- 1 KHz Electrical Power: 115V-230V AC input Power Cord: non-shielded type wire More details of EUT technical specification, please refer to the User's Manual.

CY1 CX2 R1RV1 CX1 F1 L1 CY2 L2 CX3 N OUT L OUT DA0126 Design information 1. F1 : FUSE 3.15A/250V SLOW BLOW,POWER PROTECTION. 2. RV1 : VARISTOR 470V,TRANSIENT VOLTAGE PROTECTION. L N INPUT PROTECTIVE DEVICES CY1 CX2 R1RV1 CX1 F1 L1 CY2 L2 CX3 N OUT L OUT DA0126 Design information 1. L1,L2 : 12mH Min.COMMON MODE FILTER. 2. CX1: X CAP. 0.47uF/275VAC,COMMON MODE FILTER. L N CY4 CY3 1 2 3 4 DB1 C1 VH+ PRIMARY GROUND EMI FILTERS PRIMARY GROUND 3. CX2: X CAP. 0.68uF/275VAC,COMMON MODE FILTER. 4. CX3: X CAP. 0.01uF/275VAC,COMMON MODE FILTER. 5. CY1,2: Y CAP. 0.0047uF/250VAC,COMMON MODE FILTER. 6. CY3,4: Y CAP. 0.001uF/250VAC,COMMON MODE FILTER. 7. R1: 1M Ohm,SLUICE RESISTANCE. 8. REFERENCE : CX1,2,3 : 0.1uF - 1uF. CY1,2,3,4 : 0.001uF - 0.022uF. L1,L2 : 12mH Min. FROM N OUT FROM L OUT DA0126 Design information 1. DB1: 8A/1000V,INPUT RECTIFIER. 2. C1: 1uF/400V,INPUT FILTER CAPACTIOR. 1 2 3 4 DB1 C1 VH+ PRIMARY GROUND PRIMARY RECTIFICATION 3. REFERENCE : The input rectifier section plays a largely unappreciated role within the switching power supply. The typical input circuit is composed of two to three major subsections : an EMI filter, possibly a start -up current surge limiter, an overvoltage surge suppressor, a rectification stage (for off-line applications), and the bulk input filter capacitor.

DA0126 Design information 1. D1: 8A/600V,FAST RECOVERY RECTIFIER 2. C2: 33uF/450V,INPUT FILTER CAPACTIOR. VH+ PRIMARY GROUND PFC CIRCUIT VBUS 1 CPH 2 RT 3 RPH 4 CT 5 COMP 6 ZX 7 PFC 8 SD 9 LO 11 VCC 13 COM 12 CS 10 VB 14 VS 15 HO 16 IC1 7 109 1 C2 D1 R8 R2 R3 R4 R5 R6 R7 C3 C4 C6 C7 ZD1 Q1 40KHz 70KHz T1 C5 DC 400V Boost-type PFC circuit Boost-Over Voltage protection & Under Voltage protection 3. C4,C5 Preheat timing cap. 1uF=1sec. 4. R5,R6,C6 for output run and Ignition frequency. 5. C7,ZD1:PFC error amplifier compensation. 6. T1,R7:PFC Zero-Crossing detection. DA0126 Design information VBUS 1 CPH 2 RT 3 RPH 4 CT 5 COMP 6 ZX 7 PFC 8 SD 9 LO 11 VCC 13 COM 12 CS 10 VB 14 VS 15 HO 16 IC1 C14 C12C13 C11C10C8 D2 D4 D3 D5 R15 R14 R13 R12 R10 R9 Q2 Q3 C15 R11 R16 C9 LAMP C17 C19 C18 C16 R20 1 2 3 4 T2 R17 R19 R18 ICVCC 12 TP ZD2 JUMP 2.54mm/0.6φ DC 400V PRIMARY GROUND VH+ OUTPUT STAGE 1. R15,Q2,Q3,R14 : Half-Bridge circuits. 2. R11,R12 : VH+ Under Voltage protection. 3. C15,D3,D4,D5,C12,C13 : Boost voltage circuits. 4. R10,R13,C11 : Over Current Protection. 5. R9,C8,D2,C10 : NO Load protection. 6. R17,R18,R19,R20,C9 : Lamp faul protection. 7. T2,C18,C19 Preheat circuits. 8. T2,C16,R16,C17 : Output resonance circuits.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 9-Dec-2005 Sheet of File: D:\ \Power\ \PROTEL\UV.Ddb Drawn By: CY1 1 2 3 4 DB1 C1 CX2 R1RV1 CX1 F1 VBUS 1 CPH 2 RT 3 RPH 4 CT 5 COMP 6 ZX 7 PFC 8 SD 9 LO 11 VCC 13 COM 12 CS 10 VB 14 VS 15 HO 16 IC1 710 91 C2 D1 R8 R2R3 R4R5 R6 R7 C3 C4 C6 C7 C14 C12 C13 C11 C10 C8 ZD1 D2 D4 D3 D5 R15R14 R13 R12 R10 R9 Q2Q3 Q1 C15 R11 R16 C9 UV LAMP C17 C19C18 C16 R20 40KHz70KHz 1234 1 1 6 6 7 7 10 10 11 11 12 12 3 3 4 4 5 5 8 8 9 9 2 2 T2 N L T1 L1 FAIRWAY ELECTRONIC CO.,LTD. DA0126-01-A7 SCHEMATIC R17R19R18 C5 0.45mH D6 R21 R22 R23 R24 R25 C20 D8 R26 ICVCC ICVCC D7 Q4 Q5 Q6 J1 R27 R28 <0.5S CY2 CY4 CY3 C21 C22C23 J2 5mm/1 φ 1 2 TP ZD2 JUMP 2.54mm/0.6 φ L2 CX2
