TUK-MIR045Bluetooth module for MIR devices

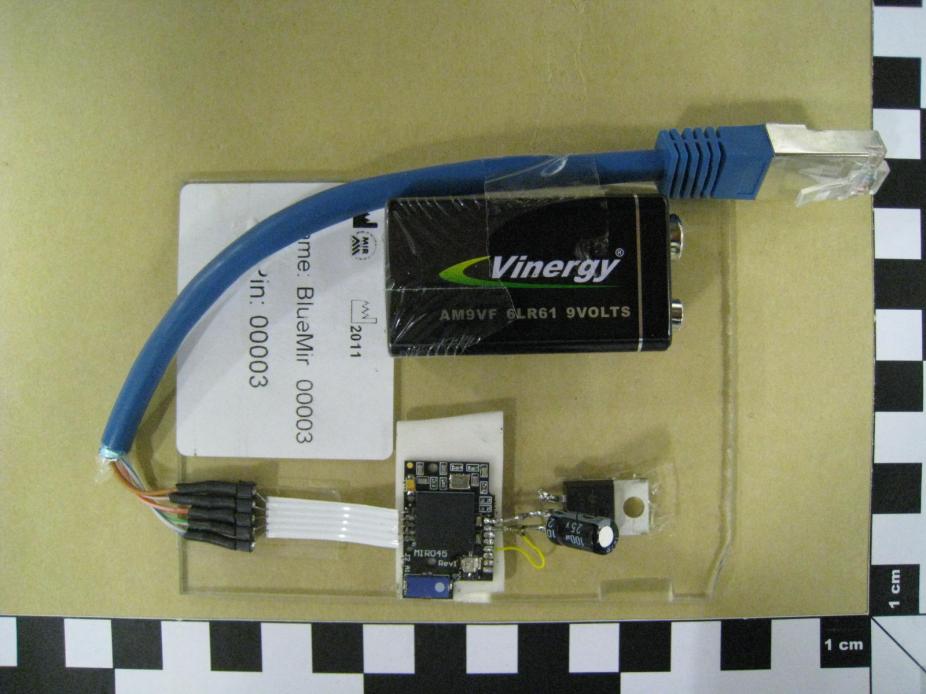

Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Photos – Equipment internal EUT EUT WITH EVALUATION BOARD Page 5 of 110

Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Frequency hopping systems operating within the 2400 – 2483.5MHz band Report Reference No. .................... : G0M-1112-1585-TFC247B-V01 Testing Laboratory ........................ : Eurofins Product Service GmbH Address ............................................ : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation .................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ........................... : MIR Medical International Research Address ............................................ : via del Maggiolino 125 00155 Rome Italy Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Bluetooth module Model No. 001075 Hardware version rev.1 Firmware / Software version 3.0 FCC-ID: TUK-MIR045 Test result Passed Page 1 of 110 Page 2 of 110 Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION: 4 1.1 Photos – Equipment internal 5 1.2 Photos – Test setup 6 1.3 Supporting Equipment Used During Testing 7 1.4 Test Modes 8 1.5 Test Equipment Used During Testing 10 1.6 Sample emission level calculation 11 2 RESULT SUMMARY 12 3 TEST CONDITIONS AND RESULTS 13 3.1 Test Conditions and Results – 20dB Bandwidth 13 3.2 Test Conditions and Results – Number of hopping frequencies 23 3.3 Test Conditions and Results – Frequency hopping channel separation 28 3.4 Test Conditions and Results – Time of occupancy (Dwell Time) 30 3.5 Test Conditions and Results – Maximum peak conducted power 32 3.6 Test Conditions and Results – AC power line conducted emissions 34 3.7 Test Conditions and Results – Band edge compliance 37 3.8 Test Conditions and Results – Conducted spurious emissions 51 3.9 Test Conditions and Results – Transmitter radiated emissions 58 ANNEX A Transmitter radiated spurious emissions 60 Page 3 of 110 Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1 Equipment (Test item) Description: Description Bluetooth module Model 001075 Serial number None Hardware version rev.1 Software / Firmware version 3.0 FCC-ID TUK-MIR045 IC none Equipment type Radio module Radio type Transceiver Radio technology Bluetooth Operating frequency range 2402 - 2480MHz Assigned frequency band 2400 - 2483.5MHz Main test frequencies F LOW 2402MHz F MID 2441MHz F HIGH 2480MHz Spreading FHSS Modulations GFSK, PI/4-DQPSK, 8-PSK Number of channels 79 hopping channels at all Channel spacing 1MHz Number of antennas 1 Antenna Type integrated ceramic chip antenna Model 431111500245 Manufacturer phicomp Gain 0dBi Manufacturer MIR Medical International Research via del Maggiolino 125 00155 Rome Italy Power supply V NOM 3.3VDC V MIN N/A V MIN N/A AC/DC-Adaptor Model none Vendor none Input none Output none Page 4 of 110 Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.1 Photos – Equipment internal EUT EUT WITH EVALUATION BOARD Page 5 of 110 Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Photos – Test setup RADIATED MEASUREMENT CONDUCTED MEASUREMENT Page 6 of 110 Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.3 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments AE AC/DC Adapter RadioShock 293-1770 *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Page 7 of 110 Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.4 Test Modes Mode # Description DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Packet type = DH5 Data rate = 1Mbps Duty cycle = 46% Power level = Maximum (Power setting -12) 2DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = π/4-DQPSK Packet type = 2DH5 Data rate = 2Mbps Duty cycle = 46% Power level = Maximum (Power setting -12) 3DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = 8-DPSK Packet type = 3DH5 Data rate = 3Mbps Duty cycle = 46% Power level = Maximum (Power setting -12) DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = GFSK Packet type = DH5 Data rate = 1Mbps Duty cycle = 46% Power level = Maximum (Power setting -12) Page 8 of 110 Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 2DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = π/4-DQPSK Packet type = 2DH5 Data rate = 2Mbps Duty cycle = 46% Power level = Maximum (Power setting -12) 3DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = 8-DPSK Packet type = 3DH5 Data rate = 3Mbps Duty cycle = 46% Power level = Maximum (Power setting -…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1112-1585-TFC247B-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany 1.2 Photos – Test setup RADIATED MEASUREMENT CONDUCTED MEASUREMENT Page 6 of 110
