TV2EFOBIRemote Controller

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page: 2 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................... 3 1.1 DOCUMENT POLICY .......................................................................................... 3 1.2 TEST STATEMENT ............................................................................................. 3 2. DESCRIPTION OF EUT AND TEST MODE ......................................................... 4 2.1 GENERAL DESCRIPTION OF EUT .................................................................... 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE ..................................................... 4 2.3 DESCRIPTION OF TEST MODE......................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT................................................................... 5 3. DESCRIPTION OF APPLIED STANDARDS......................................................... 5 4. CONDUCTED EMISSION TEST .......................................................................... 5 5. RADIATED EMISSION TEST ............................................................................... 6 5.1 RADIATED EMISSION LIMIT .............................................................................. 6 5.2 TEST EQUIPMENT ............................................................................................. 7 5.3 TEST SET-UP...................................................................................................... 8 5.4 TEST PROCEDURE............................................................................................ 8 5.5 EUT OPERATING CONDITION........................................................................... 8 5.6 MAXIMUM MODULATION PERCENTAGE ......................................................... 8 5.7 RADIATED EMISSION TEST RESULT................................................................ 9 6. BAND EDGE TEST .............................................................................................11 6.1 BAND EDGE LIMIT ............................................................................................11 6.2 TEST EQUIPMENT ............................................................................................11 6.3 TEST SET-UP.....................................................................................................12 6.4 TEST PROCEDURE...........................................................................................12 6.5 EUT OPERATING CONDITION .....................................................................12 6.6 BAND EDGE TEST RESULT .........................................................................12 7. FREQUENCY BANDWIDTH............................................................................... 14 7.1 FREQUENCY BANDWIDTH LIMIT ....................................................................14 7.2 TEST EQUIPMENT ............................................................................................14 7.3 TEST SET-UP.....................................................................................................14 7.4 TEST PROCEDURE...........................................................................................14 7.5 EUT OPERATING CONDITION .....................................................................15 7.6 FREQUENCY BANDWIDTH TEST RESULT .................................................15 PASS/FAIL ................................................................................................................ 15 8. RELEASE OR OPERATING TIME....................................................................... 16 8.1 RELEASE TIME OR OPERATING LIMIT ...........................................................16 8.2 TEST EQUIPMENT ............................................................................................16 8.3 TEST SET-UP.....................................................................................................16 8.4 TEST PROCEDURE............................................................................................17 8.5 EUT OPERATING CONDITION...........................................................................17 8.6 RELEASE OR OPERATING TIME TEST RESULT..............................................17 9. PHOTOS OF TESTING ....................................................................................... 18 10. TERMS OF ABRIVATION ................................................................................. 20 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page: 3 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - The new battery power source 3 Vdc, was used during the test. - The antennas were soldered on the PCB. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page: 4 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Remote Controller MODEL NO. TM-TX01 POWER SUPPLY 3Vdc,5mA(Battery) CABLE N/A I/O PORT/INTERFACE N/A FREQUENCY BAND 433.92MHz CARRIER F…

Text truncated - open the document above for the full version.

SW1 SW2 SW3 SW4 ENCODER U1 Q1 PWM & OSCILLATOR ANTENNA +3V BATTERY ADDRESS CODE MODEL : TM-TX01 Block Diagram ======================================================

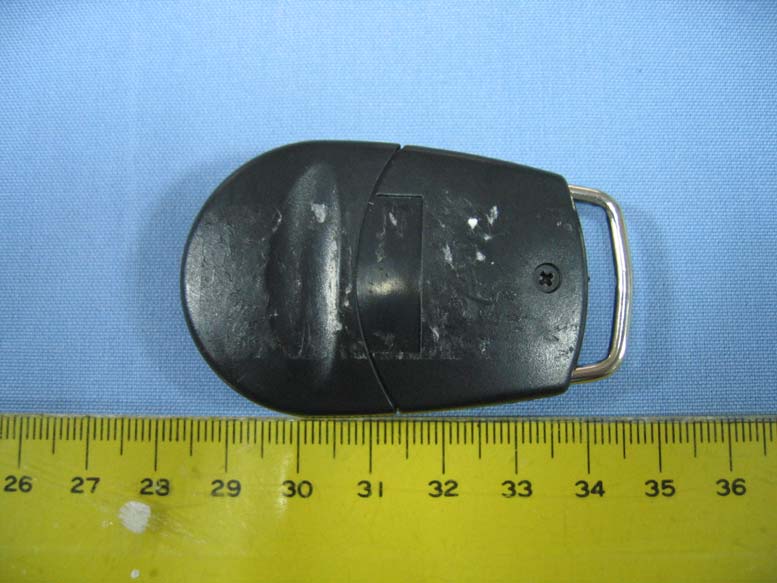

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 4 PHOTOS OF EUT- Remote Cotroller, Model No.: TM-TX01 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 4 PHOTOS OF EUT-CASE

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID:TV2EFOBI

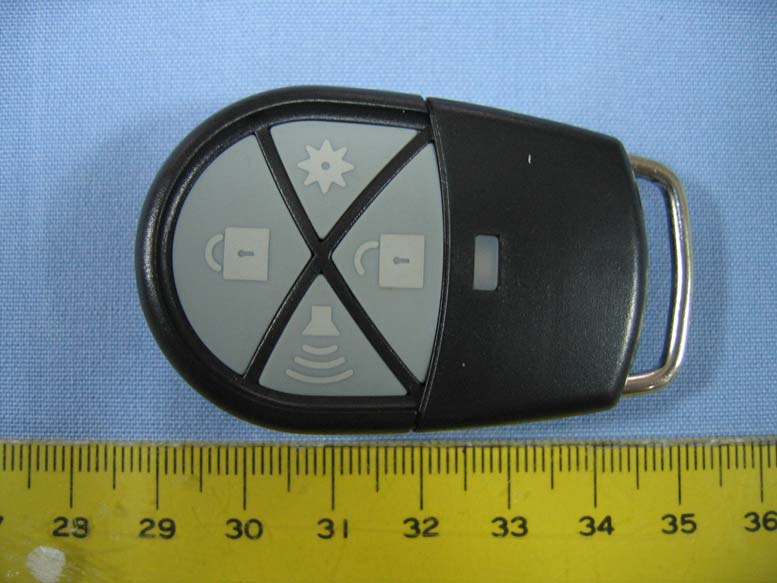

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 4 PHOTOS OF EUT-TOP Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 4 PHOTOS OF EUT-PCB

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Operational Description of equipment Remote Controller FCC ID: TV2EFOBI When push/choose key switch, the Remote Controller will send a signal and local oscillator will go on, then transmitting signal. When RX get a modulation signal: 1. The car computer will check the signal and demodulate the signal. 2. Signals go through low- passed filter and send signal to CPU. 3. CPU will process the signal. 4. When relative Relay in RX go on, it can control the PDA, phone,. ...etc.. PRODUCT Remote Controller MODEL NO. TM-TX01 POWER SUPPLY 3Vdc, 5mA(Battery) CABLE N/A I/O PORT/INTERFACE N/A FREQUENCY BAND 433.92MHz CARRIER FREQUENCY 433.92MHz NUMBER OF CHANNEL 1 CHANNEL SPACING N/A RF OUTPUT POWER 0.01W=10dBm I.F. & L.O. L.O.: 433.92MHz MODULATION TYPE SAW BIT RATE OF TRANSMISSION 4 kHz ANTENNA TYPE Integral Antenna

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 28-Mar-2006 Sheet of File: E:\ ~ 1\SCH_DWG \S20 50 43 A.SCH Drawn By: LED DC 3V C515P Q1 BFR92A R1 2K2 R339R TM-TX01 P2060015 C.F.-LAI 1 SW1SW2 B4 SW3SW4 B2 C42P C1220P ( CR2032 ) S0S1S2S3 VSS PWM/LEDVDD HCS300 U1 12345 678 C2220P RED (SMD) B3 R210K B4 B1 SAW433.92MHz 1 B3 B2 B1 Q2KRC103S C3220P L1 47NH C63P L2 22NH C710P B1 TO B4 ==> BAW56 C85P 22K 22K Frequency : 433.92MHzModulation Type : SAWAction Current : 5mA ( HCS300 )Pcb : FR4 1/1 1.2t Gold Plate 3um

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page: 2 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................... 3 1.1 DOCUMENT POLICY .......................................................................................... 3 1.2 TEST STATEMENT ............................................................................................. 3 2. DESCRIPTION OF EUT AND TEST MODE ......................................................... 4 2.1 GENERAL DESCRIPTION OF EUT .................................................................... 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE ..................................................... 4 2.3 DESCRIPTION OF TEST MODE......................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT................................................................... 5 3. DESCRIPTION OF APPLIED STANDARDS......................................................... 5 4. CONDUCTED EMISSION TEST .......................................................................... 5 5. RADIATED EMISSION TEST ............................................................................... 6 5.1 RADIATED EMISSION LIMIT .............................................................................. 6 5.2 TEST EQUIPMENT ............................................................................................. 7 5.3 TEST SET-UP...................................................................................................... 8 5.4 TEST PROCEDURE............................................................................................ 8 5.5 EUT OPERATING CONDITION........................................................................... 8 5.6 MAXIMUM MODULATION PERCENTAGE ......................................................... 8 5.7 RADIATED EMISSION TEST RESULT................................................................ 9 6. BAND EDGE TEST .............................................................................................11 6.1 BAND EDGE LIMIT ............................................................................................11 6.2 TEST EQUIPMENT ............................................................................................11 6.3 TEST SET-UP.....................................................................................................12 6.4 TEST PROCEDURE...........................................................................................12 6.5 EUT OPERATING CONDITION .....................................................................12 6.6 BAND EDGE TEST RESULT .........................................................................12 7. FREQUENCY BANDWIDTH............................................................................... 14 7.1 FREQUENCY BANDWIDTH LIMIT ....................................................................14 7.2 TEST EQUIPMENT ............................................................................................14 7.3 TEST SET-UP.....................................................................................................14 7.4 TEST PROCEDURE...........................................................................................14 7.5 EUT OPERATING CONDITION .....................................................................15 7.6 FREQUENCY BANDWIDTH TEST RESULT .................................................15 PASS/FAIL ................................................................................................................ 15 8. RELEASE OR OPERATING TIME....................................................................... 16 8.1 RELEASE TIME OR OPERATING LIMIT ...........................................................16 8.2 TEST EQUIPMENT ............................................................................................16 8.3 TEST SET-UP.....................................................................................................16 8.4 TEST PROCEDURE............................................................................................17 8.5 EUT OPERATING CONDITION...........................................................................17 8.6 RELEASE OR OPERATING TIME TEST RESULT..............................................17 9. PHOTOS OF TESTING ....................................................................................... 18 10. TERMS OF ABRIVATION ................................................................................. 20 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page: 3 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - The new battery power source 3 Vdc, was used during the test. - The antennas were soldered on the PCB. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page: 4 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Remote Controller MODEL NO. TM-TX01 POWER SUPPLY 3Vdc,5mA(Battery) CABLE N/A I/O PORT/INTERFACE N/A FREQUENCY BAND 433.92MHz CARRIER F…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page: 19 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 9. PHOTOS OF TESTING Radiated test-TX
