TVB-HOLIE-HL-501Wireless Bluetooth Headset

Product Functional Specification MODEL: HL-501 Product Name Bluetooth Headset Product Model HL-501 Support Profiles Headset and Hands-free Profiles REVISION V1.2 DATE 2005-12-08 Design By Prepared By Approved By ¾ Introduction Bluetooth Headset is a portable hand-free headset solution based on CSR Bluetooth wireless technology. The design is developed based on CSR Headset Pioneer Program reference design with Bluecore02-Headset chipset. Use SUNITEC Class 2 Module BCM-04. Product Functional Specification MODEL: HL-501 ¾ Appearance Figure 1: Appearance of the headset Product Functional Specification MODEL: HL-501 ¾ Specifications Operating Frequency Band 2.4GHz ~ 2.48GHz unlicensed ISM band Bluetooth Specification V1.2 Support Profiles Headset & Hand-free profiles Output Power Class Class 2 Battery Used 150mAh Battery Voltage 3.7V DC Charger 6.05%V (type. 250mA) Talk Time Up to 6 hrs Standby Time Up to 150 hrs Battery Charging Time 2 hrs Range of operation Max 10m line of sight Dimension & Weight 64mm*28mm*30mm/16g Visual Indication 2 LEDs (Blue and Red) Number of Operating Buttons 3 Buttons function Specifications are subject to change without prior notice Table 1: General Specification Product Functional Specification MODEL: HL-501 ¾ System Architecture Figure 2: System Architecture ¾ PCB Layout Product Functional Specification MODEL: HL-501 ¾ Operation Procedure 1. Switching ON and OFF Function Operation Switch ON • During OFF stage, press and hold the MFB button for 5 seconds. • The headset will be turned on. Blue LED will flash once every 3 seconds. Switch OFF • During ON stage, press and hold the MFB button for 2 seconds until Red LED flashes rapidly. • The headset will now be turn off. Red LED and Blue LED will turn off. 2. Pairing Function Operation Pairing • Turn off the headset. • Press and hold the MFB button until Blue Red LEDs flash alternately. • Perform a device discovery from the phone. • Press the “YES” key on the phone to bond to the headset. • Enter passkey “0000”, and then “OK” to pair the headset with the phone. 3. Answering call Function Operation Answering call • When a call comes in to the paired phone, the headset will start making a ring tone. • Press the MFB button to answer. 4. Reject call Function Operation Reject call • When a call comes in to the paired phone, the headset will start making a ring tone. • Press and hold the MFB button 3 seconds to reject. 5. End call Function Operation Ending call • During on going call press the MFB button to end a call Product Functional Specification MODEL: HL-501 6. Interchange call Function Operation Interchange call • Press and hold VOL- button 3 seconds to interchange headset and mobile handset. 7. Making Call using headset Function Operation Voice dialing • Press the MFB button • Wait for the beep, then say the name of the person you want to call Re-dialling • Press and hold the VOL+ button 3 seconds to re-dial the last number 8. Mute and Un-mute Function Operation Mute • Press VOL+ and VOL- button 3 seconds • A periodic tone will be heard to indicate that the microphone is muted. Un-mute • Press VOL+ or VOL- 9. Volume Adjustment Function Operation Volume Adjustment • To increase speaker volume, press the VOL+ button repeated l until the user reaches the desired volume level. • To decrease speaker volume, press the VOL- button repeatedly until the user reaches the desired volume level 10. Charging Battery Function Operation Charging Battery • Plug in DC adaptor. • RED LED will light up when charging is in progress. • RED LED will off when charging is completed. Note: The headset will not function during charging. Product Functional Specification MODEL: HL-501 FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

 S&E Product Technology Service Co., Ltd. A407 No. 407, Block A, Shennan Garden, High-Tech Industrial Park, Nanshen, Shenzhen, P.R. China Tel: +86 755 2663 657312 Fax: +86 755 2663 0557 DATE: December 21, 2005. Dear TCB Section of Timco Engineering, Inc., Thank you for cooperation. I would like to submit FCC application of SHENZHEN HOLIE ELECTRONICS CO.,LTD / FCCID: TVB-HOLIE-HL-501 by your TCB Approval today. Best Regards, S&E Product Technology Service Co., Ltd. Adum Liu Safety Engineer

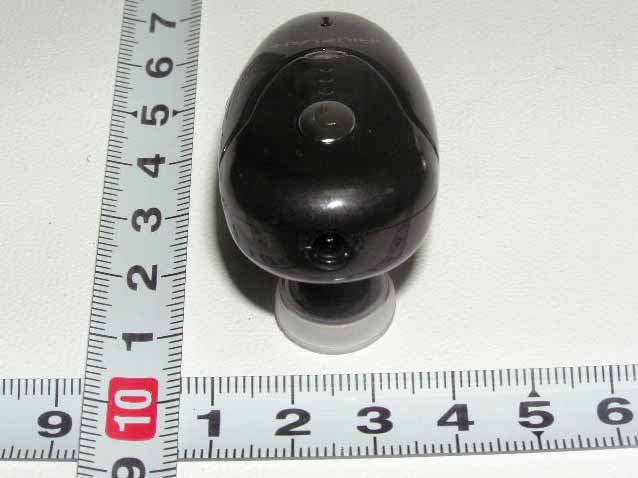

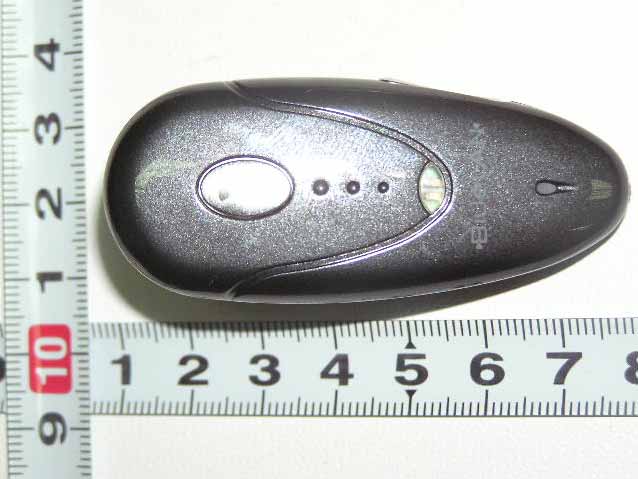

EUT- Front View (Black) EUT- Rear View (Black) EUT- Side View (Black) UT- Front View (Red) E EUT- Rear View (White) EUT- Top View (Silver)

FCC ID Label Sample for FCCID: TVB-HOLIE-HL-501 FCCID: TVB-HOLIE-HL-501

Circuit Description(2.402GHz~2.480GHz) The Headset consists of the Changer Circuit, 1.8V Switched mode Regulator, Bluetooth Headset Module BCM-04H, Audio Speaker Circuit, Microphone Bias, Status indicating LED and Three Multifunction Buttons for power on/off, pairing, call control, Volume Control etc. Charger Circuit The Headset are often powered internally using a 3.7 volt Lithium-lon Polymer with short circuit protection and a capacity of 120mAh, The battery charger is based on the U2, U2 has a VCC input for the power source from an external 6 volt DC supply. An output to the battery, Battery volt is for Microphone Bias circuit and Bluetooth Module power 1.8V DC/DC circuit. Bluetooth module BCM-04H The BCM-04H is a Class 2 Bluetooth sub-system using BlueCore2-Headset ROM chipset from leading Bluetooth chipset supplier Cambridge Silicon Radio with a maximal output power of less than 4dBm. The module block includes CSR Bluecore02 IC, EEPROM, Band pass Filter and Crystal for clock. When used with the CSR Bluetooth software stack, it provides a fully compliant Bluetooth system to v1.2 specification for data and voice communications. The RF circuit includes the antenna matching components and a ceramic antenna welded in the circuit board . The crystal provides the whole circuit the standard reference frequency of 16MHz. There is no external ground connection. the ground is only that of the printed circuit board. Switched mode 1.8 Volt regulator For optimum efficiency, a switch mode power supply provides the 1.8V for digital, analogue and RF portions of the device. This converter is powered from a Li-polymer battery.

Schematic Diagram ( 2.40 2 GHz~2.4 80 GHz )
