QuickStart GuideQuickStart Guide FortiExtender Rugged 511G FER-511G 23 The Essentials Default Logins For getting started documentation admin guides, up-to-date hardware manuals and reference resources, visit https://docs.fortinet.com/ Fortinet Documents Library Experience simplified cloud deployment, zero-touch provisioning, centralized management, and automated reporting at https://fortiedge.forticloud.com Secure thin edge locations with enterprise-grade protection using FortiExtender as a FortiSASE LAN extension in micro-branch deployments. For details, visit https://www.fortinet.com/products/sase FortiEdge Cloud FortiSASE ThinEdge Secure your Network Register at https://support.fortinet.com for the latest threat protection updates https://192.168.200.99 Username: admin Password: leave blank https://fortiedge.forticloud.com Username: user-defined Password: user-defined Package Contents FortiExtender Rugged 511G FER-511G 4x Wall Mount Screws, 4x Wall Mount Anchors, 4x Bracket Screws, 1x Grounding Screw 1x Wall Mount Bracket 2x SIM Card Adapters 2x Metal Clamps FortiExtender Rugged Device QuickStart Guide 45 Setup FortiEdge Cloud FortiSASE LAN Extension Ethernet Cable (not included) LAN 2/1G Port FortiEdge Cloud https://fortiedge.forticloud.com Note: Once registered and logged to FortiEdge Cloud, your device will automatically appear in Inventory. GUI If Static IP: 192.168.200.1/24 LAN 2/1G Port https://192.168.200.99 Username: admin No Password CLI Speed (default): 115200 Data bits: 8 Stop bits: 1 Parity: None Flow Control: None Console Port Ethernet Cable Console Cable (not included) (not included) Power the device on the LAN1/2.5G/POE Port with an 802.3at PoE injector, FortiGate PoE port or a switch PoE Port. To configure your FortiExtender as a FortiSASE LAN Extension, refer to the Edge Device and Prerequisites sections in the FortiSASE Admin Guide at https://docs.fortinet.com/product/fortisase 67 Wall Mounting Wall Mount Bracket 4x Wall Mount Screws 4x Anchors Mark the wall using the wall mount bracket holes, then drill holes and insert the anchors. Insert the screws into the anchors, with a ~5mm gap, then slide the device bracket onto the wall mount screws and tighten them. Bracket Installation 4x Bracket Screws (2x per side) Position the device onto the bracket, making sure the 4 screw holes on the device align with the 4 screw holes on the bracket, then secure the device with the bracket screws. Device Installation 89 Pole Mounting 4x Clamp Holes (2x per side) 2x Metal Clamp Loop the provided metal clamps in the clamp holes, then secure the device around a pole. Ground Connection Consult a professional electrician to determine the appropriate ground connection according to local electrical codes. See page 14 for more info. Ground Connection (grounding screw provided) 1011 SIM InstallationCable Installation SIM type is 3FF - Micro SIM. Industrial SIM cards recommended for extreme temperature environments. LAN 1 and LAN 2 ports are rated IP67. Follow the diagram below to install the cable connectors.

1213 1 24356 Interfaces FER-511G 1 2 3 4 5 6 LED STATUS SIM Slots (x2) MicroSIM - 3FF RESET press and hold for system reset USB 2.0 (USB-A) CONSOLE (RJ-45) CLI management LAN2/1G (RJ-45) 1 Gbps Ethernet IP67 Port LAN1/2.5G/POE (RJ-45) 2.5 Gbps 802.3at (25.5W) PoE Ethernet IP67 Port Power Green: Device is on Flashing Green: Booting up Amber: System error Off: Device is off GPS/GNSS Green: Connected Off: Not connected LAN Blue: LAN1 is connected Flashing Blue: LAN1 data activity Green: LAN2 is connected Flashing Green: LAN2 data activity Flashing Blue/Green: LAN1/LAN2 connected Off: LAN1/LAN2 is not connected 2.4G WiFi Green: WiFi LAN connected Flashing Green: WiFi LAN data activity Off: WiFi LAN not connected 5G WiFi Green: WiFi LAN connected Flashing Green: WiFi LAN data activity Off: WiFi LAN not connected FortiSASE LAN Extension Blue: Connected Slow Flashing Blue: Connecting Fast Flashing Blue: Connection Error Off: Not connected Management Blue: FortiGate or FortiExplorer Cloud managed Flashing Blue: Connecting to a managed device Off: Stand-alone mode 5G/LTE Carrier Blue: 5G connected Green: LTE connected Slow Flashing Green: Connecting Fast Flashing Green: SIM or firmware error Off: 5G/LTE not connected Signal Strength (Blue = 5G, Green = LT E) Four Bars: >75% Three Bars: 50% to 75% Two Bars: 25% to 50% One Bar: <25% 2 G5 G 2 G5 G 2 G5 G RESET button 1415 Cautions and Warnings Environmental specifications Ambient operating temperature: -40°C to 60°C Refer to specific Product Model Data Sheet for Environmental Specifications (Operating Temperature, Storage Temperature, Humidity, and Altitude) Référez à la Fiche Technique de ce produit pour les caractéristiques environnementales (Température de fonctionnement, température de stockage, humidité et l’altitude). Safety Caution: This equipment is to be used in a Network Environment 0 per IECTR 62101. This product is connected only to PoE networks without routing to the outside plant. Attention: Ce matériel doit être utilisé dans un Environnement Réseau 0 par IECTR 62101. Ce produit est uniquement connecté aux réseaux PoE sans installation externe de routage. This product is intended to be supplied by a UL Listed / IEC Certified ITE power supply rated output 54Vdc, 0.47A min from PoE source, Tma = 60°C, (marked LPS or Class 2). Ce produit est fourni par la puissance de adapté, certifié IEC / UL avec l’émission de 54VDC, 0.47A min, Tma = 60°C (Marqué LPS ou classe 2) PoE input cable type should be CL3, CL3P, CL3R, CL3X, marked “SUNLIGHT RESISTANT”, “SUN. RES.”, or “SR.” and “water resistant” or “W”. Le type de câble PoE d’entrée doit être CL3, CL3P, CL3R, CL3X marqué “SUNLIGHT RESISTANT”. “SUN RES.» Ou «SR». et “waterproof” ou “W”. Grounding — To prevent damage to your equipment, connections that enter from outside the building should pass through a lightning / surge protec- tor, and be properly grounded. Use an electrostatic discharge workstation (ESD) and/or wear an anti-static wrist strap while you work. In addition to the grounding terminal of the plug, on the back panel, there is another, separate terminal for earthing. Mise à la terre — Pour éviter d’endommager votre matériel, assurez-vous que les branchements qui entrent à partir de l’extérieur du bâtiment passent par un parafoudre / parasurtenseur et sont correctement mis à la terre. Utilisez un poste de travail de décharge électrostatique (ESD) et / ou portez un bracelet anti-statique lorsque vous travaillez. Ce produit possède une borne de mise à la terre qui est prévu à l’arrière du produit, à ceci s’ajoute la mise à la terre de la prise. This product has a separate protective earthing terminal provided on the back of the product in addition to the grounding terminal of the attachment plug. This separate protective earthing terminal must be permanently connected to earth with a green with yellow stripe conductor minimum size # 22AWG and the connection is to be installed by a qualified service personnel. Ce produit a une borne de mise à la terre séparé sur le dos de l’appareil, en plus de la borne de mise à la terre de la fiche de raccordement. Cette borne de mise à la terre séparée doit être connecté en permanence à la terre avec un conducteur vert avec la taille bande jaune de minimum # 22AWG et la connexion doit être installé par un personnel qualifié. Regulatory Notices Federal Communication Commission (FCC) – USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment This equipment complies with FCC radiation exposure limits set forth…

Text truncated - open the document above for the full version.

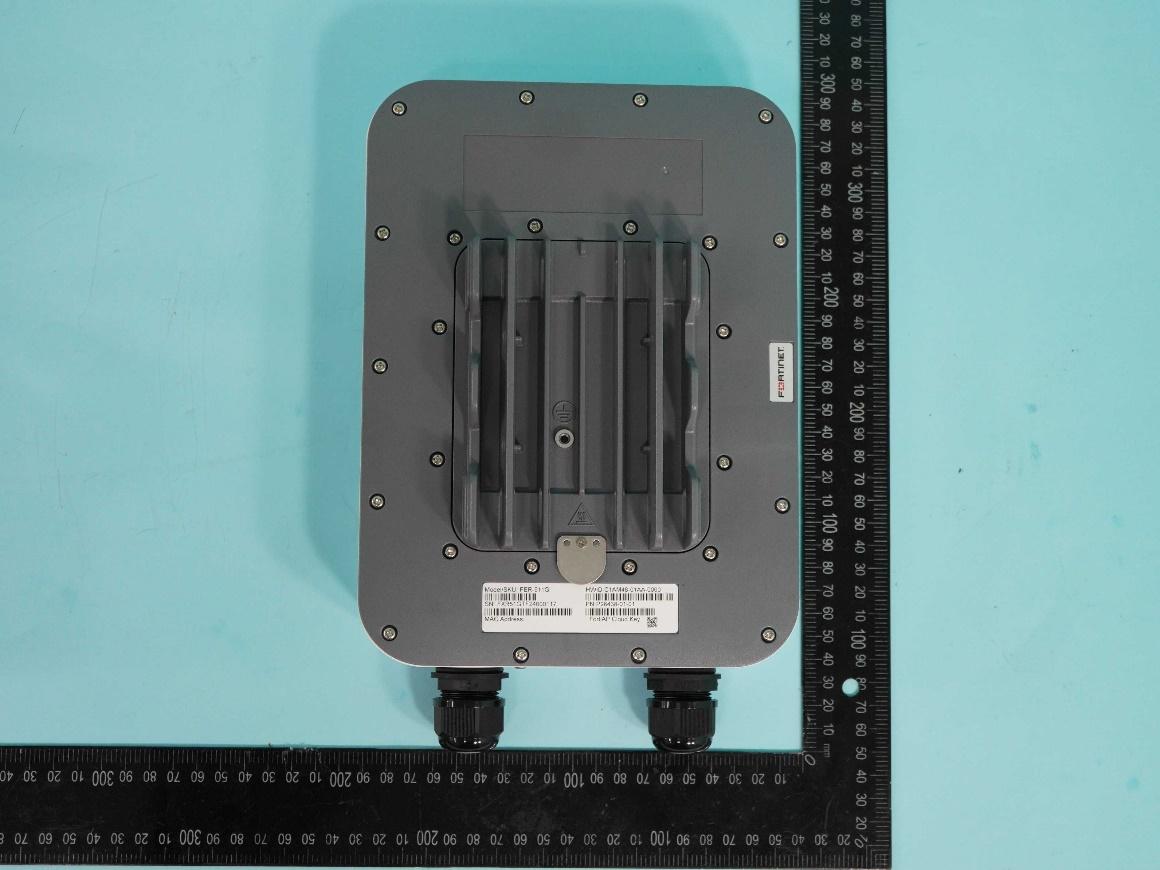

Radio Exposure Evaluation Report Report No. : FA390701 TEL : 886-3-327-3456 Page Number : 1 of 17 FAX : 886-3-327-0973 Issued Date : Apr. 21, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: TVE-240609 Radio Exposure Evaluation Report FCC ID : TVE-240609 Equipment : Secured Network Extension Device Brand Name : FORTINET Model Name : FortiExtenderRugged 511Gxxxxxxxxxx, FORTIEXTENDERRUGGED-511Gxxxxxxxxxx, FER-511Gxxxxxxxxxx (where “x” can be used as “A-Z”, or “0-9”, or “-“, or blank for software changes or marketing purposes only) Applicant : Fortinet, Inc. 909 Kifer Road, Sunnyvale, CA 94086, USA Manufacturer : Fortinet, Inc. 909 Kifer Road, Sunnyvale, CA 94086, USA Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Apr. 02, 2024, and testing was started from Apr. 22, 2024 and completed on Jul. 08, 2024. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA390701 TEL : 886-3-327-3456 Page Number : 2 of 17 FAX : 886-3-327-0973 Issued Date : Apr. 21, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: TVE-240609 Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ........................................................................................................................... 10 1.3 Testing Location ................................................................................................................................... 10 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................. 11 2.1 Limit of Maximum Permissible Exposure ............................................................................................. 11 2.2 RF Exposure Exempt Measurement .................................................................................................... 12 2.3 Multiple RF Sources Exposure ............................................................................................................. 13 2.4 MPE Calculation Method ...................................................................................................................... 14 2.5 Calculated Result and Limit .................................................................................................................. 15 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA390701 TEL : 886-3-327-3456 Page Number : 3 of 17 FAX : 886-3-327-0973 Issued Date : Apr. 21, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: TVE-240609 History of this test report Report No. Version Description Issued Date FA390701 01 Initial issue of report Apr. 21, 2025 Radio Exposure Evaluation Report Report No. : FA390701 TEL : 886-3-327-3456 Page Number : 4 of 17 FAX : 886-3-327-0973 Issued Date : Apr. 21, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: TVE-240609 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None Reviewed by: Barry Hsiao Report Producer: Julie Tseng Radio Exposure Evaluation Report Report No. : FA390701 TEL : 886-3-327-3456 Page Number : 5 of 17 FAX : 886-3-327-0973 Issued Date : Apr. 21, 2025 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: TVE-240609 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5240 5260-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) WWAN Evaluation Mode Operating Band Freq. (MHz) Modulation Type 3G WCDMA Band II 1850 - 1910 QPSK, 16QAM, 64QAM, 256QAM WCDMA Band IV 1710 - 1755 WCDMA Band V 824 - 849 LTE LTE Band 2 1850 - 1910 LTE Band 4 1710 - 1755 LTE Band 5 824 - 849 LTE Band 7 2500 - 2570 LTE Band 12 699 - 716 LTE Band 13 777 - 787 LTE Band 14 788 - 798 LTE Band 17 704 - 716 LTE Band 25 1850 - 1915 LTE Band 26 814 - 849 LTE Band 30 2305 - 2315 Radio Exposure Evaluation Report Report No. : FA390701 TEL : 886-3-327-3456 Page Number : 6 of 17 FAX : 886-3-327-0973 Iss…

Text truncated - open the document above for the full version.

Test Photos Appendix H Sporton International Inc. Page No. : H1 of H4 1. Photographs of Conducted Emissions Test Configuration Front view Side view Report No. : FR390701AN Test Photos Appendix H Sporton International Inc. Page No. : H2 of H4 Under table view Report No. : FR390701AN Test Photos Appendix H Sporton International Inc. Page No. : H3 of H4 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Report No. : FR390701AN Test Photos Appendix H Sporton International Inc. Page No. : H4 of H4 For radiated emissions above 1GHz Front view Rear view ─────THE END───── Report No. : FR390701AN

TEL : 408 9043300 Page Number : 1 of 1 Report Template No.: BU5-FZ15EDFS M Version 1.1 Issue Date : Apr. 11, 2025 Report Version : 01 FCC DFS TEST REPORT Report No. : FZ250310002-01 Setup Photographs Front View EUT ─────THE END────

TEL : 408 9043300 Page Number : 1 of 1 Report Template No.: BU5-FZ15EDFS M Version 1.1 Issue Date : Apr. 14, 2025 Report Version : 01 FCC DFS TEST REPORT Report No. : FZ2503102002 Setup Photographs Front View EUT ─────THE END────

FER-511G Antenna Test Report CustomerFortinet ProjectFER-511G Project Description Sub-6 antenna*4 GPS antenna*1 WiFi Dual antenna*2 BLE antenna*1 Date2024/06/20 Prepared byTony/Kenny Report VersionA05 •Agenda –Placement and Specification –VSWR & Isolation –RadiationPattern –Combine Pattern - WiFi –Efficiency and Gain Executive Summary Ant No.BrandAntenna P/NOperating BandAnt TypeMaterial FeedingDimension Main Ant0AWANA8L8Y-200001617~960, 1450~2690, 3300~5925 MHzMonopoleLDSCable84*84*27.8 mm 3 MIMO Ant1AWANA8L8Y-2000011450~2690, 3300~5925 MHzMonopoleLDSCable84*84*27.8 mm 3 Main Ant2AWANA8L8Y-200000617~960, 1450~2690, 3300~5925 MHzMonopoleLDSCable84*84*27.8 mm 3 MIMO Ant3AWANA8L8M-2000001450~2690, 3300~5925 MHzMonopoleLDSCable90*20*27.8 mm 3 GPS/GNSS Ant4AWANA8L8Y-2000001555~1610MHzPIFALDSCable84*84*27.8 mm 3 WiFi Dual Ant5AWANA8L8P-2000002400~2500, 5150~5850 MHzDipoleLDSCable90*20*27.8 mm 3 WiFi Dual Ant6AWANA8L8M-2000002400~2500, 5150~5850 MHzDipoleLDSCable90*20*27.8 mm 3 BLE Ant7AWANA8L8P-2000002400~2500 MHzDipoleLDSCable90*20*27.8 mm 3 BLE Ant7 WiFi Dual Ant5 LTE/Sub6 MIMO Ant1 LTE/Sub6 Main Ant0 LTE/Sub6 Main Ant2 WiFi Dual Ant6 LTE/Sub6 MIMO Ant3 GPS/GNSS Ant4 Antenna Placement Back view Address: No. 500, 520, Fusing 3rd Rd., Hwa-Ya Technology Park Kuei-Shan Dist., Taoyuan City 33383, Taiwan VSWR VSWR Isolation LTE Sub-6/GPS Isolation LTE Sub-6/WiFi Isolation LTE Sub-6/GPS/WiFi/BLE Low Band Middle Band Y X Z Gain Pattern – LTE/Sub6 Main Ant0 High Band Ultra High Band Gain Pattern – LTE/Sub6 Main Ant0 Y X Z High Band Middle Band Gain Pattern – LTE/Sub6 MIMO Ant1 Y X Z Ultra High Band Gain Pattern – LTE/Sub6 MIMO Ant1 Y X Z Low Band Middle Band Gain Pattern – LTE/Sub6 Main Ant2 Y X Z High Band Ultra High Band Gain Pattern – LTE/Sub6 Main Ant2 Y X Z High Band Middle Band Gain Pattern – LTE/Sub6 MIMO Ant3 Y X Z Ultra High Band Gain Pattern – LTE/Sub6 MIMO Ant3 Y X Z 1575 MHz Gain Pattern – GPS/GNSS Ant4 Y X Z 5500 MHz 2450 MHz Gain Pattern – WiFi Ant5 Y X Z 5500 MHz 2450 MHz Gain Pattern – WiFi Ant6 Y X Z 2450 MHz Gain Pattern – BLE Ant7 Y X Z +Y +X +X +Z +Y +Z Combine Pattern – WiFi 2G @ 2.45 GHz Y X Z +Y +X +X +Z +Y +Z Combine Pattern – WiFi 5G @ 5.55 GHz Y X Z Efficiency Antenna Efficiency and Gain Gain Antenna Efficiency and Gain Antenna Performance Freq. (MHz) Main Ant0Main Ant2 Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 61753.9 1.28 54.4 0.45 63758.4 1.95 61.2 0.91 65262.3 1.99 63.1 1.45 66263.3 2.21 61.7 1.97 67758.9 1.61 59.2 2.05 69864.5 2.89 55.9 2.79 70459.2 2.85 54.9 2.16 71659.9 3.08 60.2 2.46 73458.3 3.30 63.5 2.84 74660.3 2.48 63.2 2.52 75661.4 2.75 64.2 2.60 77762.0 2.72 61.6 2.33 78763.8 2.89 62.7 2.29 79165.3 3.01 62.3 2.32 80664.7 2.90 63.5 1.85 82458.7 3.02 63.4 2.08 83660.5 3.13 58.0 2.38 88061.6 2.07 58.8 2.87 89458.6 2.71 58.5 2.14 91556.8 2.87 57.9 2.29 92555.4 2.14 59.8 1.52 96052.0 2.47 57.7 2.83 Antenna Performance Freq. (MHz) Main Ant0Main Ant2 Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 145260.1 2.76 58.9 1.98 147561.3 2.22 60.5 2.87 149662.3 2.65 61.1 3.14 171067.9 3.74 70.5 3.28 174768.7 3.37 70.8 3.12 178567.5 3.44 72.2 3.08 180564.9 2.94 71.6 2.82 185061.9 1.12 72.6 3.05 188063.5 3.10 69.5 2.50 191063.3 2.55 69.7 2.70 195062.0 3.20 71.0 3.35 198066.6 3.04 68.9 3.09 201068.3 2.82 71.9 3.11 211069.1 3.56 71.3 3.62 215568.9 3.06 68.7 3.09 217069.8 2.24 68.5 2.52 220065.9 1.62 65.4 1.58 230061.2 0.90 58.7 0.80 231064.40.8762.00.86 235062.9 0.70 60.3 0.84 240064.2 0.89 60.8 0.97 244262.8 1.43 63.7 1.89 250062.8 2.44 66.8 2.61 255062.7 3.60 64.7 3.70 260063.3 2.96 65.9 3.46 265566.6 2.97 65.3 3.53 269069.2 3.63 64.6 3.41 Antenna Efficiency and Gain Antenna Performance Freq. (MHz) Main Ant0Main Ant2 Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 330057.4 1.97 59.7 1.75 340056.9 0.35 58.1 0.40 350056.9 0.39 60.0 0.41 360057.7 0.40 56.6 0.39 370056.2 0.42 54.3 0.47 380062.7 0.36 61.4 0.47 400065.5 1.89 61.5 1.34 410066.2 2.37 64.9 2.40 420067.6 2.21 62.2 2.42 430061.4 3.42 61.3 4.37 440058.8 3.25 60.3 4.71 450059.9 4.04 60.0 4.34 460059.8 4.69 61.5 4.26 470062.6 4.18 58.9 3.98 480055.3 4.68 54.6 3.17 490050.6 4.86 54.5 4.59 500052.5 4.14 55.0 4.96 Antenna Performance Freq. (MHz) Main Ant0Main Ant2 Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 515053.6 4.38 57.3 4.12 525058.7 4.70 62.1 4.39 535054.4 3.69 59.2 3.17 547054.7 3.56 57.6 3.17 560051.4 3.07 52.1 4.18 572559.9 4.40 62.4 4.74 575061.4 4.60 62.0 4.62 580062.4 5.31 61.0 4.41 582560.6 5.25 61.4 4.19 585059.9 5.43 62.8 4.41 587561.4 5.40 63.5 4.17 590061.0 4.94 63.1 3.65 592559.2 4.66 62.2 3.23 Antenna Efficiency and Gain Antenna Performance Freq. (MHz) MIMO Ant1MIMO Ant3 Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 145253.7 2.17 57.2 3.10 147561.8 2.88 64.6 3.63 149664.9 3.12 62.3 3.48 171065.2 4.32 64.2 5.17 174766.9 4.51 64.2 4.68 178566.5 3.38 65.4 4.37 180565.1 3.09 66.4 4.40 185065.6 3.39 68.3 4.55 188065.4 3.03 64.6 4.11 191065.0 2.92 65.9 3.91 195066.9 3.44 64.5 4.02 198061.8 3.34 62.8 3.99 201069.8 3.62 63.5 4.19 211067.5 4.26 62.6 5.03 215565.1 3.21 63.0 3.60 217064.0 2.12 66.9 2.75 220063.9 1.75 60.9 1.49 230059.5 0.71 58.0 0.88 231062.20.8662.40.91 235061.5 0.82 60.0 0.90 240060.9 0.87 58.8 0.89 244259.4 1.55 64.8 1.63 250065.6 2.70 61.2 2.59 255065.1 3.11 64.1 3.46 260060.0 3.03 61.3 3.42 265555.7 3.59 62.0 3.35 269055.5 3.67 63.7 3.65 Antenna Efficiency and Gain Antenna Performance Freq. (MHz) MIMO Ant1MIMO Ant3 Efficiency (%) Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) 330056.3 1.87 60.2 1.30 340053.5 0.24 55.6 0.35 350055.5 0.18 58.8 0.46 360054.7 0.22 55.8 0.33 370055.4 0.36 58.4 0.43 380060.4 0.40 59.8 0.45 400062.6 1.40 58.1 1.47 410063.6 2.18 62.5 2.29 420064.9 2.36 63.7 2.34 430060.7 3.32 63.3 3.29 440056.2 2.37 60.5 4.01 450056.8 1.76 63.5 4.47 460057.5 2.68 61.5 5.10 470061.1 2.61 64.7 4.68 480055.3 2.99 62.5 3.53 490054.3 3.49 60.6 4.18 500060.2 4.29 58.3 3.99 Antenna Performance Freq. (MHz) MIMO Ant…
