TWB-ETP02165Bluetooth Controller

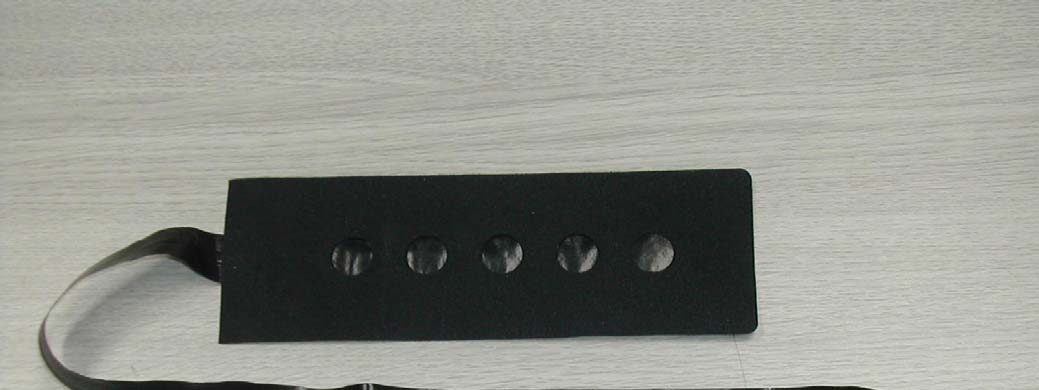

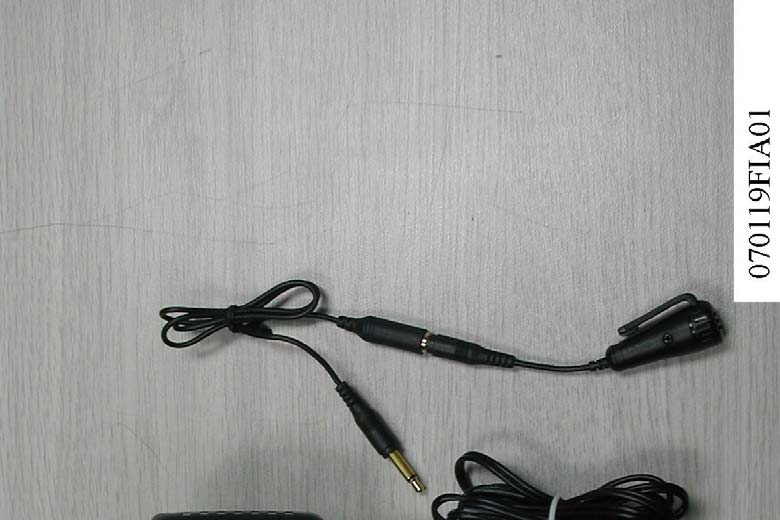

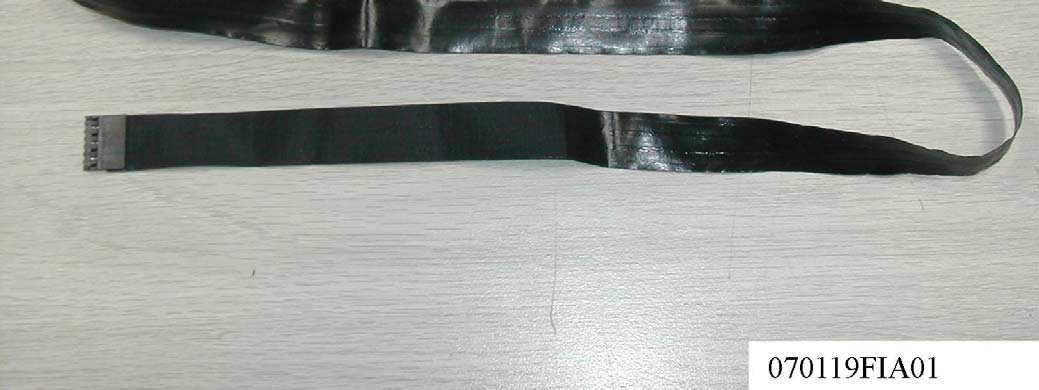

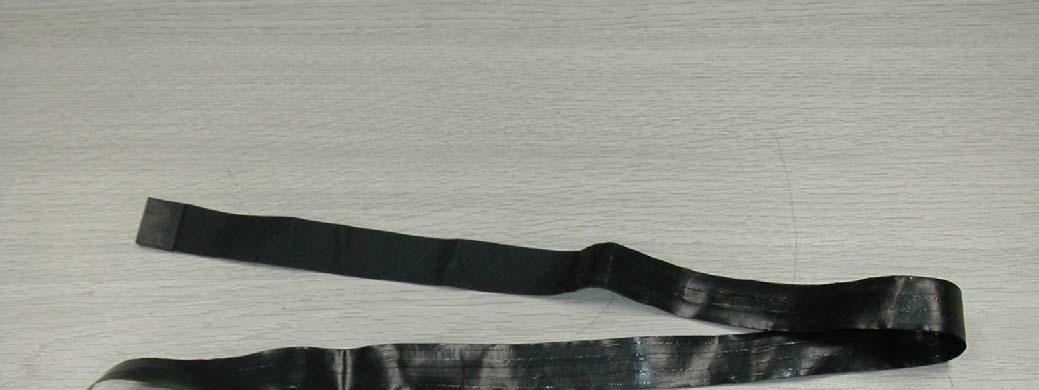

Confidential Document: Specification ESP-00889-B Instructions for Use Eleksen iPod + Bluetooth Controller with Autolock Eleksen Group plc. Registered Office: Pinewood Studios · Pinewood Road · Iver Heath · Bucks · SL0 0NH · UK. Registered in England No. 05372849 CONFIDENTIAL Page 1 Instructions for Use Eleksen iPod + Bluetooth Controller with Autolock This document covers the operation of the ElekTex® Wearable iPod + Bluetooth Controller product. The system is designed to be built into any garment or bag product to provide controls for an Apple iPod along with an ability to handle phone calls when used with a Bluetooth mobile phone. The system connects to the iPod via the Apple 30-pin dock connector to give a “simple remote” interface. 1. Components Eleksen supplies a Sales Sample package comprising of the following; 1 x ElekTex Sensor 1 x Electronics Interface Box 1 x microphone 1 x mains charger The iPod controller system is laid out as follows: Figure 1 controller schematic ElekTex sensor Bluetooth electronics interface box iPod connector iPod - not supplied Headphones - not supplied Fabric ribbon cable Bluetooth phone – not supplied Microphone Mode switch Mains charger Confidential Document: Specification ESP-00889-B Instructions for Use Eleksen iPod + Bluetooth Controller with Autolock Eleksen Group plc. Registered Office: Pinewood Studios · Pinewood Road · Iver Heath · Bucks · SL0 0NH · UK. Registered in England No. 05372849 CONFIDENTIAL Page 2 2. Operation 2.1. Connection Plug the iPod to the ElekTex interface box using the bottom dock connector. Headphones, microphone and sensor ribbon cable connect into the interface box. The box is labelled to show positions. These connections can be made in any sequence. Switch on the iPod and set the volume level at a mid setting, then put on the hold switch. Follow the instructions below to unlock the keypad and use the buttons. 2.2. Unlocking The system features an automatic keylock to protect against accidental operation. To unlock, press the Forward button, see Error! Reference source not found., for around 3 seconds, release, and the system is then unlocked. You can then operate the iPod as shown below The keypad will automatically re-lock 30 seconds after the last press and so will require unlocking again to resume use. Figure 2 Sensor button layout NB. The autolock feature is disabled when a phone call is incoming or underway. 2.3. Bluetooth Pairing The instructions to pair the Bluetooth of the ElekTex interface box with the phone are as follows; • Slide the switch on the interface box towards the middle of the box. This puts the system into “iPod +Bluetooth” mode. • The Blue LED on the interface box will come on continuously. • Then press on the sensor buttons (one at a time) in the following sequence; Volume Up, Reverse, Forward. • When correctly in pairing mode the LED will flash rapidly. • Switch “on” the Bluetooth of your phone and “search” for devices. • When device named “ElekTex2_0” is seen, select and connect to it. • Enter passcode “0000” • Press any button on the sensor to complete the operation. • The ElekTex interface box is now paired to the phone. • The LED will flash slowly. Play/Pause Reverse Volume Down Volume Up Sensor ribbon cable Forward Unlock End Call Pick Up Call Confidential Document: Specification ESP-00889-B Instructions for Use Eleksen iPod + Bluetooth Controller with Autolock Eleksen Group plc. Registered Office: Pinewood Studios · Pinewood Road · Iver Heath · Bucks · SL0 0NH · UK. Registered in England No. 05372849 CONFIDENTIAL Page 3 2.4. Use The position of the controls corresponds with the layout in Error! Reference source not found.. Eleksen do not supply production sensors with the key graphics on the sensor itself as the graphics are always part of the external details of the finished garment or bag. Figure 3 gives the buttons and actions that enable the controls of the iPod and phone once the keypad is unlocked. Music controls Button Action Controls for iPod Press and release Skip to next track Forward Press and Hold Search forward through track Press and release Toggles between play and pause Play/Pause Press and Hold for 3 seconds Shuts down iPod Press and release Skip to previous track Reverse Press and Hold Search backward through track Volume Down Press and release or Press and Hold Music volume decreases Volume Up Press and release or Press and Hold Music volume increases Phone controls when in “iPod+Bluetooth” mode Button Action Controls for phone End Call Press during phone call or when phone is ringing Ends phone call Pick Up Call Press when phone is ringing Answers phone call Volume Down Press and release or Press and Hold Decrease volume of ring tone or phone call Volume Up Press and release or Press and Hold Increase volume of ring tone or phone call Play/Pause then Pick Up Call Press and Hold Play/Pause for over 3 seconds then Press Call Pick Up Voice dialling is activated (if supported) Figure 3 Button control when un-locked 2.4.1.Receiving a Call When a call comes in, a tone will be heard in the headphones replacing the sound of the music. Press the Pick Up Call button, if you wish to answer the call. The music will cut out and you can hear the caller in the headphones and speak back via the microphone. Once you have finished, press the End Call button to revert back to the music 2.4.2.Voice dialling Voice dialling is activated by first shutting down the iPod by pressing and holding the Play/Pause button for over 3 seconds. Then press Call Pick Up and the user can then use the voice dialling (if supported by their phone) as usual. Confidential Document: Specification ESP-00889-B Instructions for Use Eleksen iPod + Bluetooth Controller with Autolock Eleksen Group plc. Registered Office: Pinewood Studios · Pinewood Road · Iver Heath · Bucks · SL0 0NH · UK. Registered in England No. 05372849 CONFIDENTIAL Page 4 3. Important Notes 1) If the battery is low or signal poor (through being obs…

Text truncated - open the document above for the full version.

00001 ETP-02165 enabled made in Chinapatents applied for FCC ID: TWB-ETP02165 Revision note Original B Quantity Drawn By GK File Name: ETP-02388-B_iPod+Bluetooth Controller BELLY LABEL (ETP-02165) Checked By Approved by Date 01/02/07 Sheet 1 of 1 iPod+Bluetooth Controller BELLY LABEL (ETP-02165) Material Spec: See NOTE 1 Drawing No. ALL DIMENSIONS IN (mm) ALL DIMENSIONS +0.5, -0.5 UNLESS OTHERWISE STATED DO NOT SCALE CONFIDENTIAL INFORMATION COPYRIGHT (2006) ELEKSEN Pinewood Studios, Pinewood Road, Iver Heath, Bucks, SL0 0NH Tel: +44 (0) 8700 727272 Fax: +44 (0) 8700 727273 ETP-02388-B Revision Date Signature Checked A 16.01.07 5:1 Scale 1:1 Scale 31+0.25 mm R1.00 +/-0.25mm typ 4 places NOTES: 1. Material = Silver coloured as per reference sample 18.5+0.25 mm 00001 ETP-02165 enabled made in Chinapatents applied for FCC ID: TWB-ETP02165 ECR-541 01.02.07

Antenna

FCC ID: TWB-ETP02165 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) Low F(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation mW 2.402 2.480 2.441 24.19 Maximum measured transmitter power: Pout Conducted (mW) Maximum Antenna Gain dBi Pout EIRP (mW) 0.207 -4.8 0.06855 Threshold for no SAR evaluation is 24.19 mW Maximum TX Power is 0.207 mW Conducted and 0.06855 mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

FCC ID: TWB-ETP02165 Report No.: 070119FIA01 1 FCC TEST REPORT REPORT NO.: 070119FIA01 MODEL NO.: ETP-02165 RECEIVED: Mar. 7, 2007 TESTED: Mar. 7 ~ Mar. 10, 2007 ISSUED: Mar. 10, 2007 APPLICANT: Eleksen LTD ADDRESS: Pinewood Studios Pinewood Road Iver Heath Bucks ISSUED BY: ADT (Shanghai) Corporation ADDRESS: 2F, Building C, No.1618, Yishan Rd., 201103, Shanghai, China This test report consists of 50 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. This report contains data that were produced under Laboratory ADT (Shanghai) Corporation. ADT (Shanghai) Corporation. V 1.0 FCC ID: TWB-ETP02165 Report No.: 070119FIA01 2 TABLE OF CONTENTS 1. CERTIFICATION ..........................................................................................................5 2. SUMMARY OF TEST RESULTS..................................................................................6 2.1 MEASUREMENT UNCERTAINTY ..............................................................................7 3. GENERAL INFORMATION ..........................................................................................8 3.1 GENERAL DESCRIPTION OF EUT............................................................................8 3.2 DESCRIPTION OF TEST MODES..............................................................................9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .......................................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................13 3.2.4 DESCRIPTION OF SUPPORT UNITS ......................................................................13 4. TEST TYPES AND RESULTS....................................................................................14 4.1 CONDUCTED EMISSION MEASUREMENT ............................................................14 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................14 4.1.2 TEST INSTRUMENTS ..............................................................................................14 4.1.3 TEST PROCEDURE .................................................................................................14 4.1.4 TEST SETUP ............................................................................................................15 4.1.5 EUT OPERATING CONDITIONS ..............................................................................15 4.1.6 TEST RESULTS ........................................................................................................16 4.2 RADIATED EMISSION MEASUREMENT .................................................................18 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................18 4.2.2 TEST INSTRUMENTS ..............................................................................................19 4.2.3 TEST PROCEDURES ...............................................................................................20 4.2.4 DEVIATION FROM TEST STANDARD .....................................................................20 4.2.5 TEST SETUP ............................................................................................................21 4.2.6 EUT OPERATING CONDITIONS ..............................................................................21 4.2.7 TEST RESULTS ........................................................................................................22 FCC ID: TWB-ETP02165 Report No.: 070119FIA01 3 4.3 NUMBER OF HOPPING FREQUENCY USED .........................................................26 4.3.1 LIMIT OF HOPPING FREQUENCY USED ...............................................................26 4.3.2 TEST INSTRUMENTS ..............................................................................................26 4.3.3 TEST PROCEDURES ...............................................................................................26 4.3.4 DEVIATION FROM TEST STANDARD .....................................................................26 4.3.5 TEST SETUP ............................................................................................................27 4.3.6 EUT OPERATING CONDITIONS ..............................................................................27 4.3.7 TEST RESULTS ........................................................................................................28 4.4 DWELL TIME ON EACH CHANNEL .........................................................................29 4.4.1 LIMIT OF DWELL TIME USED..................................................................................29 4.4.2 TEST INSTRUMENTS ..............................................................................................29 4.4.3 TEST PROCEDURES ...............................................................................................29 4.4.4 DEVIATION FROM TEST STANDARD .....................................................................30 4.4.5 TEST SETUP ............................................................................................................30 4.4.6 EUT OPERATING CONDITIONS ..............................................................................30 4.4.7 TEST RESULTS ........................................................................................................31 4.5 CHANNEL BANDWIDTH...........................................................................................35 4.5.1 LIMITS OF CHANNEL BANDWIDTH ...........................................…

Text truncated - open the document above for the full version.

CE RE
