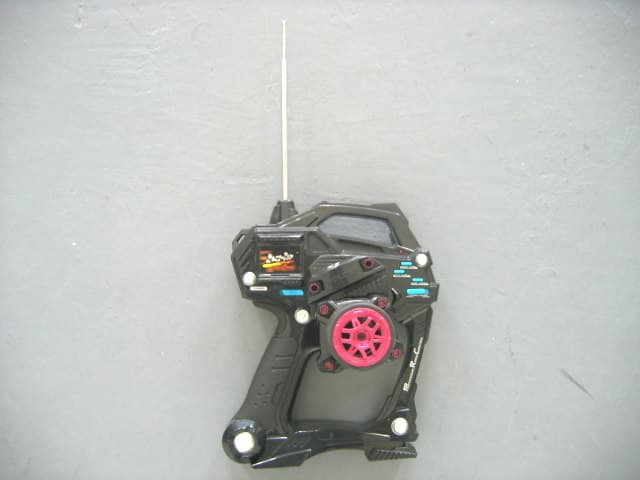

TWDAD223127R/C Controller

The revised 731 Form was uploaded to web site.

FCC ID label sample & Location FCC ID FCC15 describe 36mm 31mm 32mm 23mm

YW223710/720 27MHz Transmitter materials No. Value Designator Part Type No. Value Designator Part Type 1 330 R1 resistor 35 103 C9 capacitor 2 330 R2 resistor 36 104 C10 capacitor 3 680 R3 resistor 37 20PF C11 capacitor 4 47K R4 resistor 38 222 C12 capacitor 5 1.5K R5 resistor 39 100P C13 capacitor 6 20 R6 resistor 40 270P C14 capacitor 7 6.2K R7 resistor 41 103 C15 capacitor 8 22K R8 resistor 42 150P C16 capacitor 9 10K R9 resistor 43 68P C17 capacitor 10 10K R10 resistor 44 150P C18 capacitor 11 680 R11 resistor 45 103 C19 capacitor 12 4.7K R12 resistor 46 103 C21 capacitor 13 3.9K R13 resistor 47 103 C22 capacitor 14 390 R14 resistor 48 103 C23 capacitor 15 1K R15 resistor 49 22P C24 capacitor 16 R16 resistor 50 22P C25 capacitor 17 5.1 R17 resistor 51 0.47uH L1 inductance 18 5.6K R18 resistor 52 2.2uH L2 inductance 19 5.6K R19 resistor 53 10 uH L3 inductance 20 1K R20 resistor 54 0.7~0.12 uH L4 inductance 21 22K R21 resistor 55 2SC9018 Q2 transistor 22 22K R22 resistor 56 2S C2314 Q3 transistor 23 22K R23 resistor 57 2SC9014 Q4 transistor 24 5.6K R24 resistor 58 2SC9014 Q5 transistor 25 4.7K R25 resistor 59 TL431 Q6 IC 26 2.2K R26 resistor 60 5K W1 resistor 27 1K R27 resistor 61 5K W2 resistor 28 100u C1 electrolyti 62 5K W3 resistor 29 103 C2 capacitor 63 5K W4 resistor 30 4.7u C3 electrolyti 64 5K W5 resistor 31 103 C4 capacitor 65 HRONPA40A U1 IC 32 56PF C5 capacitor 66 YELLOW LED1 DIODE 33 103 C6 capacitor 67 GREEN LED2 DIODE 34 223 C7 capacitor 68 RED LED3 DIODE FCC ID : TWDAD223127 Tune up procedure over power range according to section 2.1033(c) (9) 1 Adjustment procedure for the transmitter in order to insure it is transmitting at 27MHz. The transmitting frequency is fixed by crystal (26.995MHz, 27.045MHz, 27.095MHz, 27.145MHz, 27.195MHz,27.255MHz) circuit. We set TX module to lock only for crystal circuit. So it is impossible to transmitting other frequencies with crystalset.

Report No.: SZEMO061102358RFF(I) Page: 1 of 12 FCC ID: TWDAD223127 Authorized Signature: Robinson Lo Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. ISSION No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663 Telephone: +86 (0) 20 8215 5555 Fax: +86 (0) 20 8207 5059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 556682 FCC TEST REPORT Application No. : SZEMO061102358RF(SGS SZ NO.: SZTYR061102840/EL) Applicant: Manufacture: GUANG DONG AULDEY TOY INDUSTRY LTD. AULDEY FCC ID: TWDAD223127 Fundamental Carrier Frequency : 26.995MHz, 27.045MHz, 27.095MHz, 27.145MHz, 27.195MHz, 27.255MHz, ♣ ♣ Please refer to section 2 of this report which indicates which Fundamental Carrier Frequency was actually tested. Equipment Under Test (EUT): Name: Ford/ Chevroler Model No.: Labelled Age Grading: Country of Origin: YW223710/ YW223720 OVER 14 YEARS CHINA Standards: FCC Part 95: 2002 Date of Receipt: 09 November 2006 Date of Test: 21 to 22 November 2006 Date of Issue: 27 November 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061102358RFF(I) Page: 2 of 12 FCC ID: TWDAD223127 2 Test Summary Test Test Requirement Stanadard Paragraph Result Flied Strength of Fundamental FCC Part 95: 2002 Section 95.639 PASS Flied Strength of Harmornics or other Frequency FCC Part 95: 2002 Section 95.635 PASS Emission Bandwidth FCC Part 95: 2002 Section 95.633 PASS Frequency Stability FCC Part 95: 2002 Section 95.623 PASS Remark: The fundamental frequencies: 26.995MHz, 27.045MHz, 27.095MHz, 27.145MHz, 27.195MHz, 27.255MHz, Since the same PCBs only use 6 types of crystals, only 27.145MHz product was completely tested in the whole report. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061102358RFF(I) Page: 3 of 12 FCC ID: TWDAD223127 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS...................................................................................................................4 4.4 STANDARDS APPLICABLE FOR TESTING...........................................................................................................4 4.5 TEST LOCATION................................................................................................................................................4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 5 TEST RESULTS......................................................................................................................................................5 5.1 TEST INSTRUMENTS..........................................................................................................................................5 5.2 E.U.T. OPERATION...........................................................................................................................................5 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................6 5.3.1 Flied Strength of Fundamental.................................................................................................................6 5.3.2 Flied Strength of Harmornics or other Frequency.................................................................................8 5.3.3 Emission Bandwidth................................................................................................................................11 6 PHOTOGRAPHS - TEST SETUP........................................................ERROR! BOOKMARK NOT DEFINED. 7 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS............ERROR! BOOKMARK NOT DEFINED.-16 SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO061102358RFF(I) Page: 4 of 12 FCC ID: TWDAD223127 4 General Information 4.1 Client Information Applicant Name: GUANG DONG AULDEY TOY INDUSTRY LTD. Applicant Address: Auldey Ind. Area, Wenguan R…
