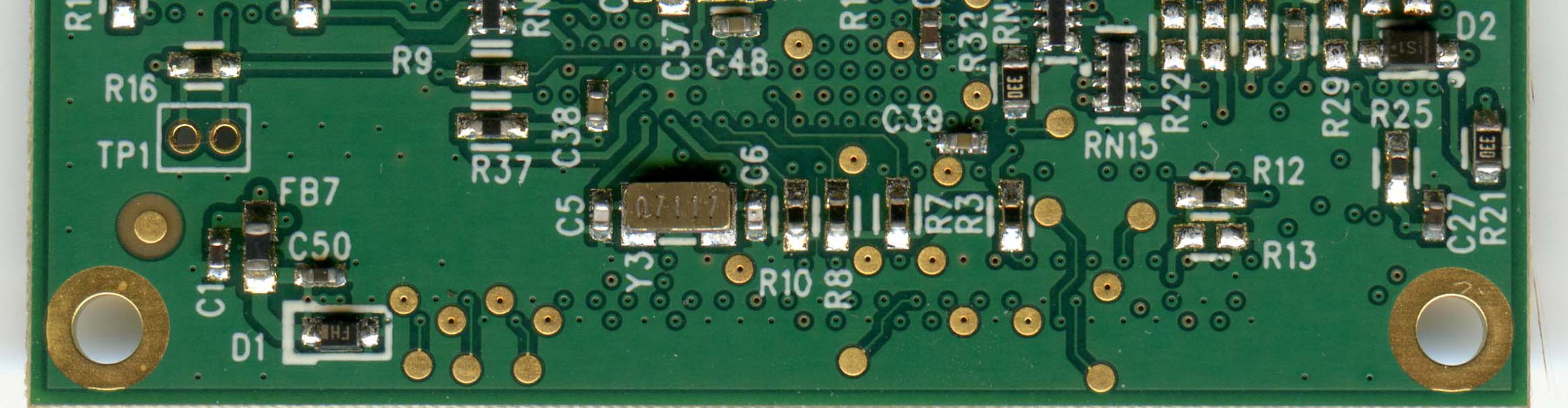

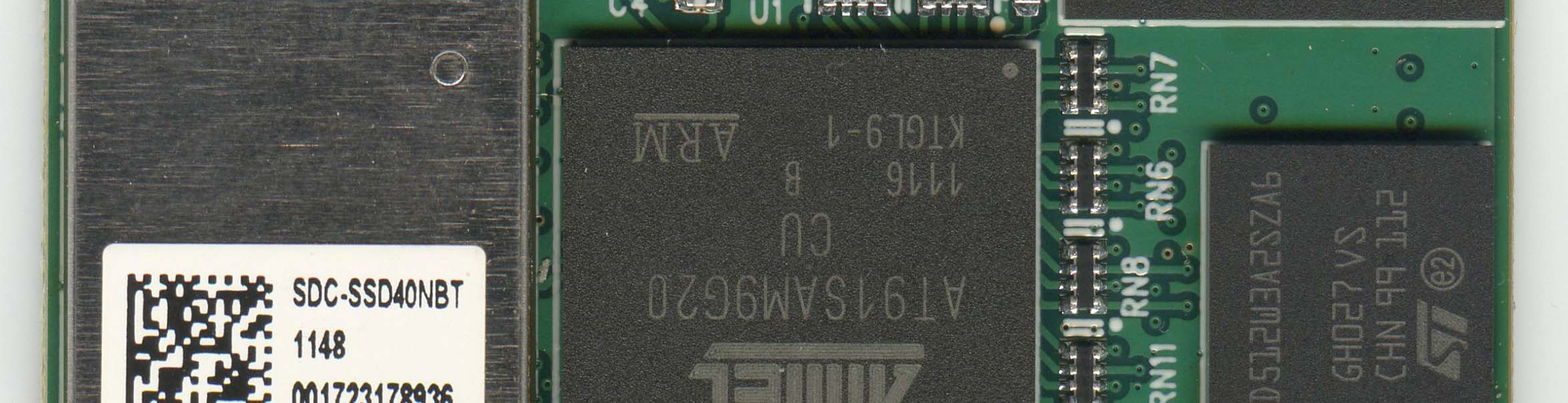

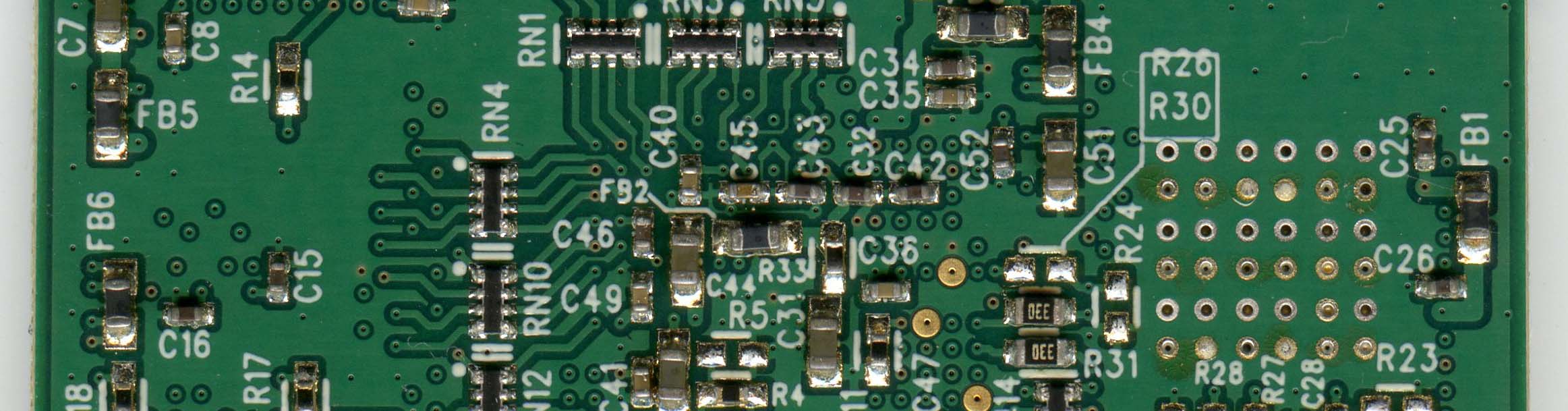

TWG-SDCWB40NBT802.11abgn (1X1) + Bluetooth (2.1) module

Summit Data Communications, Inc., 526 South Main Street Suite 805 Akron, OH 44311 Tel: 866-434-4300 www.summitdata.com © 2011 – 2012 Summit Data Communications, Inc. All rights reserved. SDC-WB40NBT User’s Guide (version 1.0) SDC-WB40NBT User’s Guide 2 SDC-WB40NBT_UsersGuide © 2011 – 2012 Summit Data Communications, Inc. All rights reserved. Revision History Version Revision Date Change Description 0.01 04/11/2011 Pre-Release Version. 0.02 04/25/2011 Pre-Release Version 0.02. 0.03 04/28/2011 Revised mechanical diagram. 0.04 05/20/2011 Added UART notes. 0.05 01/18/2012 Updated mechanical diagram. Updated Current Consumption and Tx Power numbers in Specification table. Updated Mounting information. 0.06 01/20/2012 Updated photos. Updated Current Consumption numbers for 802.11g 1.0 Initial Release Version. SDC-WB40NBT User’s Guide 3 SDC-WB40NBT_UsersGuide © 2011 – 2012 Summit Data Communications, Inc. All rights reserved. Contents Scope ................................................................................................................................................................................. 4 Product Description ........................................................................................................................................................... 4 Block Diagram .................................................................................................................................................................... 5 Specifications ..................................................................................................................................................................... 5 Electrical Characteristics .......................................................................................................................................... 10 Pin Definitions ................................................................................................................................................................. 13 Mechanical Specifications ............................................................................................................................................... 18 Mounting ..................................................................................................................................................................... 18 Integration Guidelines ..................................................................................................................................................... 19 Regulatory ....................................................................................................................................................................... 19 Certified Antennas ....................................................................................................................................................... 19 Documentation Requirements .................................................................................................................................... 20 FCC ........................................................................................................................................................................... 20 Industry Canada ....................................................................................................................................................... 21 European Union ....................................................................................................................................................... 23 SDC-WB40NBT User’s Guide 4 SDC-WB40NBT_UsersGuide © 2011 – 2012 Summit Data Communications, Inc. All rights reserved. Scope This document describes key hardware aspects of the Summit WB40N wireless bridge module. This document is intended to assist device manufacturers and related parties with the integration of this module into their host devices. Data in this document are drawn from a number of sources including data sheets for the Broadcom BCM4329 and Atmel AT91SAM9G20. Because the SDC-WB40NBT is currently in pre-production, this document is preliminary and the information in this document is subject to change. Please contact Summit or visit the Summit website at www.summitdata.com to obtain the most recent version of this document. Product Description This device is an SDC-WB40NBT Wireless Bridge Module, a wireless communications subsystem that may be integrated into a variety of host devices via a number of available electronic and logical interfaces. The SDC-WB40NBT provides complete enterprise-class Wi-Fi connectivity with an integrated TCP/IP stack, full support for IEEE 802.11a/b/g/n air standards and a fully integrated security supplicant providing 802.11i/WPA2 Enterprise authentication and data encryption. The SDC-WB40NBT has a wide variety of interfaces including Fast Ethernet, serial UART, USB, SPI and I2C. The wireless bridge may be configured, monitored and managed via a Command Line Interface over an available dedicated console port, via a web interface over a wireless or Ethernet interface, or via a remote SDK interface over wireless or Ethernet. The SDC-WB40NBT incorporates the Summit SDC-SSD40NBT radio module and provides all the Wi-Fi capabilities of that device. The product features an ARM9 processor running at 396 MHz, 32 MB of SDRAM memory, and 64 MB of NAND flash storage. Several GPIO lines are available for data acquisition and similar applications. The platform runs an embedded Linux operating system based on the 2.6 kernel. A Software Developer’s Kit with Application Programming Interfaces and software tools are available for the development of custom software applications on the device. The SDC-WB40NBT measures 47mm long by 37 mm wide by 3 mm tall. The width can be reduced to 30 mm by removing a breakout section that is provided for configuration and test purposes. The wireless bridge physically interfaces to the host device via a 120 pin board…

Text truncated - open the document above for the full version.

Summit Data Communications, Inc. 526 South Main Street Suite 805 Akron, OH 44311 USA February 28, 2012 American Certification Body 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA Gentlemen: Please be advised that the Summit Data Communication FCC ID: TWG-SDCWB40NBT, Model SDC- WB40NBT is manufactured for the global market but when labeled for marketing in North America the EEPROM will be programmed at the factory to only operate and actively scan on these specific channels: Channels 1-11, 2412-2462MHz 802.11b mode Channels 1-11, 2412-2462MHz 802.11g mode Channels 1-11, 2412-2462MHz 802.11n mode (20MHz channel) The following channels will be programmed at the factory to passively scan and will only listen and cannot send a probe request to initiate communication on these specific channels. Ad-hoc mode is always disabled on these passive channels. Channels 12 &13, 2467 & 2472MHz 802.11b mode Channels 12 &13, 2467 & 2472MHz 802.11g mode Channels 36-48, 5180-5240MHz 802.11a mode Channels 36-48, 5180-5240MHz 802.11n mode (20 MHz channel) Channels 52-64, 5260-5320MHz 802.11a mode Channels 52-64, 5260-5320MHz 802.11n mode (20 MHz channel) Channels 100-140, 5500-5700MHz 802.11a mode Channels 100-140, 5500-5700MHz 802.11n mode (20 MHz channel) Channels 149-161, 5745-5805 802.11a mode Channels 149-161, 5745-5805MHz 802.11n mode (20 MHz channel) This information when programmed into the EEPROM will not be accessible and cannot be changed by the end user. The product will not be capable of operating in the 5600-5650 MHz frequency band as per RSS-210 Clause A9.3. If you have any questions please do not hesitate to contact us. Sincerely, Sue White Documentation and Certification Manager Summit Data Communications, Inc. 526 South Main Street, Suite 805 Akron, OH 44311

Summit Data Communications, Inc. 526 South Main Street Suite 805 Akron, OH 44311 USA February 24, 2012 American Certification Body 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA RE: Letter of Permission – SDC-WB40NBT FCC Certification To Whom It May Concern: This letter grants Ron Seide, President of Summit Data Communications, Inc., permission to sign on Summit’s behalf for the SDC-WB40NBT FCC certification application. If you have any questions please do not hesitate to contact me. Sincerely, Sue White Documentation and Certification Manager Summit Data Communications, Inc. 526 South Main Street, Suite 805 Akron, OH 44311

Summit Data Communications, Inc. 526 South Main Street Suite 805 Akron, OH 44311 USA Authority to Act as Agent February 7, 2012 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: National Technical Systems (NTS) is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: February 7, 2013 By: ______Ron Seide_______ (Signature 1 ) (Print name) Title: ___President ___________ On behalf of: __Summit Data Communications, Inc. __ (Company Name) Telephone: _______330-434-7929 _________ Summit Data Communications, Inc. 526 South Main Street Suite 805 Akron, OH 44311 USA Request for Confidentiality Date: February 7, 2012 Subject: Confidentiality Request for: TWG-SDCWB40NBT Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual Summit Data Communications, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Summit Data Communications, Inc. 526 South Main Street Suite 805 Akron, OH 44311 USA NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ _____Ron Seide _________ (Signature/Title) (Print name)

Page 1 of 1 American Certification Body 6731 Whittier Ave, Suite C110 McLean, VA 22101 RE: FCC Application for Summit Data Communications, FCC ID: TWG-SDCWB40NBT and Industry Canada Application, IC ID: 6616A-SDCWB40NBT To whom it may concern: The enclosed documents constitute a formal submittal and application for a Modular Approval Equipment Authorization and IC Certification for an 802.11abgn (20 MHz SISO only) transceiver module pursuant to the following rules: Subpart C of Part 15 of FCC Rules (CFR 47) Subpart E of Part 15 of FCC Rules (CFR 47) RSS-Gen Issue 3, December 2010, “General Requirements and Information for the Certification of Radiocommunication Equipment” RSS-210, Issue 8, December 2010, “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark E. Hill Staff Engineer

Summit Data Communications, Inc. 526 South Main Street Suite 805 Akron, OH 44311 USA February 15, 2012 American Certification Body 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: SDC-WB40NBT – Modular Approval A Modular Approval is being requested for the Summit SDC-WB40NBT. The following paragraphs detail the eight requirements for modules and explain how the module meets those requirements. (FCC Part 15.212 Requirements for Single Modular Transmitters; includes RSS GEN Section 3.2.2) The module meets all of the technical specifications applicable to the frequency band of operation. 1. The radio elements of the modular transmitter must have their own RF shielding. - The module contains a metallic shield on the top part of the radio. 2. The modular transmitter must have buffered modulation/data inputs - Data to the modulation circuit is buffered by the Broadcom chip. 3. The modular transmitter must have its own power supply regulation. - The module contains its own power supply regulation and the RF reference oscillator is contained within the module. Power supply regulation is provided via component U1. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c) and RSS-GEN, 3.2.2. - The certification submission contains a detailed description of the configuration of any antenna that will be used with the module. The SDC-WB40NBT User’s Guide contains this information. - Installation instructions for the module explain that only these antennas may be used with the device and that the end user shall not be able to access the antenna port or change antennas. - The module connects to its antennas via Hirose U.FL connectors. These connectors are non- standard (unique) connectors. 5. For the FCC (and IC), the modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. - Test data contained in this application is for the device tested as a stand-alone device. Radiated spurious emissions data and AC conducted emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators has been provided. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC/IC identification number(s). - The module is appropriately labeled (refer to the label and label location drawings contained within this application). Instructions to the end user regarding the labeling requirements for host devices are included in this application. 7. The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. - The module complies with the specific rules and operating requirements for which certification is sought. Instructions to the OEM installer or end user regarding such requirements for use in host devices are included in this application. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. - The module meets the requirements for a mobile device that may be used at separation distances of more than 20cm from the human body. Refer to the MPE calculation. 9. Is the modular device for an IC licensed exempt service? - Yes. Modular Approval Letter Yes No (a) The radio elements must have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly X (b) The module shall have buffered modulation/data input(s) (fi such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. X (c) The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supply circuitry in the host device which houses the module. X (d) The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. X (e) The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not be inside another device during testing. X (f) The module shall comply with the Category I equipment labeling requirements. X (g) The module shall comply with the applicable RSS-102 exposure requirements, which are based on the intended use/configurations. X (h) Is the modular device for an Industry Canada licensed exempt service? X Sincerely, Ronald Seide President Summit Data Communications, Inc.

EMC Test Data Client: Contact: Standard: Test Specific Details General Test Configuration Yes Summit Data CommunicationsJob Number: J78403 Model: SDC-WB40 (1x1 802.11abg + BT 2.1) T-Log Number: T80878 Account Manager: Christine Krebill Ron Seide FCC 15.247/RSS-210Class: N/A Maximum Permissible Exposure Objective: The objective of this test session is to perform final qualification testing of the EUT with respect to the specification listed above. Date of Test: 2/14/2012 Test Engineer: Mark Hill Calculation uses the free space transmission formula: S = (PG)/(4 πd 2 ) Where: S is power density (W/m 2 ), P is output power (W), G is antenna gain relative to isotropic, d is separation distance from the transmitting antenna (m). Summary of Results Device complies with Power Density requirements at 20cm separation:20cm separation: Modifications Made During Testing No modifications were made to the EUT during testing Deviations From The Standard No deviations were made from the requirements of the standard. T80878 (FCC DTS) SDC-WB40.xlsMPE CalcPage 1 of 3 EMC Test Data Client: Contact: Standard: Summit Data CommunicationsJob Number: J78403 Model: SDC-WB40 (1x1 802.11abg + BT 2.1) T-Log Number: T80878 Account Manager: Christine Krebill Ron Seide FCC 15.247/RSS-210Class: N/A Use: General Antenna:3dBi 802.11b Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 241214.527.90314.555.59 243715.233.10315.266.07 246214.427.50314.454.95 802.11 g Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 241211.915.50311.930.90 243712.618.20312.636.31 246210.411.00310.421.88 EUTPower Densit y (S)MPE Limit 0.0071.000 Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 0.0111.000 0.0131.000 0.0111.000 0.0041.000 EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 0.0061.000 802.11n20 Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 24127.96.2037.912.30 24378.97.8038.915.49 24629.58.9039.517.78 802.11a Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 57457.86.0037.811.89 57857.96.2037.912.42 58057.86.0037.812.05 802.11n20 Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 574510.611.60310.623.12 578510.310.80310.321.58 580510.210.50310.220.89 0.0021.000 EUTPower Densit y (S) Powerat 20 cmat 20 cm MPE Limit mW/cm^2mW/cm^2 0.0031.000 0.0041.000 EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 0.0021.000 0.0021.000 0.0021.000 EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm mW/cm^2mW/cm^2 0.0051.000 0.0041.000 0.0041.000 T80878 (FCC DTS) SDC-WB40.xlsMPE CalcPage 2 of 3 EMC Test Data Client: Contact: Standard: Summit Data CommunicationsJob Number: J78403 Model: SDC-WB40 (1x1 802.11abg + BT 2.1) T-Log Number: T80878 Account Manager: Christine Krebill Ron Seide FCC 15.247/RSS-210Class: N/A UNII Bands 802.11a Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 51809.89.506.59.842.46 520010.09.906.510.044.36 524010.811.906.510.853.09 526012.819.006.512.884.92 530014.226.006.514.2116.14 532010.511.206.510.550.12 550015.031.306.515.0139.96 558013.522.306.513.599.54 57008.16.406.58.128.64 802.11n20 Cable AntPower Freq.LossGainat AntEIRP MHzdBmmW*dBdBidBmmW 51808.67.306.58.632.58 0.0061.000 0.0061.000 0.0281.000 mW/cm^2mW/cm^2 0.0231.000 0.0101.000 0.0201.000 0.0171.000 EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm 0.0091.000 0.0111.000 0.0081.000 mW/cm^2mW/cm^2 EUTPower Densit y (S)MPE Limit Powe rat 20 cmat 20 cm 52008.97.706.58.934.28 52409.79.306.59.741.50 526011.915.606.511.969.82 530013.220.706.513.292.68 53208.57.106.58.531.62 550013.321.406.513.395.50 558012.819.006.512.884.72 570010.711.706.510.752.36 0.0171.000 0.0101.000 0.0181.000 0.0061.000 0.0191.000 0.0071.000 0.0081.000 0.0141.000 T80878 (FCC DTS) SDC-WB40.xlsMPE CalcPage 3 of 3

EMC Test Report Application for Grant of Equipment Authorization Industry Canada RSS-Gen Issue 3 / RSS 210 Issue 8 FCC Part 15, Subpart E Model: SDC-WB40NBT IC CERTIFICATION #: 6616A-SDCWB40NBT FCC ID: TWG-SDCWB40NBT APPLICANT: Summit Data Communications 526 South Main St. Suite 805 Akron, CA 44311 TEST SITE(S): Elliott Laboratories 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-3; 2845B-4, 2845B-5, 2845B-7 REPORT DATE: February 13, 2012 FINAL TEST DATES: October 19, 20 and 21 and November 19 and 24, 2010 and May 11, August 2, 4, 10, 12, 13, 16, 17, 18 19, 20, 23, 24, 26 and October 6, 7, 19, 20 and 26 and November 3, 4, 7, 8, 9, 15, 2011 TOTAL NUMBER OF PAGES: 121 PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark Hill David Guidotti Staff Engineer Senior Technical Writer Elliott Laboratories is accredited by the A2LA, certificate number 2016.01, to perform the test(s) listed in this report, except where noted otherwise. This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full File: R86057 Page 1 Elliott Laboratories -- EMC Department Test Report Report Date: February 15, 2012 File: R86057 Page 2 REVISION HISTORY Rev# Date Comments Modified By - 2-15-2012 First release Elliott Laboratories -- EMC Department Test Report Report Date: February 15, 2012 File: R86057 Page 3 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................ 2 TABLE OF CONTENTS ............................................................................................................................................ 3 SCOPE .......................................................................................................................................................................... 4 OBJECTIVE ................................................................................................................................................................ 5 STATEMENT OF COMPLIANCE ........................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS .............................................................................................................. 5 TEST RESULTS SUMMARY ................................................................................................................................... 6 UNII / LELAN DEVICES ........................................................................................................................................ 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS .......................................................................... 9 MEASUREMENT UNCERTAINTIES .................................................................................................................. 10 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................................... 11 GENERAL .............................................................................................................................................................. 11 OTHER EUT DETAILS ......................................................................................................................................... 11 ANTENNA SYSTEM ............................................................................................................................................ 11 ENCLOSURE ......................................................................................................................................................... 11 MODIFICATIONS ................................................................................................................................................. 11 SUPPORT EQUIPMENT ....................................................................................................................................... 12 EUT INTERFACE PORTS .................................................................................................................................... 12 EUT OPERATION ................................................................................................................................................. 12 TEST SITE ................................................................................................................................................................. 13 GENERAL INFORMATION ................................................................................................................................. 13 CONDUCTED EMISSIONS CONSIDERATIONS .............................................................................................. 13 RADIATED EMISSIONS CONSIDERATIONS .................................................................................................. 13 MEASUREMENT INSTRUMENTATION ............................................................................................................ 14 RECEIVER SYSTEM .................................................................................................................…
