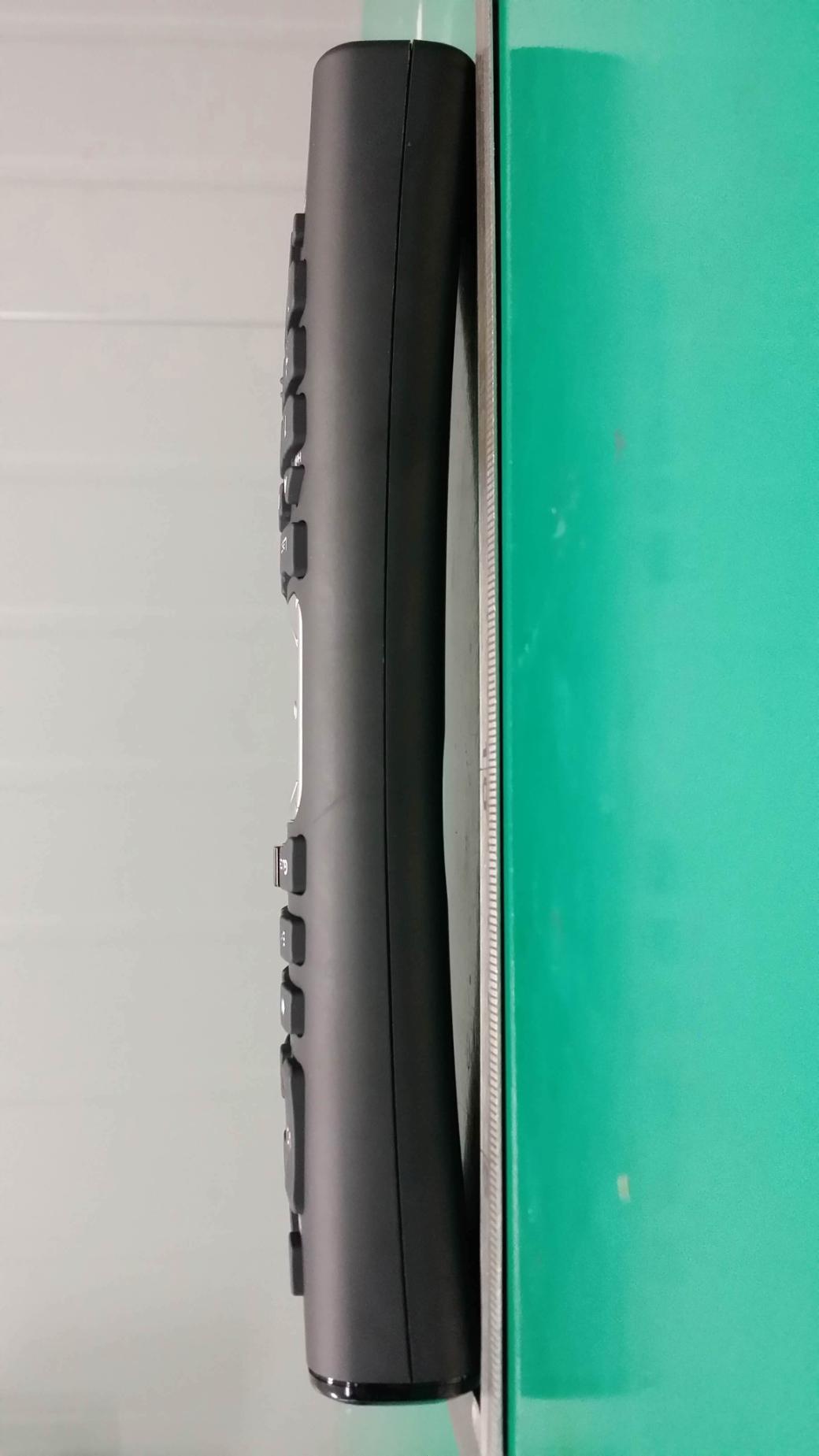

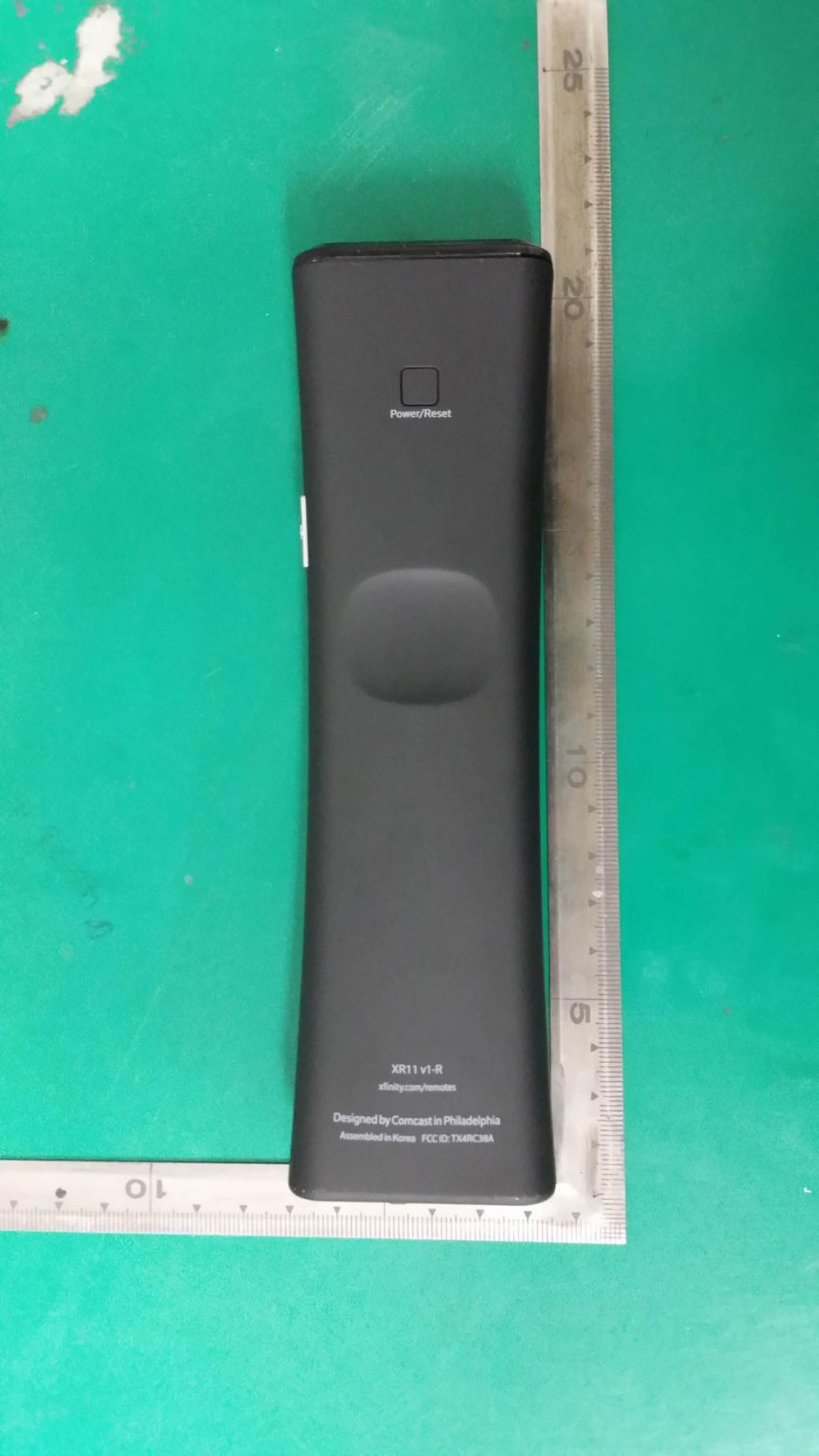

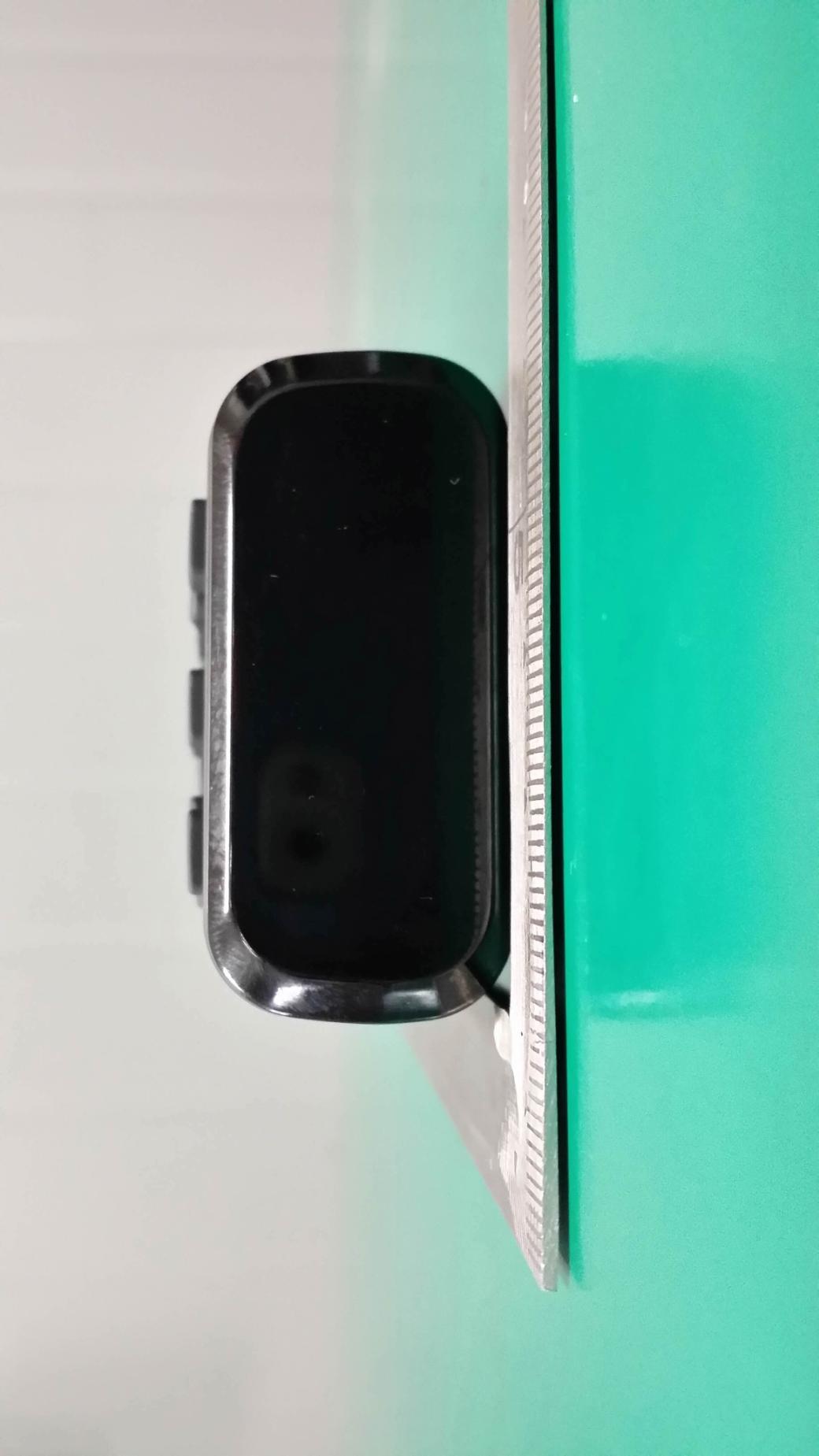

TX4RC38ARemote Control

FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase or decrease the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that which the receiver is connected. • Consult the dealer or an experienced remote control/TV technician for help. • It is strongly recommended that the TV be plugged into a separate wall outlet. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user’s authority to operate this equipment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “CAUTION” : Exposure to Radio Frequency Radiation. Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the FCC radio frequency exposure limit. Radiation Exposure Statement: This equipment complies with the FCC radiation exposure limits set forth for devices operating in an uncontrolled environment. This equipment should be operated with a minimum distance of 2 cm between the radiator and front of face. This equipment should not be placed directly on the ear when the speaker is active.

Enjoy your XFINITY® TV right away! Program your remote to get started. XFINITY XR11 Remote Control USER’S GUIDE It’s simple to program your XFINITY Remote to control your TV and Audio Video Receiver. Your XFINITY Remote is already programmed to control your set-top box. To program the remote for control of Power, Volume, Mute and TV Input on your TV or Power, Volume, and Mute on your audio video receiver (AVR), including a soundbar, follow the steps below. Note: A soundbar is a type of AVR. Here’s how to program your remote for control of a TV or TV and AVR: 1. Remove the battery pull tab from the remote control battery compartment and make sure your TV, AVR and set-top box are powered on. 2. Refer to the “Setup Codes for TVs” and “Set- up Codes for AVRs” sections on the back of this guide to find the manufacturers of your TV and AVR. 3. Press and hold the Setup button on your remote until the status LED changes from red to green. 4. Enter the first code listed for the TV manufac- turer. The status LED should flash green twice when the code is entered. 5. Press the TV Power button on the remote. If the TV turns off, you have successfully programmed your remote. Turn the TV back on and press the VOL +/- and Mute buttons to confirm they control the volume of your device. 6. If the TV (or AVR) does not turn off or the VOL +/- and Mute buttons do not work, repeat the steps above using the next code listed for your TV manufacturer. CAN’T FIND YOUR CODE? If you can’t program your remote for TV and/ or AVR control using the codes on the back of this guide, follow the steps below to search for your code. 1. Turn on your TV and AVR. 2. Press and hold the Setup button on your remote until the status LED changes from red to green. 3. To search for a TV code, enter 9-9-1 on the remote. To search for an AVR code, enter 9-9-2. The status LED should flash green twice. 4. Press the CH ^ button repeatedly to search through the manufacturer codes until the device you are programming turns off. 5. After the device turns off, press Setup. The status LED on your remote should flash green twice. Press the TV Power button on the remote. If the device turns on, your have successfully programmed your remote. xfinity.com/remotes Troubleshooting GENERAL TROUBLESHOOTING :QWhy does the status LED flash red then green while I am entering the code on my remote? A:AYou may have entered an incorrect code. Check the code and try re-entering it. :QWhy does the status LED flash red, but there is no response when I press a key? A:AMake sure the remote is aimed at your TV or AVR and is no farther than 15 feet away. Also, make sure your set-top box is powered on and in plain sight. TV Power: Turns your TV on/off. All Power: One button to turn the TV, AVR and set-top box on/off. Vol +/–: Turns the volume up and down on the set-top box. After your remote is programmed for TV and/or AVR control, these keys control the TV or AVR’s volume. CH ^/∨A: Selects the next higher or next lower channel. Mute: Turns the sound on and off. Replay: Jumps back 15 seconds. Note: Some features above require programming the remote for control of a TV and/or AVR. Video Controls: Controls On Demand or DVR viewing, Play/Pause, Fast-For- ward, and Rewind. Exit: Exits guide screens and returns you to TV viewing. Search: Search for content by channel, program or key words. Rec: Records content currently being viewed. XFINITY/Menu: Enters the XFINITY menu for access to the guide, Saved programs, On Demand and Apps. Guide: Shortcut to TV listings. OK: Selects the highlighted item within the guide. Last: When viewing content, enters the Recent menu to select from the 9 most recently viewed programs or, when in the XFINITY menu, returns you to previ- ous guide screen. Info: Provides a program description. A, B, C, D: Context-sensitive control keys. Keypad (0-9): Alphanumeric keys to select content by channel number or keywords. Setup: Used for programming your remote to control your TV, AVR, and set-top box. TV Input: Changes to the next available input on your TV. Note: Some features above require programming your remote for control of your TV. Power: Enciende/apaga tu televisor. All Power: Un sólo botón para encender/ apagar tu televisor y tu caja decodifica- dora. Vol +/–: Sube y baja el volumen de tu caja decodificadora. CH ^/∨: Selecciona el siguiente canal hacia arriba o hacia abajo. Mute: Enciende y apaga el sonido. Replay: Nota: Video Controls: Controlan la visual- ización de On Demand o DVR, Play (reproducir)/Pause (pausa), Fast-For- ward (avanzar rápidamente), y Rewind (retroceder rápidamente). Exit: Te saca de las pantallas de la guía y te regresa a ver la televisión. Search: Rec: Graba el contenido que se está viendo en ese momento. Nota: Algunas funciones mencionadas anteriormente requieren de una caja decodificadora de DVR o acceso a la programación On Demand. XFINITY/MenuA: Ingresa a los menús de la guía en pantalla Guide: Atajo a los listados de televisión. OK: Selecciona el artículo resaltado dentro de la guía. Last: Te regresa al canal o a la pantalla de la guía anterior. Info: Proporciona la descripción de un programa. A, B, C, D: Teclas de control que fun- cionan de acuerdo al contexto y que se utilizan en configuraciones avanzadas. Nota: Algunas de las funciones arriba mencionadas requieren de una guía de programación no disponible con todos los aparatos. Teclado numérico (0-9): Selecciona el canal que deseas ver (ej., 0-9 ó 0-2-6). Setup: Programa tu control remoto para que funcione con tu televisor, caja decodificadora o DTA. TV Input: Nota: Here’s what your remote can do. Esto es lo que tu control remoto puede hacer. ¡Disfruta de XFINITY® TV ahora mismo! Programa tu control remoto para comenzar. XFINITY XR11 GUÍA DEL USUARIO para el control remoto xfinity.com/remotes If you only want to program your remote for TV control, you’re all set! Continue with the following steps to program your remote for AVR control. Note: To program your r…

Text truncated - open the document above for the full version.

Date: February 11, 2014 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention : Application Examiner / Reviewing Engineer Subject : Attestation for used operating frequency band Applicant : Remote Solution Co., Ltd. FCC ID : TX4RC38A To whom it may concern, We, Remote Solution Co., Ltd. are guarantee for used frequency band as bellows, This model, RC38A will be used only following frequencies. * Used frequency band WLAN 802.11b/g/n(HT20) 2 412 MHz ~ 2 462 MHz 802.11n(HT40) 2 422 MHz ~ 2 452 MHz Zigbee 2 425 MHz ~ 2 475 MHz If you have questions or need further information, please contact the undersigned. Sincerely Yours, ____________________________ Mr. Byung-Cheol, Kim / Manager Remote Solution Co., Ltd. E-mail: [email protected]

EMCCert DR. RAŠEK GmbH Date: February 11, 2014 Stoernhofer Berg 15 91364 Unterleinleiter GERMANY To whom it may concern: I, the undersigned, hereby authorize Mr. Gea-Won, Lee / Managing Director of ONETECH Corp., and hereafter to as ONETECH, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Ant and all acts carried out by Mr. Gea-Won, Lee of ONETECH on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits. that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing EMCC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures of advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, ____________________________ Mr. Byung-Cheol, Kim / Manager Remote Solution Co., Ltd. E-mail : [email protected]

FCC ID. : TX4RC38A Page 1 of 6 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 2 of 6 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 3 of 6 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 4 of 6 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 5 of 6 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 6 of 6 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

FCC ID. : TX4RC38A Page 1 of 1 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed in the rear side of the equipment FCC ID AREA FCC ID : TX4RC38A

FCC ID. : TX4RC38A Page 1 of 7 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 2 of 7 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) WLNA FCC ID. : TX4RC38A Page 3 of 7 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 4 of 7 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ZIGBEE Antenna0 ZIGBEE Antenna1 FCC ID. : TX4RC38A Page 5 of 7 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 6 of 7 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) FCC ID. : TX4RC38A Page 7 of 7 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904)

FCC ID. : TX4RC38A Page 132 of 133 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 9. RADIO FREQUENCY EXPOSURE 9.1 RF Exposure Limit According to the FCC rule §1.1310, the limit for General Population/Uncontrolled exposure is 1 mW/cm² for the device operating 1 500 ~ 100 000 MHz. 9.1 RF Exposure consideration This equipment should be operated with a minimum distance of 2 cm between the radiator and front of face. This equipment should not be placed directly on the ear when the speaker is active 9.3 EUT Description Kind of EUT Remote Control Operating Frequency Band Ƒ Wireless Microphone: 494.000 MHz ~ 501.000 MHz and 498.200 MHz ~ 505.200 MHz Ŷ WLAN(802.11b/g/n(HT20)): 2 412 MHz ~ 2 462 MHz Ŷ WLAN(802.11n(HT40)): 2 422 MHz ~ 2 452 MHz Ƒ WLAN: 5 180 MHz ~ 5 320 MHz / 5 500 MHz ~ 5 700 MHz Ƒ WLAN: 5 745 MHz ~ 5 825 MHz Ƒ Bluetooth: 2 402 MHz ~ 2 480 MHz Ŷ Zigbee:2 425 MHz, 2 450 MHz, 2 475 MHz Device Category Ƒ Portable (< 20 cm separation) Ƒ Mobile (> 20 cm separation) Ŷ Others Max. Output Power WLAN 802.11b 14.80 dBm 802.11g 13.97 dBm 802.11n (HT20) 14.05 dBm 802.11n (HT40) 13.39 dBm Zigbee Antenna 0 -4.67 dBm Antenna 1 -4.78 dBm Used Antenna WLAN Inserted into the main board (Chip Antenna) Zigbee Inserted into the main board (PCB Antenna) Used Antenna Gain WLAN 3.3 dBi Zigbee Antenna0 -0.61 dBi Antenna1 1.73 dBi Exposure Evaluation Applied Ŷ MPE Ƒ SAR Ƒ N/A FCC ID. : TX4RC38A Page 133 of 133 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 9.4 Test Result for WLAN According to the procedure, KDB 447498 D01, the standalone SAR test exclusion threshold is [(Max. Power of channel, including tune-up tolerance, mW)/(Mim. test separation distance, mm)] X [೿f(GHz)] < 3 = [30.2/20)] X೿2.462 = 2.37 Conclusion: The SAR test exclusion threshold is less than 3, so the device meets the RF Exposure Requirement and excluded SAR Test. 9.5 Test Result for Zigbee According to the procedure, KDB 447498 D01, the standalone SAR test exclusion threshold is [(Max. Power of channel, including tune-up tolerance, mW)/(Mim. test separation distance, mm)] X [೿f(GHz)] < 3 = [0.34/20)] X೿2.425 = 0.026 Conclusion: The SAR test exclusion threshold is less than 3, so the device meets the RF Exposure Requirement and excluded SAR Test.

FCC ID. : TX4RC38A Page 1 of 133 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) ELECTROMAGNETIC EMISSION COMPLIANCE REPORT FOR LOW-POWER, NON-LICENSED TRANSMITTER Test Report No. : E142R-008 AGR No. : A13NA-130 Applicant : RemoteSolution Co.,Ltd. Address : 92, Chogokri, Nammyun, Kimchon city, Kyungbuk, Korea, 740-871 Manufacturer : RemoteSolution Co.,Ltd. Address : 326-14, Apo-daero, Nam-myeon, Gimcheon-si, Gyeongsangbuk-do, Korea Type of Equipment : Remote Control FCC ID. : TX4RC38A Model Name : RC38A Multiple Model Name : XR11 Serial number : N/A Total page of Report : 133 pages (including this page) Date of Incoming : Jaunary 15, 2014 Date of issue : February 05, 2014 SUMMARY The equipment complies with the regulation; FCC PART 15 SUBPART C Section 15.247 This test report only contains the result of a single test of the sample supplied for the examination. It is not a generally valid assessment of the features of the respective products of the mass-production. Prepared by: Approved by: Ki-Hong, Nam / Senior Engineer Gea-Won, Lee / Managing Director ONETECH Corp. ONETECH Corp. FCC ID. : TX4RC38A Page 2 of 133 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE ............................................................................................................................. 6 2. TEST SUMMARY .............................................................................................................................................................. 7 2.1 TEST ITEMS AND RESULTS .............................................................................................................................................. 7 2.2 ADDITIONS, DEVIATIONS, EXCLUSIONS FROM STANDARDS ........................................................................................... 7 2.3 RELATED SUBMITTAL(S) / GRANT(S) ............................................................................................................................ 7 2.4 PURPOSE OF THE TEST ................................................................................................................................................... 7 2.5 TEST METHODOLOGY .................................................................................................................................................... 7 2.6 TEST FACILITY ............................................................................................................................................................... 7 3. GENERAL INFORMATION ............................................................................................................................................ 8 3.1 PRODUCT DESCRIPTION ................................................................................................................................................. 8 3.2 ALTERNATIVE TYPE(S)/MODEL(S); ALSO COVERED BY THIS TEST REPORT. ................................................................ 9 4. EUT MODIFICATIONS ................................................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ............................................................................................................................. 10 5.1 JUSTIFICATION ............................................................................................................................................................. 10 5.2 PERIPHERAL EQUIPMENT ............................................................................................................................................. 10 5.3 MODE OF OPERATION DURING THE TEST..................................................................................................................... 11 6. PRELIMINARY TEST .................................................................................................................................................... 13 6.1 AC POWER LINE CONDUCTED EMISSIONS TESTS ....................................................................................................... 13 6.2 GENERAL RADIATED EMISSIONS TESTS ...................................................................................................................... 13 7. TEST DATA FOR WLAN ............................................................................................................................................... 14 7.1 MIMIMUM 6 DB BANDWIDTH............................................................................................................................... 14 7.1.1 Operating environment ......................................................................................................................................... 14 7.1.2 Test set-up ............................................................................................................................................................. 14 7.1.3 Test equipment used ............................................................................................................................................. 14 7.1.4 Test data for 802.11b Mode ............................................................................................…

Text truncated - open the document above for the full version.

FCC ID. : TX4RC38A Page 61 of 133 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) 7.3.7.3 Test data for 802.11n_HT20 Mode -. Test Date : January 28, 2014 -. Resolution bandwidth : 30 MHz~1 GHz 100 kHz for Peak and Average Mode 1 GHz above 1MHz for Peak and Average Mode -. Video bandwidth : 30 MHz~1 GHz 100 kHz for Peak and Average Mode 1 GHz above 1MHz for Peak and 10 Hz for Average Mode -. Frequency range : 1 GHz ~ 26.5 GHz -. Measurement distance : 3 m -. Result : PASSED Frequency (GHz) Reading (dBμV) Detector Mode Ant. Pol. (H/V) Ant. Factor Cable Loss Amp Gain Total (dBμV/m) Limits (dBμV/m) Margin (dB) Test Data for Low Channel 2 412.00 98.12 Peak H 27.10 7.90 43.00 90.12 113.98 23.86 89.36 Average H 81.36 93.98 12.62 96.12 Peak V 88.12 113.98 25.86 87.32 Average V 79.32 93.98 14.66 4 824.00 48.25 Peak H 30.70 11.90 42.50 48.35 73.98 25.63 37.01 Average H 37.11 53.98 16.87 46.25 Peak V 46.35 73.98 27.63 32.42 Average V 32.52 53.98 21.46 Test Data for Middle Channel 2 442.00 98.98 Peak H 27.20 7.90 43.00 91.08 113.98 22.90 90.74 Average H 82.84 93.98 11.14 97.04 Peak V 89.14 113.98 24.84 88.21 Average V 80.31 93.98 13.67 4 884.00 48.36 Peak H 30.70 12.00 42.40 48.66 73.98 25.32 37.63 Average H 37.93 53.98 16.05 46.93 Peak V 47.23 73.98 26.75 33.21 Average V 33.51 53.98 20.47 FCC ID. : TX4RC38A Page 62 of 133 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-765-8289, FAX: 82-31-766-2904) Test Data for High Channel 2 462.00 99.26 Peak H 27.30 8.00 43.00 91.56 113.98 22.42 90.57 Average H 82.87 93.98 11.11 97.11 Peak V 89.41 113.98 24.57 88.80 Average V 81.10 93.98 12.88 4 924.00 48.96 Peak H 30.80 12.00 42.30 49.46 73.98 24.52 38.04 Average H 38.54 53.98 15.44 47.94 Peak V 48.44 73.98 25.54 33.84 Average V 34.34 53.98 19.64 Tabulated test data for Restricted Band Remark: “H”: Horizontal, “V”: Vertical Margin (dB) = Limits (dBμV/m) - Total Level (dBμV/m) Total Level = Reading + Antenna Factor + Cable Loss – Pre-Amplifier Gain Tested by: Tae-Ho, Kim / Project Engineer FCC ID. : TX4RC38A Page 63 of 133 Report No. : E142R-008 It should not be reproduced except in full, without the written approval of ONETECH Corp. EMC-003 (Rev.2) HEAD OFFICE : 301-14 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) EMC Testing Div. : 307-51 Daessangnyeong-ri, Chowol-eup, Gwangju-si, Gyeonggi-do 464-862 Korea (…
