TX8-EDA200601AWNING REMOTE CONTROL SYSTEM

South Pacific Electronic Design Associates. P.O.Box 20253, Christchurch, New Zealand PHONE +64 3 3488076, FAX +64 3 3488077, EMAIL [email protected], WEB www.speda.co.nz ACMC1 - User Guide Revision 1.2 22 November 2005 South Pacific Electronic Design Associates. P.O.Box 20253, Christchurch, New Zealand PHONE +64(3)3488076, FAX +64(3) 3488077, EMAIL [email protected], WEB www.speda.co.nz ACS Remote Control - User Guide Revision 1.6 10 May 2005 South Pacific Electronic Design Associates Limited 2005 Revision 1.6 VS ACS Remote Control - User Guide Page 2 of 2 Instruction for Safe Operation 1. RANGE OF ENVIRONMENT CONDITIONS This product is designed to be safe under the following environmental conditions: ‰ Indoor Use ‰ Altitude up to 2000M ‰ Temperature of 5°C to 40°C ‰ Maximum relative humidity 80% 2. This symbol is marked on the equipment when it is necessary for the user to refer to the manual for important safety information. 3. This symbol denotes a potential hazard. Attention must be given to the statement to prevent damage, destruction or harm. NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ⇒ Reorient or relocate the receiving antenna. ⇒ Increase the separation between the equipment and receiver. ⇒ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⇒ Consult the dealer or an experienced radio/TV technician for help. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. South Pacific Electronic Design Associates Limited 2005 Revision 1.6 VS ACS Remote Control - User Guide Page 3 of 3 1 The ACS Remote Control The ACS Remote Control is designed to control the ACS and non-ACS motor controllers used for awnings and slide-rooms. The remote is available in two and eight channel versions, able to control up to two and eight different motor controllers respectively. These motor controllers can be controlled individually or in a group. The currently selected bank/channel is indicated using six LEDs. The remote control can send commands to local motor controllers using three buttons. The following diagram indicates the position and name of the various buttons and LEDs: Two AA size batteries power the RF Remote. 1.1 Bank and Channel LEDs When any button is pressed, the remote will ‘wake-up’ and illuminate the currently selected Bank and Channel LEDs. The remote will automatically ‘sleep’ 4 seconds after the button is released, and turn off the LEDs. The ACS Remote Control can control up to 8 channels individually or in groups, known as banks. The ACS Remote Control has two banks. The left bank LED indicates bank 1 and the right bank LED indicates bank 2 (8 channel model only). If the STOP button is pressed twice and held down for more than 2 seconds, the selected bank/channel will begin advancing automatically. The 2 channel remote can select either channel 1, 2, or 1 and 2. The 8 channel remote will follow the sequence shown below: Selected Bank/Channel Bank LED Channel LED CH1 Left 1 CH2 Left 2 CH3 Left 3 CH4 Left 4 Bank1 Left 1,2,3,4 CH5 Right 1 CH6 Right 2 CH7 Right 3 CH8 Right 4 Bank2 Right 1,2,3,4 Bank1, Bank2 Left, Right 1,2,3,4 The STOP button should be released when the required channel or group is reached. RETRACT STOP/CHANNEL SELECT EXTEND Channel LEDs Bank LEDs South Pacific Electronic Design Associates Limited 2005 Revision 1.6 VS ACS Remote Control - User Guide Page 4 of 4 1.2 Remote Commands Following operations can be performed from the RF remote. • Jog-Retract - Pressing the RETRACT button for less than two seconds causes the awning to retract in jog mode. Retracting stops the moment the button is released. • Jog-Extend - Pressing the EXTEND button for less than two seconds causes the awning to extend in jog mode. Extending stops the moment the button is released. • Stop - Pressing the STOP button stops awning movement immediately. The STOP button should be released with in two seconds to avoid changing the currently selected bank/channel. • Full-Retract - Pressing the RETRACT button for more than 2 seconds causes the awning to fully retract. • Full-Extend - Pressing the EXTEND button for more than 2 seconds causes the awning to fully extend. • Override-Retract - Pressing the EXTEND button for more than 7 seconds causes the awning to retract overriding the current limiter. Retracting stops the moment the button is released. • Connect - This command is used when you want to ‘learn’ a new remote ID/channel with either the ACS RF board, or the ACMC1 board. This is not a group command and it should be used with a single channel only. If the remote ID / channel pair already exists, it will be ‘un-learned’. 1. Select the required channel by using the STOP button. 2. Press and release the CONNECT button on the ACS RF board or ACMC1 board. 3. The status LED of the ACS RF board or ACMC1 board begins to flash. 4. Press the EXTEND and RETRACT buttons simultaneously until the ACS RF board or ACMC1 board status LED stops flashing. 5. If status LED turns off then the ‘learning’ process has completed successfully. If the status LED fails to turn off, the process has failed. 6. Press the RETRACT or EXTE…

Text truncated - open the document above for the full version.

Block Diagram: ACMC1 RF Receiver MICRF001 Receiver MCU MSP430F1122 Anemo input / Slide Enable Park Brake. input Ignition input / ACS Retract Rx ConnectStatus LED Current Sensor Anemo input 2/Limit-switch 2 M ACS Extend Button Stop Button Extend Button Retract Zero Crossing Anemo input 1/Limit-switch 1 Block diagram: ACS Remote Control RF Transmitter MICRF104 Micro-Controller MSP430F1121 Button inputs LEDs BLOCK Diagram: ACS RF RF Receiver MICRF001 Receiver MCU MSP430F1121A Anemo input Park Bk. input Ignition input i1i2 ConnectStatus LED ACS Controller Anemo Speed Set ACS RF

EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 19 of 28 This report may not be reproduced except in full 10. PHOTOGRAPHS Transmitter external view EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 22 of 28 This report may not be reproduced except in full ACMC1 Receiver Internal View EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 23 of 28 This report may not be reproduced except in full ASCRF Receiver External View EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 24 of 28 This report may not be reproduced except in full ASCRF Receiver internal views EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 25 of 28 This report may not be reproduced except in full

Girard Systems Awning Control System CA, USA Sn# xxxxxxxx FCC ID: TX8-EBA200601 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received that may cause undesired operation

ACMC1 FCC Label position as shown FCC Label here ACS RF FCC Label position as shown FCC Label here ACS Remote FCC Label position as shown FCC Label here

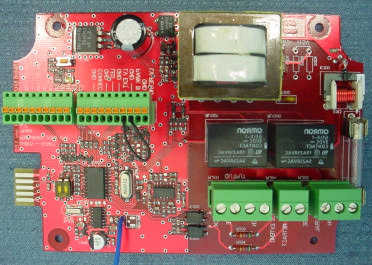

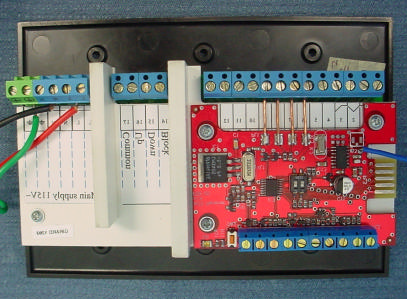

EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 20 of 28 This report may not be reproduced except in full Transmitter internal views EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 22 of 28 This report may not be reproduced except in full ACMC1 Receiver Internal View EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 23 of 28 This report may not be reproduced except in full ASCRF Receiver External View EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 24 of 28 This report may not be reproduced except in full ASCRF Receiver internal views EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 25 of 28 This report may not be reproduced except in full

OPERATING DESCRIPTION Recreational vehicles and motor homes are provided with awnings that employ tubular motors. These motors are typically powered by ac power from the utility supply (110V ac) or inverters running off automobile batteries. These motors are reversible and have 4 wires: counter-clockwise phase, clockwise phase, neutral and ground. The ACMC1 electronics unit is a radio operated motor controller board. It allows the user to extend, retract and stop the awning using a programmable remote control. In addition to these basic features, the ACMC1 board has several value added features including a built-in current limiter that provides motor stall detection, environmental sensor inputs that can retract the awnings in case of high winds etc. Each ACMC1 board can control one awning motor rated up to 5A at 110V. The ACMC1 allows a single awning to be controlled via the remote control. It is functionally equivalent to the ACS integrated receiver and can operate on both 110 and 240V ac lines (user selectable with a jumper). It consists of an rf receiver and inputs for anemometer control and for safety features like retract on ignition. The anemometer threshold can be set to one of four different wind-speed levels and the device retracts the awning automatically as soon as the wind-speed exceeds the preset threshold for ten seconds. BLOCK COMPONENTS Remote control input: The standalone receiver receives retract, extend and stop signals from the remote control and uses this information to control the awning motor. Ignition input: The ACMC1 can be connected to the vehicles ignition system to detect when it is being started. When this occurs the ACMC1 automatically retracts the awning and prevents it from being extended until the vehicle ignition is turned off again Wind-speed input: When the wind-speed exceeds a preset threshold for more than ten seconds the receiver retracts the awning motor completely. The retract signal is held high until the wind-speed falls below the threshold for a whole minute. Limit Switches: Instead of an Anemometer input, an ACMC1 can be purchased as a slide room controller. The ACMC1 will then stop driving the motor when the limits have been reached Anemometer OR Limit switches Interlock (Park Brake/Ignition) Operate/Enable (Slide) rf Program In Status LED 2 rf Receiver 4 3 Awning Motor (110VAC Reversible) ACS control AC Retract, AC Extend Anemometer Set OPERATING DESCRIPTION The remote control units are hand-held and powered by two AA batteries. The remote can transmit basic awning commands such as retract, extend and stop. There are two remote models; one with two separate channels and another with eight. Each channel may be configured for individual or group control of different awnings. Remote Top view: Block Diagram: Remote hardware primarily includes a micro controller and an RF transmitter chip. The micro controller is from Texas Instruments (MSP430F1121) and the RF transmitter is from Micrel (MICRF104). RETRACT STOP/ CHANNEL SELECT EXTEND Channel Indicator LED's RF Transmitter MICRF104 Micro-Controller MSP430F1121 Buttons LEDs OPERATING DESCRIPTION The ACS integrated receiver plugs into the internal terminal block on the ACS panel,. It adds remote functionality to the ACS panel. As well as protection interlocks Once installed the remote takes priority over the user buttons on the ACS panel. A standard ACS remote can be used to control the ACS receiver. One remote can be used to control up to eight different functions. The ACS receiver consists of an RF receiver, inputs for anemometer control, and connections for safety features like retract on ignition. The anemometer threshold can be set to one of four different wind-speed levels and the device retracts the awning automatically as soon as the wind-speed exceeds this for ten seconds. BLOCK COMPONENTS Remote control input: The standalone receiver receives retract, extend and stop signals from the remote control and uses this information to control the awning motor. Ignition/park brake input: The ACS Receiver can be connected to the vehicles ignition system to detect when it is being started, and its park brake to detect when this has been released. When either occurs the ACS receiver automatically retracts the awning and prevents it from being extended until the vehicle ignition is off and the park brake is applied. Wind-speed input: When the wind-speed exceeds a preset threshold for more than ten seconds the receiver retracts the awning motor completely. The retract signal is held high until the wind-speed falls below the threshold for a whole minute. Retract Extend Neutral Gnd Line Neutral Gnd 5A Fuse OFF ACS Panel 12V Gnd 11 12 "Connect" Button Anemometer RF Receiver Remote IGN + PARKBRAKE 110Vac

EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 1 of 28 This report may not be reproduced except in full TEST REPORT SPEDA Awning Remote Control System tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart B – Unintentional Radiators Subpart C – Intentional Radiators for South Pacific Electronic Design Associates (SPEDA) Ltd This Test Report is issued with the authority of: _____________________________________ Andrew Cutler - General Manager EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 2 of 28 This report may not be reproduced except in full Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 5 4. CLIENT INFORMATION 5 5. DESCRIPTION OF TEST SAMPLE 6 6. METHODS AND PROCEDURES 7 7. RESULTS 7 8. TEST EQUIPMENT USED 18 9. ACCREDITATIONS 18 10. PHOTOGRAPHS 19 EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 3 of 28 This report may not be reproduced except in full 1. STATEMENT OF COMPLIANCE The SPEDA Awning Remote Control System complies with FCC Part 15 Subpart B as an Unintentional Radiator and Subpart C as an Intentional Radiator when the methods, as described in ANSI C63.4 - 1992, are applied. 2. RESULTS SUMMARY The results from testing are summarised in the following table: Receiver Clause Parameter Result 15.101 Equipment authorisation requirement. Certification or Declaration of Conformity required for receivers. 15.103 Exempted devices. Not applicable as the device is a receiver and is not a digital device. 15.107 Conducted limits Complies. 15.109 Radiated emission limits Complies. 15.111 Antenna power conduction limit for receivers. Not applicable. Receiver does not have terminals for the connection of an external antenna. EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 4 of 28 This report may not be reproduced except in full Transmitter Clause Parameter Result 15.201 Equipment authorisation requirement. Certification required. 15.203 Antenna requirement Complies. Antenna integral. 15.204 External PA and antenna modifications Not applicable. No external devices. 15.205 Restricted bands of operation Complies. Device transmits periodically on 316.050 MHz. 15.207 Conducted limits Not applicable. Device is powered using an internal battery. 15.209 Radiated emission limits. Not applicable. All emissions from the device are related to the transmitter fundamental and the resulting harmonic emissions. 15.231(a) General requirements Transmitter is operated manually with a switch that deactivates the transmitter within 5 seconds of being released. 15.231(b) Field strength of emissions Complies with a 0.2 dB margin at 316.1300 MHz (Horizontal), with measurements falling within the window of uncertainty. 15.231(c) Bandwidth Complies. EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 5 of 28 This report may not be reproduced except in full 3. INTRODUCTION This report describes the tests and measurements for the purpose of determining compliance with the specification under the following conditions: The test sample was selected by the client. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. 4. CLIENT INFORMATION Company Name South Pacific Electronic Design Associates (SPEDA)Ltd Address PO Box 20253 City Christchurch Country New Zealand Contact Mr Russell Hocken EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 ________________…

Text truncated - open the document above for the full version.

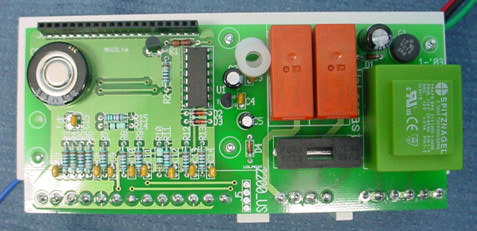

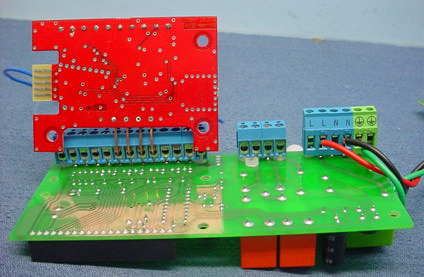

EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 21 of 28 This report may not be reproduced except in full Conducted emissions test set up – ACMC1 Receiver Conducted emissions test set up – ACS Receiver EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 26 of 28 This report may not be reproduced except in full Transmitter under test EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 27 of 28 This report may not be reproduced except in full ACMC1 Receiver Under Test EMC Technologies (NZ) Ltd Test Report No 50535.1 Report date: 3 rd June 2005 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 28 of 28 This report may not be reproduced except in full ASCRF receiver under test
