LDS Series Digital Storage Oscilloscope Users Manual 1 LILLIPUT LDS201M-2 Hand-held Type Digital Storage Oscilloscope Users Manual WWW.LILLIPUT.COM.CN Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. LDS Series Digital Storage Oscilloscope Users Manual 2 Contents General Safety Information.............................................................................................................................3 Safety Terms and Symbols .............................................................................................................................4 Performing the General Inspection .................................................................................................................5 Using The Scope.............................................................................................................................................6 Setting the Oscilloscope................................................................................................................................19 Setting the Trigger System ...........................................................................................................................24 Appendix A Specifications ........................................................................................................................33 LDS Series Digital Storage Oscilloscope Users Manual 3 General Safety Information Carefully read the following safety information in order to avoid any personal injury and damage on this product or any products connected with it. This product can only be used in the specified applications to prevent any possible dangers. Only qualified technical personnel can be permitted to perform maintenance. To avoid fire or personal injury: Use proper power line. Use only the power line that is provided for this product specially and subject to approval of being used in the user state. Make a connection or disconnection correctly. When a probe or test cord is connected to the power supply, do not connect or disconnect it at random. Connect the probe properly. The ground terminal of the oscilloscope probe is connected to the ground phase potential, and do not connect it to the positive phase potential. Pay attention to the nominal values of all terminals. To avoid fire or electric shock, please keep a watchful eye on all nominal values and marks specified for this product. Before any connection performed on this product, carefully read the user manual of the product for further information on nominal values. No operation is allowed without the instrument cover plate. If the cover plate or panel has been removed, do not perform any operation on this product. Use proper fuse. Use only the fuse complying with to the specified type and normal value for this product. No touch is allowed on bare conductors. When the product is powered on, do not touch on the bare joints or parts. Operation is prohibited in case of any undetermined failure. When in doubt any damage on this product, consult the qualified personnel for checking on it. Keep ventilation in good condition. Refer to the user manual for detail installation instructions in order to fix this product correctly and provide it with good ventilation conditions. No operation is allowed under a humid environment. No operation is allowed under an explosive environment. Keep clean and dry on the product surface. LDS Series Digital Storage Oscilloscope Users Manual 4 Safety Terms and Symbols Specific warning and caution terms, where they apply, appear throughout the manual. Warning. “Warning” identifies conditions and actions that pose hazards to the users. Caution. “Caution” identifies conditions and actions that may damage the product or other properties. Terms used on the product. The following terms appears possibly on the product. Danger: The term “Danger” is used in this manual to indicate that when you read this mark, personal injury may be caused to you immediately. Warning: The term “Warning” is used in this manual to indicate that when you read this mark, immediate personal injury may not be caused to you. Notice: The term “Notice” is used in this manual to indicate that damages may be caused on this product or other properties. Symbols used on the product. The following symbols appear possibly on the product. High voltage Refer to user manual Protective ground Measurement ground Case ground LDS Series Digital Storage Oscilloscope Users Manual 5 Performing the General Inspection When you have got a new LDS series oscilloscope, it is suggested that you should perform a general inspection on the instrument according to the following steps. 1. Check whether there is any damage on it due to transportation. If the packing boxes or foam cushions are found in serous damage, keep them in a proper place till the complete instrument and accessories have passed the electrical and mechanical tests. 2. Make a check on accessories The accessory list has been described in the Appendix B “ Accessory” of this manual. You can make a check and find whether there is any accessory loss with reference to the Appendix. In case of any accessory loss or damage, consult the LILLIPU dealer responsible for such a business or the local office of LILLIPUT. 3. Make a check on the complete instrument If the instrument is damaged in its appearance or it fails in normal operation or performance test, consult the LILLIPU dealer responsible for such a business or the local office of LILLIPUT. If the instrument is damaged due to transportation, keep the packing in a proper place and consult the transportation department and the LILLIPUT dealer responsible for such business, who will provide an instrument replacement or maintenance. Connected to PC : The oscilloscope has a RS-232 port and 2 USB ports. Firmware of the oscilloscope can be updated through RS-232 port when conne…

Text truncated - open the document above for the full version.

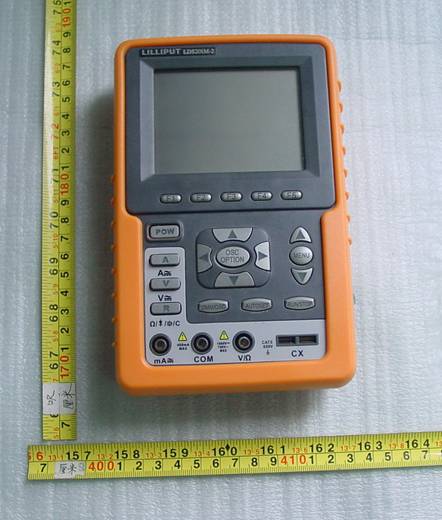

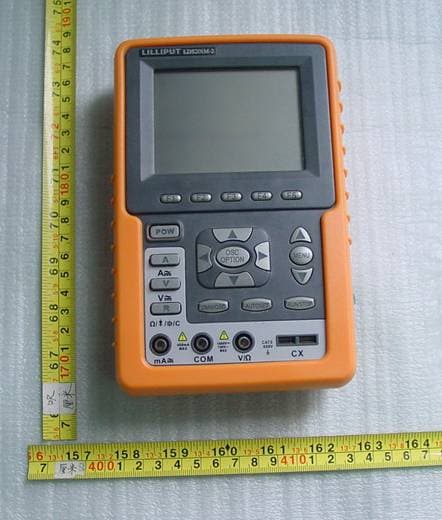

Front View Back View I/O View

Main Board Front View Main Board Back View Display & Keyset Front View Display & Keyset Back View Power Board Front View Power Board Back View

Connected to PC : The oscilloscope has a RS-232 port and 2 USB ports. Firmware of the oscilloscope can be updated through RS-232 port when connect the instrument to PC. If users need to update or repair the firmware, please contact the sales agency. The storaged data of the instrument could be storaged to PC through the mini USB ports.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size B Date: 17-Dec-2005 Sheet of File: C:\DOCUME~1\ADMINI~1\ \L DS20 1~1.SCH Drawn By: DJ 7.2v SW SPST c104 C104 C104 C104 C104 C104 c104 c476 c107 C476 C107 C476 C476 10 cme4435 10UH DJ 102 10UH C105RBM0540 10UH 29.4K 103 C476 C104 ky DFDF B1105 303 101 472 393 1/3 7w04 1/3 7w04 1/3 7w04 c182 mbr0540 c105 c105 3v TRANS4 223 100UH 332332 33 C107 R1224 1 2 3 4 51 2 3 4 5 DME9435 LM2611 MIC5209 3V3.3VI/O3.3V-5V IN8.8V 5V

EMC Compliance Management Group 670 National Avenue, Mountain View, CA 94043 Tel. (650) 988-0900 Fax (650) 988-6647 www.ecmg-global.com EMI Test Report On Model Name: Hand-held Type Digital Storage Oscilloscope Model Numbers: HDS1022 / HDS1022M / HDS1042 / HDS1042M / HDS2022 / HDS2022M / HDS2042 / HDS2042M / HDS2062 / HDS2062M / HDS2102 / HDS2102M / HDS3042 / HDS3042M / HDS3062 / HDS3062M / HDS3102 / HDS3102M / HDS4062 / HDS4062M / HDS4102 / HDS4102M / HDS4202 / HDS4202M Brand Names: LILLIPUT / OWON Trademarks: LILLIPUT / OWON FCC ID: TXF-OWON2005DS01 Prepared for Zhangzhou Lilliput Optoelectronics Institute Co., Ltd. According to FCC Part 15, Class B Test Report #: ZHA-0512-5055-FCC Prepared by: Chris Huang QC Manager: Harry Zhao Test Report Released by: 2006，February 9 ⎯⎯⎯⎯⎯⎯⎯⎯⎯ ⎯⎯⎯⎯⎯⎯ Harry Zhao Date NVLAP LAB CODE: 200068-0 ISO/IEC 17025:1999, ISO 9002:1994 Test Location Tests performed at EMC Compliance Management Group (China) in a Certified ANSI Semi-Anechoic Chamber and Shielded Room performed testing. Test Site Location: Fujian Provincial Central Inspection Institute 121 XiMenwai, ShanTouJiao, West YangQiao Road, Fuzhou, FuJian , PRC Tel: 86-591-3729754 Fax: 86-591-3777049 Registration Number: 100213 Accreditation Bodies EMC Compliance Management Group is a fully accredited Test Laboratory for ITE, ISM and Telecommunications Products. In compliance with the site registration requirements of Section 2.948 of the FCC Rules to perform EMI measurements for the general public. Accredited by the National Voluntary Laboratory Accreditation Program for the specific scope of accreditation under Lab Code # 200068-0. Table of Contents Government Disclaimer Notice .................................................... 1 Reproduction Clause ................................................................... 1 Administrative Data.................................................................... 2 EUT Description .......................................................................... 2 Type of Deriver........................................................................... 3 Test Summary ............................................................................ 5 Video Mode Justification ............................................................. 6 Test Mode Justification ............................................................... 6 EUT Exercise Software ................................................................ 6 Equipment Modification .............................................................. 6 EUT Sample Photos for Model HDS1022M ................................... 7 Test System Details................................................................... 29 Configuration of Tested System ................................................ 31 ATTACHMENT 1 - CONDUCTED EMISSION TEST RESULTS .......... 32 ATTACHMENT 2 - RADIATED EMISSION TEST RESULTS.............. 47 EMC Test Report #: ZHA-0512-5055-FCC Prepared for Zhangzhou Lilliput Optoelectronics Institute Co., Ltd. Prepared by EMC Compliance Management Group Page 1 of 58 Government Disclaimer Notice When government drawing, specification, or other data are used for any purpose other than in connection with a definitely related government procurement operation, the United States Government thereby incurs no responsibility nor any obligation whatsoever; and the fact that the Government may have formulated, furnished, or in any way supplied the said drawing, specifications, or other data, is not to be regarded by implication or otherwise in any manner licensing the holder or any other person or corporation, or conveying any rights or permission to manufacture, use, or sell patented invention that may in any way be related thereto. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. Reproduction Clause Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from EMC Compliance Management Group, 670 National Ave., Mountain View, CA 94043. EMC Test Report #: ZHA-0512-5055-FCC Prepared for Zhangzhou Lilliput Optoelectronics Institute Co., Ltd. Prepared by EMC Compliance Management Group Page 2 of 58 Administrative Data Test Sample : Hand-held Type Digital Storage Oscilloscope Model Numbers : HDS1022 / HDS1022M / HDS1042 / HDS1042M / HDS2022 / HDS2022M / HDS2042 / HDS2042M / HDS2062 / HDS2062M / HDS2102 / HDS2102M / HDS3042 / HDS3042M / HDS3062 / HDS3062M / HDS3102 / HDS3102M / HDS4062 / HDS4062M / HDS4102 / HDS4102M / HDS4202 / HDS4202M Model Tested : HDS1022M Brand Names : LILLIPUT / OWON Trademarks : LILLIPUT / OWON Date Tested : 2006, January 26 th Applicant : Zhangzhou Lilliput Optoelectronics Institute Co., Ltd. The Mansion of Optoelectronic HengSan Road, Lantian Industrial Zone, Zhangzhou, Fujian, China Telephone : 86-596-2130430 Fax : 86-596-2109815 Manufacturer : Zhangzhou Lilliput Optoelectronics Institute Co., Ltd. The Mansion of Optoelectronic HengSan Road, Lantian Industrial Zone, Zhangzhou, Fujian, China EUT Description Zhangzhou Lilliput Optoelectronics Institute Co., Ltd. model HDS1022M (referred to as the EUT in this report) is a Hand-held Type Digital Storage Oscilloscope. EMC Test Report #: ZHA-0512-5055-FCC Prepared for Zhangzhou Lilliput Optoelectronics Institute Co., Ltd. Prepared by EMC Compliance Management Group Page 3 of 58 Type of Deriver 1. Model: HDS1022 HDS1022M HDS1042 HDS1042M HDS2022 HDS2022M HDS2042 HDS2042M HDS2062 HDS2062M HDS2102 HDS2102M HDS3042 HDS3042M HDS3062 HDS3062M HDS3102 HDS3102M HDS4062 HDS4062M HDS4102 HDS4102M HDS4202 HDS4202M 2. All the models mentioned above are the same on appearance, principle and circuit. Also they adapt the same component and PCB board; the main difference is as follow: A: Different model has a different CPU menu. (changed software, different menu language, function increase/decrease ) B: The serial number of different model, represent dif…

Text truncated - open the document above for the full version.

On Transferring Mode On Multimeter Mode Radiated Emission Test Set-Up – Horizontal View On Oscillograph Mode Radiated Emission Test Set-Up – Horizontal View
