TXP2005TELEPATHONE WAY FRS TRANSMITTER

9 *Patent Pending User Manual Please read all the information carefully before operating this system and keep it in a safe place for future reference. 1 TABLE OF CONTENTS Introduction ............................................................................................. 2 Important Safety Information ....................................................................... 2 Special Features ....................................................................................... 3 Specifications ............................................................................................ 3 Parts Location and Function ........................................................................ 4 The Battery .............................................................................................. 5 LCD Display ............................................................................................. 6 Operation ................................................................................................ 6 Turning the Unit On and Off ...................................................................................... 6 Transmitting VOX Sensitivity Level Adjustment for Coach Unit ............................... 6 Receiving Volume Adjustment for Player Unit.................................................. 7 Channel Selection ...................................................................................... 7 Key Lock Setting ........................................................................................ 7 Transmitting for Coach Unit .......................................................................... 7 Receiving for Player Unit.............................................................................. 8 Strap and Active Gear ................................................................................ 8 STATEMENT ............................................................................................ 9 2 INTRODUCTION Thank you for purchasing the TELEPATH system. TELEPATH is a one way communication coaching system that allows you to be heard by all the players all the time. Designed for practices and scrimmages, it allows a coach to communicate philosophy, strategy, style of play, and opportunity instantly and clearly without shouting or whistles. TELEPATH uses the latest in wireless technology. Coaches can keep players focused and motivated without disrupting the flow of practice by starting and stopping. Please read the manual before using this system and we hope you enjoy your TELEPATH system. IMPORTANT SAFETY INFORMATION When using your Coach / Player product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to people, including the followings: 1. Read and follow all user instructions and warnings carefully. 2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 3. Do not handle the unit with wet hands or clean it while it is being charged. 4. Do not immerse in water. 5. Do not expose this product to excessive heat for extended period of time. High temperature may distort some plastic components and shorten the product lifetime. 6. Do not disassemble this product. No user serviceable parts are inside. Take it to a qualified serviceman when service or repair work is required. Doing so may expose you to dangerous voltage or other risks. Incorrect re-assembly may result in electric shock when the product is subsequently used. 7. If any smoke or unusual smell happens, please turn off the product right away and then contact the distributor for after-sales service. 8. Do not place the charging adapter in your mouth while the unit is plugged into the wall outlet. 3 SPECIAL FEATURES Coach Unit: △ VOX (Voice Active Transmitting) sensitivity level adjustment. △ External PTT (Wand) design. △ Both internal and external microphones available. △ Battery low indication. △ Low power consumption. △ Working channel memory design. Player Unit: △ Volume level selectable design. △ Battery low indication. △ Low power consumption. △ Working channel memory design. SPECIFICATIONS Contains Coach Player Working Frequency 462.5625 ~ 467.7125MHz Number of Channel 14 Channel Spacing 25KHz Operating Temperature - 20 ~ + 60°C Working Voltage DC 3.7V (DC 3.3~4.0V) Modulation FM Standby current ﹤10mA ﹤25mA Receiving sensitivity ﹤0.18uA (12dB SINAD) Transmitting Power < 128.47mW (Include Antenna Gain) Transmitting Current < 200mA 70~100mA Transmitting Frequency Tolerance +/- 5KHz Transmitting Radiation ＜-50dB Transmitting Range Approx. 350 yards 4 PARTS LOCATION AND FUNCTION Coach Unit 1. Antenna 2. LCD Display 3. Channel / Volume Function Key 4. In-use Indicator 5. Charging Indicator 6. Charging Port 7. Power Switch 8. Up Key 9. Down key 10. Push to Talk Button 11. Microphone 12. Headset/Microphone/Wand Jack Player Unit 1. Antenna 2. LCD Display 3. Channel/Volume Function Key 4. In-use Indicator 5. Charging Indicator 6. Charging Port 5 7. Power Switch 8. Up Key 9. Down Key 10. Speaker THE BATTERY The system comes with a lithium rechargeable battery and charging adapter. It is important to fully charge the battery before initial use. Keep the battery charged while not in use to maximize working time. Installing the Battery Insert top of battery with contacts in upper left corner into opening on the back of the unit. Push the battery down into position and replace cover securely. Charging the Battery Turn power off on the unit. Insert the charging adapter’s plug into the unit’s charging port. Plug the charging adapter into an AC outlet. Please check whether the adapter meets your local AC power source requirements. The red light indicates the battery is charging and the green light indicates the battery is fully charged. Battery Capacity 6 Coach Unit: The battery capacity is longest when used with the Push to Talk Wand (approx. 4 hrs). Using the Voice Activated Transmitting the capacity is approx. 2.5 …

Text truncated - open the document above for the full version.

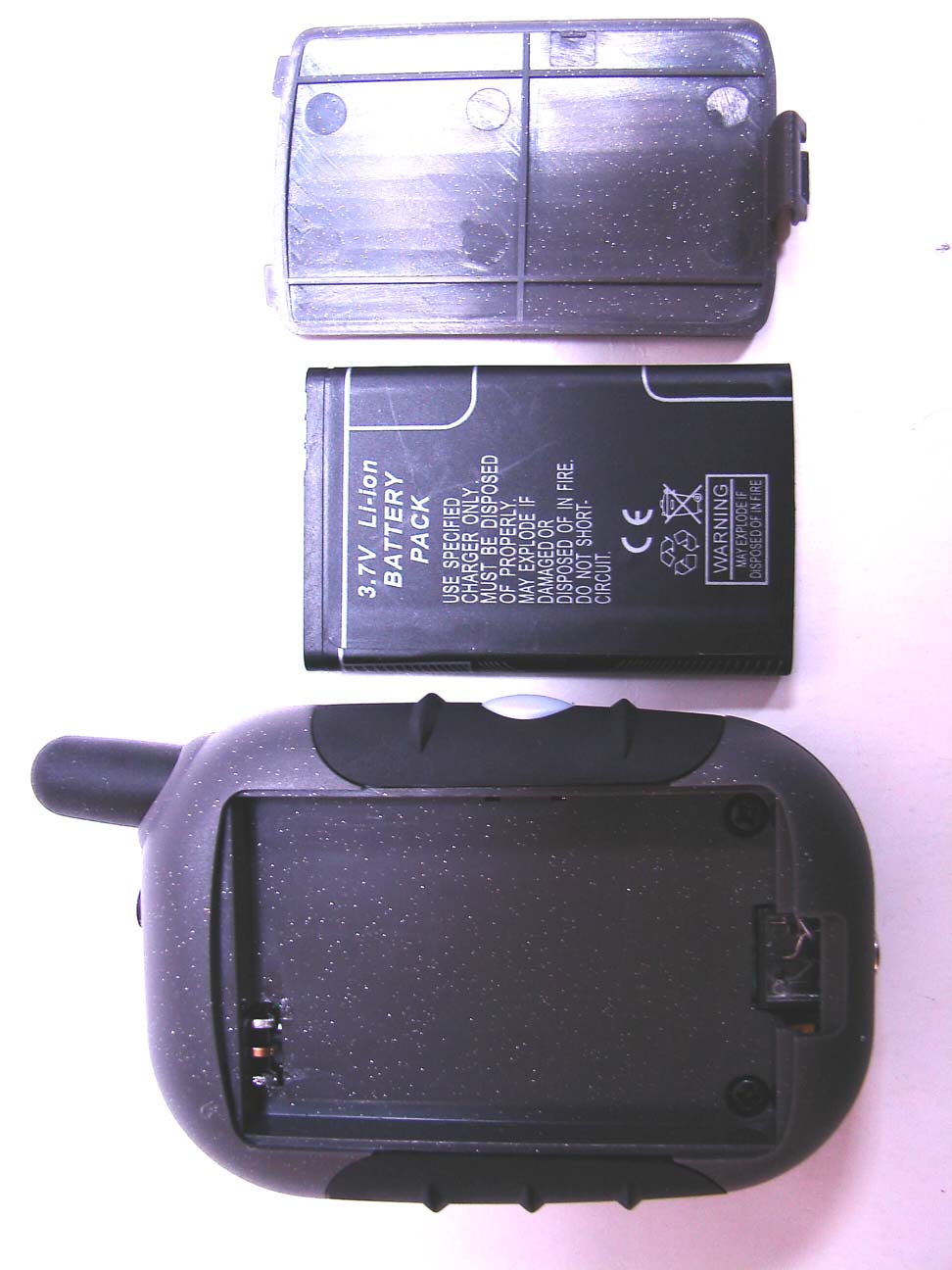

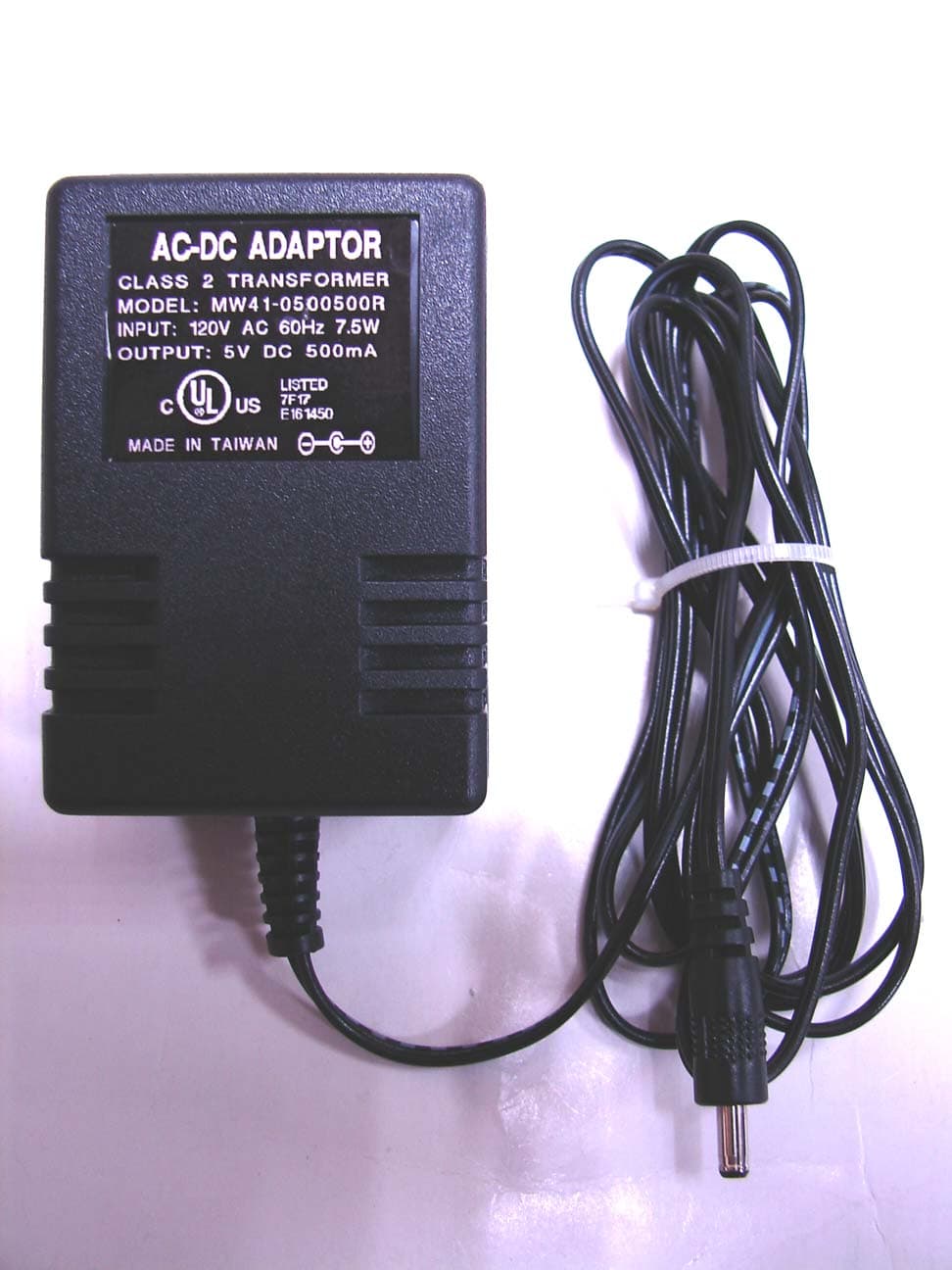

External Photos of One Way FRS Transmitter ------------------------------------ 1/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of One Way FRS Transmitter ------------------------------------ 2/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of One Way FRS Transmitter ------------------------------------ 3/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of One Way FRS Transmitter ------------------------------------ 4/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Sample and Location Information ------------------------------------------------ 1/1 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 LABEL Format: LABEL Size: 20 x 15 mm LABEL Position: This device complies with Part 95 of the FCC Rules FCC ID : TXP2005TELEPATH

Internal Photos of One Way FRS Transmitter------------------------------------- 5/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of One Way FRS Transmitter------------------------------------- 6/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of One Way FRS Transmitter------------------------------------- 7/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of One Way FRS Transmitter------------------------------------- 8/8 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Test Setup Photos ------------------------------------------------------------------------- 1/3 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: Front View of the Test Configuration Side View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 2/3 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: The Test Configuration of X-plane The Test Configuration of Y-plane Test Setup Photos ------------------------------------------------------------------------- 3/3 Applicant: RPM Sports FCC ID: TXP2005TELEPATH Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 The Test Configuration of Z-plane
