Part Number 4040-00701-00 Version 1.11 DSVII-SC ® User’s Manual DSVII-SC ® User Manual, Version 1.11 Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited. 2 Disclaimer Notice: Datastrip Inc., Datastrip Ltd., Datastrip Products Inc., and related operating companies (hereafter collectively referred to as Datastrip) reserve the right to change options, features, specifications, policies, pricing and availability at any time. Datastrip is not liable for errors or omissions in any product related documentation, specifications or software. Datastrip make no claims of suitability for any particular application. Datastrip will not be held liable for direct or indirect damages or other losses due to loss of data, reliability or performance issues relating to Datastrip-provided equipment or software. Copyright Notice: No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, scanning, or otherwise, except as permitted under section 107 or 108 of the 1976 United States Copyright Act, without the prior written permission from Datastrip International Ltd. or a subsidiary company. Requests to Datastrip for permission should be addressed to Datastrip Inc. 211 Welsh Pool Road., Suite 100., Exton, PA 19341-1321 USA, or Datastrip Ltd. Unit 7, Thame Park Business Centre, Wenman Road, Thame, Oxon, OX9 3XA UK. Acknowledgements: • DSVII-SC® is a registered trademark of Datastrip. • Windows and WinCE are registered trademarks of Microsoft Corporation. • All other trademarked or copyrighted names mentioned herein are the property of their respective owners. Revision History: 1.00 5/25/2004 Preliminary Draft 1.10 2/16/2006 Revisions to Regulatory Statements 1.11 4/26/2006 Added DS AC Adapter and Linecord Req’mt. DSVII-SC ® User Manual, Version 1.11 Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited. 3 Table of Contents 1 Overview..............................................................................................................................4 2 Unpacking & Inventory.......................................................................................................4 3 Initial Setup.........................................................................................................................6 4 Approved Uses.....................................................................................................................6 5 Third Party Software...........................................................................................................6 6 Operation.............................................................................................................................7 7 Battery Charging and Replacement.....................................................................................7 8 Cleaning............................................................................................................................10 9 Troubleshooting.................................................................................................................11 10 Hardware Specifications................................................................................................12 11 Hardware Features.........................................................................................................13 11.1 Keypad................................................................................................................................13 11.2 Fingerprint Sensor, LCD & Indicators..............................................................................13 11.3 Serial Ports.........................................................................................................................13 11.4 External Compact Flash Slot.............................................................................................15 11.5 USB Ports...........................................................................................................................15 11.6 Smart Card Slot..................................................................................................................15 12 Regulatory Compliance Statement.................................................................................16 13 Service & Support...........................................................................................................17 14 Available Parts, Supplies and Accessories......................................................................18 DSVII-SC ® User Manual, Version 1.11 Copyright © 2006 by Datastrip, Inc. All rights reserved. Reproduction in whole or in part is prohibited. 4 1 Overview The DSVII-SC ® (Figure 1) is a portable, handheld computer specifically designed for security, law enforcement, border control and positive I.D. verification applications. It features the ability to interface with both contact and Contactless SmartCard and wireless networking. An integrated fingerprint sensor enables biometric verification of identity. Please refer to the following for general specifications: • Integrated 500 DPI fingerprint sensor. • Color LCD display, 3.5” (88.9mm) diagonal measure. LED backlighting. • Integrated Smart Card (ISO-7816) card reader. • Integrated Contactless Smart Card reader (ISO-14443A/B). • Built-in Windows-CE.net-4.2 operating system. • CPU: 198MHz Hitachi SH4 processor. • Memory: 64Mbytes SDRAM, 128Mbytes FLASH. • One external Type-I/II Compact Flash slot. • One RS-232 serial port (full handshaking control signals). • One 10/100BaseT Ethernet port. • Two USB-1.1 “host” ports, for an external keyboard, mouse or other peripherals. • Internal, replaceable dual Lithium-Ion battery pack, external DC-power & charging jack. 2 Unpacking & Inventory Referring to Figure 2, carefully open the shipping box and use the following checkl…

Text truncated - open the document above for the full version.

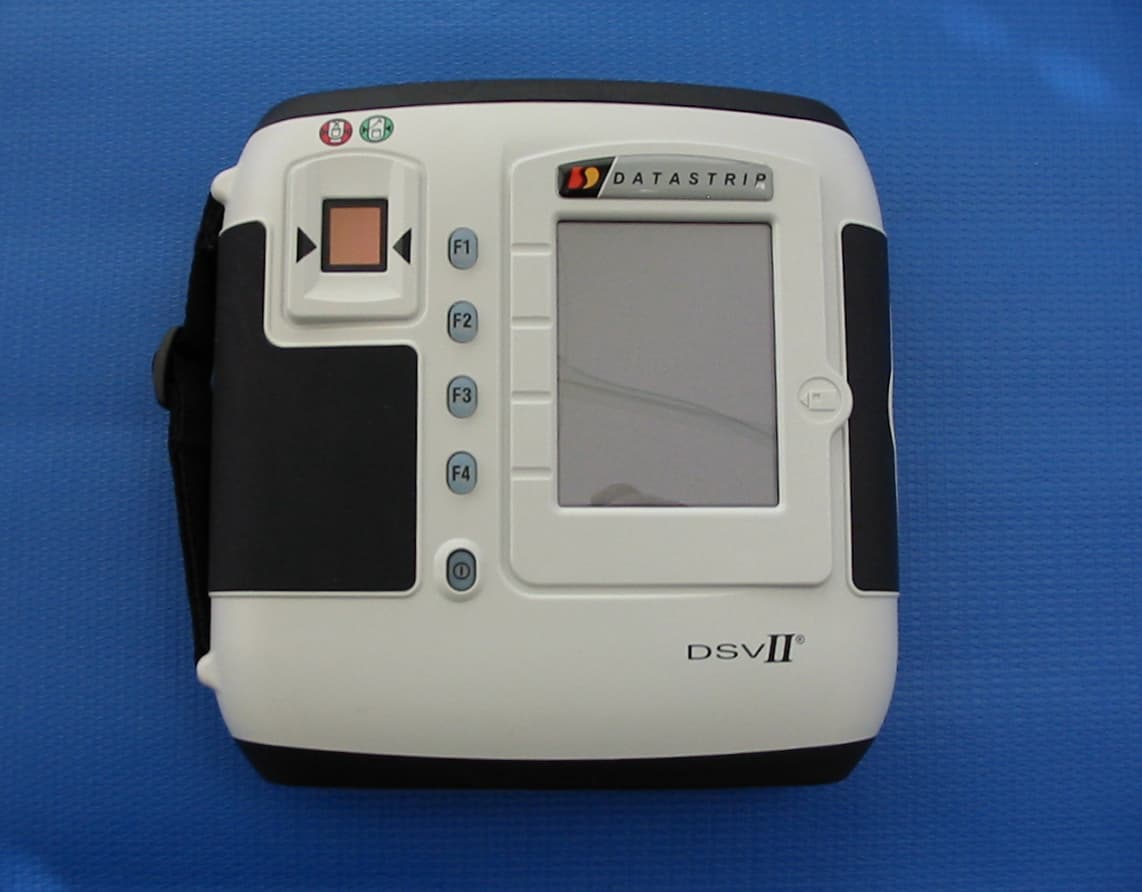

30660147.002 Datastrip DSVII.doc Page 1 of 43 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 Electromagnetic Compatibility EMC Report for Product Description: Biometric Smart Card Reader Model: DSVII SC Applicant: Datastrip Products, Inc. 30660147.002 Datastrip DSVII.doc Page 2 of 43 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 Test Report Number: Prübericht Nr. 30660147.001 Datastrip DSVII Test Report Summary Applicant: Auftraggeber Datastrip Products, Inc. 1 Waterview Drive Shelton, CT 06484 Tel: (203) 922-9222 Fax: (203) 922-9334 Email: [email protected] Martin Doyle Type of Equipment: Gegenstand der Prüfung Biometric Smart Card Reader Model Number: Bezeichnung: DSVII SC Trademark: Ursprungszeichen Standards: Prufgrundlage See details below Date of testing: November 11, 2005 – January 27 2006 Standard Number Description Severity Level or Limit Minimum Acceptable Performance Criteria Summary Result FCC Part 15 Radiated & Conducted Emissions Subpart C See Below Complies FCC Part 15.225 Operation within the band 13.110- 14.010 MHz See Below See Below Complies FCC Part 15.225 a) Field Strength Emissions within 13.553-13.567MHz 15,848 microvolts/meter at 30m NA Complies FCC Part 15.225 b) Field Strength Emissison between 13.410 - 15.553MHz and 13.567 - 13.710 MHz 334 microvolts/meter at 30m NA Complies FCC Part 15.225 c) Field Strength Emissions between 13.110-13.410 MHz and 13.710 - 14.010 MHz 106 microvolts/meter at 30m NA Complies FCC Part 15.225 d) Field Strength Outside the 13.110- 14.010MHz Shall not exceed limits of FCC part 15.209 NA Complies FCC Part 15.225 e) Frequency tolerance over -20 - +50 C at normal power supply and for 85% and 115% of rated supply voltage 0.01% NA Complies FCC Part 15.225 f) Frequency Powered tags NA NA NA FCC Part 15.207 Conducted Emissions Below limit of section 15.207 a) NA Complies FCC Part 15.209 Radiated Emissions Below limit of section 15.209 a) NA Complies Place of Test: Prüfort TUV Rheinland of North America 12 Commerce Road Newtown, CT 06470 USA E-mail: [email protected] Phone: (203) 426-0888 Web:http://www..tuv.com Fax: (203) 429-4009 Test Result: Prüfergebnis Unit presented for testing complied with criteria shown above. Additional Information is contained in the following pages. Tested By: Der Sachverständige Dieter Baldamus Checked By: geprüft Bruce Fagely May 22, 2006 May 22, 2006 Date, Signature Datum, Unterschrift Date, Signature Datum, Unterschrift 30660147.002 Datastrip DSVII.doc Page 3 of 43 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. This report must not be used by the applicant to claim product endorsement by TUV Rheinland, NVLAP or any agency of the U.S. Government. TUV Rheinland of North America, Inc., North American Headquarters, 12 Commerce Road, Newtown, CT 06470 - Tel (203)426-0888 - Fax (203)426-4009 1. Table of Contents 1. Table of Contents ......................................................................................................................................... 3 2. Measuring Equipment Used ......................................................................................................................... 4 2.1 Traceability................................................................................................................................................ 4 2.2 Calibration................................................................................................................................................. 4 2.3 Measurement Uncertainty......................................................................................................................... 5 2.4 Location of original data............................................................................................................................ 5 2.5 Status of facility used for testing ............................................................................................................... 5 2.6 Software and templates ............................................................................................................................ 6 3. Test Plan ...................................................................................................................................................... 7 4. Description of Equipment Tested ................................................................................................................. 7 4.1 General Description of E…
