TYD-CS40915Caretaker Sentry Pendant

CaretakerSentry Quick Install Guide Instructions for Installing Your New Personal Emergency Response System Equipment Reference Guide LogicMark Disclaimers and Limited Warranty COMMUNICATION AND RESPONSE LIMITATIONS: Purchaser acknowledges that signals which are transmitted over telephone lines, or other modes of communica- tion pass through communication networks wholly beyond the control of LogicMark LLC and are not maintained by LogicMark LLC, and, therefore, LogicMark LLC shall not be responsible for any equipment or communication failure which prevents transmission signals from reaching your contact list including emergency 911 operators or damages arising therefrom. Purchaser acknowledges that LogicMark LLC provides no response to the System’s equipment. The equipment is designed to com- municate with the a central station of your choice and LogicMark LLC is not and shall not be responsible for ambulance, police or other emergency response time or that any response will be provided by the central monitoring station. TESTING AND SERVICE OF THIS EQUIPMENT: The equipment, once installed, are in the exclusive possession and control of the Purchaser, and it is Purchaser’s sole responsibility to test the operation of equipment and request warranty service if the equipment is under warranty. PURCHASER’S EXCLUSIVE REMEDY: Purchaser’s exclusive remedy for LogicMark LLC’s default hereunder is to require LogicMark LLC to repair or replace, at LogicMark LLC’s option, any equipment or part of the personal emergency alert system which is non-operational during LogicMark LLC’s warranty period. LIMITATION OF LIABILITY: This equipment is not designed or guaranteed to prevent any loss or injury. This Limited Warranty and Disclaimer of Liability constitutes the terms of sale and use of the equipment, and if there should arise any liability on the part of LogicMark LLC as a result of any cause whatsoever, regardless of whether or not such loss, damage, or personal injury was caused by or contributed to by LogicMark LLC’s negligence to any degree or failure to perform any obligation or strict products liability, such liability will be limited to an amount paid by the Purchaser to LogicMark LLC for the product, or to the sum of $350.00, whichever is greater. For warranty information, see your delaer for details. Backup Batteries Base Bottom View Master ON/OFF Switch DECT Pendant Battery Charging Port (for optional accessrory) Pendant Battery Charge Status LED Pendant Part #40915 Gray Emergency Button 2 Second Push Red Status LED Breakaway Feature Lanyard Base Top View Part #40914 Red Emergency button Phone Connection (Blue) Info (Green) Power (Red) Blue CareTaker button Microphone Battery Backup Status (Yellow) Speaker Cancel (1 second) System Check (8 seconds) Base Back View Telephone Jacks Line INTo House Phone Programming Switch Programming Mode“Emergency Call Mode” Normal Operation Reset Power DC 7.5 800 mAh Code Learn (Red) Cell Accessory Plug Base Side View © LogicMark, LLC v3.8 Caretaker Sentry Base Unit - Model 40914 FCC ID: TYD-CS40914 IC ID: IC: 8471A-CS40914 Caretaker Sentry Standard Pendant - Model 40915 FCC ID: TYD-CS40915 IC ID: IC: 8471A-CS40915 Plug Telephone Line and Power Cord into Wall Jacks 3 CaretakerSentry Step-by-Step Installation Place Green Rechargeable batteries in the compartment on the bottom of the base unit. Make sure to turn ON/OFF switch to ON. You will hear the announcement “Running on Battery Power.” Unit will do so until the AC Adapter pwer supply is plugged in. Place Batteries in Unit. 2 Confirm Accessories in Kit 1 Plug the AC Adapter power cord into the power jack and twist right to lock. 4 Rechargable AA Batteries Telephone Cord Wrist strap AC Adapter Lanyard Test the Unit 4 Place call to Emergency Operator: a. Push GRAY EMERGENCY button for 2 seconds on Pendant (RED LED on the pendant should turn ON for 1 second) b. You should hear a dial tone, dialing and then communication tones between the CaretakerSentry and central station. Several seconds later the operator should answer the call and ask “Is everything OK” c. Talk normally to the base unit – just like speaker phone d. At the end of the conversation, the CaretakerAlert should automatically hang-up – if not, push the CANCEL button for 1 second. Performing a System Test a. PUSH and HOLD the CANCEL button for 8-10 seconds to enter “System Check” b. Push GRAY EMERGENCY button for 2 seconds on Pendant (RED LED on the pendant should turn ON for 1 second) c. Listen for voice prompt from base unit: i. “All Systems are OK – Battery is OK” is heard system is correctly installed ii. If any other voice prompt is heard, the unit will describe the problem d. Push and release the CANCEL button for 1 second to exit Test Mode (unit will automatically exit in 3 minutes) e. We recommend that you perform this System Test weekly ON OFF Model #40911 (OPTIONAL) Plug the telephone into the “To House Phone” jack. Line in To House Phone Caretaker Sentry Base Unit - Model 40914 FCC ID: TYD-CS40914 IC: 8471A-CS40914 Caretaker Sentry Standard Pendant - Model 40915 FCC ID: TYD-CS40915 IC: 8471A-CS40915 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursu- ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to rad…

Text truncated - open the document above for the full version.

v3.10 Guardian Alert DEALER SET-UP & PROGRAMMING INSTRUCTIONS Model # 40911 2 CaretakerSentry® v3.10 THESE INSTRUCTIONS ARE FOR THE DEALER. REFER TO THE “QUICK START GUIDE” FOR BASIC INSTALLATION. These instructions are for the Dealer to set-up and program the CaretakerSentry System to operate with the Central Station of your choice. The CaretakerSentry product (the “System”) uses the industry standard “Contact ID” and “4+2” protocols. Voice prompts provide easy set-up and testing. Basic set-up requires you to: • Install the 4 AA rechargeable Ni-MH batteries in the Base unit. • Plug the base unit into AC power (not a switched outlet) • Connect to a wired telephone connection – Line In Basic programming requires you to enter: • The central station telephone number(s). • The 4 digit account code of your customer. There are several special options you can set for additional features - these include: • Changing the 4 digit factory passcode to a passcode of your choice – to prevent unauthorized reprogramming • You should enter two telephone numbers - the primary number should be the alarm receiver’s toll free number and the secondary number should be the alarm receiver’s local long distance number, in case the first number is busy or unreachable. • You can program the System to send Restore Codes. • You can program the System to send a Periodic Test Signal Every Day, Every Week or every 30 days. • The System can learn up to a total of 9 Pendants. NOTE: At any time in the future, you can remotely change all of these setting over a telephone line using any touch- tone phone. NOTICE - Please read all of the Limitations of Liability, Disclaimer and Limited Warranty that are in the User Quick Install Guide. v3.10 CaretakerSentry® 3 TABLE OF CONTENTS System Components..........................................................................4 Limitation of Liability...........................................................................5 Installing the Batteries.......................................................................6 Connecting the Base Unit...................................................................6 Power Connection...............................................................................6 Telephone Connections.........................................................................7 Communication Protocol Options..........................................................7 Line Seizure.......................................................................................7 Dealer Programming...........................................................................8 Key to LED Status..............................................................................8 Programming Central Station, Account Codes and Caretaker numbers...9 Changing a 4 Digit Passcode................................................................9 Setting Programming Options...............................................................10 Remotely Programming a System......................................................13 Adding Additional Pendants to the System..........................................14 Erasing All Previously Learned Pendants.............................................15 Basic Set-up and Test.......................................................................15 Lanyard or Wrist-Strap.......................................................................15 System Check...................................................................................15 Operating Range...............................................................................16 Testing.............................................................................................16 Out of Service Storage or Transportation.............................................16 Troubleshooting Guide......................................................................17 Central Station Items of Interest........................................................18 FCC Information...............................................................................19 Important Safety Instructions............................................................20 LogicMark Disclaimers and Limited Warranty......................................20 Replacement Parts / Optional Accessories..........................................22 Product Specifications........................................................................23 4 CaretakerSentry® v3.10 Pendant Part #40915 AC Adapter Phone Cord Wrist strapLanyard Rechargeable AA Batteries - 4 Pieces Part #35918 System Components: The items below are included with your System . Base Unit Part #40914 v3.10 CaretakerSentry® 5 Limitation of Liability This page is a summary of the Disclaimer and Limited Warranty disclosed in full at the end of this instruction manual. Read these carefully. The purchaser agrees by using this CaretakerAlert (the “System”) to the terms and conditions below and in the Disclaimer and Limited Warranty. The purchaser also agrees to read and follow all instructions and warnings on the product and contained within these Installation and Operation Instructions. It will be the sole responsibility of the purchaser and user to assure that this System is installed and programmed properly, and that the unit is used and maintained correctly. This includes, but is not limited to, periodic use to assure that the System and batteries, are in proper working order, that the unit is located in an appropriate location in the home, that the electrical outlet is supplying power, and that the user has been educated as to the operation and functionality of the product as a whole. The System’s equipment is not designed or guaranteed to prevent any loss or injury. This Limited Warranty and Disclaimer of Liability discussed in full at the end of this instruction manual constitutes the terms of sale and use of the System (and accessories) equipment, and if, notwithstanding these terms of sale…

Text truncated - open the document above for the full version.

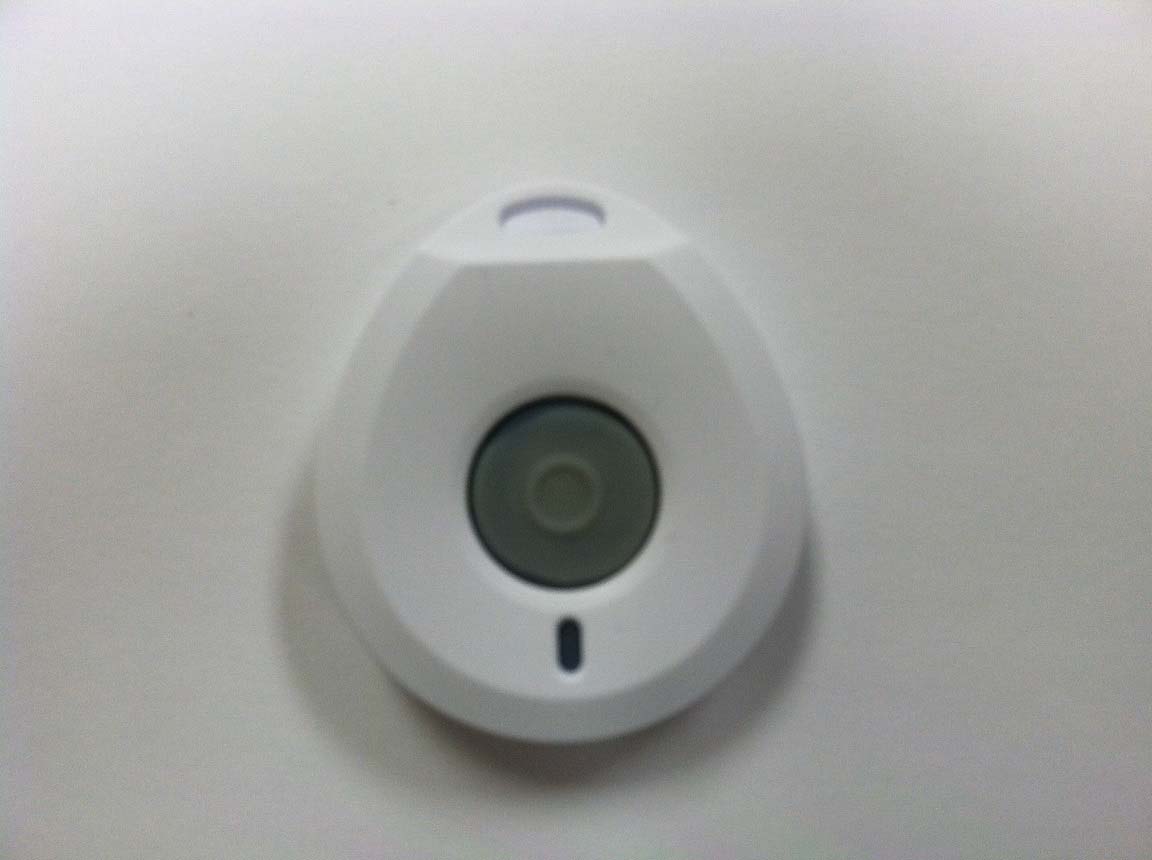

EXTERNAL PHOTOS Company Name LogicMark, LLC Model # 40915 FCC ID # TYD‐CS40915 IC # 8471A‐CS40915 Page 1 of 1

1.580 REF 1.840 REF .225 REF PAD PRINT OR SILK SCREEN TEXT "LOGIC" - DARK GREY "MARK" AND DOT OVER "i" - LIGHT GREY OR WHITE NOTES: 1) MATERIAL - GENERAL PURPOSE ABS; COLOR: BLACK 2) FINISH - TEXTURE ALL EXTERNAL SURFACES WITH MOLD-TECH MT-11020, OR LOGICMARK APPROVED ALTERNATE 3) VOLUME - 0.17 IN^3 4) REFER TO CAD DATA FOR ALL UNSPECIFIED GEOMETRY PRELIMINARY - FOR QUOTATION ONLY REV. DATE BY DESCRIPTION REVISIONS DWG. NO.: TITLE: NOTES: SCALE: PROJECT: SHEET: DATE: DRAWN BY: THIS DOCUMENT IS THE PROPERTY OF BROOKS STEVENS, INC. AND SHALL NOT BE REPRODUCED, COPIED OR TRANSMITTED WITHOUT WRITTEN PERMISSION. X.XX .01 ANG. 1/2° X.XXX .005 X.X .1 UNSPECIFIED TOLERANCES UNITS OF MEASURE ARE IN DECIMAL INCHES DIMENSIONING & TOLERANCING PER ANSI Y14.5M-1982 Pendant_Rear_Cover_r10 10/9/2012 1 LOGICMARK OF 1 1:1 A1 PRELIMINARY RELEASE FOR QUOTE 10/9/2012 BSI A1 REV: COVER, PENDANT, REAR FCC ID: TYD-CS40915 IC: 8471A-CS40915 Model: 40915

INTERNAL PHOTOS Company Name LogicMark, LLC Model # 40915 FCC ID # TYD‐CS40915 IC # 8471A‐CS40915 Page 1 of 2 INTERNAL PHOTOS Company Name LogicMark, LLC Model # 40915 FCC ID # TYD‐CS40915 IC # 8471A‐CS40915 Page 2 of 2

1.0 433 MHz Pendant The 433 MHz radio solution will uses a SiLabs Si4010 transmitter. The transmitter is a fully integrated crystal-less CMOS SoC RF transmitter with an embedded CIP-51 8051 MCU. The device can operate without requiring an external crystal reference source reducing board area and BOM cost. The device includes an 8 kB non volatile memory block for programming the user's application along with a 12 kB ROM of embedded support code for use in the user's application. The Si4010 is designed for low power battery applications with standby currents of less than 10 nA to optimize battery life and features automatic wake on button press support to efficiently move from the standby to active mode state with minimal customer code support. Built in AES- 128 hardware encryption along with a 128-bit EEPROM can be used to create robust data encryption of the transmitted packets. A unique 4-byte serial number is programmed into each device ensuring non-overlapping device identifiers. The RF transmitter features a high efficiency PA and includes an automatic antenna tuning algorithm. This algorithm adjusts the antenna tuning at the start of each packet transmission for optimal output power minimizing the impact of antenna impedance changes due to the remote being held in a user hand. The device supports OOK modulations and includes automatic output power shaping to reduce spectral spreading and ease regulatory compliance. The output frequency will be fixed at 433.92 MHz. The Pendant has an on board loop antenna will transmit the RF signal. The Pendant will be powered by a lithium coin cell battery. The targeted Pendant size is 40mm diameter maximum and 10mm thick but the size will be adjusted to fit the antenna and battery. 2.0 Packets 1. Data Rate = 9.6 Kbps, 104.17 uS per bit 2. Modulation = OOK 3. Packet Size = 18 bytes, 8 bits per byte 4. Max Packet on time = 14.99 mS per 100 mS 5. Packet is repeated 8 times at 100 mS intervals 6. Will not repeat until button is pushed again 7. Packet size and duration is the same for 13 hr heartbeat
