TYD35911900MHz DSSS Cordless Phone with Speakerphone

v9.5 Guardian Alert English INSTALLATION & OPERATION INSTRUCTIONS Model #35911 FreedomAlert instructions v9-5 E1 110/24/2009 11:01:56 PM 2 FreedomAlert ® v9.5 PLEASE READ THIS MANUAL COMPLETELY AND SAVE IT FOR REF- ERENCE. Thank you for choosing FreedomAlert ® – the most unique Personal Emergency Response System in the world, and covered by both US and Canadian patents. FreedomAlert is your personal link to Family, Friends, or Emergency Personnel when needed. FreedomAlert allows you to program up to 4 numbers to be reached at the push of a button. With FreedomAlert - there are: No Activation Costs No Contracts No Monthly Fees Up to 4 user programmable contacts to call anytime. You can personalize the system with a flick of a slide switch on the Base unit to: Call up to 4 custom contacts Call up to 4 custom contacts & then the 911 emergency operator Or just the 911 emergency operator. Because you are speaking through the pendant, FreedomAlert allows you to person- ally communicate your emergency from anywhere in your home or yard. Emergen- cies can happen anyplace. And just one button activation. Traveling? Whether you are moving across town or going to visit the grandkids across the country - just unplug your FreedomAlert from the phone jack, unplug the power adaptor and throw it in your suitcase. When you get to your destination, simply plug it into the local phone jack and power outlet. No additional program- ming needed. And if you call 911, they will automatically have the local ‘caller ID’ of that location. Voice prompts provide easy set-up and testing. Base unit comes with 4 rechargeable batteries to provide up to 24 hours of standby power in the event of a power outage. Need others to share the system in your home. No problem, you can add as many additional Pendants to one Base unit as you wish. FreedomAlert instructions v9-5 E2 210/24/2009 11:01:56 PM v9.5 FreedomAlert ® 3 TABLE OF CONTENTS Overview of the FreedomAlert ................................................................2 Contents of FreedomAlert kit ..................................................................4 Limitation of Liability ..............................................................................5 Installing the Batteries ..............................................................................6 Connecting the Base Unit Power Connection ........................................................................... 8 Telephone Connections ................................................................... 8 How to Handle VoIP & DSL ........................................................... 9 Location of Base Unit ...................................................................10 Base Unit Options & Features Friends List and Emergency Operator ..........................................10 Programming the Unit Programming Telephone Numbers .............................................. 11 Telephone Number Programming Worksheet ...............................12 Adding Additional Pendants to the System ..................................14 Operating the FreedomAlert Operating the Pendant ................................................................... 15 Holding the Pendant ...................................................................... 16 Hanging Up ...................................................................................16 Lanyard, Belt Clip or Wrist-Strap ................................................. 16 Battery Check ................................................................................ 17 System Check ................................................................................ 18 Emergency Dialing Using the Panic Button ................................. 19 Operating Range ........................................................................... 19 Water Resistance ...........................................................................20 Periodic Testing / Maintenance Replacing Batteries .......................................................................19 Out of Service Storage or Transportation .....................................19 Troubleshooting Guide ...........................................................................21 Disclaimer / General Warnings & Precautions / Safety ......................25 Warranty ..................................................................................................28 Replacement Parts / Additional Accessories Available ........................29 Product Specifications ............................................................................30 FreedomAlert instructions v9-5 E3 310/24/2009 11:01:56 PM 4 FreedomAlert ® v9.5 Pendant Rechargeable Li-Ion Special Pendant Batteries - 2 Pieces Screwdriver Base Unit AC Adapter Phone Cord Wrist / Walker / Wheelchair strap Belt Clip Lanyard Rechargeable AA Batteries - 4 Pieces Contents of the FreedomAlert Kit: The items below are included with your FreedomAlert . FreedomAlert instructions v9-5 E4 410/24/2009 11:01:58 PM v9.5 FreedomAlert ® 5 Limitation of Liability This page is a summary of the Disclaimer and Limited Warranty disclosed in full at the end of this instruction manual. The purchaser agrees by using this product to the terms and conditions below and in the Disclaimer and Limited Warranty. The purchaser also agrees to read and follow all instructions and warnings on the product and contained within these Installation and Operation Instructions. It will be the sole responsibility of the purchaser and user to assure that the FreedomAlert product is installed and programmed properly, and that the unit is used and maintained correctly. This includes, but is not limited to, periodic use to assure that the FreedomAlert, including batteries, are in proper work- ing order, that the unit is located in an appropriate location in the home, that the electrical outlet is supplying power, and that the user has been educated as to the operation and functional…

Text truncated - open the document above for the full version.

LogicMark,LLC LogicMark,LLC LogicMark,LLC

(Mr.Melvin Nip) to act on our LogicMark, LLC

INTERTEK TESTING SERVICES External Photos FCC ID: TYD35911 IC: 8471A-35911 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: TYD35911 IC: 8471A-35911 external photos - 2 of 2

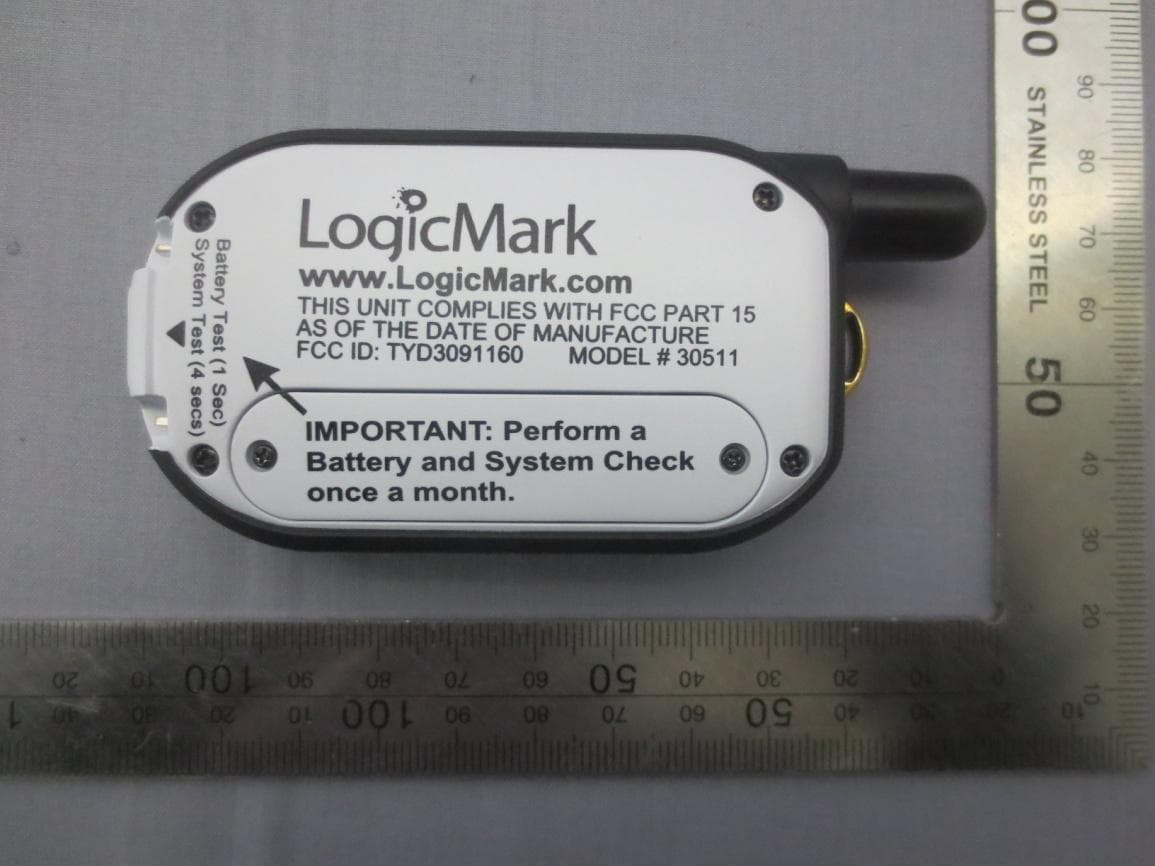

余清玲 2009/11/18 35911 座机面壳丝印 面壳丝印 字体颜色：PMS 431C 比例： 1：0.4 面壳丝印 字体颜色：PMS 431C 比例 1：1 余清玲 2009/11/18 35911 手机面壳丝印 www.LogicMark.comModel # 35911FCC ID: TYD35911 IC: 8471A-35911Privacy of communications may not beensured when using this device.IMPORTANT: Perform a Battery & System Check once every other week. Replace battery with freshly charged battery monthly or as needed. Test Battery (1 sec) Test System (4 sec) Hang Up 

INTERTEK TESTING SERVICES Internal photos FCC ID: TYD35911 IC: 8471A-35911 internal photos - 1 of 6 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: TYD35911 IC: 8471A-35911 internal photos - 2 of 6 Base Unit RF comp side Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: TYD35911 IC: 8471A-35911 internal photos - 3 of 6 Base Unit Antenna INTERTEK TESTING SERVICES Internal photos FCC ID: TYD35911 IC: 8471A-35911 internal photos - 4 of 6 Handset assembly (View 1) Handset assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: TYD35911 IC: 8471A-35911 internal photos - 5 of 6 Handset Main PCB comp side Handset Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: TYD35911 IC: 8471A-35911 internal photos - 6 of 6 Handset Keypad front side Handset Keypad rear side

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: TYD35911 Bandedge - 1 of 2 Base unit, Lowest channel Base unit, Highest channel IC: 8471A-35911 INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: TYD35911 Bandedge - 2 of 2 Handset unit, Lowest channel Handset unit, Highest channel IC: 8471A-35911

Report no.: HK09061219-1(R1) Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP HK09061219-1 (F12192A1) Dat e: 18.AUG.2009 17:34:27 Report no.: HK09061219-1(R1) Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 195 kHz 46.92 L1 gnd -16.90 1 Quasi Peak 213 kHz 45.88 L1 gnd -17.20 1 Quasi Peak 343.5 kHz 53.69 L1 gnd -5.42 2 CISPR Average343.5 kHz 36.93 N gnd -12.18 2 CISPR Average541.5 kHz 31.65 N gnd -14.34 1 Quasi Peak 546 kHz 47.86 N gnd -8.13 2 CISPR Average600 kHz 30.58 N gnd -15.41 1 Quasi Peak 640.5 kHz 46.58 L1 gnd -9.41 2 CISPR Average978 kHz 30.70 N gnd -15.29 1 Quasi Peak 1.0635 MHz 47.92 N gnd -8.07 1 Quasi Peak 1.1355 MHz 43.31 L1 gnd -12.68 2 CISPR Average1.4865 MHz 27.77 L1 gnd -18.22 1 Quasi Peak 1.6305 MHz 45.89 L1 gnd -10.10 2 CISPR Average1.842 MHz 31.00 N gnd -14.99 1 Quasi Peak 2.481 MHz 36.64 L1 gnd -19.35 2 CISPR Average2.7645 MHz 26.12 N gnd -19.87 1 Quasi Peak 2.994 MHz 32.34 N gnd -23.65 HK09061219-1 (F12192A1) Dat e: 18.AUG.2009 17:34:19

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK09061219-1(R1) Application for Original Grant of 47 CFR Part 15 Certification New Family of RSS-210 Issue 7 Equipment Certification 900MHz Direct Sequence Spread Spectrum Cordless Phone with Speakerphone FCC ID: TYD35911 IC: 8471A-35911 Supersede report no. HK09061219-1 dated January 07, 2010 Prepared and Checked by: Approved by: Koo Wai Ip Nip Ming Fung, Melvin Engineer Supervisor January 28, 2010 INTERTEK TESTING SERVICES Test Report Number: HK09061219-1(R1) Page 1 of 25 FCC ID: TYD35911 IC: 8471A-35911 GENERAL INFORMATION Applicant Name: LogicMark, LLC Applicant Address: 8625 Hampton Way, Fairfax Station, Virginia 22039, USA. FCC Specification Standard: FCC Part 15: 2008 FCC ID: TYD35911 FCC Model(s): 35911, 37911 IC Specification Standard: RSS-210 Issue 7, June 2007 RSS-Gen Issue 2, June 2007 RSS-102 Issue 3, June 2009 IC: 8471A-35911 IC Model(s): 35911, 37911 Type of EUT: Transceiver Description of EUT: 900MHz Direct Sequence Spread Spectrum Cordless Phone with Speakerphone Serial Number: N/A Sample Receipt Date: June 24, 2009 Date of Test: August 18-21, 2009 Report Date: January 28, 2010 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK09061219-1(R1) Page 2 of 25 FCC ID: TYD35911 IC: 8471A-35911 Table of Contents 1.0 Summary of Test Results................................................................................... 3 2.0 General Description............................................................................................ 5 2.1 Product Description ............................................................................................ 5 2.2 Test Methodology............................................................................................... 6 2.3 Test Facility........................................................................................................ 6 3.0 System Test Configuration................................................................................. 8 3.1 Justification ........................................................................................................ 8 3.2 EUT Exercising Software.................................................................................... 9 3.3 Details of EUT and Description of Peripherals.................................................. 10 3.4 Measurement Uncertainty ................................................................................ 10 3.5 Equipment Modification .................................................................................... 10 4.0 Test Results....................................................................................................... 12 4.1 Field Strength Calculation................................................................................. 12 4.2 Radiated Emissions from Transmitter ............................................................... 13 4.2.1 Radiated Emission Configuration Photograph ................................................ 13 4.2.2 Radiated Emission Data ................................................................................ 13 4.2.3 Average Factor Calculation and Transmitter ON Time Measurements ........... 14 4.3 Radiated Emissions from Receiver ................................................................... 19 4.3.1 Radiated Emission Configuration Photograph ................................................ 19 4.3.2 Radiated Emission Data ................................................................................ 19 4.4 Radiated Emission on the Bandedge................................................................ 22 4.5 AC Power Line Conducted Emission ................................................................ 23 4.5.1 AC Power Line Conducted Emission Configuration Photograph..................... 23 4.5.2 AC Power Line Conducted Emission Data ..................................................... 23 4.6 Radio Frequency Exposure Compliance........................................................... 24 5.0 Equipment List................................................................................................. 25 Appendix – Exhibits for Application of Certification INTERTEK TESTING SERVICES Test Report Number: HK09061219-1(R1) Page 3 of 25 FCC ID: TYD35911 IC: 8471A-35911 1.0 Summary of Test Results Test Items FCC Part 15 Section RSS-210/ RSS-Gen # / RSS-310^ Section Results Details see section Antenna Requirement 15.203 7.1.4 # Pass 2.1 Security Code Information 15.214(d) 2.4 Pass 2.1 Radiated Emission Radiated Emission on the Bandedge 15.249(a), 209, & 109 15.249(d) A2.9(a) A2.9(b) Pass Pass 4.2 4.4 Radiated Emission in Restricted Bands 15.205 2.2 Pass 4.2 Radiated Emission from…

Text truncated - open the document above for the full version.

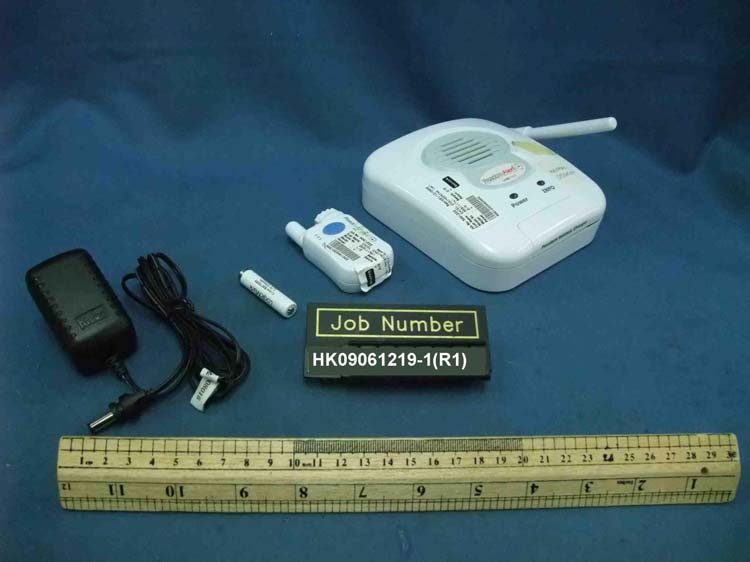

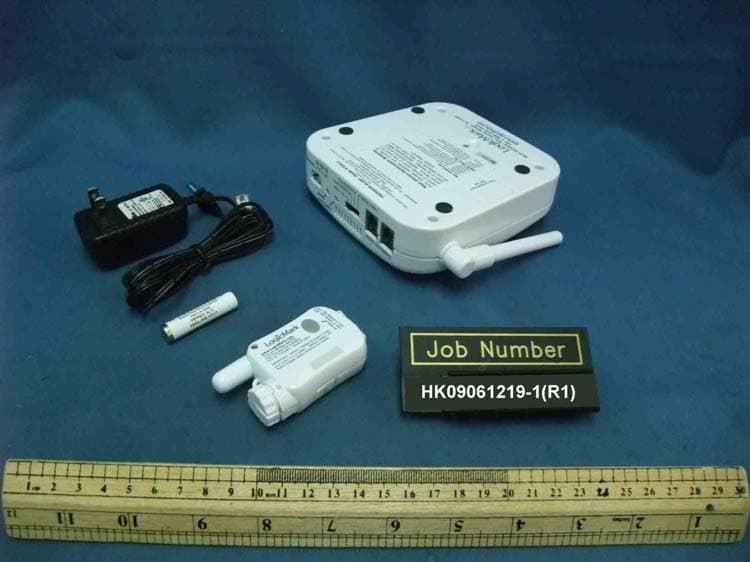

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: TYD35911 IC: 8471A-35911 config photos (radiated emission – base unit) - 1 of 2 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: TYD35911 IC: 8471A-35911 config photos (radiated emission - handset) - 2 of 2 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: TYD35911 IC: 8471A-35911 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: TYD35911 IC: 8471A-35911 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
